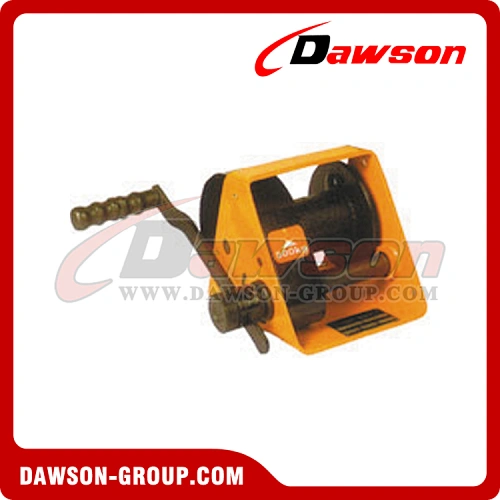

Manual Hand Winch for Pulling, Hand Winches
- Dawson Group Ltd. - China Manufacturer Supplier, Factory
Product explanation
| Description | Model | Rated Pull(KN) | Gbap | Handle Length(mm) | Drum-Hub |
| Ratlo | Dia(mm) | ||||
| Winch | T06 | 600(270) | 3.1:1 | 165 | ¢16 |
| T08 | 800(360) | 3.1:1 | 175 | ¢16 | |
| T10 | 1000(450) | 4.1:1 | 200 | ¢18 | |
| T12 | 1200(540) | 4.1:1 | 225 | ¢18 | |
| T14 | 1400(630) | 4.5:1 | 225 | ¢18 | |
| T16 | 1600(720) | 5.1:1 | 225 | ¢20 | |
| T18 | 1800(810) | 4.1:1&9.8:1 | 250 | ¢20 | |
| T20 | 2000(900) | 4.1:1&9.8:1 | 250 | ¢20 | |
| T20B | 2000(900) | 4.1:1&9.8:1 | 250 | ¢42 | |
| T25 | 2500(1100) | 5.1:1&12.2:1 | 275 | ¢42 | |
| Description | Model | Cable Size | Size of | Pieces in | |
| Colered belf | Each Box | ||||
| Diameter | Length | ||||
| (mm) | (m) | ||||
| Winch | T06 | ¢4.2 | 8 | 1.0X50X8m | 6 |
| T08 | ¢4.2 | 8 | 1.0X50X8m | 6 | |
| T10 | ¢4.5 | 10 | 1.2X50X8m | 6 | |
| T12 | ¢4.5 | 10 | 1.4X50X8m | 6 | |
| T14 | ¢4.5 | 10 | 1.6X50X8m | 6 | |
| T16 | ¢4.8 | 10 | 1.6X50X8m | 4 | |
| T18 | ¢4.8 | 10 | 1.8X50X8m | 4 | |
| T20 | ¢5 | 10 | 1.8X50X8m | 4 | |
| T20B | ¢5 | 10 | 1.8X50X8m | 4 | |
| T25 | ¢5 | 10 | 2.0X50X8m | 4 | |

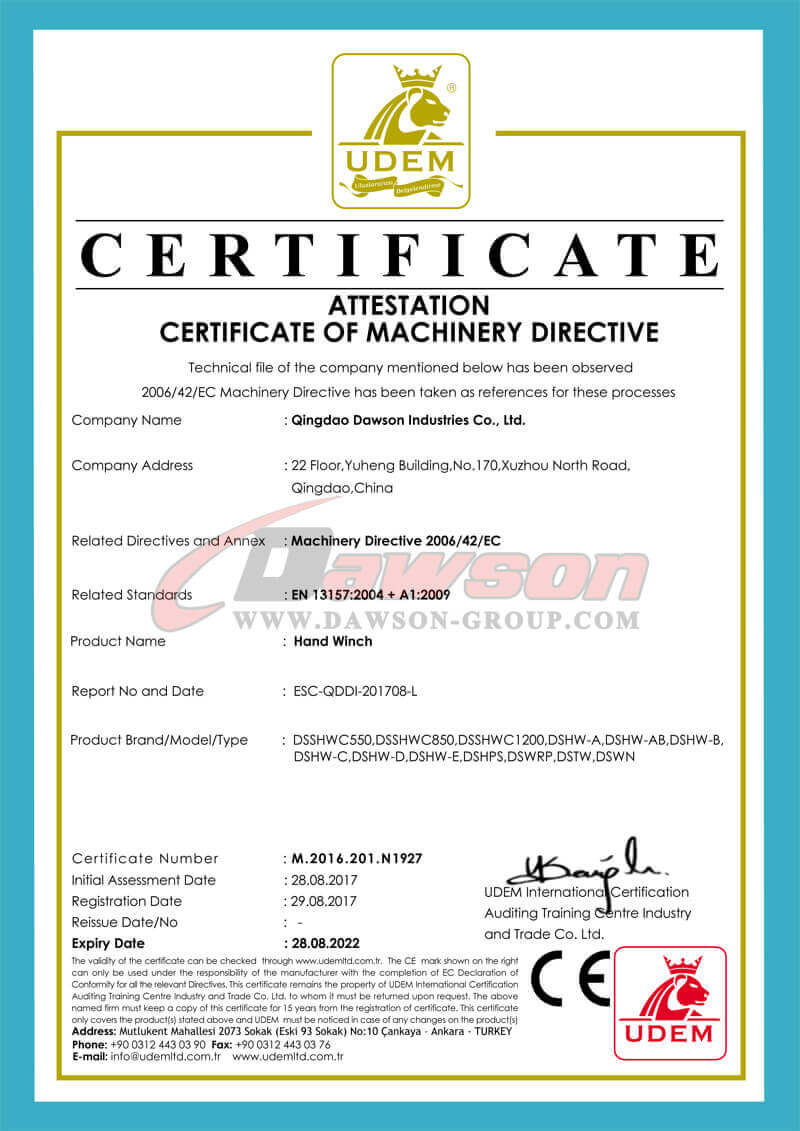

Certificate:

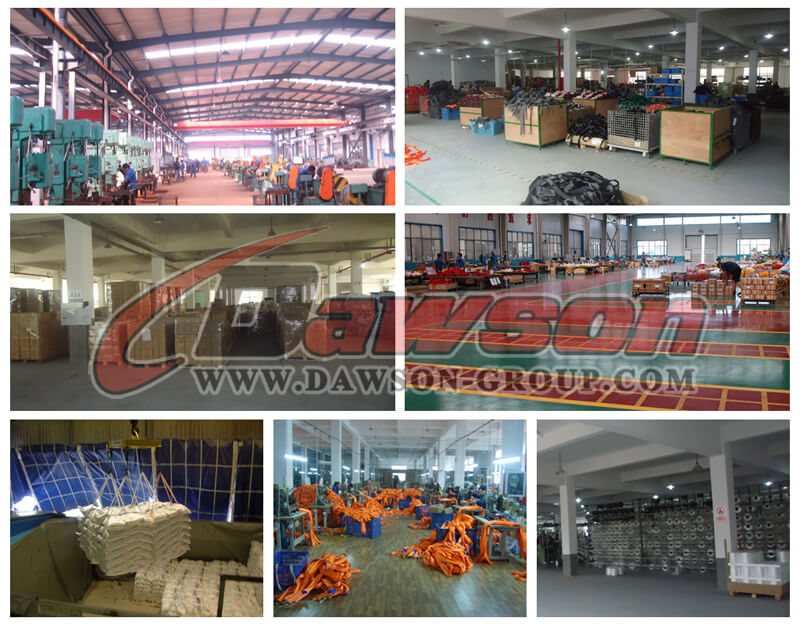

Hand Winch Factory & Package Show:
