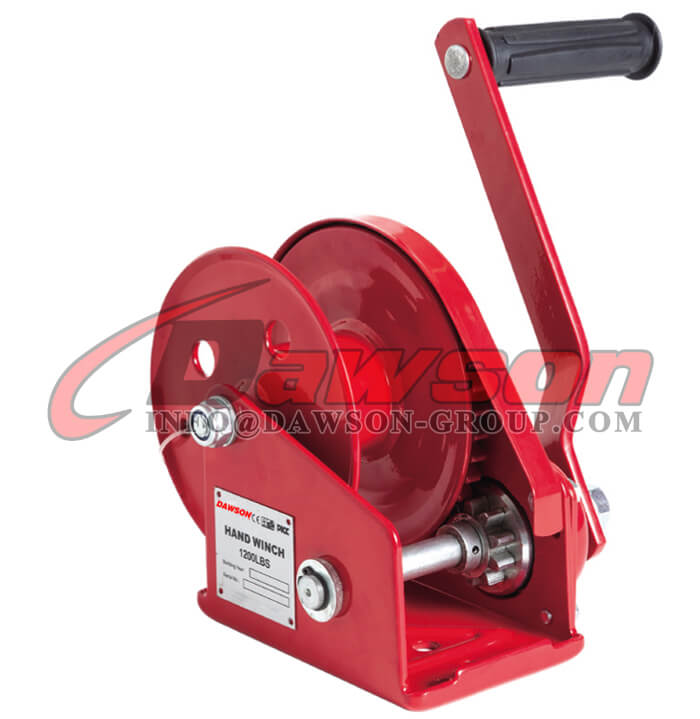

DSHW-C Type 1200lbs, 1800lbs, 2600lbs Truck Hand Winch (Portable Winch) for Pulling
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Characteristics
-Positive action brake can hold the load in any position.
-Compact, light weight and rugged construction.
-The brake is sealed in strong steel cover to protect from dust and rain.
-Stainless steel material(optional) for resistance to rust and corrosion.

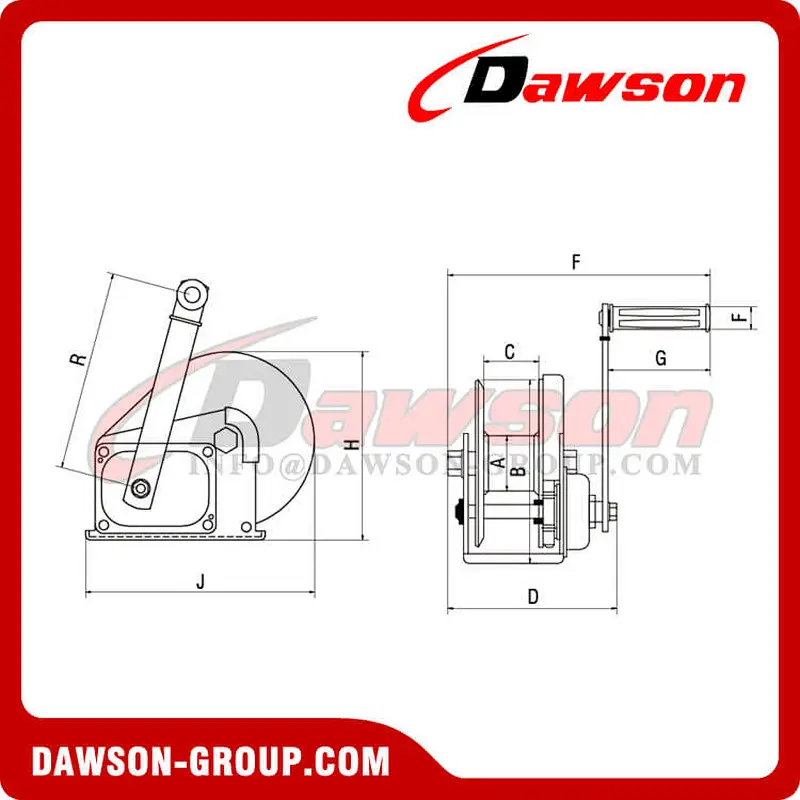

| Model | Capacity | Proof Load | Gear Ratio | Dimensions(mm) | N.W. | ||||||||||
| kg | lbs | kN | A | B | C | D | E | F | G | H | J | R | Kg | ||
| DSHWC550 | 550 | 1200 | 6.68 | 4.2:1 | Φ48 | Φ134 | 51 | 157 | Φ27 | 273 | 110 | 156 | 184 | 208 | 3.7 |
| DSHWC850 | 850 | 1800 | 10 | 5:1 | Φ60 | Φ180 | 60 | 190 | Φ27 | 288 | 110 | 203 | 246 | 319 | 7.8 |
| DSHWC1200 | 1200 | 2600 | 14.45 | 10:1 | Φ75 | Φ180 | 63 | 209 | Φ27 | 307 | 110 | 216 | 294 | 319 | 10.3 |
-Only for pulling.
Featured
Winching housing and rope drum from robust steel plate for high versatility
Rope drum bush bearings for flawless rope lead-off

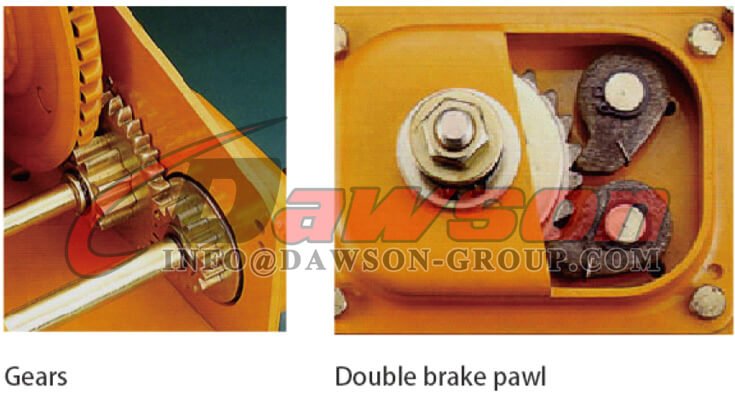

Spur gear drive for optimal efficiency
Compact design
Easy and quick mounting onto walls ,poles, towers etc.
Pivotable handle
Automatic load pressure brake for safe holding and extremely
sensitive lowering of the load
Unintentional brake release is prevented even with swinging loads
Suitable for operation in ambient temperatures of -10° to +50°
Welcome to buy the newest and competitive price DAWSON DSHW-C Type 1200lbs, 1800lbs, 2600lbs Truck Hand Winch (Portable Winch) for Pulling from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email: info@dawson-group.com
Certificate:

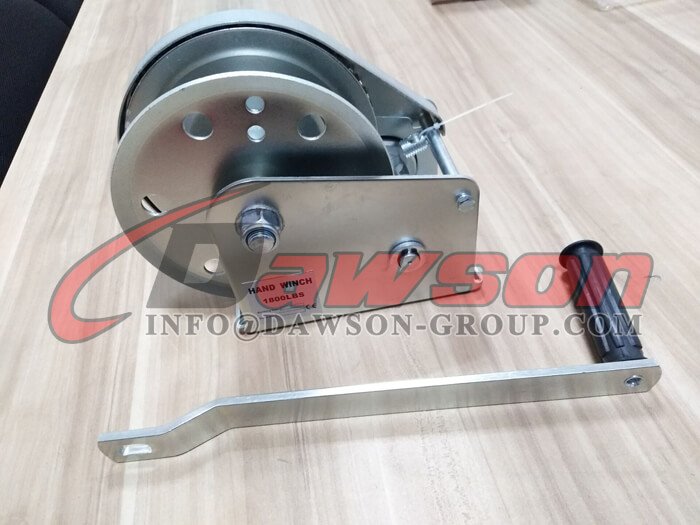

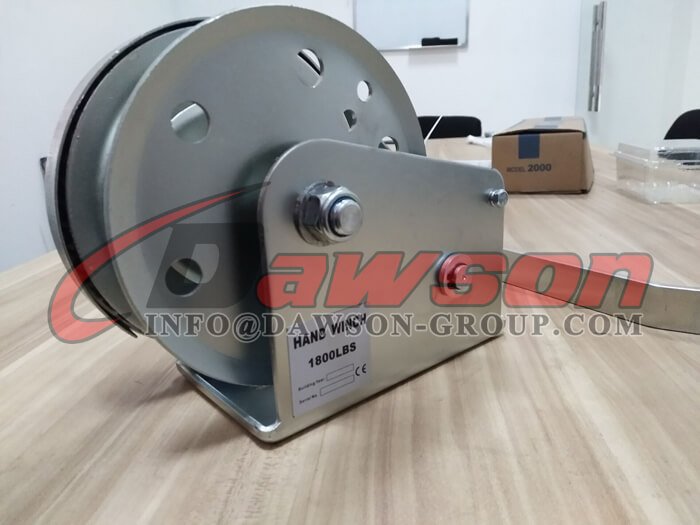

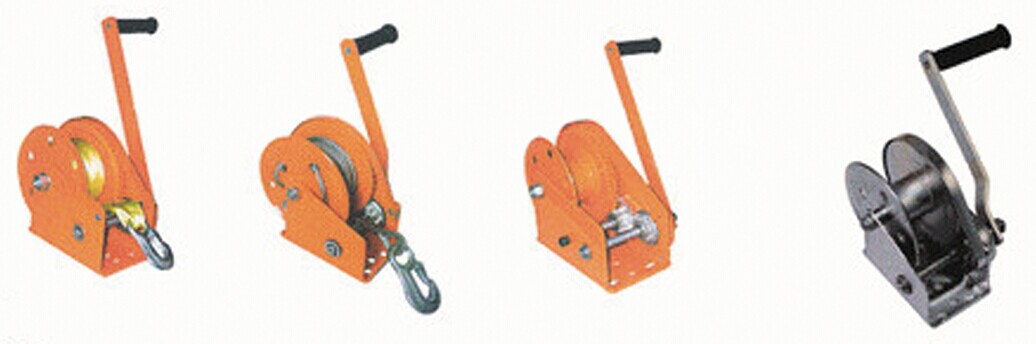

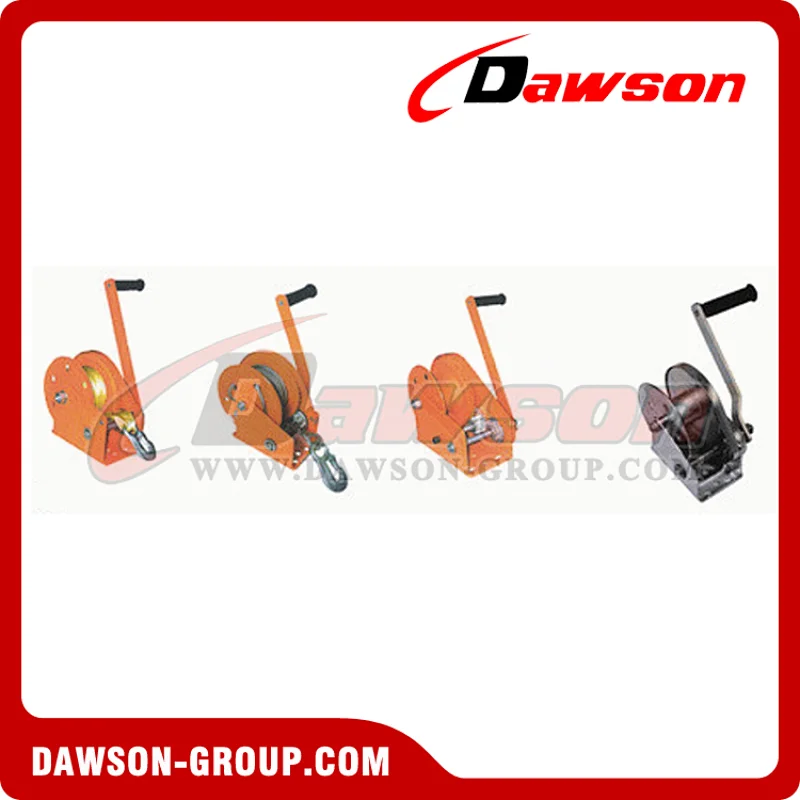

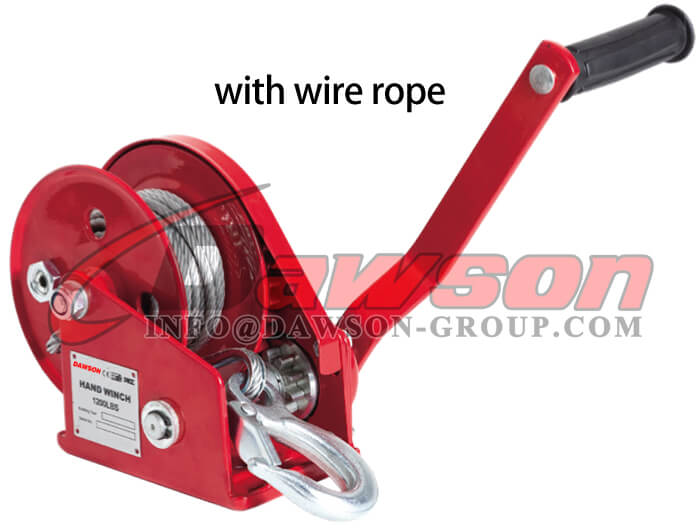

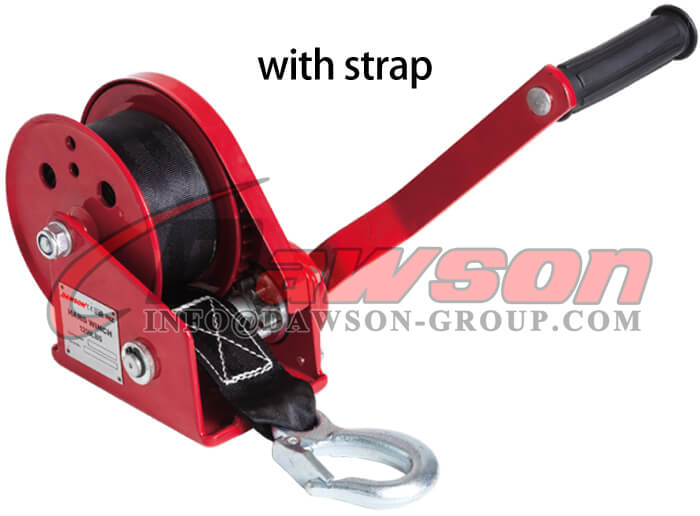

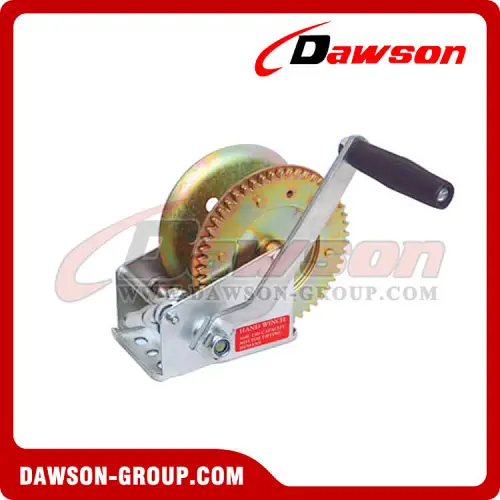

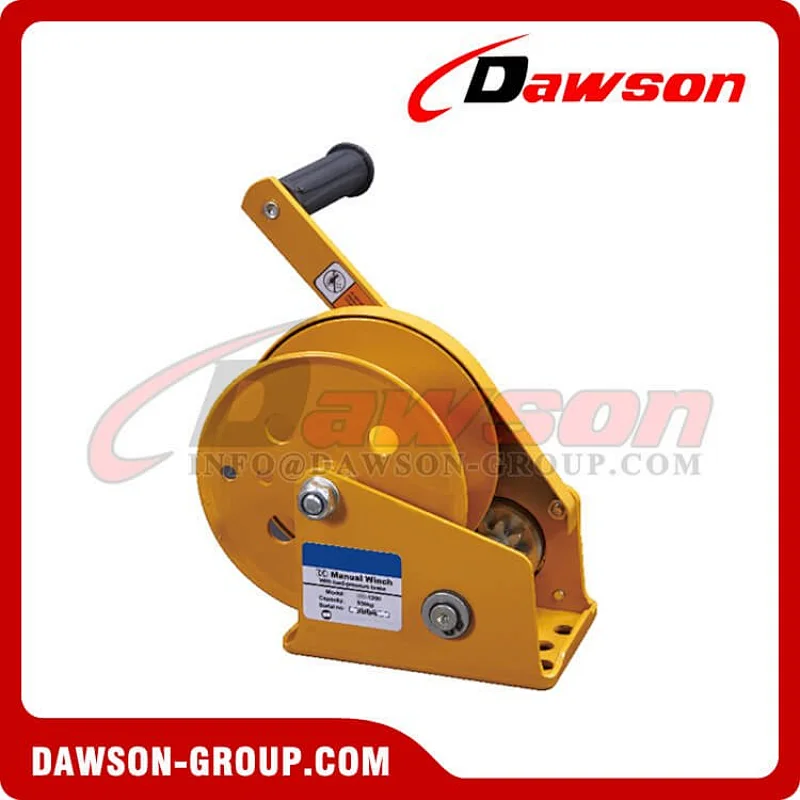

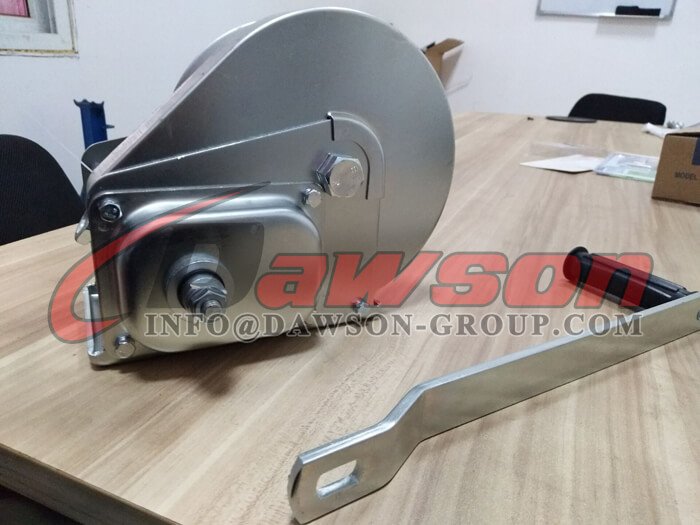

Products Show:

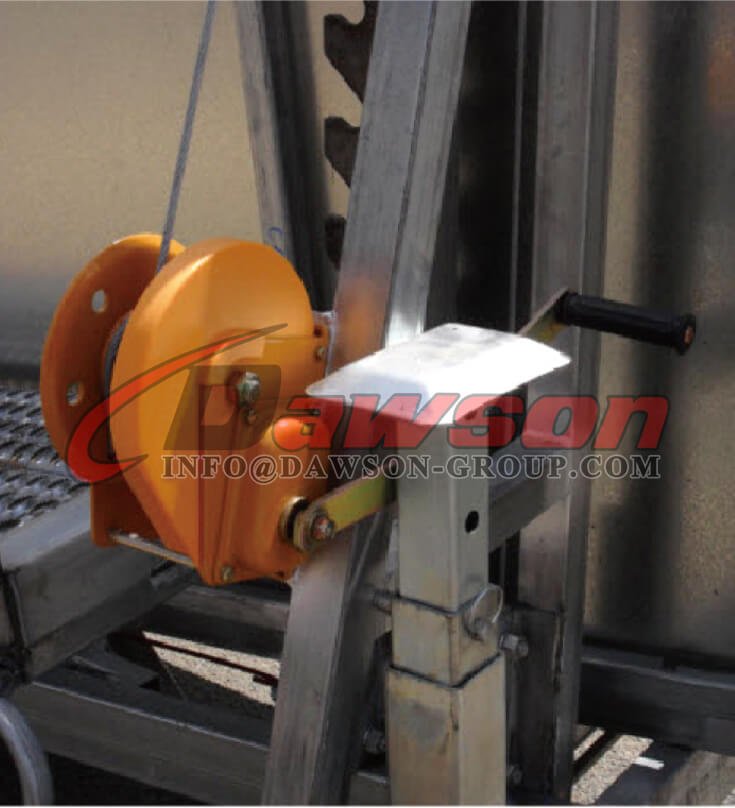

Application of Manual Hand Winch:
Package of Truck Hand Winch:

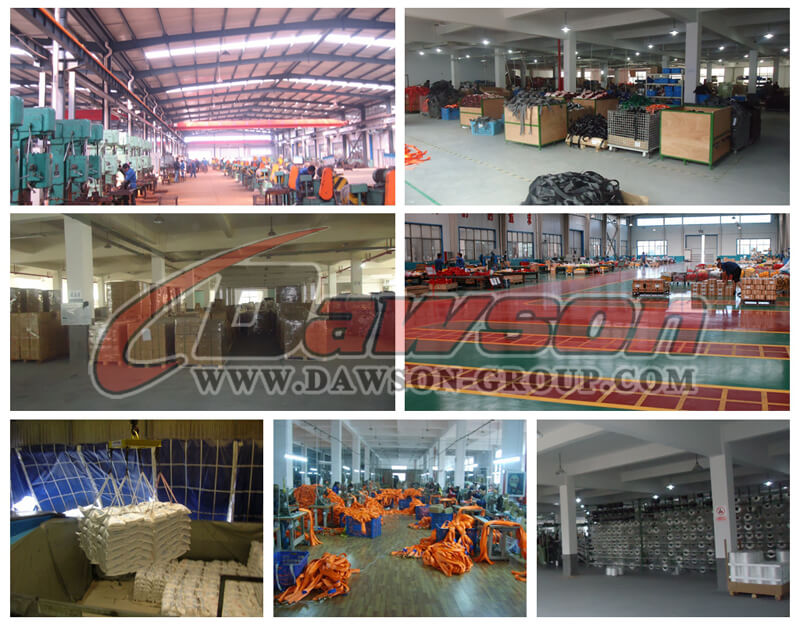

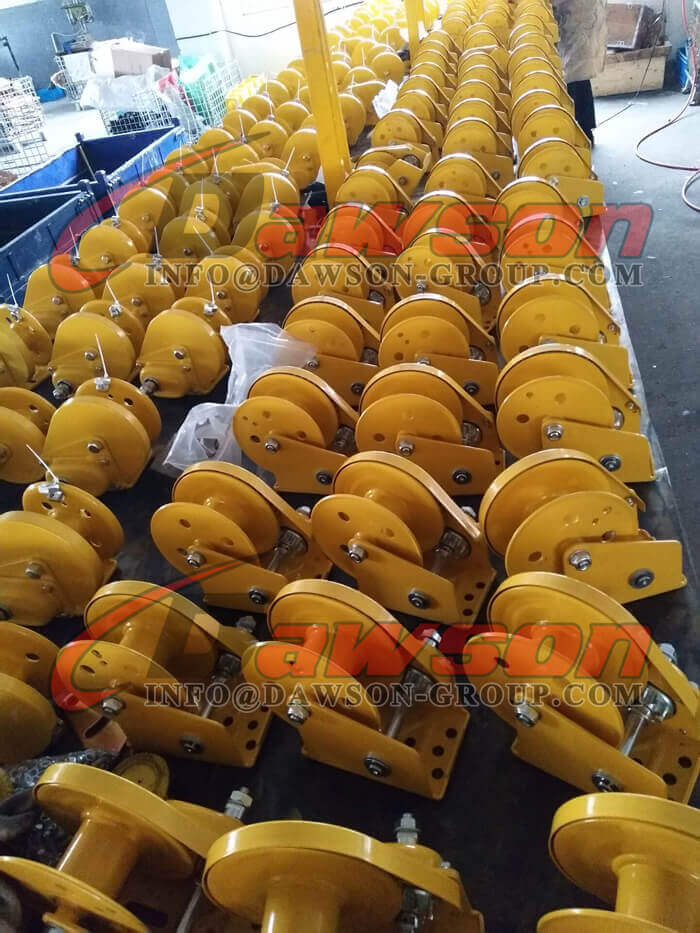

Factory & Package Show:
