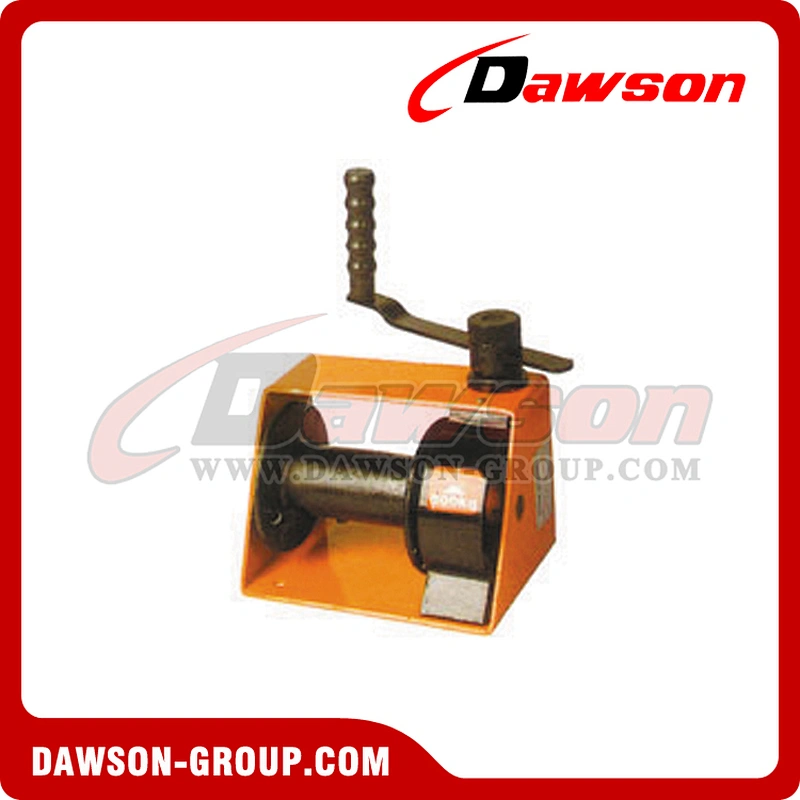

DSHW-A TYPE 250kg-1000kg Worm Gear Hand Lifting Winch with CE Certificate
- Dawson Group Ltd. - China manufacturer, Supplier, Factory

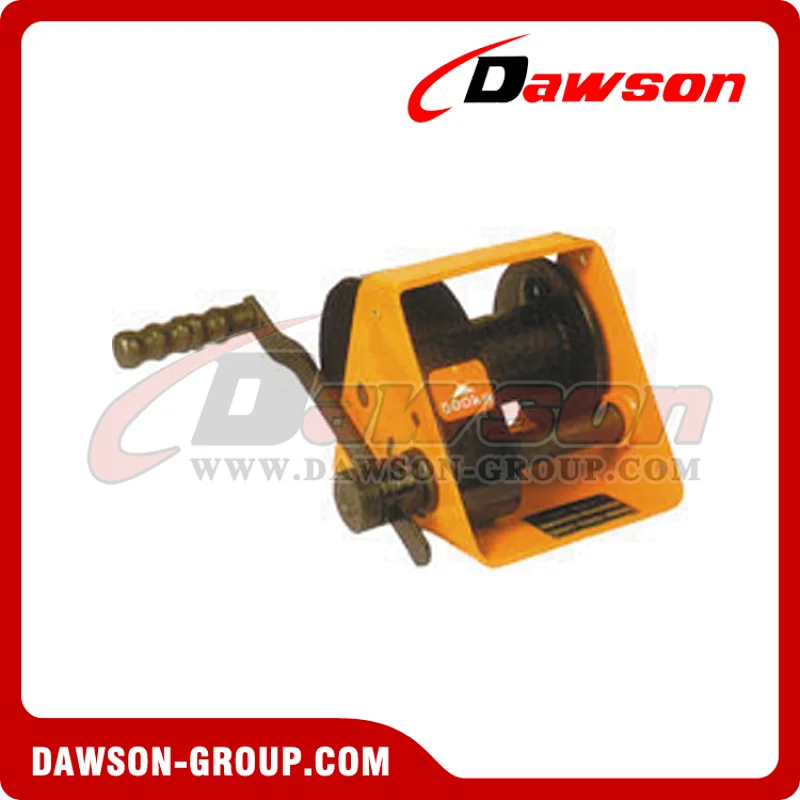

Hand Spur Gear Winch
Featured
Position: flat or wall-mounted
Industry
Auditoriums, theatre scenery
Water treatment, water retentions
Transport: trailers, barges
Sports rooms
Hanging chandeliers….
Technical Properties
Encased mechanical parts
Automatic brake
Stainless steel ratchet spring
Straight-cut gears
Highly rugged design, thanks to the exceptional
rigidity of the frame
Automatic brake made of composite materials.
Ergonomic and removable crank handle with rotating grip, This crank arm can be adjusted to minimise effort according to the loads,
Captive adjusting knob.
| Model | Capacity | Wire Rope | Length | No. of Layers | Net Weight | ||
| kg | mm | mm | kg | ||||
| DSHWA150 | 150 | 4 | 22 | 6 | 8 | ||
| DSHWA300 | 300 | 5 | 40 | 6 | 16 | ||
| DSHWA500 | 500 | 6.8 | 25 | 4 | 17 | ||
| DSHWA1000 | 1000 | 9 | 25 | 4 | 38 | ||
| DSHWA2000 | 2000 | 13 | 30 | 3 | 60 | ||

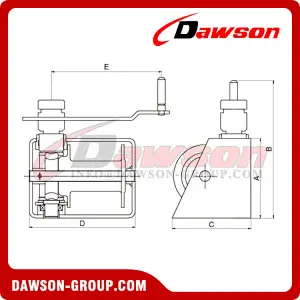

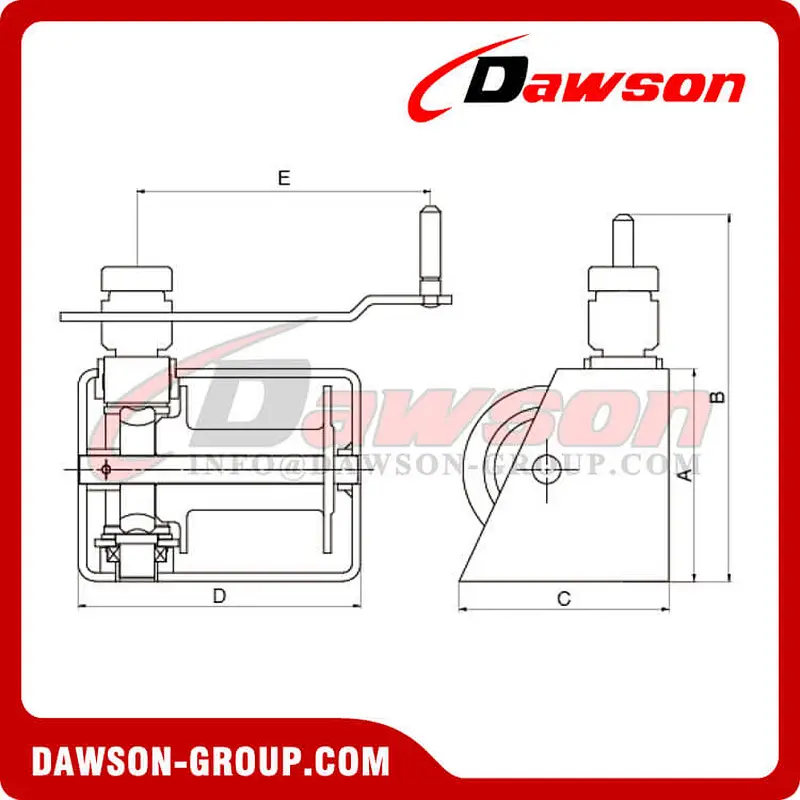

| Capacity | A | B | C | D | E | ΦX | Drive Ratio | |
| kg | mm | m | ||||||
| 150 | 180 | 325 | 150 | 150 | 350 | 4*22 | 2.842:1 | |
| 300 | 240 | 385 | 200 | 200 | 250 | 5*40 | 6.67:1 | |
| 500 | 240 | 385 | 200 | 200 | 250 | 6.8*20 | 7.75:1 | |
| 1000 | 412 | 485 | 300 | 300 | 350 | 9*25 | 23.75:1 | |
| 2000 | 500 | 585 | 405 | 405 | 350 | 13*30 | 43.7:1 | |

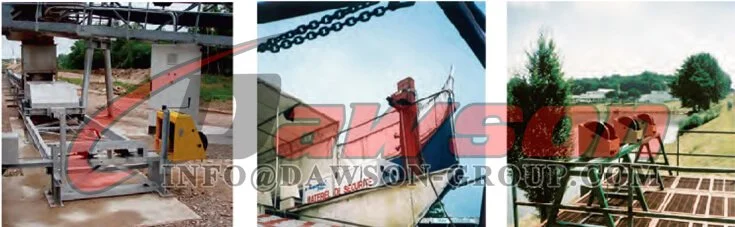

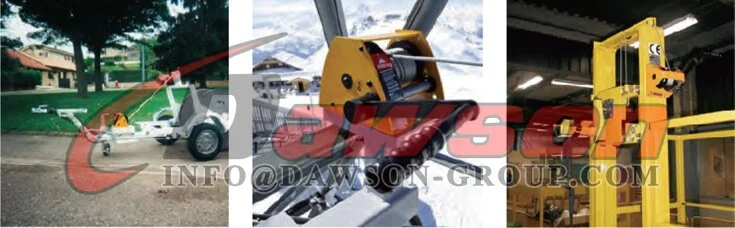

Application of Hand Spur Gear Winch:

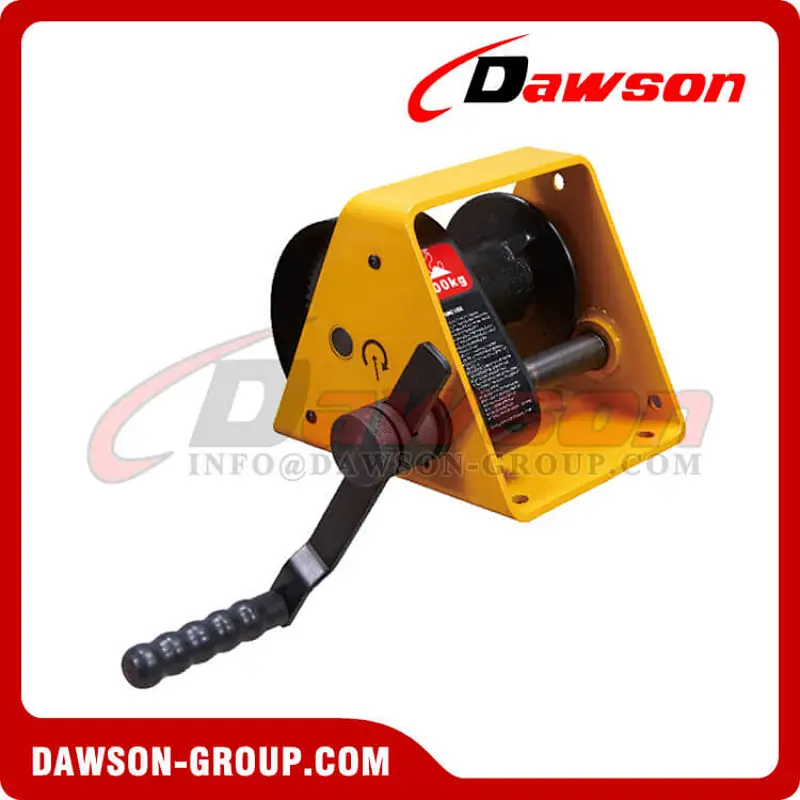

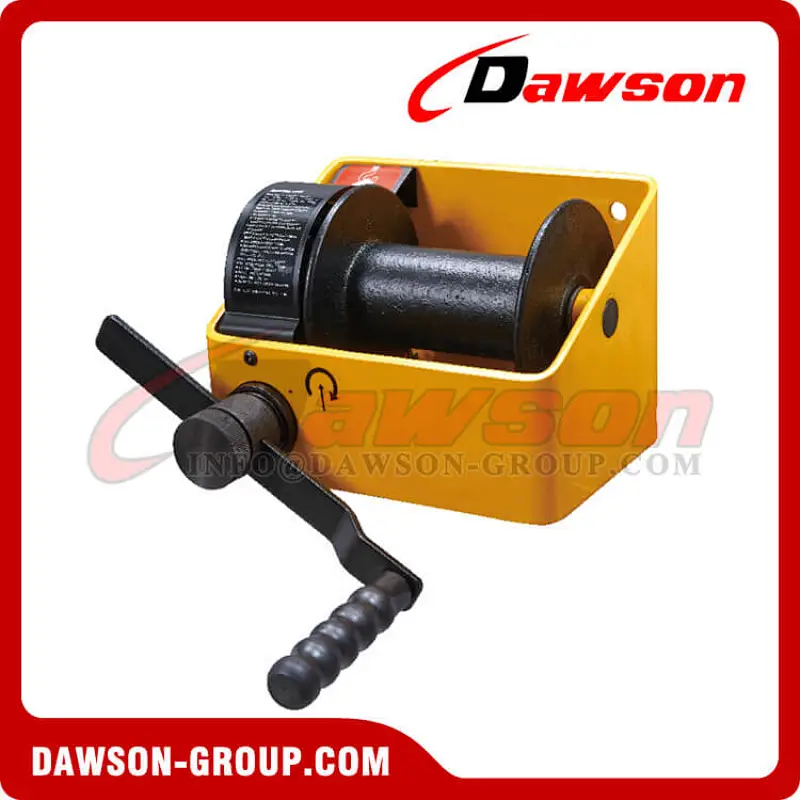

Hand Worm Gear Winch
Featured

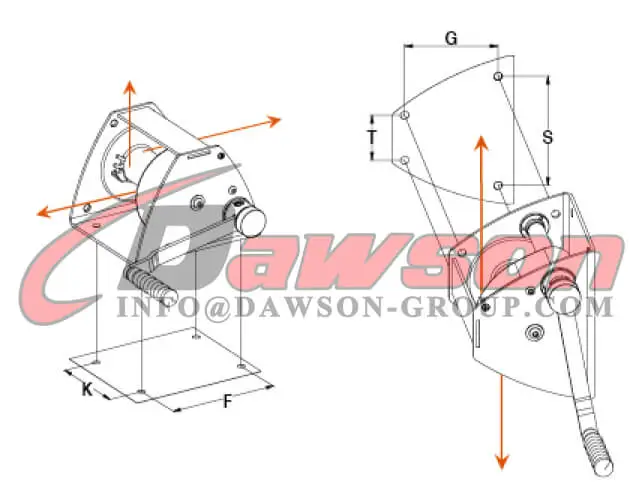

Position: flat or wall-mounted
Industry
Shows, sceneries
Water treatment, water retentions
Sports rooms
Hanging chandeliers.

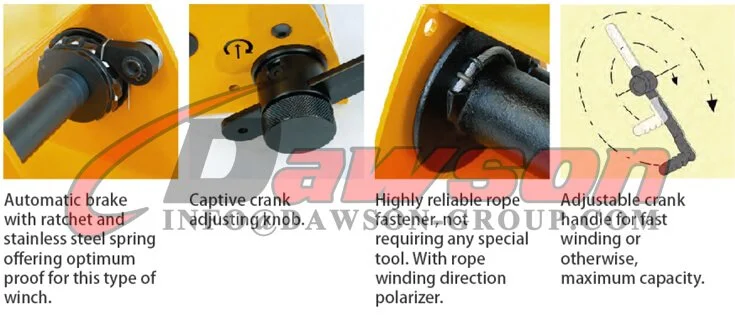

Technical Properties
Absolute safety by worm gear reduction +automatic brake.
Encased mechanical parts
Automatic brake
Stainless steel ratchet spring.
Straight-cut gears.
Highly rugged design, thanks to the exceptional rigidity of the frame
Ergonomic and removable crank handle with rotating grip, This crank arm can be adjusted to minimise effort according to the loads
Captive adjusting knob.

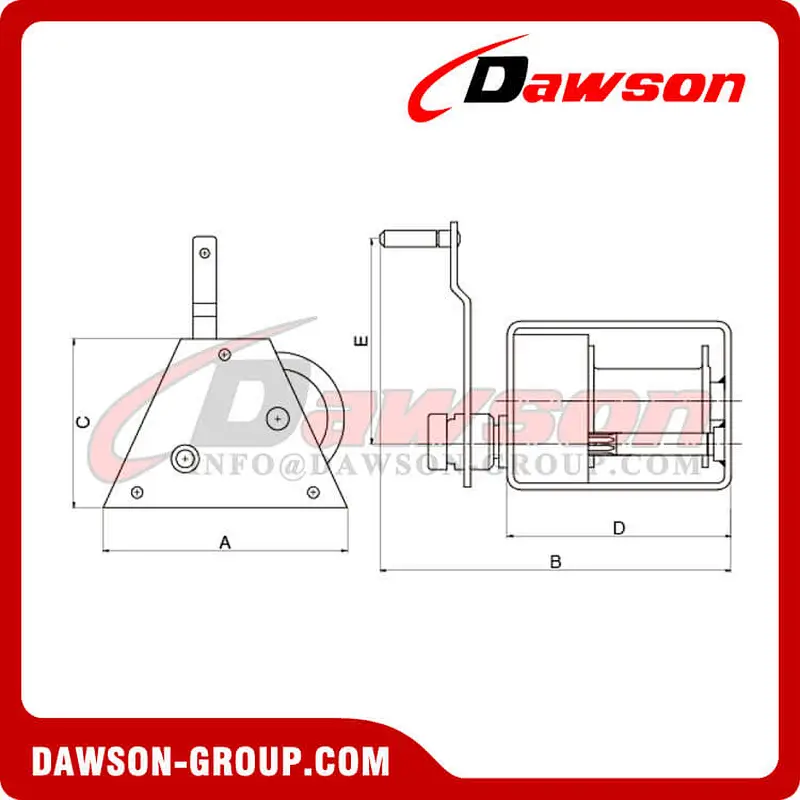

| Item No | S.W.L. | Load Capacity | For Wire Rope | Length | Number of Layers | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | ΦX(m) | Drive ratio | Weight(kg) |
| DSHWAB-250 | 250kg | 250kg | 5mm | 20m | 4 | 150 | 330 | 150 | 200 | 240 | 5×20 | 15:1 | 10 |
| DSHWAB-500 | 500kg | 500kg | 6.8mm | 25m | 4 | 180 | 360 | 180 | 260 | 240 | 6.8×25 | 21:1 | 16 |
| DSHWAB-1000 | 1000kg | 1000kg | 9mm | 35m | 4 | 300 | 490 | 300 | 300 | 370 | 9×35 | 26:1 | 40 |
Welcome to buy the newest and competitive price DAWSON DSHW-A TYPE 250kg-1000kg Worm Gear Hand Lifting Winch from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

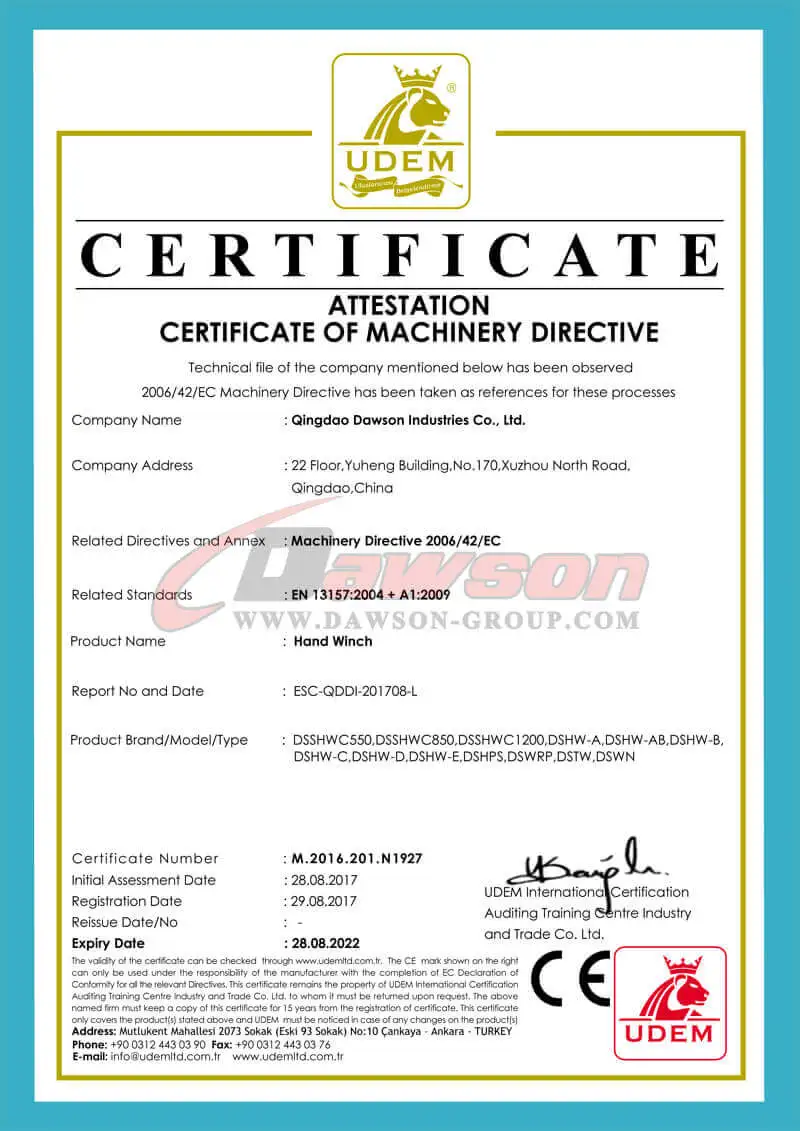

Certificate:
Hot Tags: Hand Winch, Hand Worm Gear Winch, Boat Trailer Hand Winch, Truck Hand Winch, Hand Spur Gear Winch, Small Hand Winch, Reversible Hand Winches China, Hot Sale Hand Winch, Buy Discount Reversible Hand Winches, Manual Hand Winch, China Reversible Hand Winches Manufacturer, China Factory Portable Hand Winch, Low Price Steel Reversible Hand Winches, China Steel Hand Winch Exporter, Customized Reversible Hand Winches, Steel Small Hand Winch In Stock, Steel Hand Winch OEM, Hand Winch for Pulling Free Sample, Wholesale Hand Spur Gear Winch, Cheap Price Worm Gear Winch
If you have any intrest, please contact us. E-mail: info@dawson-group.com.
Factory & Package Show:
