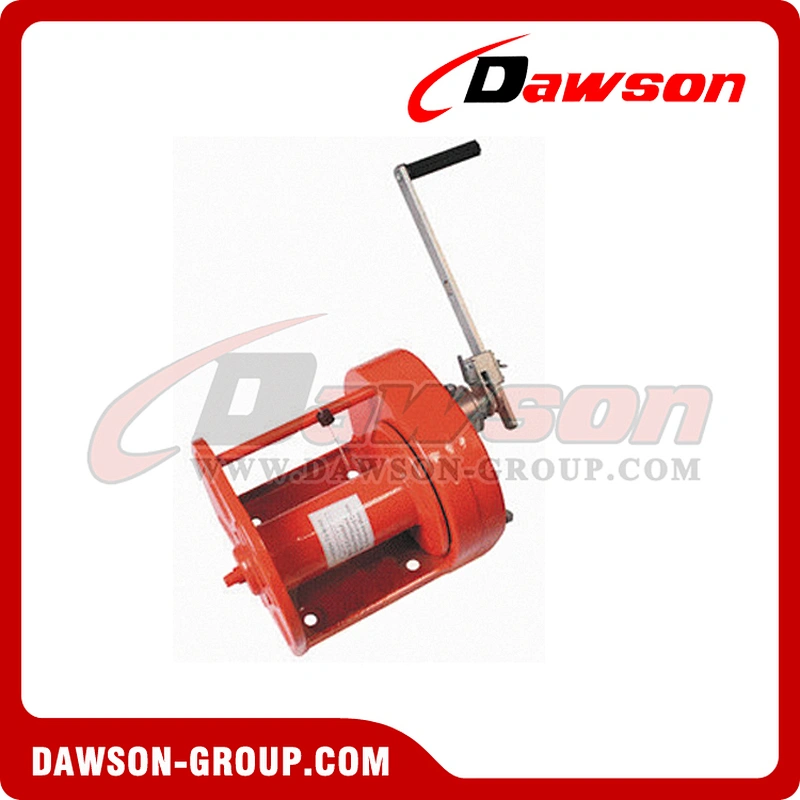

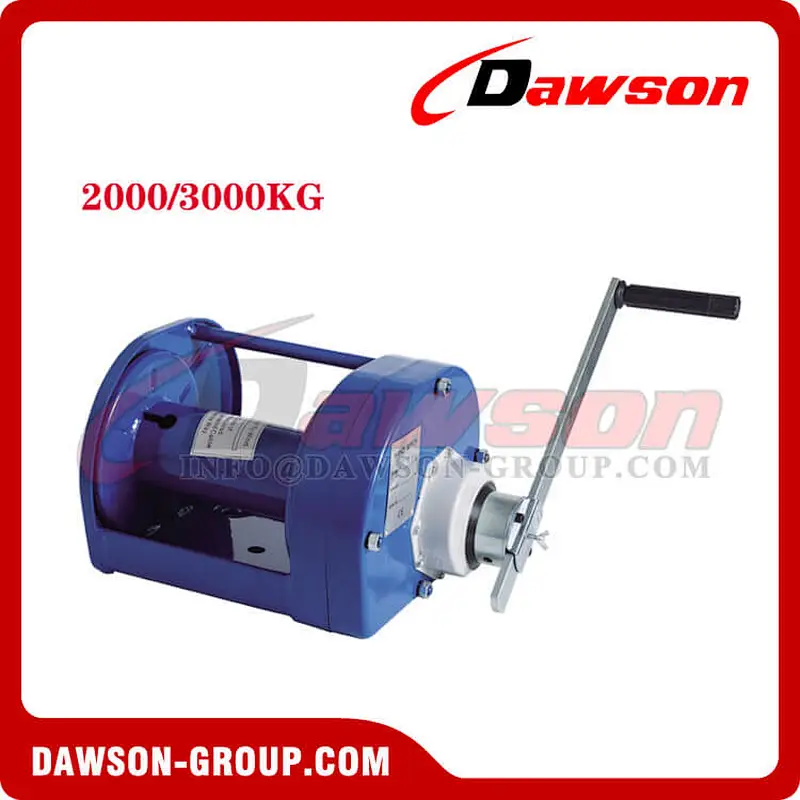

DSHW-E Type Powder Coating Portable Cable Hand Winch
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Model | DSHWE005 | DSHWE010 | DSHWE020 | DSHWE030 | |
| Capacity t | 0.5 | 1 | 2 | 3 | |
| Proof Load kN | 6.125 | 12.25 | 24.5 | 36.75 | |
| Wire Rope mm x m | 6.3 x 40 | 8 x 40 | 9 x 40 | 12.5 x 40 | |
| Gear Ratio | 4.33:1 | 12.18:1 | 22.68:1 | 29.16:1 | |
| Handle Length mm | 350 | 350 | 350 | 350 | |
| Min. Hand Force Required | N | 120 | 120 | 130 | 180 |

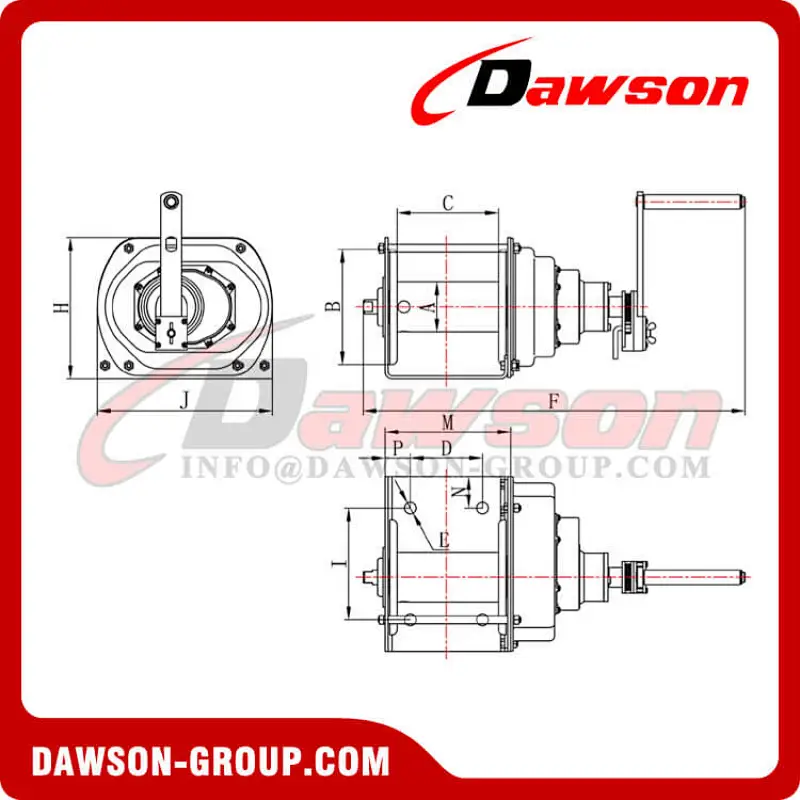

| Dimensions(mm) | A | 60 | 76 | 90 | 100 |
| B | 140 | 175 | 190 | 230 | |
| C | 150 | 154 | 195 | 205 | |
| D | 100 | 110 | 155 | 155 | |
| E | 15 | 18 | 18 | 18 | |
| F | 403 | 443 | 490 | 549 | |
| H | 182 | 214 | 230 | 296 | |
| I | 130 | 170 | 170 | 170 | |
| J | 245 | 266 | 300 | 365 | |
| M | 178 | 191 | 302 | 356 | |
| N | 57.5 | 48 | 44 | 77 | |
| P | 39 | 38.5 | 43 | 68.5 | |
| Net Weight kg | 14.4 | 19.7 | 25.1 | 44.3 | |
Characteristics

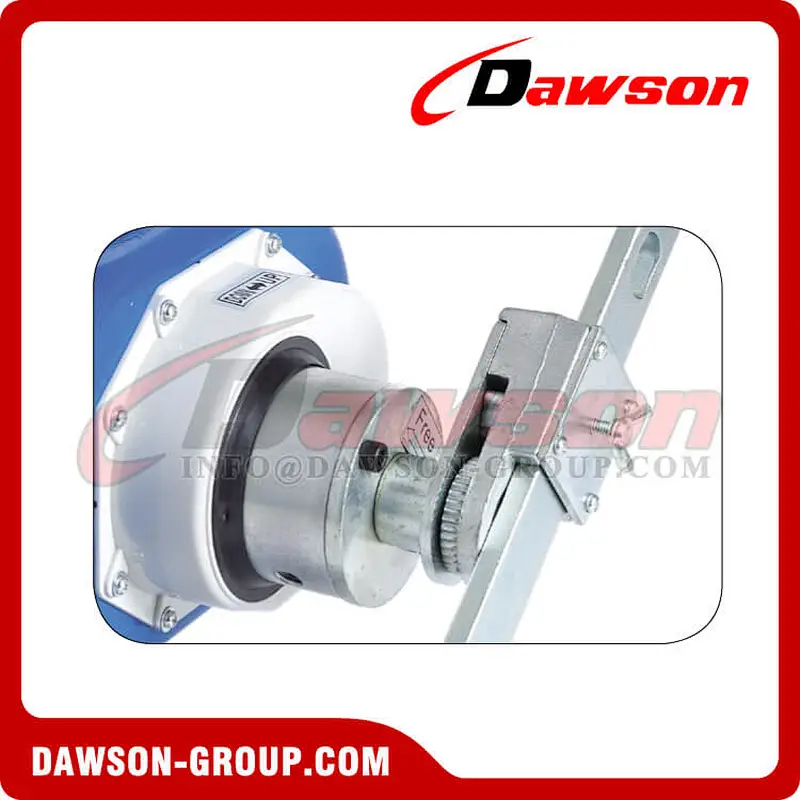

1.Double-Pawl braking system ensure safety.
2.Using asbestos free friction discs.
3.Handle length is easily adjustable.
4.The drum is big enough to contain more cable, suit for long distance using.
5.Adopting lever handle, it can be used in the narrow space.
6.The winch is designed with sealed structure to avoid dust.
Certificate:

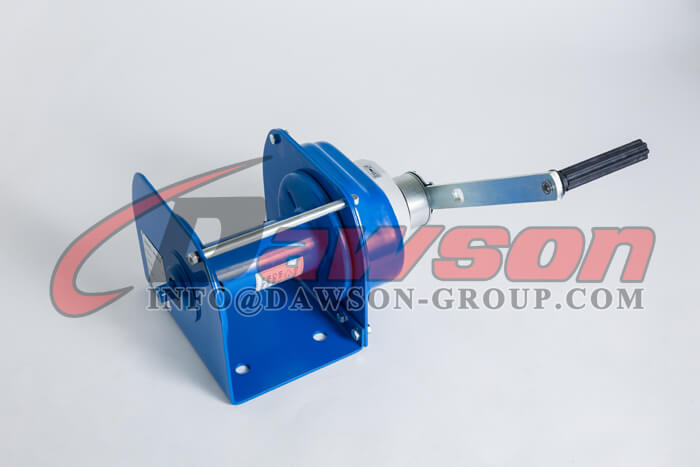

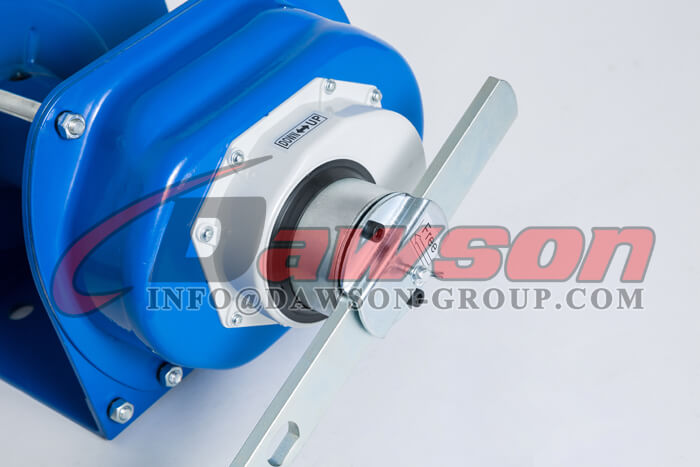

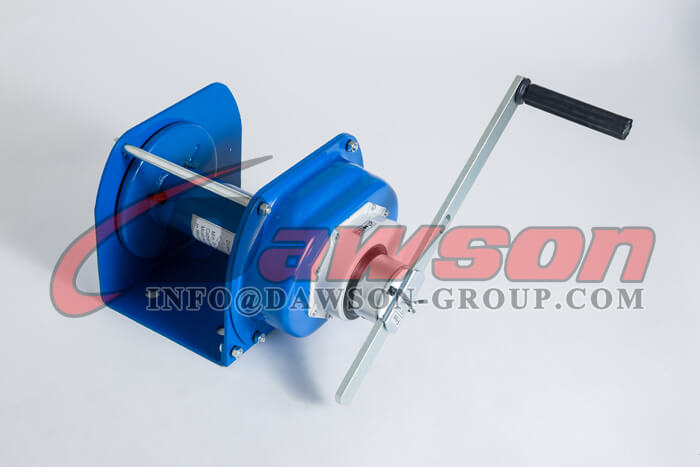

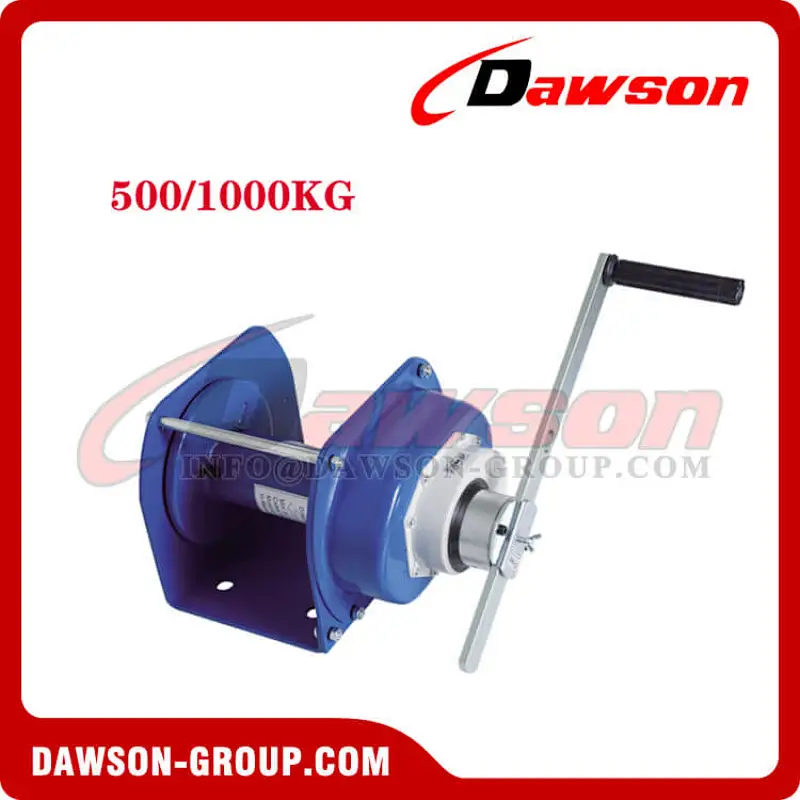

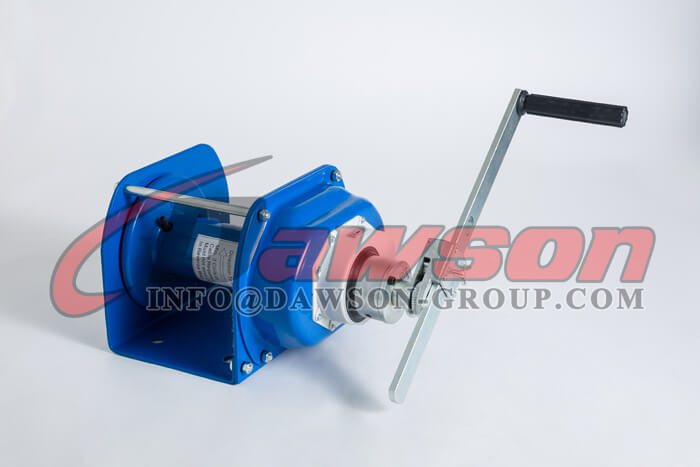

Products Show:

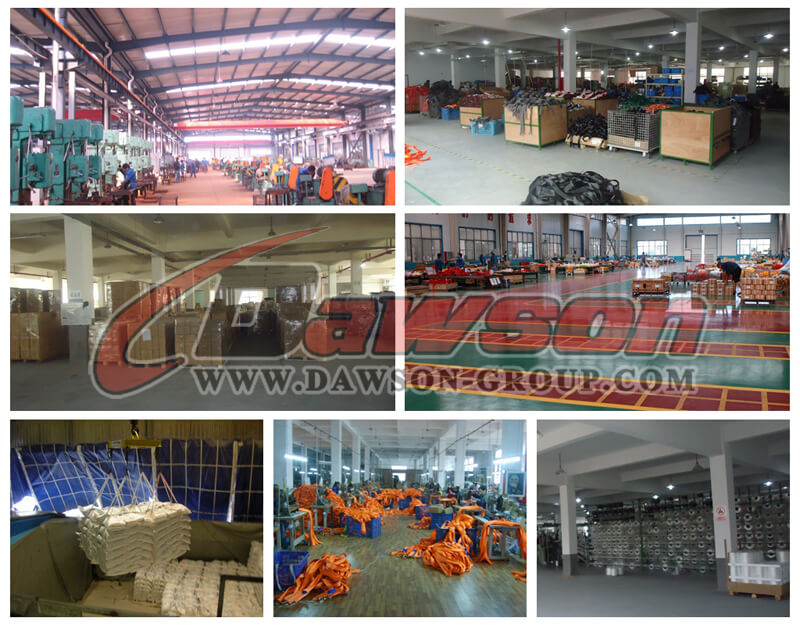

Factory & Package Show:
