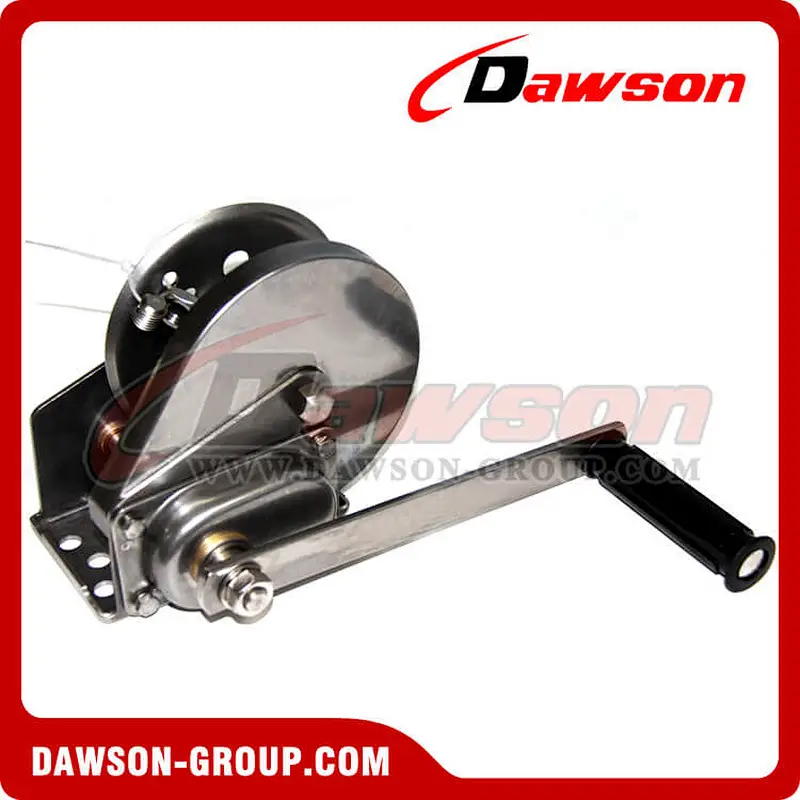

1200LBS SS304 Small Stainless Steel Reversible Hand Winches
- Dawson Group Ltd. - China Manufacturer Supplier, Factory
Characteristics
-Positive action brake can hold the load in any position.
-Compact, light weight and rugged construction.
-The brake is sealed in strong steel cover to protect from dust and rain.
-Stainless steel material(optional) for resistance to rust and corrosion.
-Only for pulling.
| Model | Capacity | Proof Load | Gear Ratio | Dimensions(mm) | N.W. | ||||||||||
| kg | lbs | kN | A | B | C | D | E | F | G | H | J | R | Kg | ||
| DSSHWC550 | 550 | 1200 | 6.68 | 4.2:1 | Φ48 | Φ134 | 51 | 157 | Φ27 | 273 | 110 | 156 | 184 | 208 | 3.7 |
| DSSHWC850 | 850 | 1800 | 10 | 5:1 | Φ60 | Φ180 | 60 | 190 | Φ27 | 288 | 110 | 203 | 246 | 319 | 7.8 |
| DSSHWC1200 | 1200 | 2600 | 14.45 | 10:1 | Φ75 | Φ180 | 63 | 209 | Φ27 | 307 | 110 | 216 | 294 | 319 | 10.3 |
Certificate:

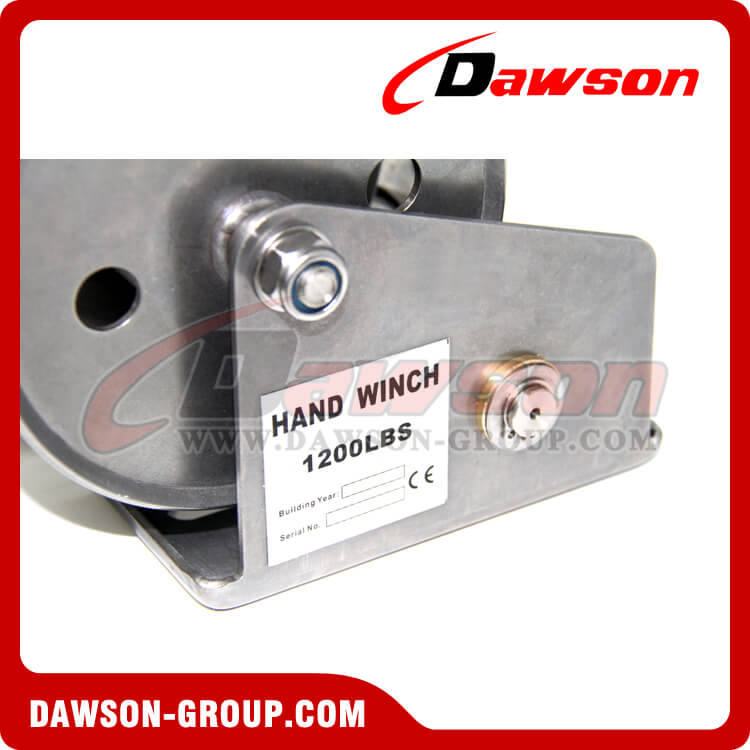

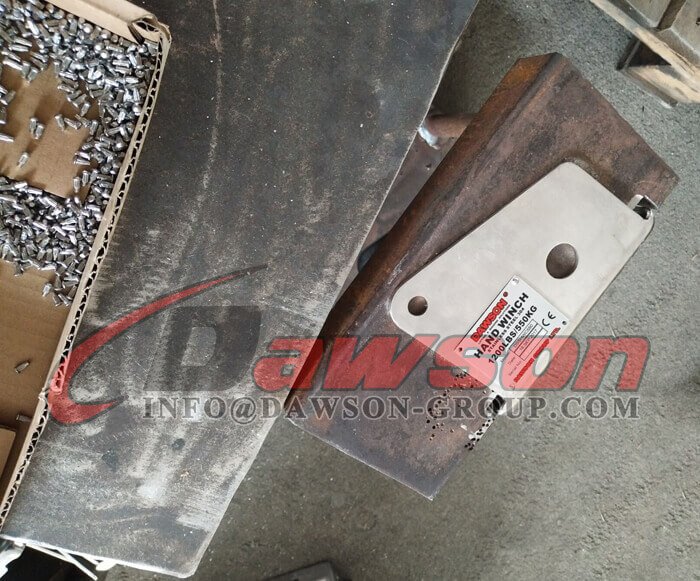

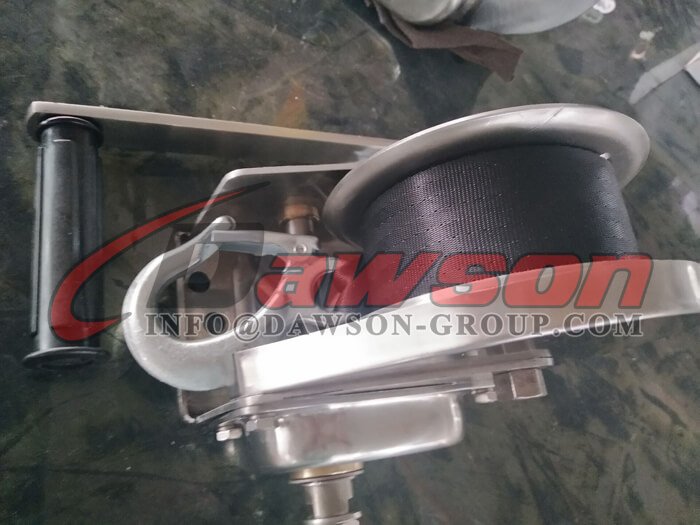

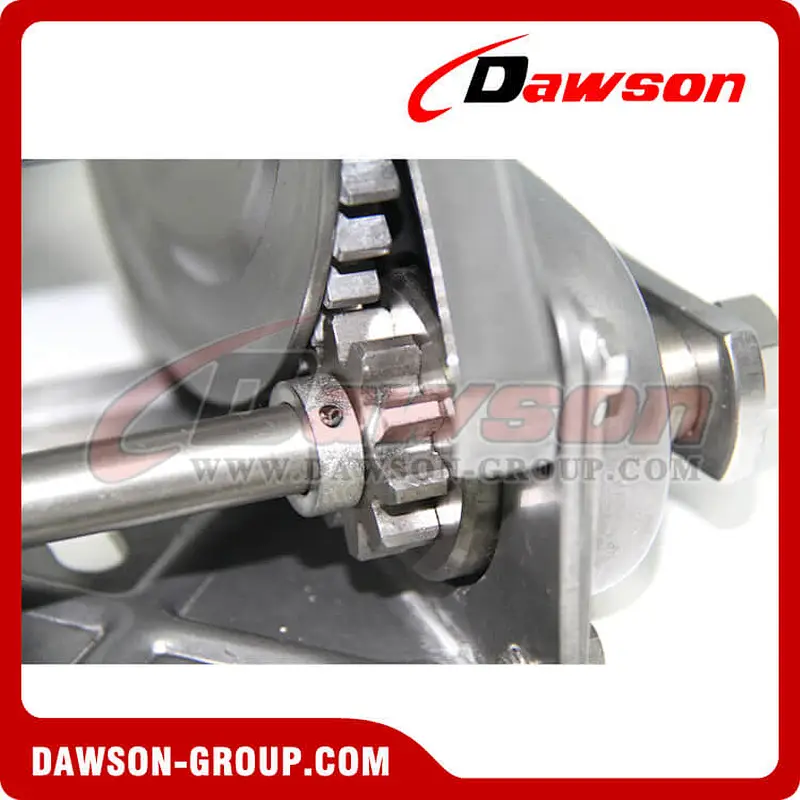

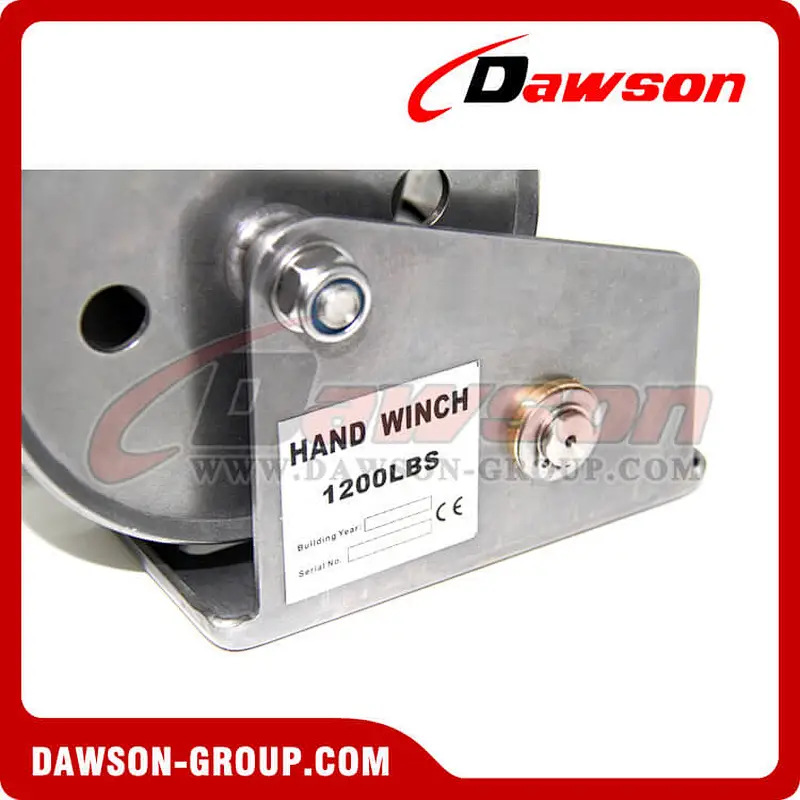

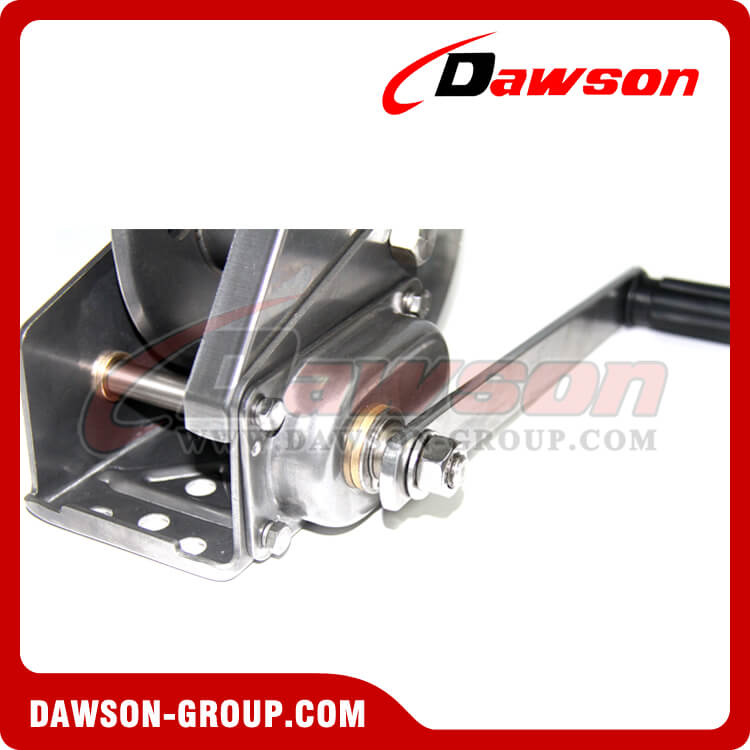

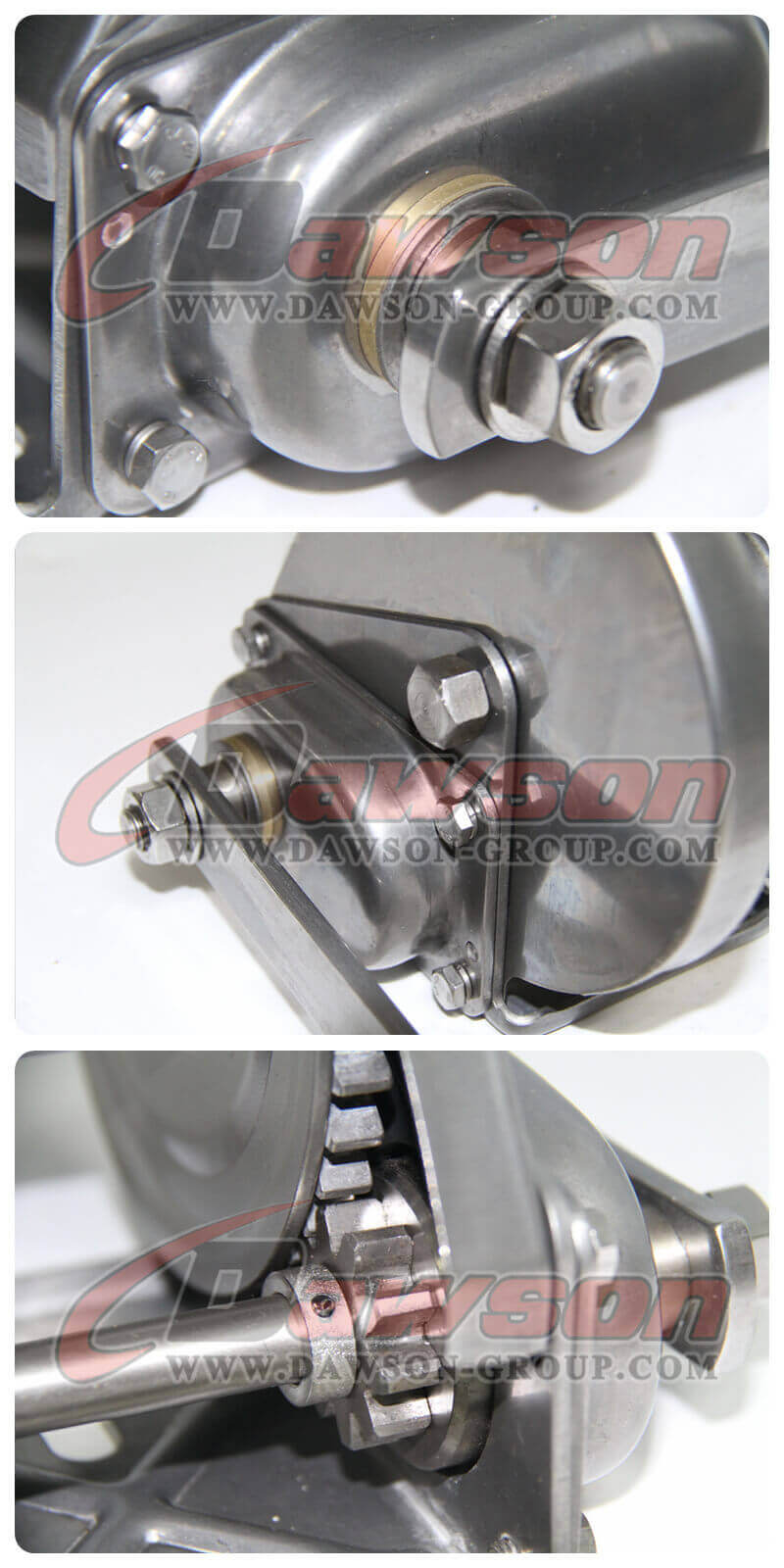

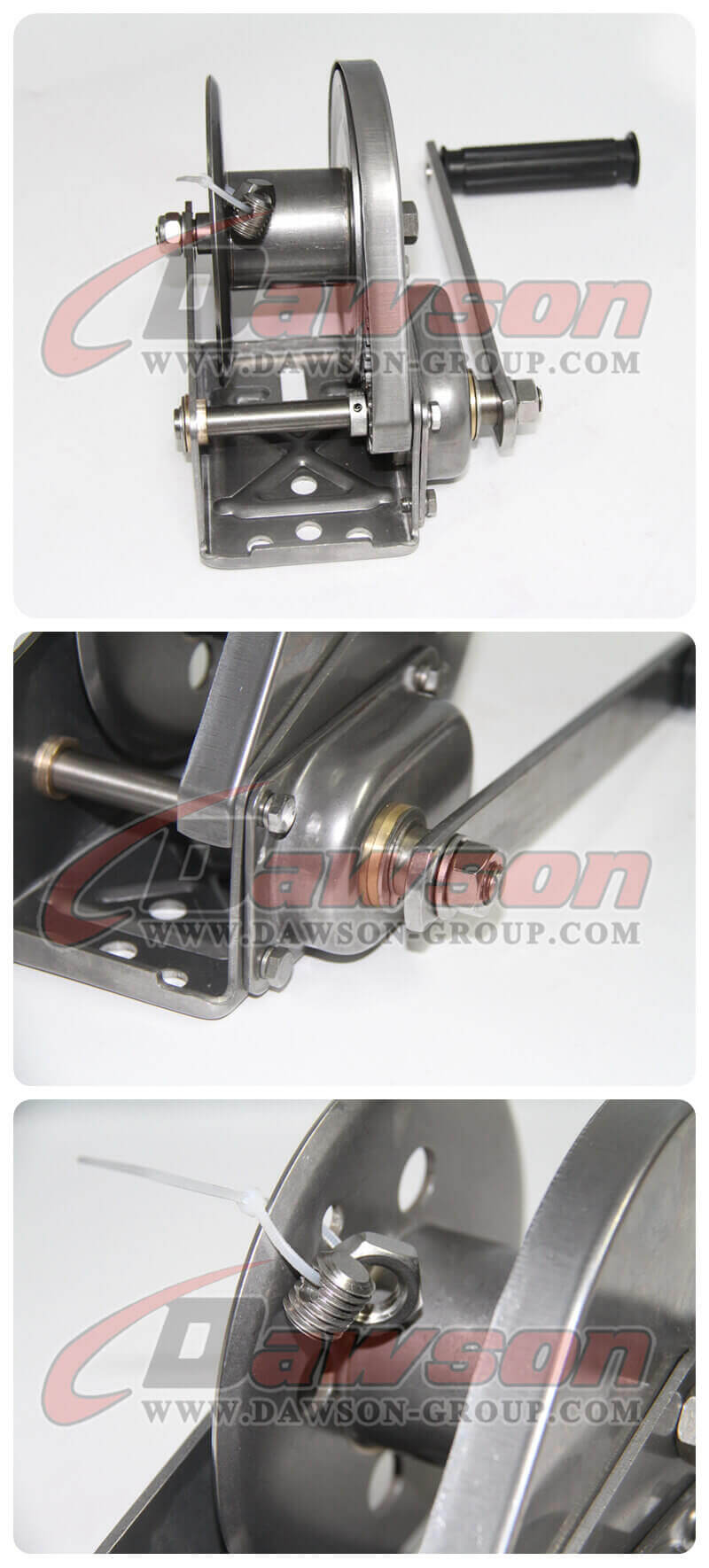

Products Detail Show:

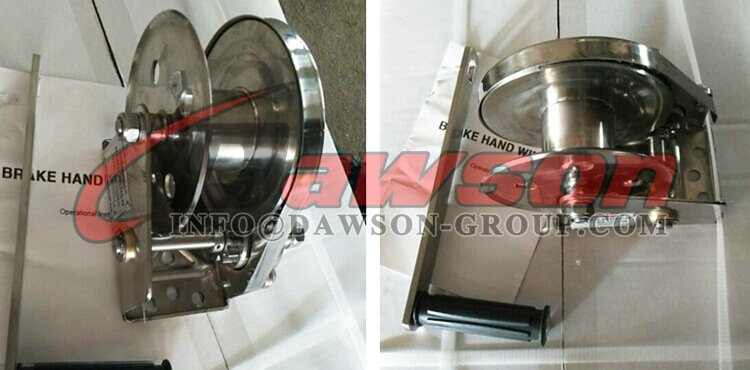

Products Show:

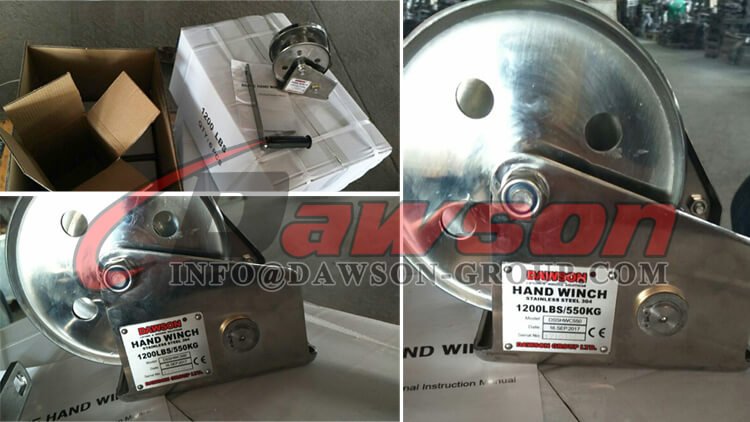

Package of Stainless Steel Hand Winch:

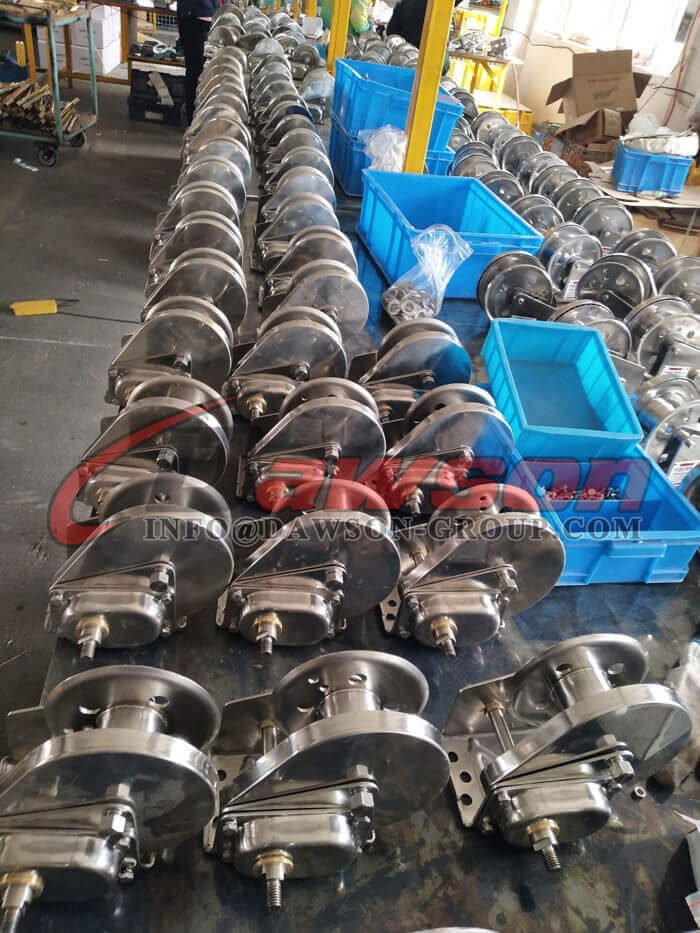

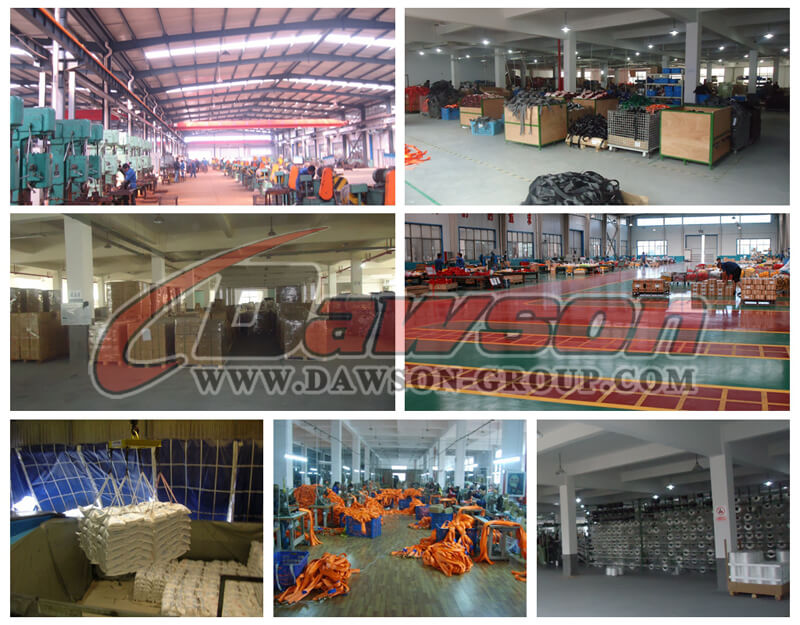

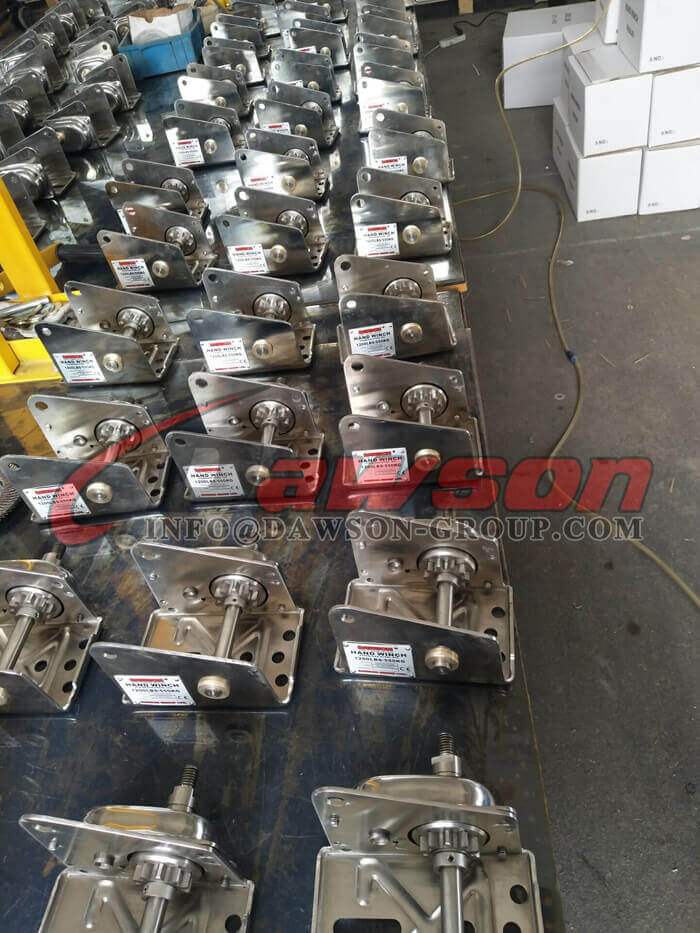

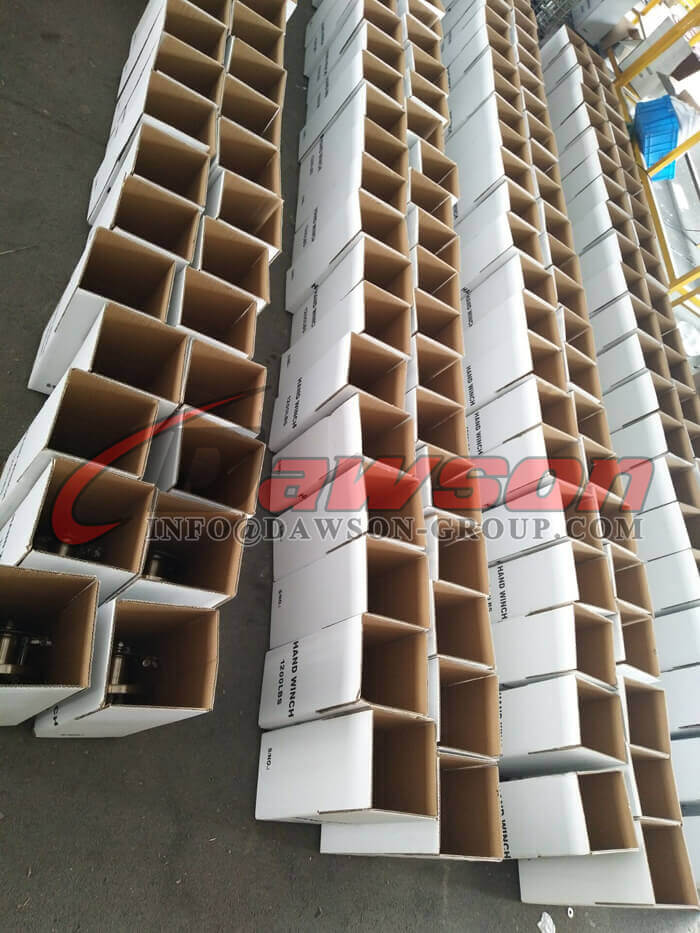

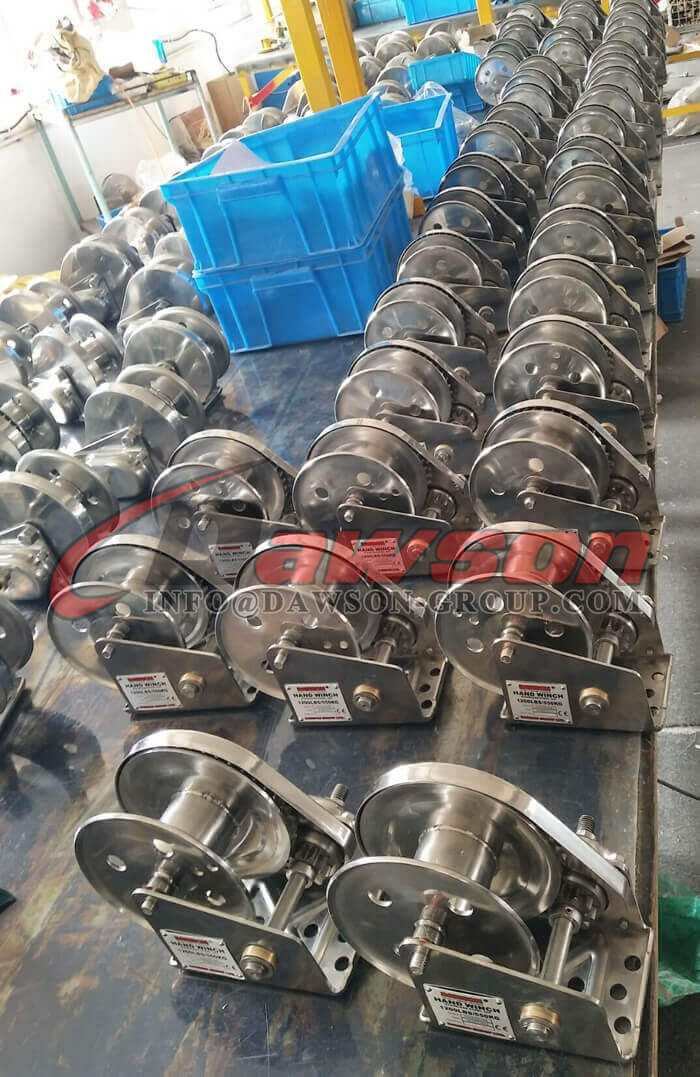

Factory & Package Show:
Send Message
Related Products
Model NO. DS-MHWFP,HW

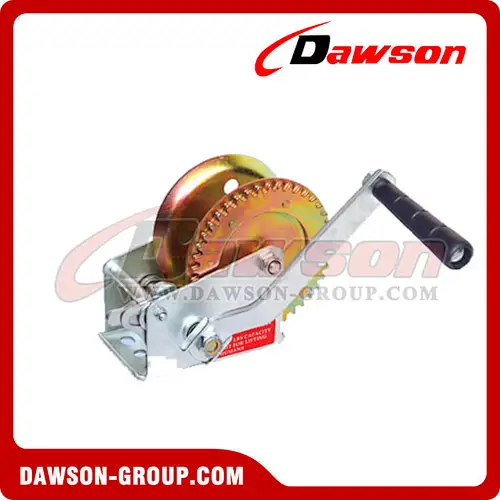

Model NO. DS-SSHWFBT

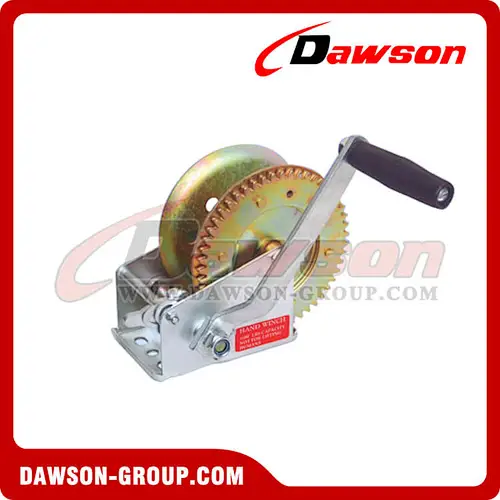

Model NO. DS-2017HSLBHW

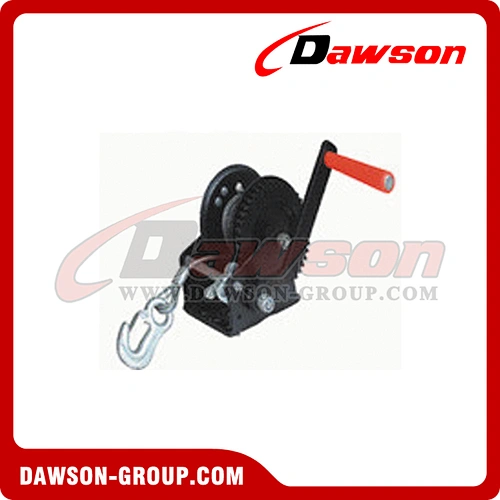

Model NO. DSHW-B

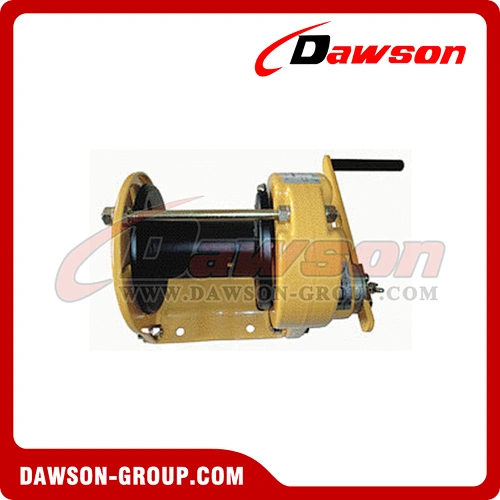

Model NO. DSHW-D

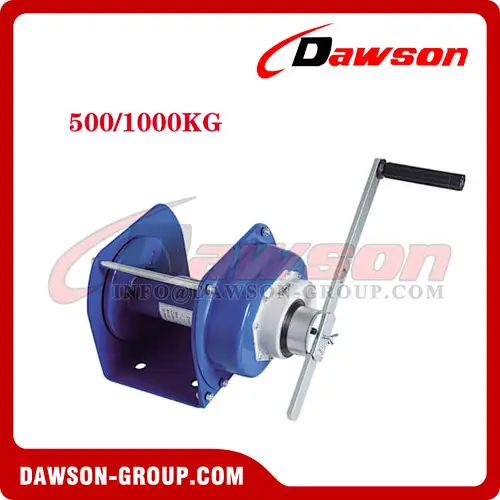

Model NO. DSHW-E
