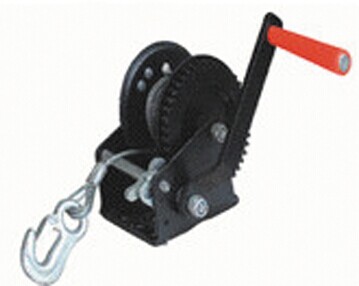

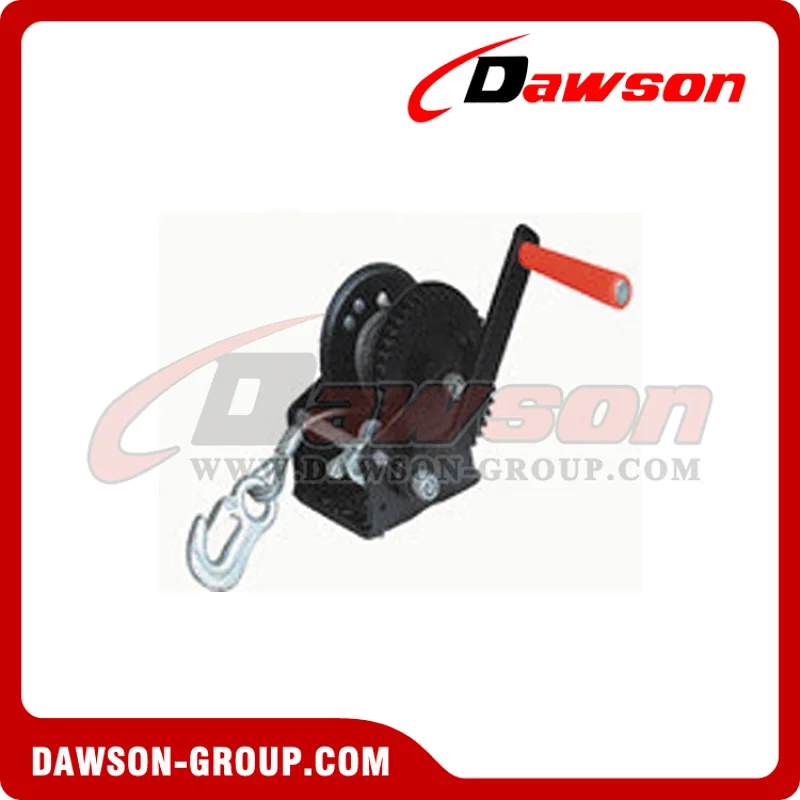

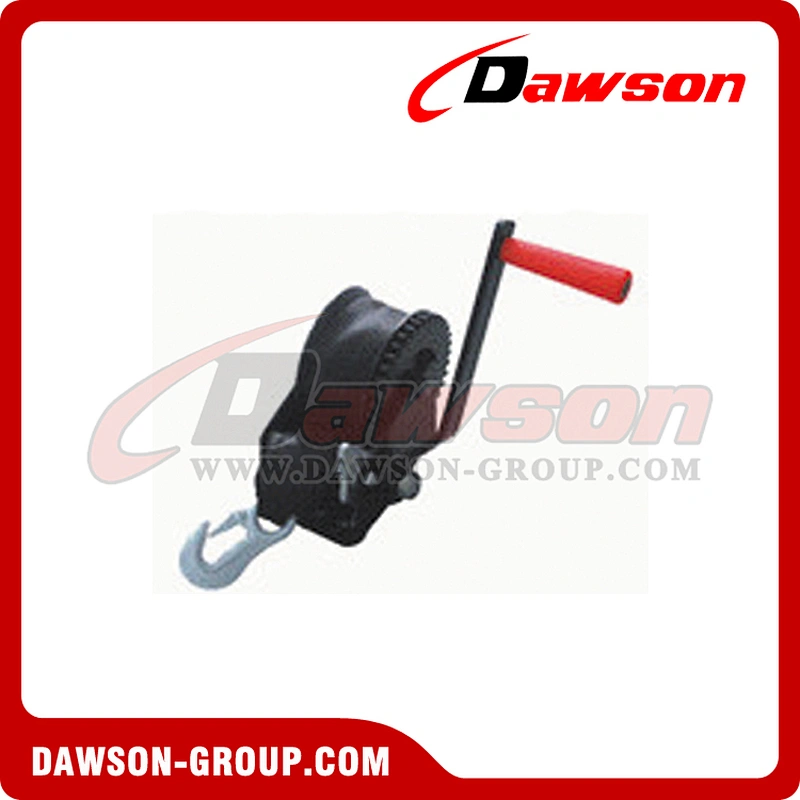

DSHW-B Type Small Cable Hand Winch
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

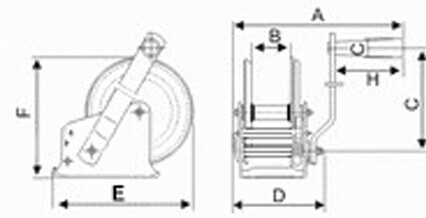

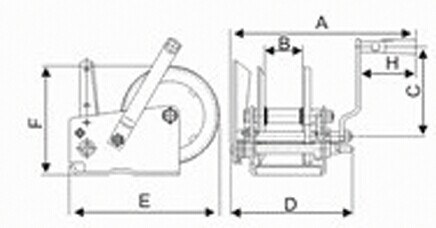

| Model | Capacity | Proof Load | Gear Ratio | Speed | Dimensions(mm) | N.W. | ||||||
| lbs | kN | A | B | C | D | E | F | H | Kg | |||
| DSHWB600 | 600 | 4 | 2.9:1 | 1 | 228 | 51 | 180 | 119 | 165 | 138 | 91 | 2.4 |
| DSHWB800 | 800 | 5.4 | 3.7:1 | 1 | 228 | 51 | 180 | 119 | 165 | 138 | 91 | 2.5 |
| DSHWB1000 | 1000 | 6.7 | 4.2:1 | 1 | 228 | 51 | 180 | 119 | 184 | 156 | 91 | 2.8 |
| DSHWB1200 | 1200 | 8 | 4.2:1 | 1 | 228 | 51 | 180 | 119 | 184 | 156 | 91 | 2.8 |
| DSHWB1400 | 1400 | 9.4 | 4.2:1 | 1 | 228 | 51 | 180 | 119 | 184 | 156 | 91 | 2.8 |
| DSHWB2000 | 2000 | 13.4 | 10.35:1/4.5:1 | 2 | 281 | 65 | 251 | 174 | 250 | 182 | 91 | 5.9 |
| DSHWB2500 | 2500 | 16.7 | 11.5:1/5:1 | 2 | 281 | 65 | 251 | 174 | 256 | 191 | 91 | 6.4 |

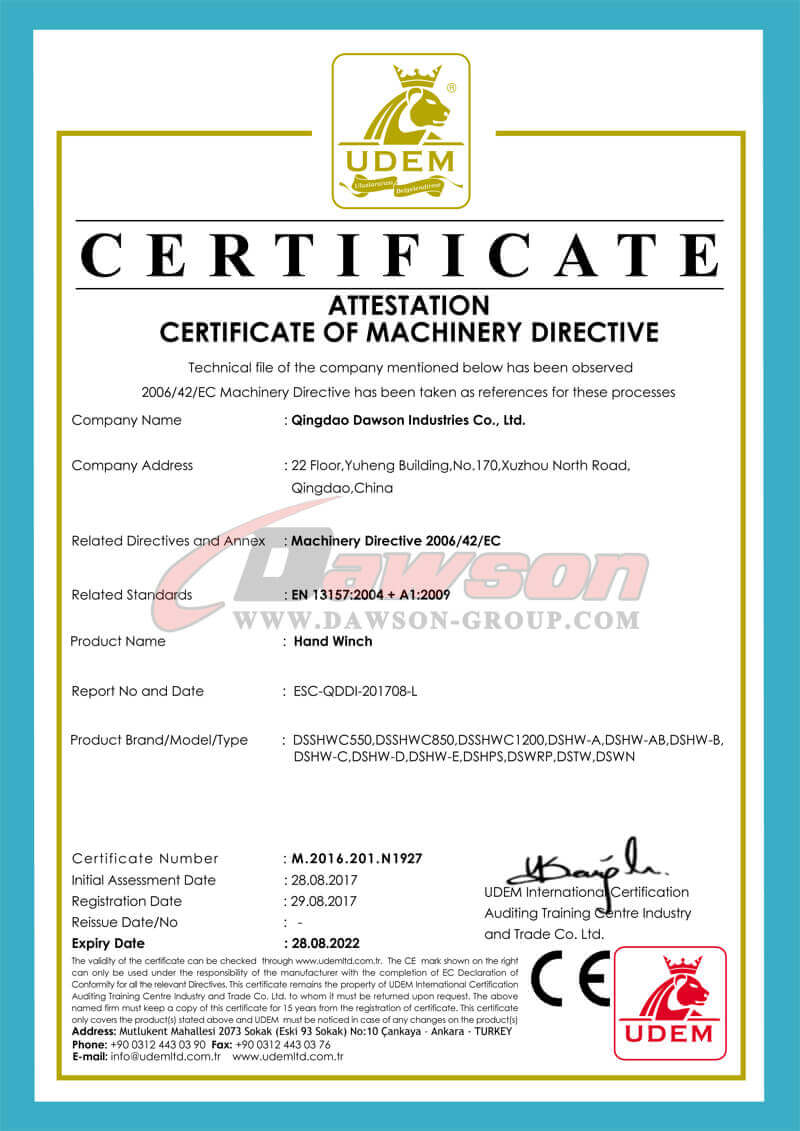

Certificate:

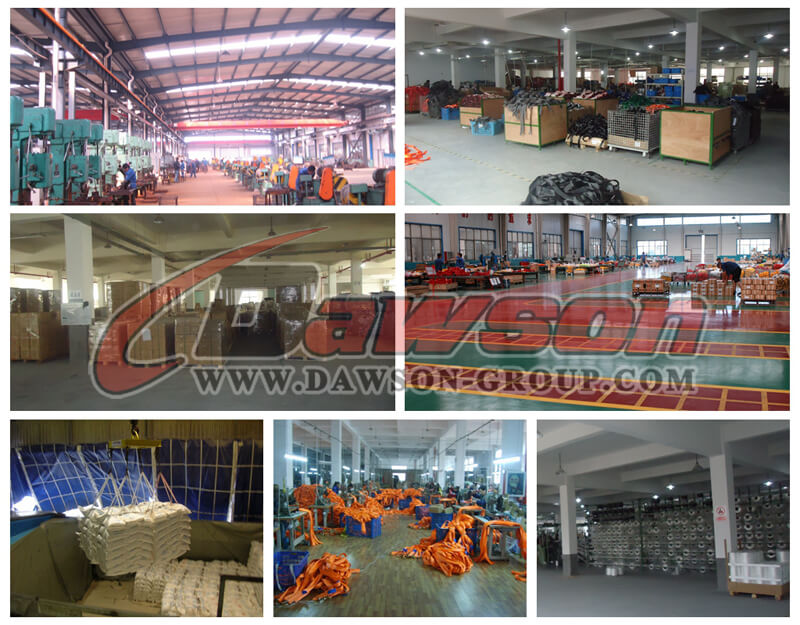

Factory & Package Show:
