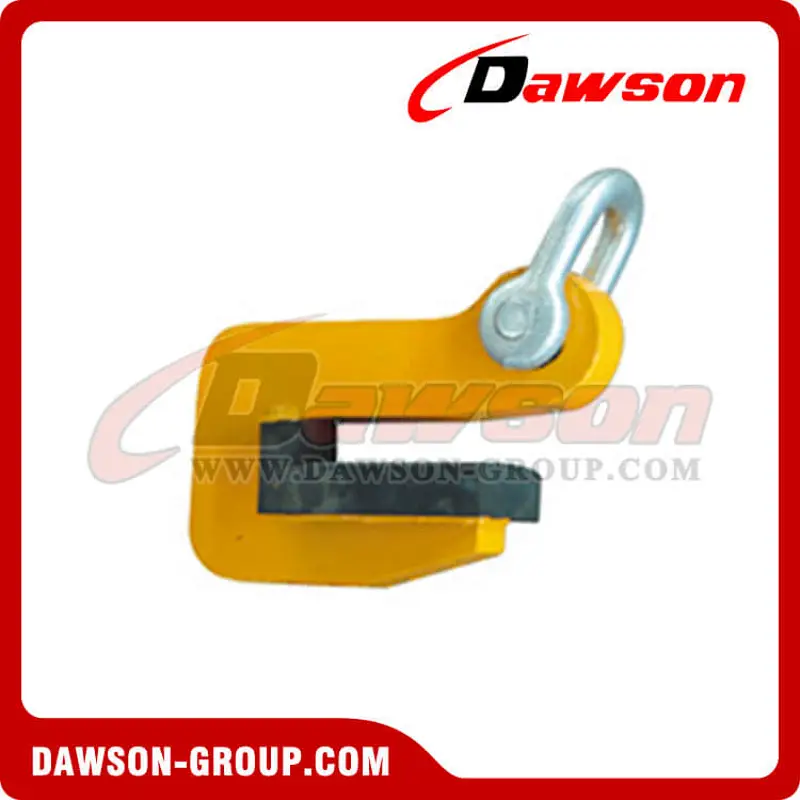

Steel Tube Lifting Clamp
Steel Tube Lifting Clamp
Steel Tube Lifting Clamp
Steel Tube Lifting Clamp
Steel Tube Lifting Clamp

Steel Tube Lifting Clamp

Model NO.
DS-65
Quantity:

Steel Tube Lifting Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Specification of Lifting Clamp due to Specification of Steel Tube. Load-Bearing Surface is Arc-Shaped. No Harm to steel Tube during Lifting


Item NoSWLThicknessTotal SWLWeight
DS-65012tФ(200-400)X303t3.2
DS-65023tФ(400-600)X304.5t3.8
DS-65034tФ(600-800)X306t4.7
DS-65046tФ(800-1000)X309t6.3

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

Other Related Products:

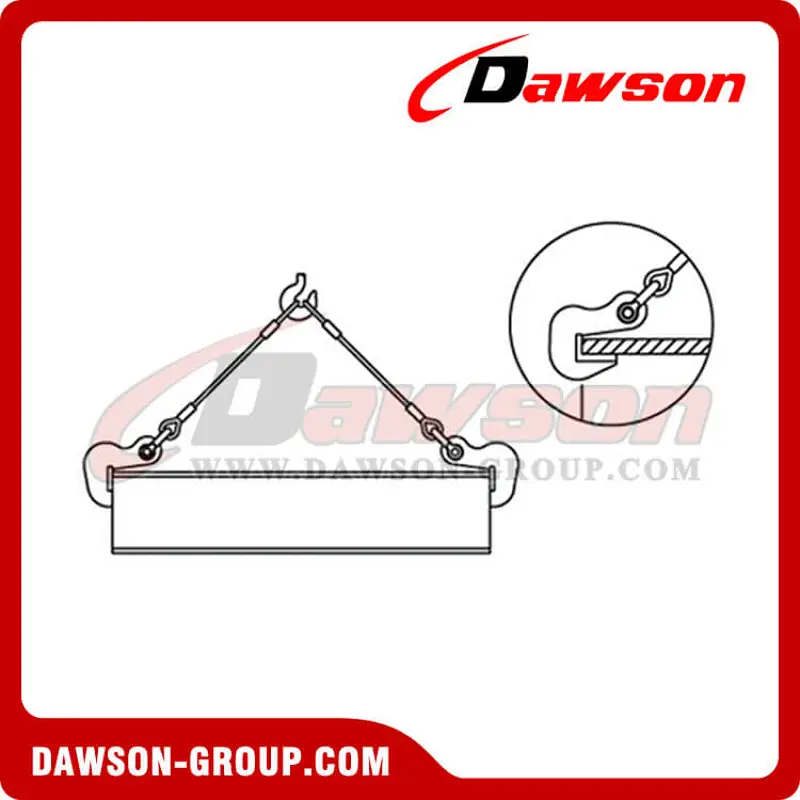

Application of Lifting Clamps:
