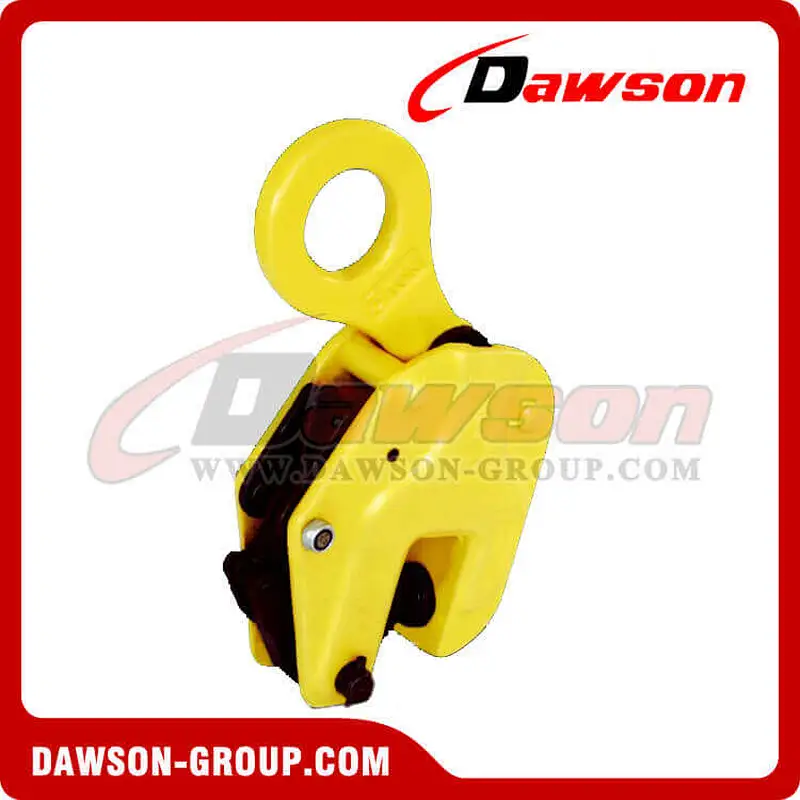

DS-SCDH Type Vertical Plate Clamp for Lifting with Safety Lock
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Working load limit(WLL)：1-5T.
Use：
● Standard design clamp for vertical lifting of steel plates and steel structures.
● The spring-loaded tightening lock mechanism assures a positive initial clamping force.
● Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
● The main body and the shackle are made of die-forged special alloy steel , which are optimally tempered for maximum strength and durability.
● High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
| Part No. | Model | WLL(tonnes) | Jaw Opening(mm) | Weight(kg) |
| DS-0031 | DS-SCDH1 | 1.0 | 0-22 | 4.3 |
| DS-0032 | DS-SCDH2 | 2.0 | 0-32 | 7.2 |
| DS-0033 | DS-SCDH3 | 3.0 | 0-36 | 10.7 |
| DS-0034 | DS-SCDH5 | 5.0 | 0-50 | 17.3 |
Welcome to buy the newest and cheap DAWSON vertical plate clamp for lifting with safety lock from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
For further information, please contact us. Email:info@dawson-group.com

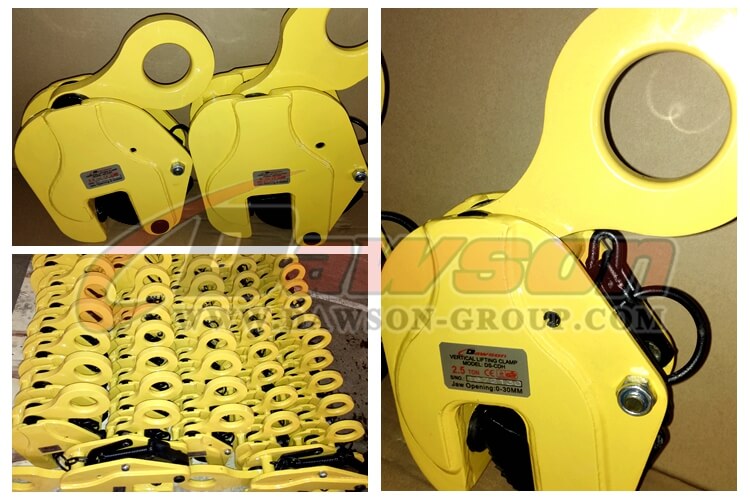

Products Show:
Hot Tags: Vertical Clamp, Vertical Plate Clamp, Vertical Lifting Clamp, Lifting Plate Clamp, Steel Plate Clamp for Lifting, China Steel Plate Lifting Clamp Supplier, Wholesale Vertical Plate Clamp, Hot Sale Steel Plate Clamp, Plate Lifting Clamp Factory, Vertical Plate Lifting Clamp Manufacturer, Steel Plate Clamp Factory China, China Exporter Clamp for Steel Plate, Cheap Price Lifting Clamp for Steel Plate, Low Price Vertical Plate Clamp, Dawson Brands Plate Lifting Clamp, Standard Plate Lifting Clamp In Stock, Lifting Clamp for Steel Plate Free Sample, Vertical Plate Lifting Clamp OEM, Buy Discount Vertical Plate Lifting Clamp, Customized Steel Plate Lifter Clamp
Other Related Products:

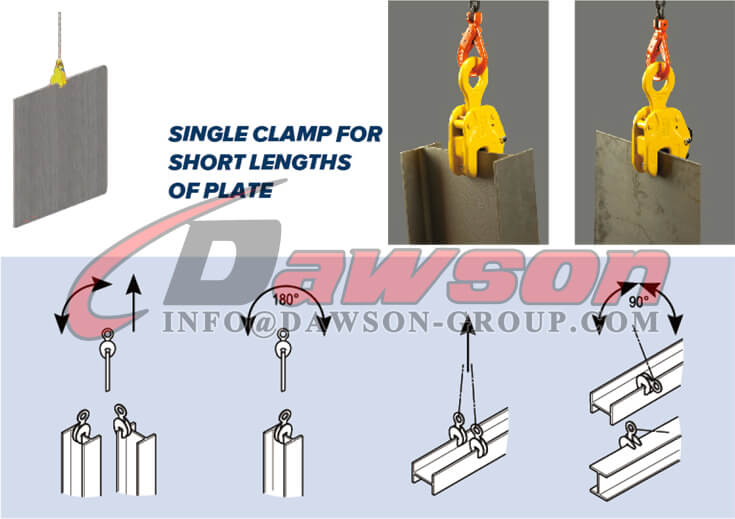

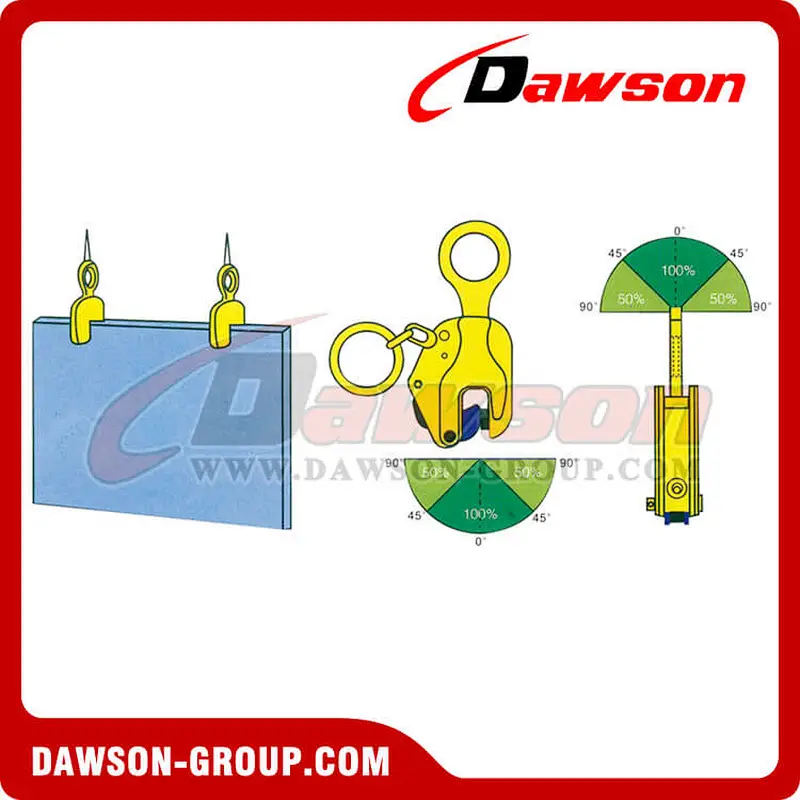

Application of Vertical Plate Clamps:
