Model NO.
DS-KNMK / DS-KNMKA
Quantity:

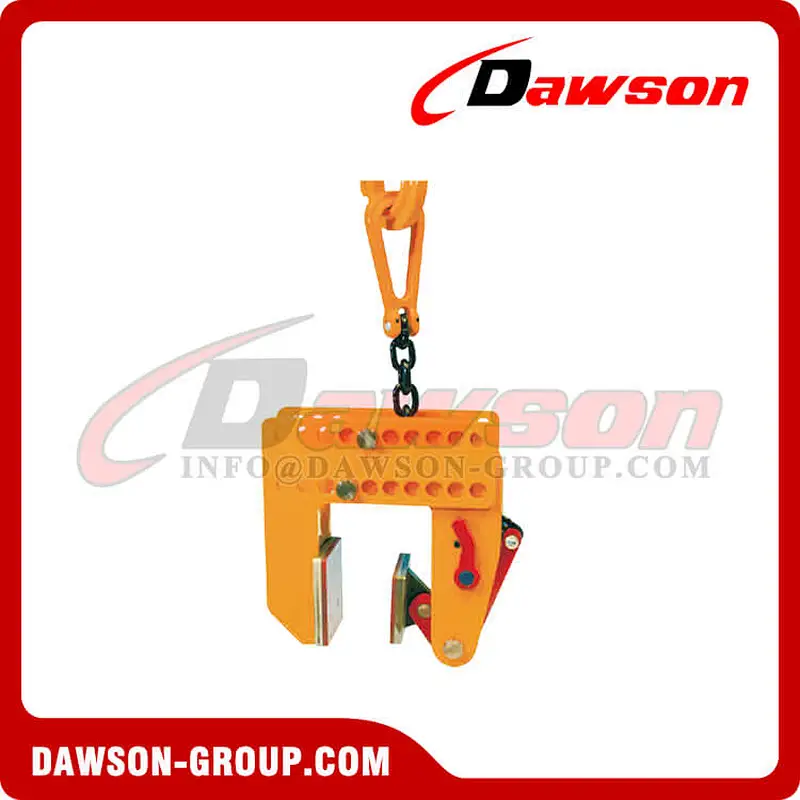

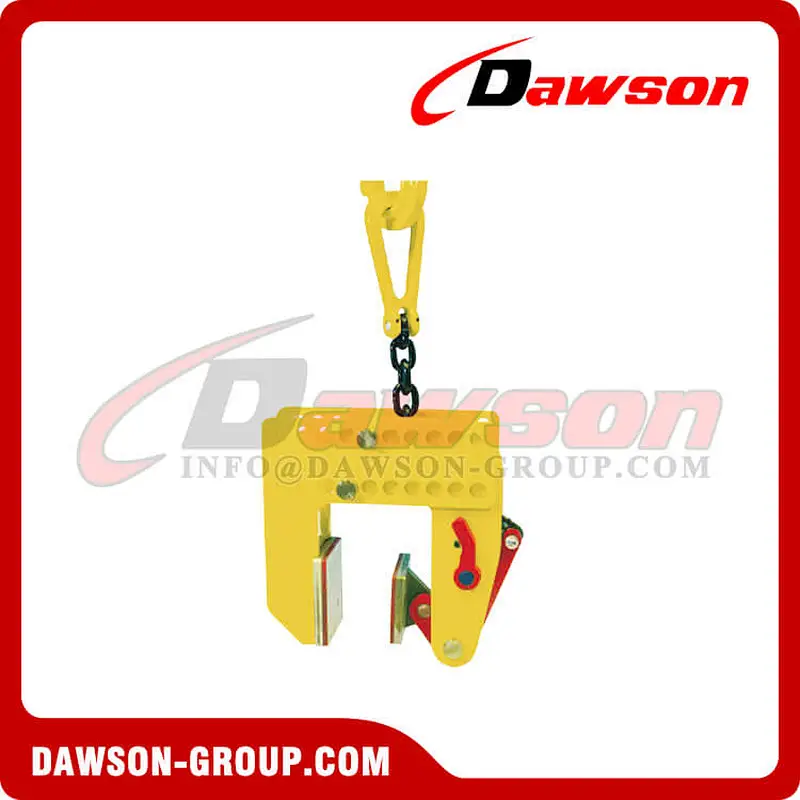

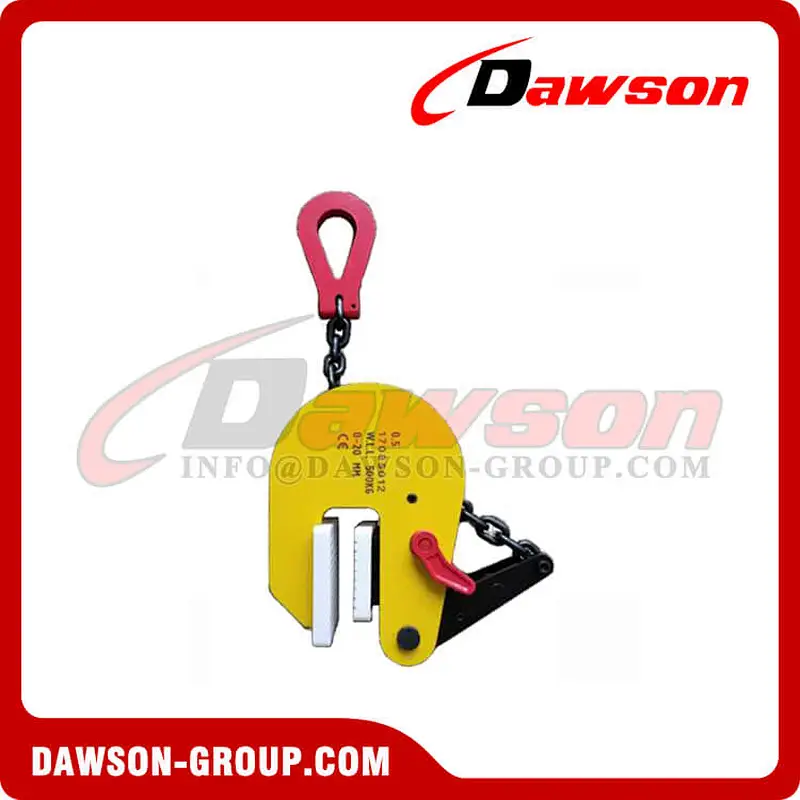

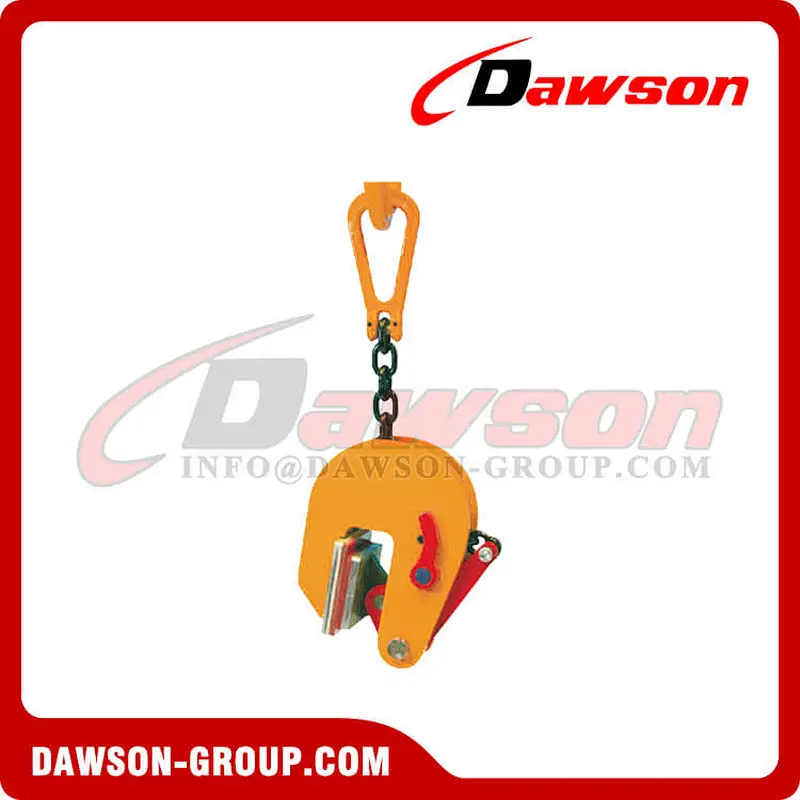

DS-KNMK / DS-KNMKA Non-Marking Vertical Clamps, Vertical Lifting Clamp for Transporting Stainless, Steel, Aluminum, Wood, Non Marring Plate Lifting Clamp
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working Load Limit(WLL) 0.5-3T

DS-KNMK / DS-KNMKA is a Non-marking clamp with 2 special synthetic pads.The Clamp can be used for lifting, handling and transporting stainless, steel, aluminum, copper, wood and marble from all positions(vertical and horizontal) and will not leave any marks.

The clamp is locked in closed as well as in open position.

Manufactured from high quality carbon steel.

ModelWLL(Tons)Jaw Opening(mm)Weight(kg)
DS-KNMK0.50.50-204.55
DS-KNMKA0.50.50-18010
DS-KNMK110-306.75
DS-KNMK220-5013.35
DS-KNMK330-6016.7

Welcome to buy the newest and cheap DAWSON DS-KNMK / DS-KNMKA Non-Marking Vertical Clamps, Vertical Lifting Clamp from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

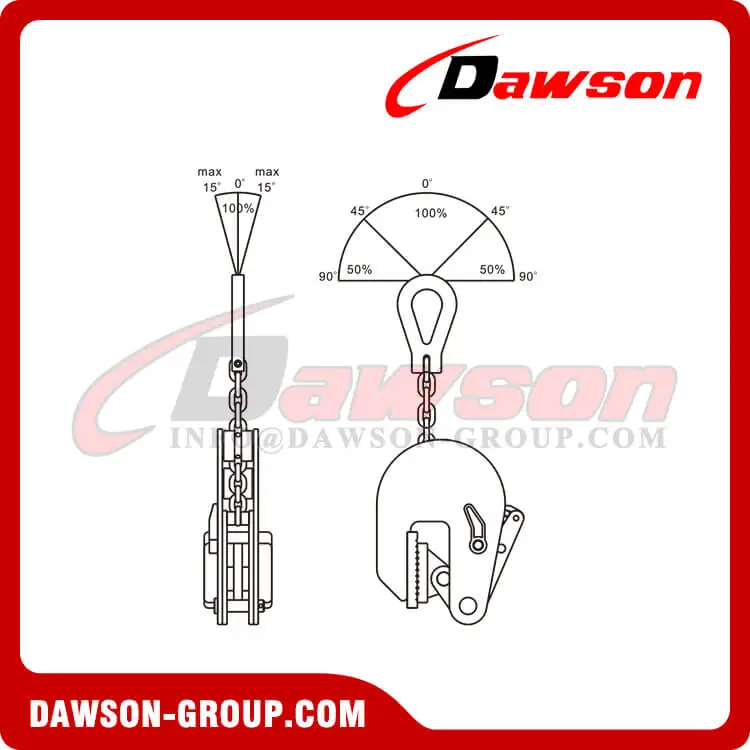

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

 For further information, please contact usEmail:info@dawson-group.com

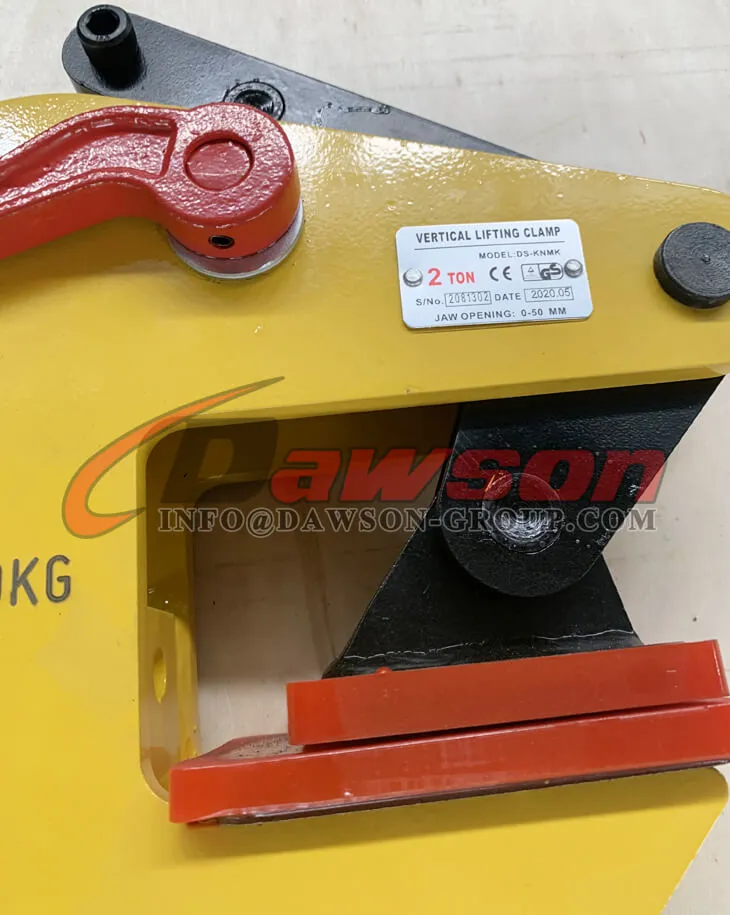

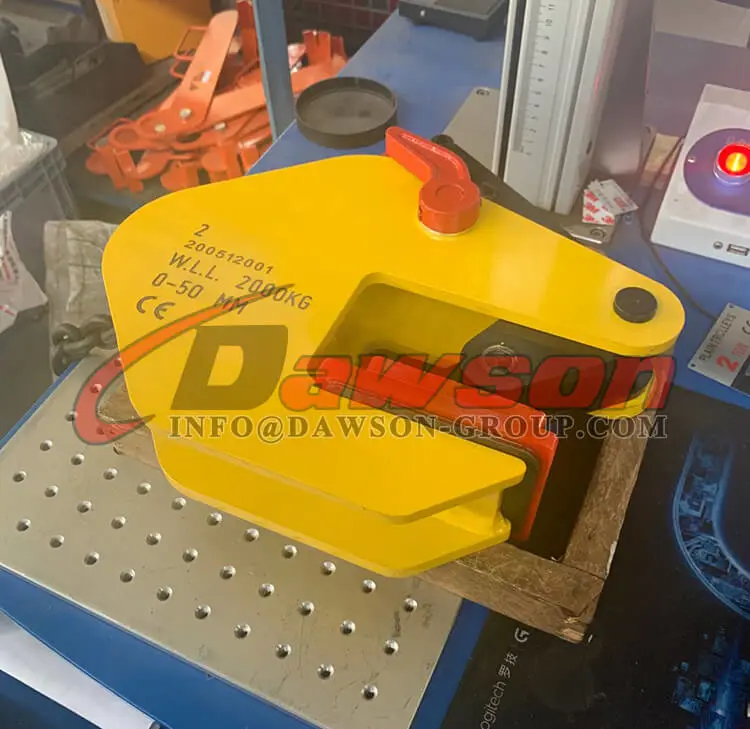

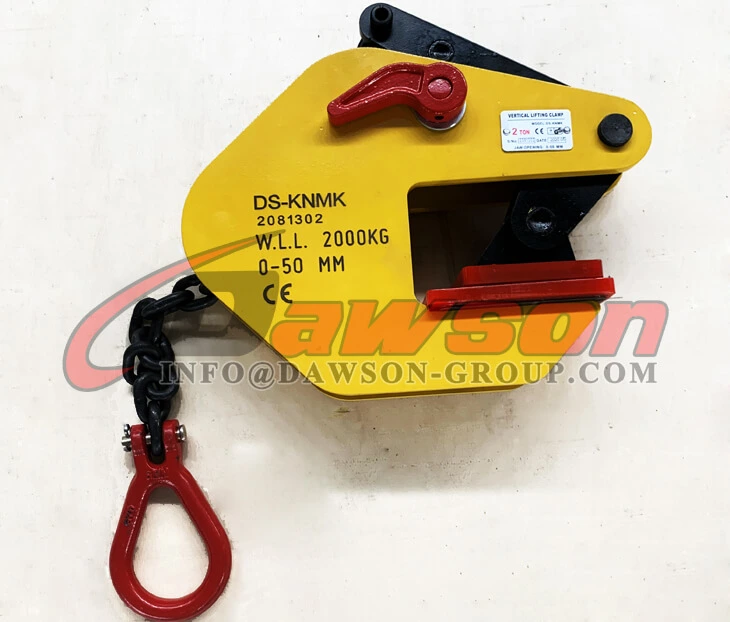

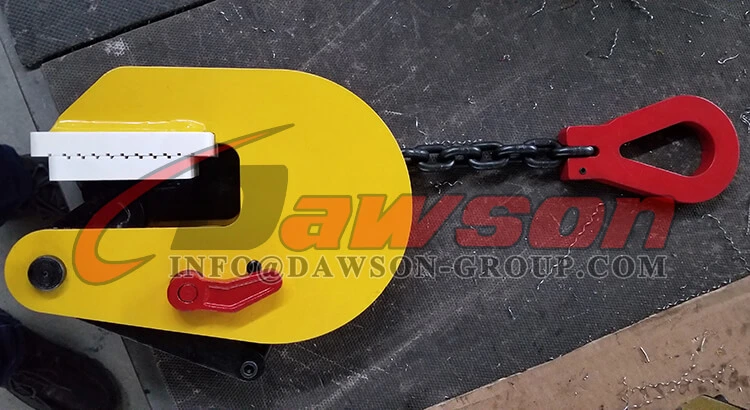

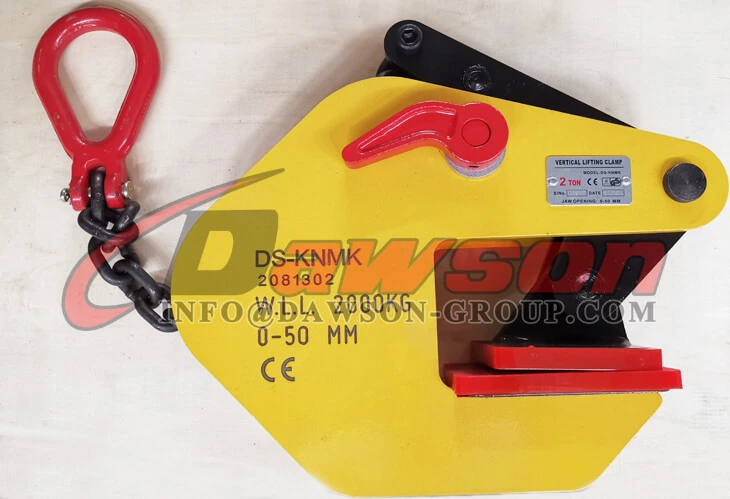

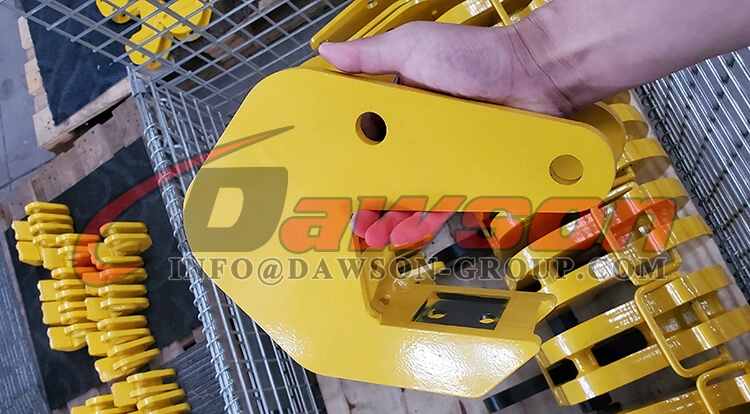

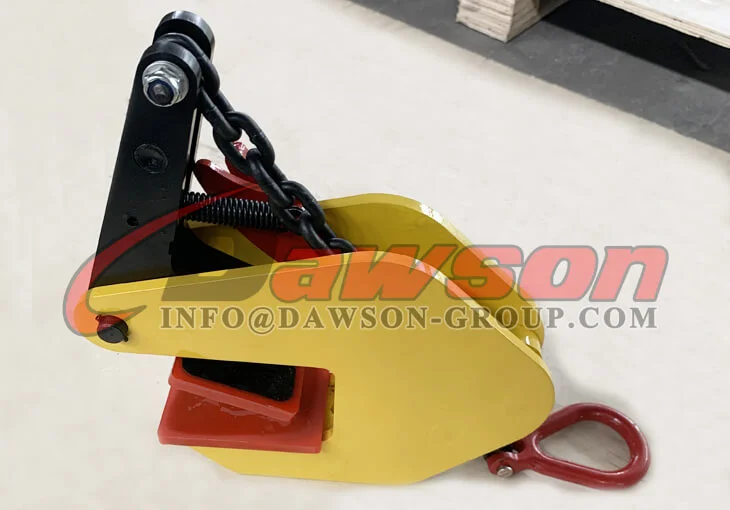

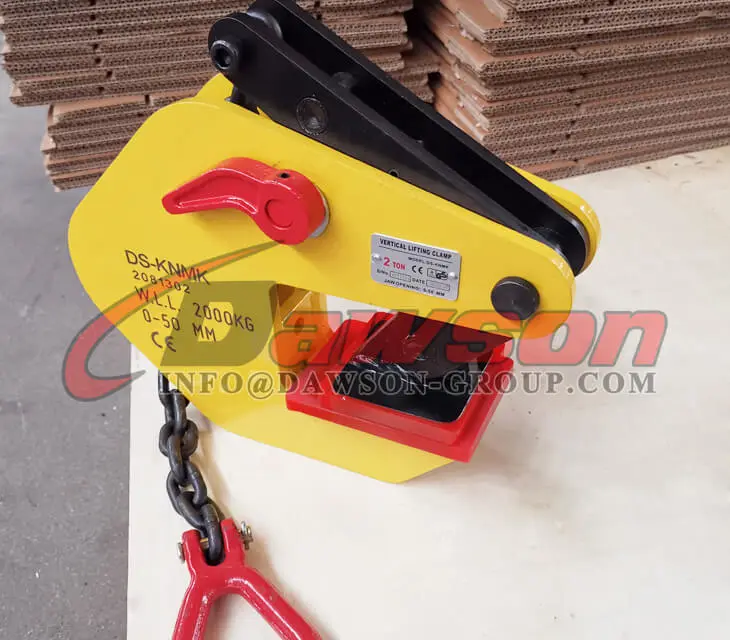

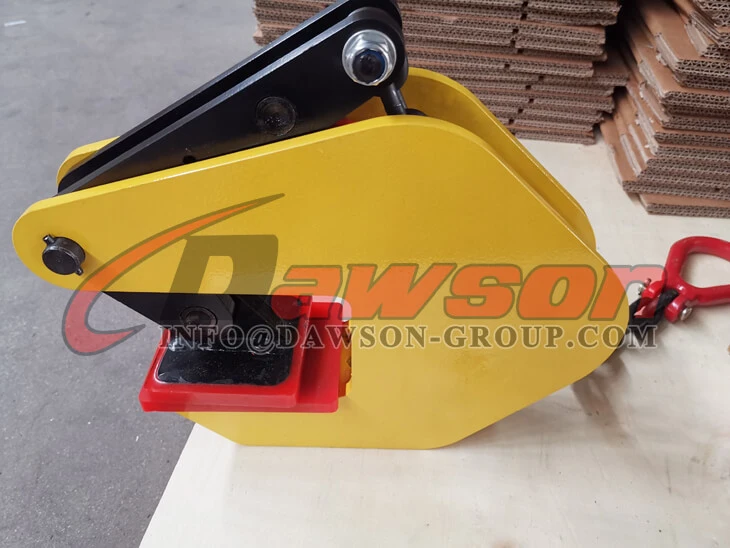

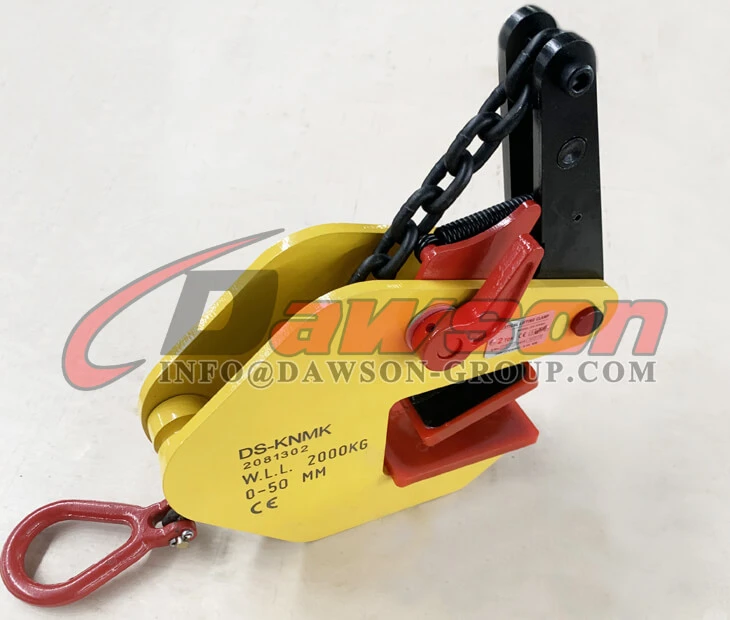

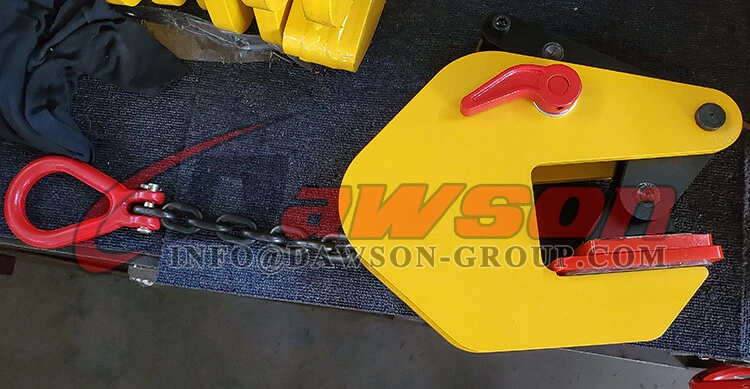

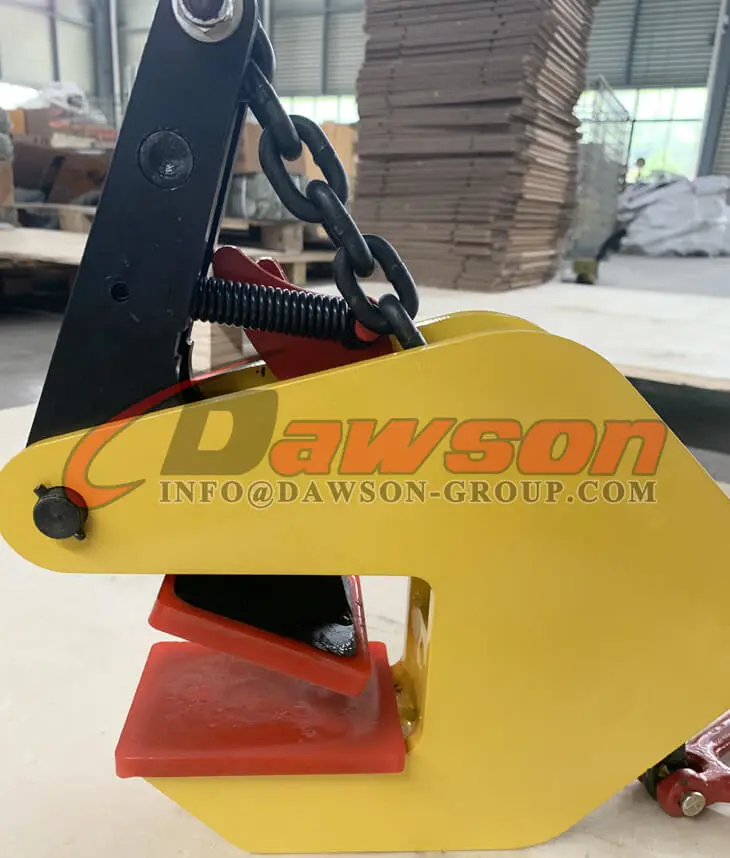

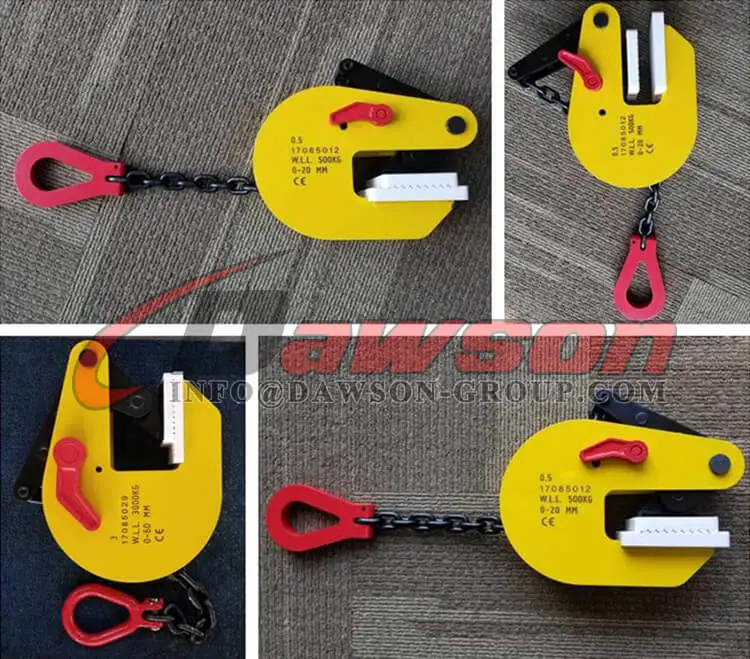

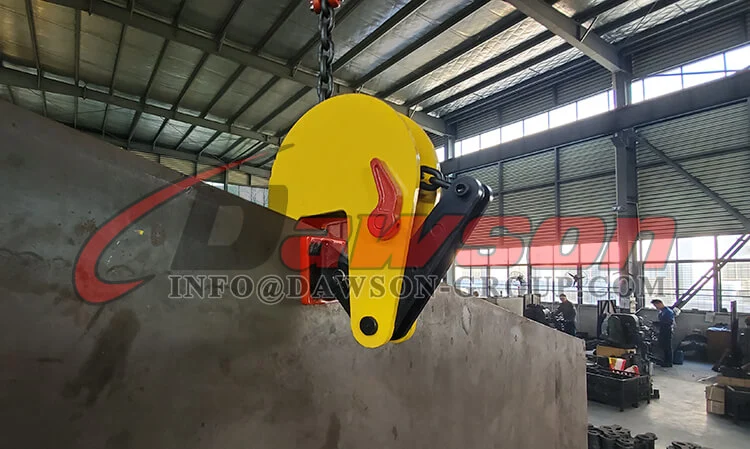

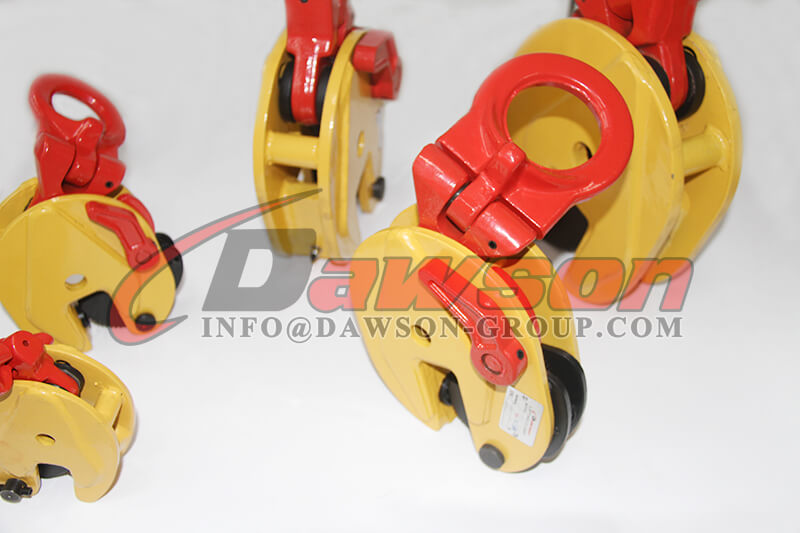

Product Show:

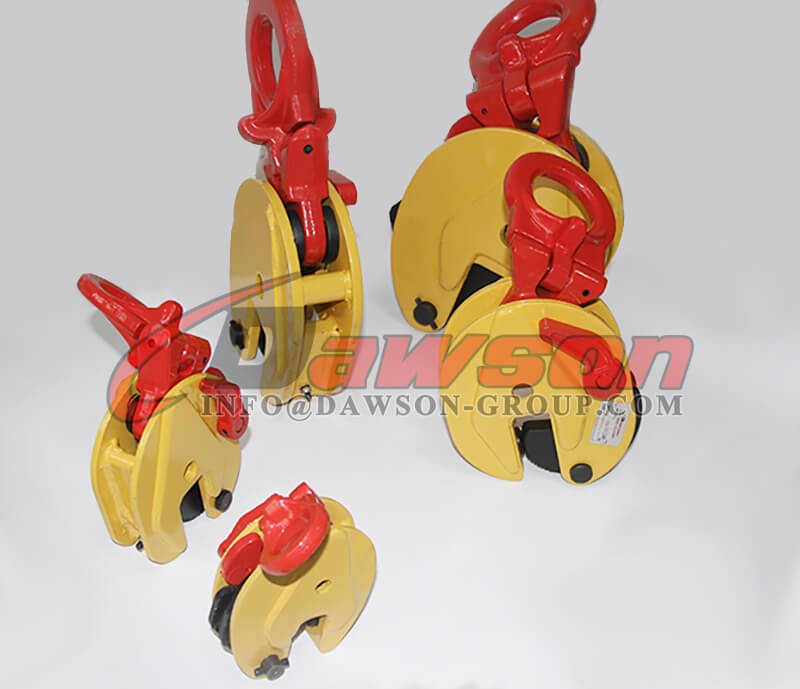

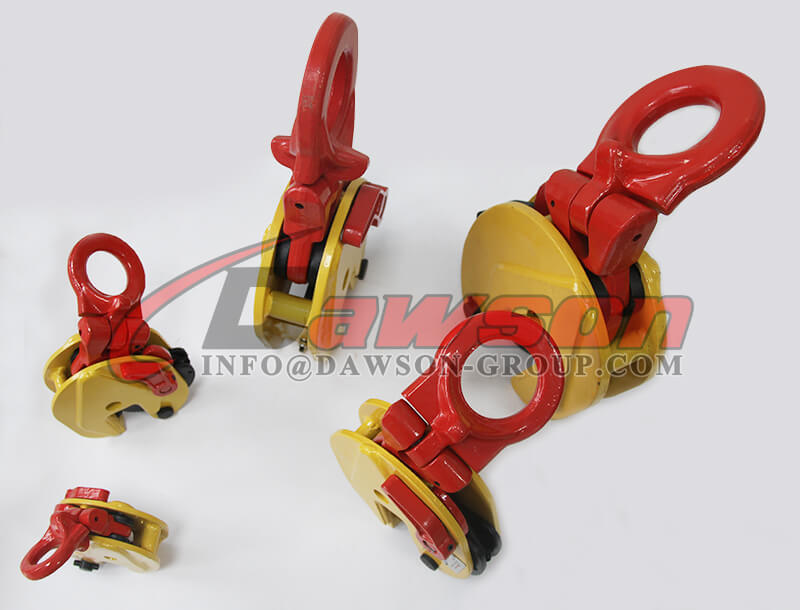

Other Related Products:

Hot Tags: plate clamp,lifting plate clamp,non-marking lifting clamp,non-marking vertical clamp,vertical lifting clamp, non-marking lifting clamps, plate lifting clamps, vertical clamp for handling, plate clamp for transporting stainless, plate clamp for transporting wood, plate clamp for transporting copper, plate clamp for transporting steel, Non Marring Plate Lifting Clamp

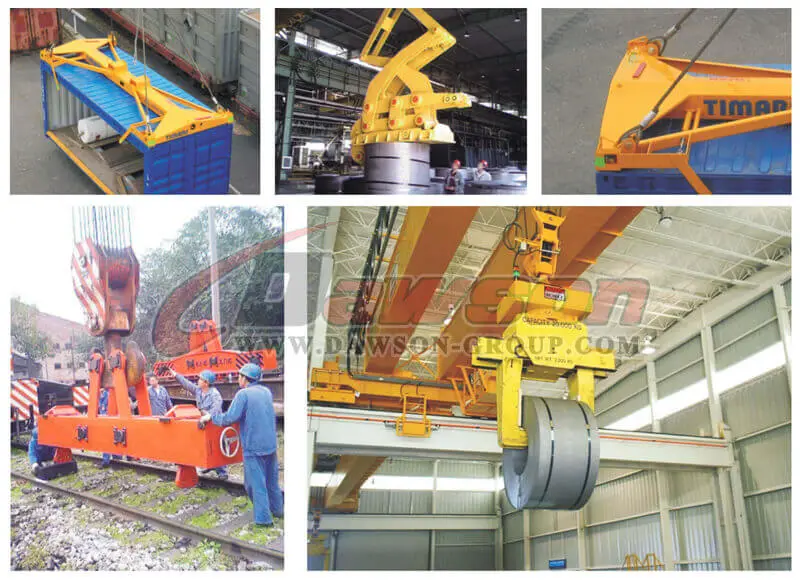

Application of Non-Marking Vertical Clamps:

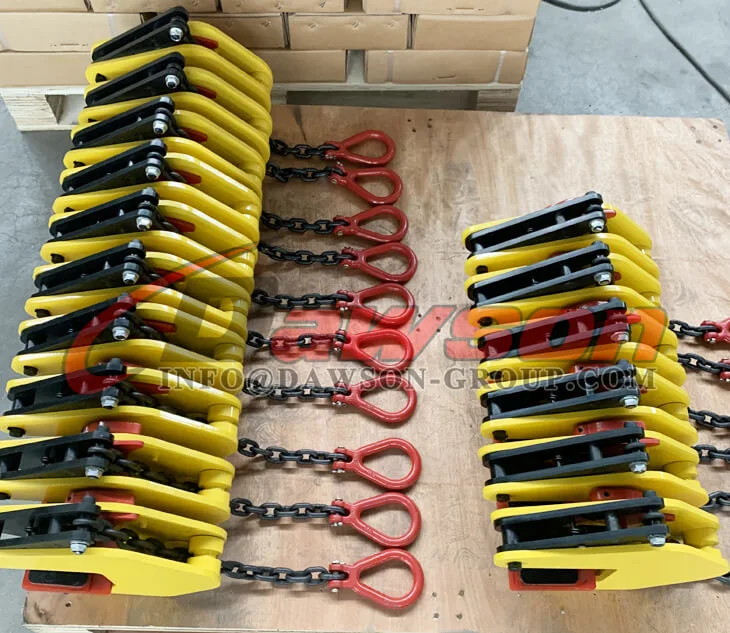

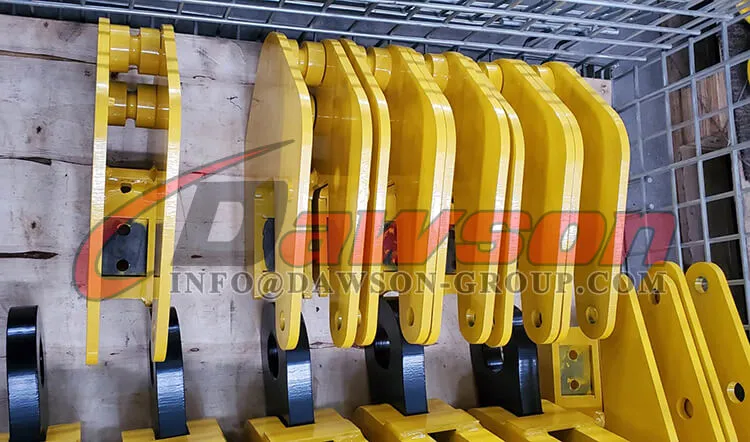

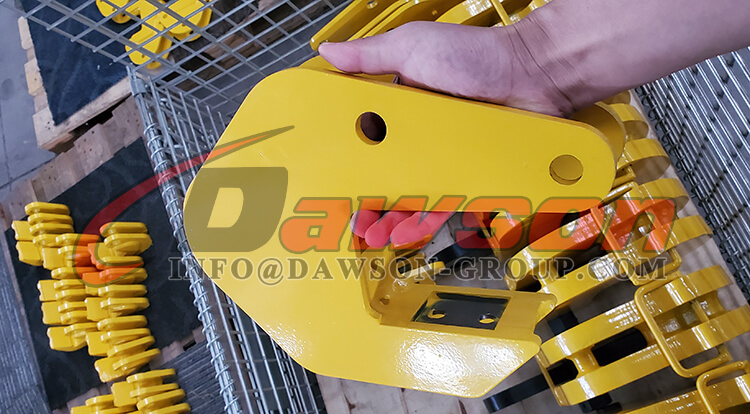

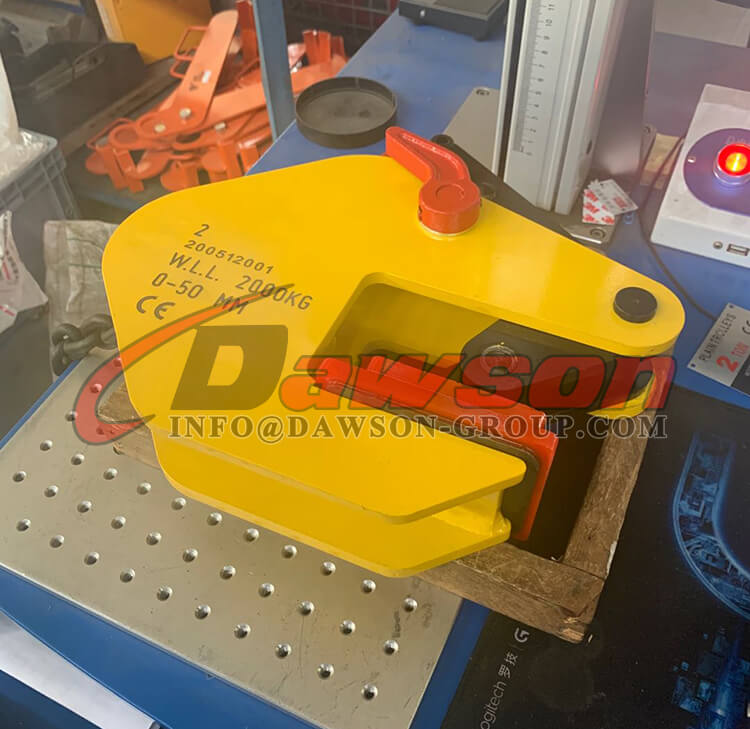

Factory & Package Show:
