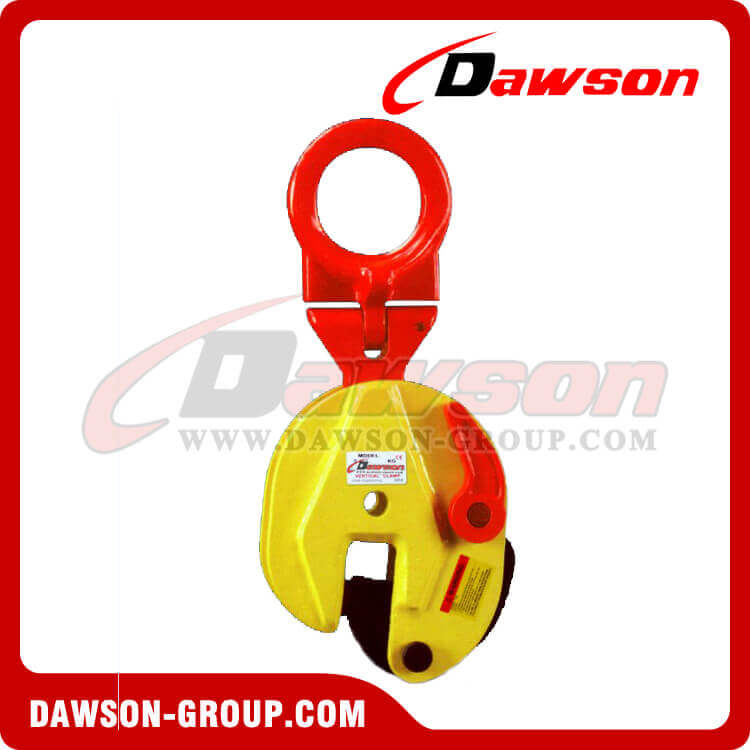

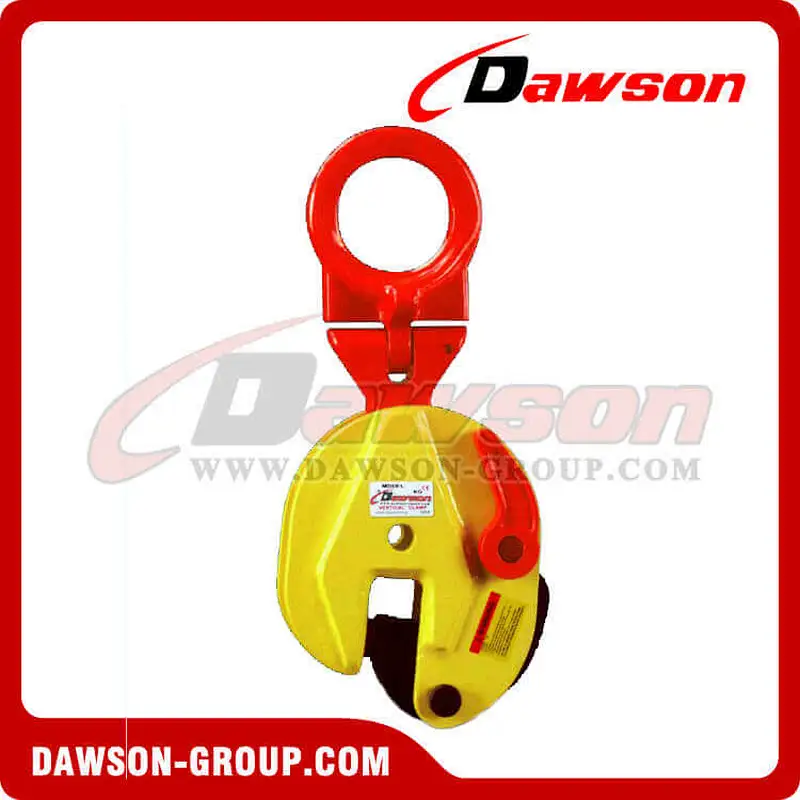

DS-CDD Type Vertical Plate Clamp with Safety Lock
DS-CDD Type Vertical Plate Clamp with Safety Lock
DS-CDD Type Vertical Plate Clamp with Safety Lock
DS-CDD Type Vertical Plate Clamp with Safety Lock
DS-CDD Type Vertical Plate Clamp with Safety Lock

DS-CDD Type Vertical Plate Clamp with Safety Lock

Model NO.
DS-CDD
Quantity:

DS-CDD Type Vertical Plate Clamp with Safety Lock

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):0.8-1.6T.

Use:

● Specially designed for the transfer of small profiles.

● Articulated lifting shackle.

● The clamp is fitted with a locking device for both open and closed positions which ensures complete safety.

● Manufactured from high quality carbon steel

● The CDD 0.8T can be used for lifting drums.

● The clamp is locked in closed as well as in open position.


Part No.ModelWLL (tonnes)Jaw Opening(mm)Weight(kg)
DS-0014DS-CDD0.80.80-152
DS-0015DS-CDD1.61.60-207

Welcome to buy the newest and cheap DAWSON vertical plate clamp with safety lock from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

For further information, please contact usEmail:info@dawson-group.com

Hot Tags: Vertical ClampVertical Plate ClampVertical Lifting ClampLifting Plate ClampSteel Plate Clamp for LiftingChina Steel Plate Lifting Clamp SupplierWholesale Vertical Plate ClampHot Sale Steel Plate ClampPlate Lifting Clamp FactoryVertical Plate Lifting Clamp ManufacturerSteel Plate Clamp Factory ChinaChina Exporter Clamp for Steel PlateCheap Price Lifting Clamp for Steel PlateLow Price Vertical Plate ClampDawson Brands Plate Lifting ClampStandard Plate Lifting Clamp In StockLifting Clamp for Steel Plate Free SampleVertical Plate Lifting Clamp OEMBuy Discount Vertical Plate Lifting ClampCustomized Steel Plate Lifter Clamp

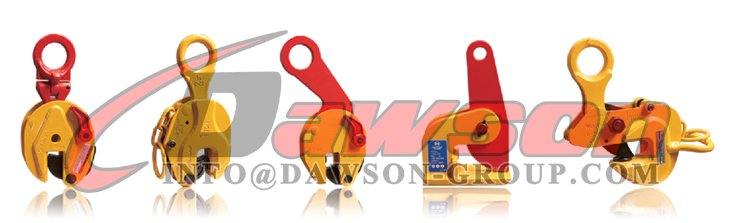

Other Related Products:

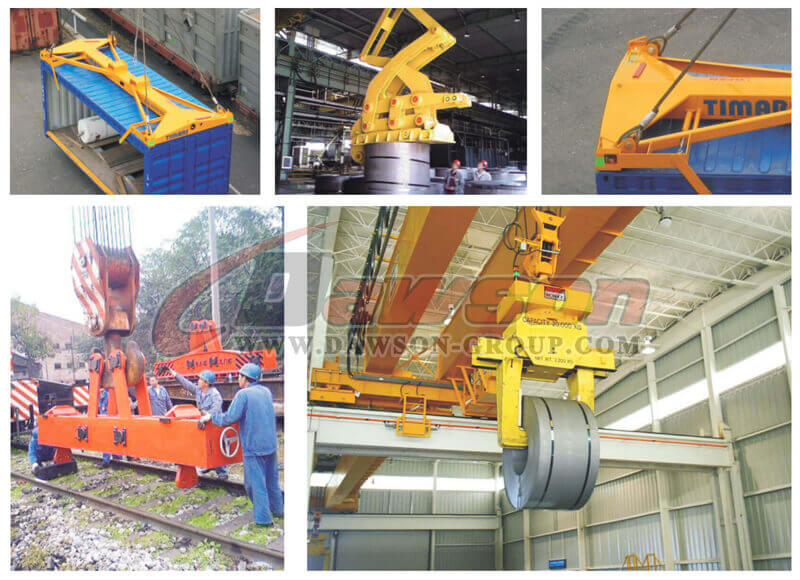

Application of Vertical Lifting Clamps:

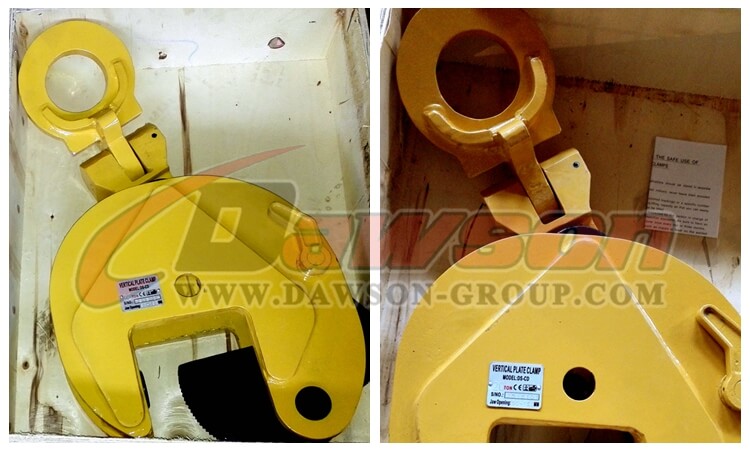

Factory & Package Show:
