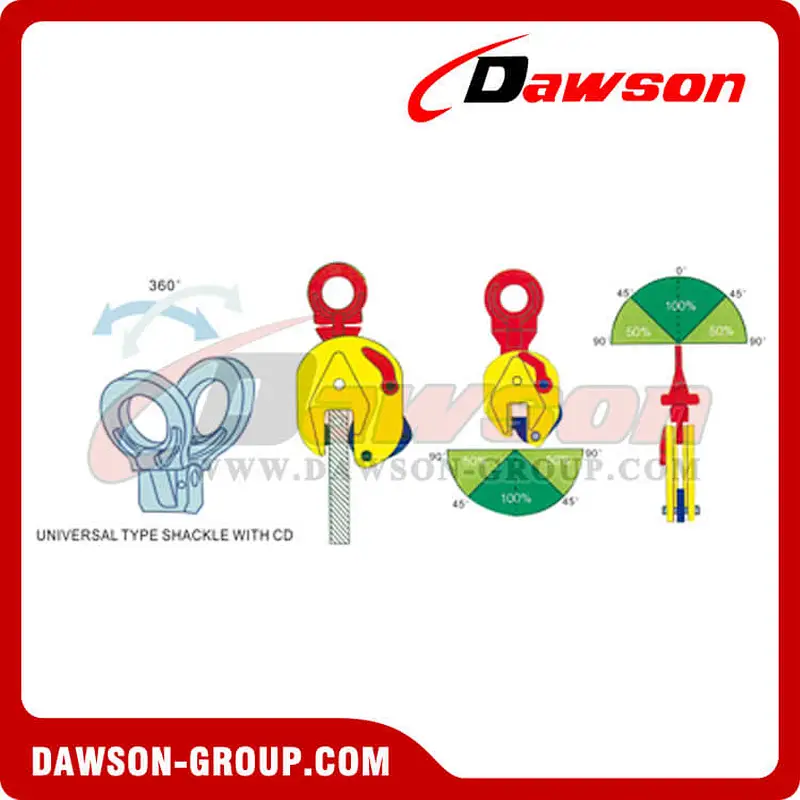

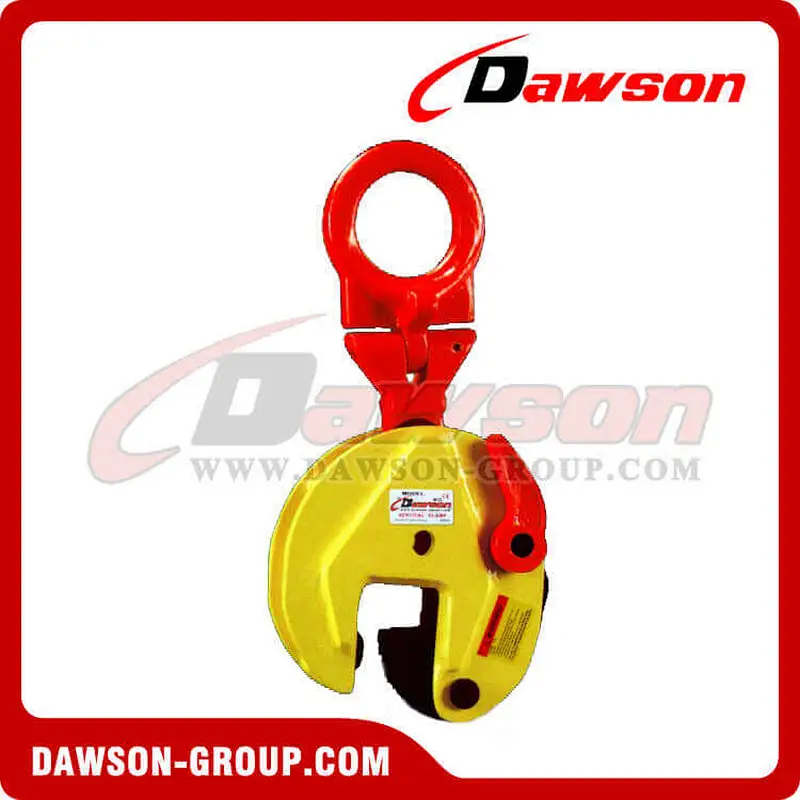

DS-CDK Type Vertical Plate Clamp with Lock Device
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Working load limit(WLL)：0.8-5T.
Use：
● For lifting and transporting of thick steel plates.
● Articulated lifting shackle.
● The clamp is fitted with a locking device for both open and closed positions, which ensures complete safety.
● The clamp is locked in closed as well as in open position.
● Manufactured from high quality carbon steel.
| Part No. | Model | WLL (tonnes) | Jaw Opening(mm) | Weight(kg) |
| DS-0016 | DS-CDK0.8 | 0.8 | 15-30 | 2 |
| DS-0017 | DS-CDK1.6 | 1.6 | 20-40 | 7 |
| DS-0018 | DS-CDK3.2 | 3.2 | 25-50 | 15 |
| DS-0019 | DS-CDK4.5 | 4.5 | 25-50 | 15 |
| DS-0020 | DS-CDK5 | 5.0 | 36-60 | 23 |
Welcome to buy the newest and cheap DAWSON vertical plate clamp lock device from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
For further information, please contact us. Email:info@dawson-group.com

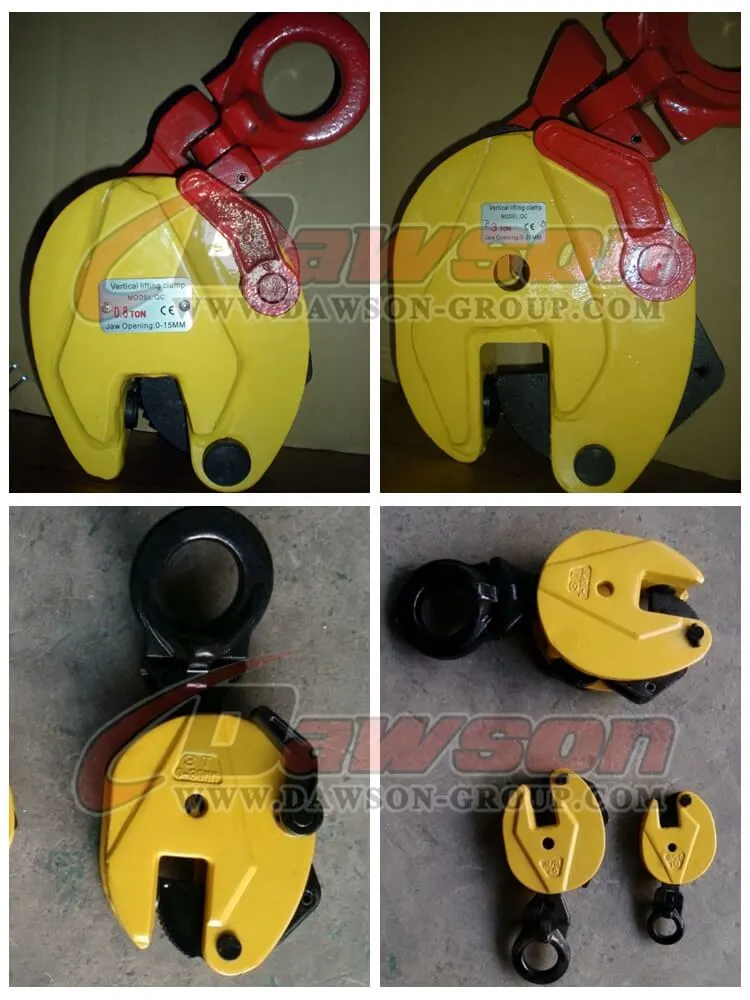

Products Show:
Hot Tags: Vertical Clamp, Vertical Plate Clamp, Vertical Lifting Clamp, Lifting Plate Clamp, Steel Plate Clamp for Lifting, China Steel Plate Lifting Clamp Supplier, Wholesale Vertical Plate Clamp, Hot Sale Steel Plate Clamp, Plate Lifting Clamp Factory, Vertical Plate Lifting Clamp Manufacturer, Steel Plate Clamp Factory China, China Exporter Clamp for Steel Plate, Cheap Price Lifting Clamp for Steel Plate, Low Price Vertical Plate Clamp, Dawson Brands Plate Lifting Clamp, Standard Plate Lifting Clamp In Stock, Lifting Clamp for Steel Plate Free Sample, Vertical Plate Lifting Clamp OEM, Buy Discount Vertical Plate Lifting Clamp, Customized Steel Plate Lifter Clamp

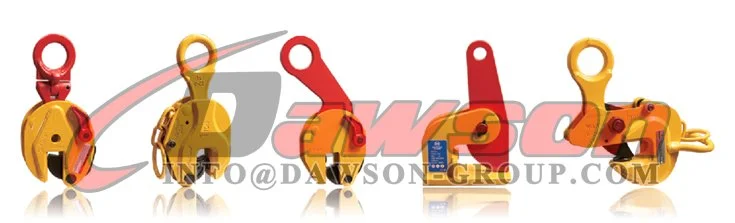

Other Related Products:

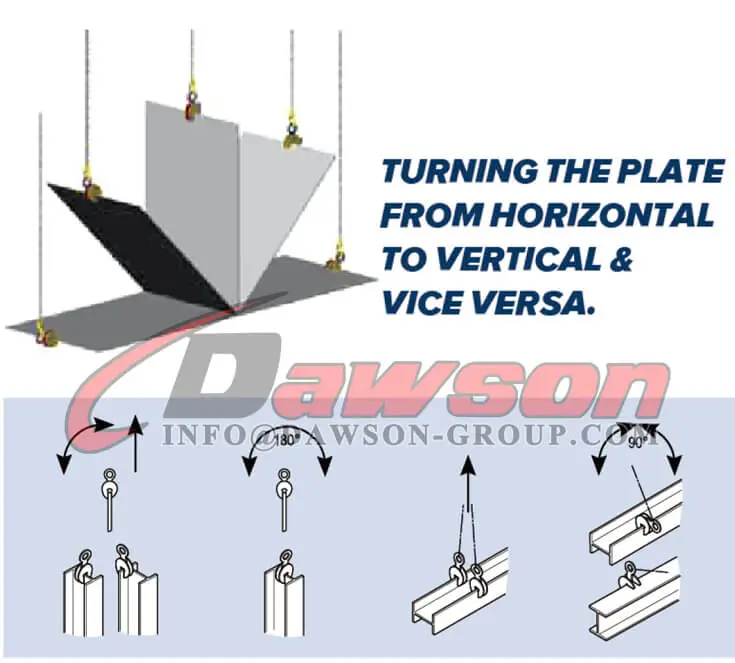

Application of Vertical Plate Clamps:
