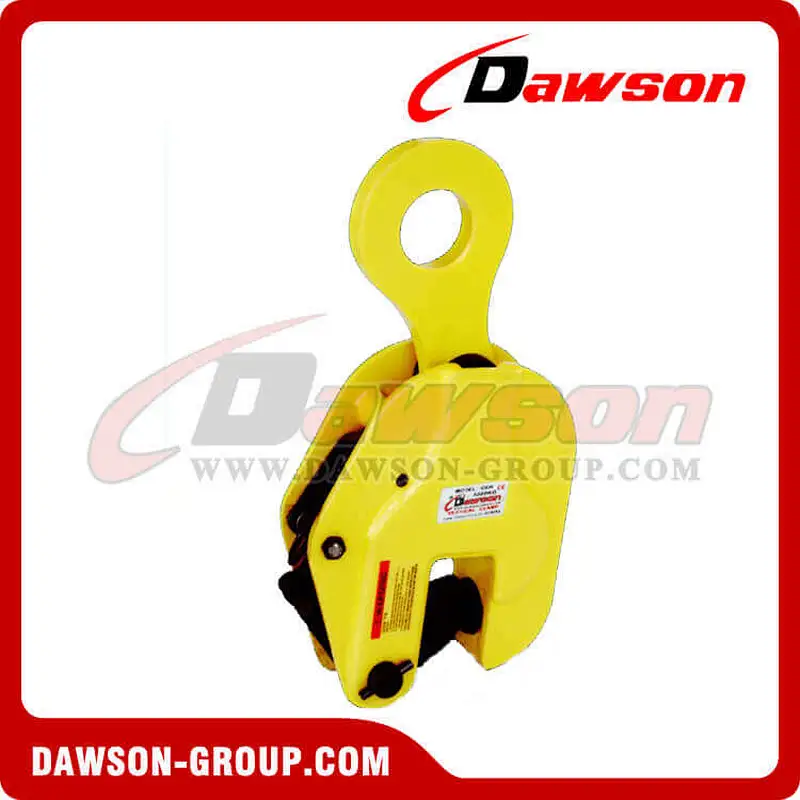

DS-CDH Type Vertical Plate Clamp with Safety Lock Device
DS-CDH Type Vertical Plate Clamp with Safety Lock Device
DS-CDH Type Vertical Plate Clamp with Safety Lock Device
DS-CDH Type Vertical Plate Clamp with Safety Lock Device
DS-CDH Type Vertical Plate Clamp with Safety Lock Device

DS-CDH Type Vertical Plate Clamp with Safety Lock Device

Model NO.
DS-CDH
Quantity:

DS-CDH Type Vertical Plate Clamp with Safety Lock Device

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):0.8-30T.

Use:

● Standard design clamp for vertical lifting of steel plates and steel structures. The spring-loaded tightening lock mechanism assures a positive initial clamping force.

● Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.

● The clamp is locked in closed as well as in open position.

● Manufactured from high quality carbon steel.

● High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.

Part No.ModelWLL (tonnes)Jaw Opening(mm)Weight(kg)
DS-0021DS-CDH0.80.80-162.8
DS-0022DS-CDH11.00-223.6
DS-0023DS-CDH22.00-305.5
DS-0024DS-CDH3.23.20-4010
DS-0025DS-CDH55.00-5017
DS-0026DS-CDH880-6026
DS-0027DS-CDH1010.00-8032
DS-0028DS-CDH1212.025-9048
DS-0029DS-CDH1616.060-12580
DS-0030DS-CDH3030.080-220125

Welcome to buy the newest and cheap DAWSON vertical plate clamp with safety lock device from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

For further information, please contact usEmail:info@dawson-group.com

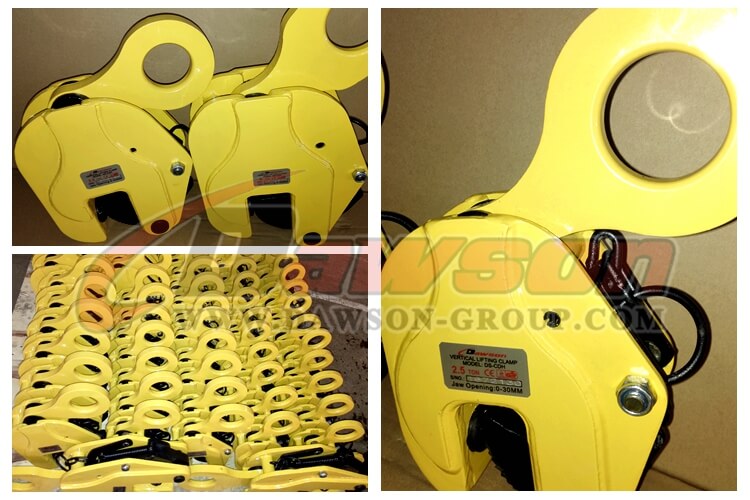

Products Show:

Hot Tags: Vertical ClampVertical Plate ClampVertical Lifting ClampLifting Plate ClampSteel Plate Clamp for LiftingChina Steel Plate Lifting Clamp SupplierWholesale Vertical Plate ClampHot Sale Steel Plate ClampPlate Lifting Clamp FactoryVertical Plate Lifting Clamp ManufacturerSteel Plate Clamp Factory ChinaChina Exporter Clamp for Steel PlateCheap Price Lifting Clamp for Steel PlateLow Price Vertical Plate ClampDawson Brands Plate Lifting ClampStandard Plate Lifting Clamp In StockLifting Clamp for Steel Plate Free SampleVertical Plate Lifting Clamp OEMBuy Discount Vertical Plate Lifting ClampCustomized Steel Plate Lifter Clamp

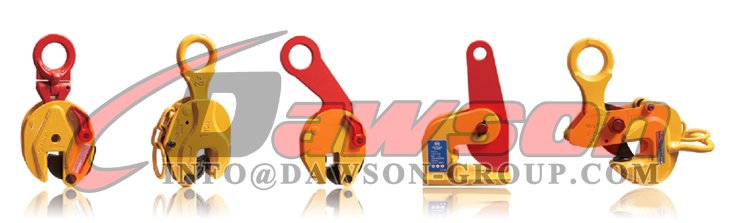

Other Related Products:

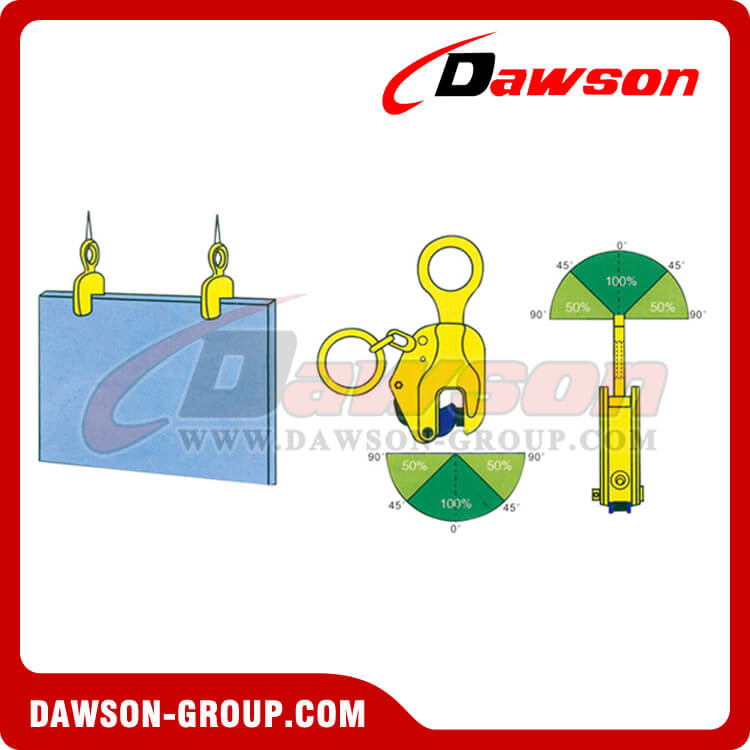

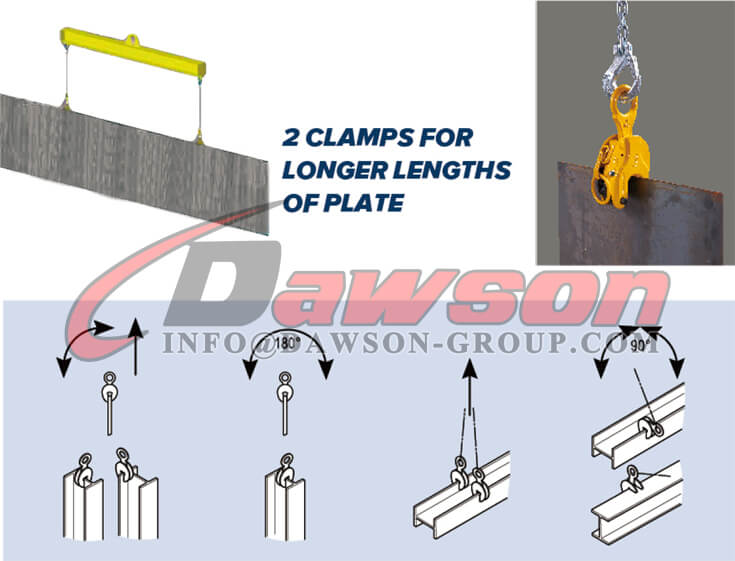

Application of Vertical Plate Clamps:
