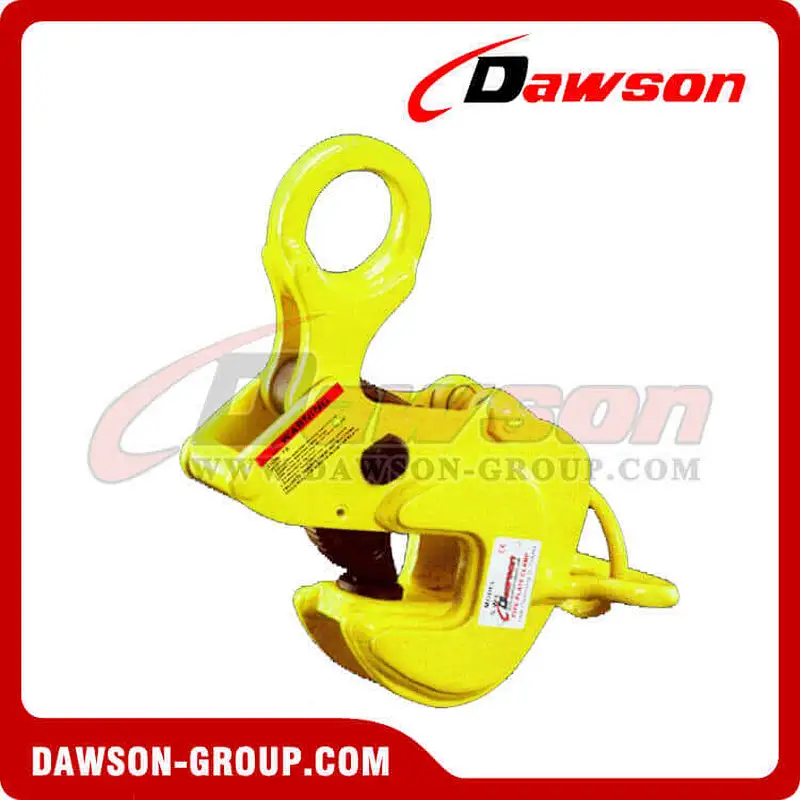

DS-TMS Type Horizontal Plate Clamp with Lock Device

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):0.5-5T.

Use:

● Suitable for lifting and transport of steel plates 、construction and profiled bar in horizontal position.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading .

● The spring-load tightening lock mechanism assures a positive initial clamp force.

● The handle makes it easy and safe to set and detach the clamp onto and from the work piece.


Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0119DS-TMS0.50.50.253.2
DS-0120DS-TMS11.00-255.3
DS-0121DS-TMS22.00-307.9
DS-0122DS-TMS33.00-3810.5
DS-0123DS-TMS55.00-4027.6

Welcome to buy the newest and cheap DAWSON horizontal plate clamp with lock device from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

For further information, please contact usEmail:info@dawson-group.com

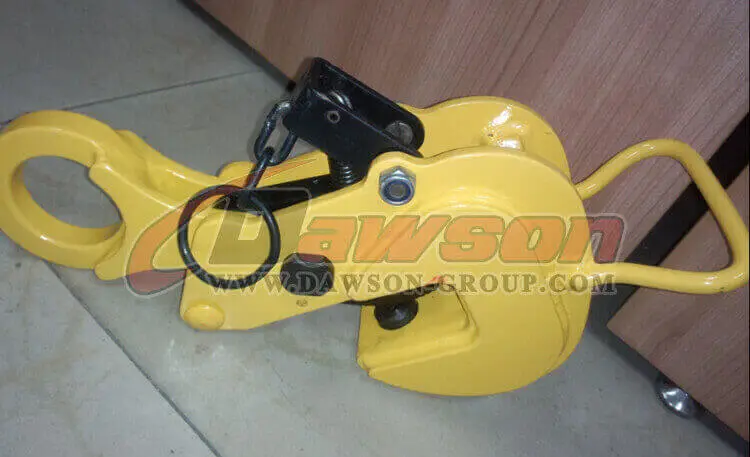

Products Show:

Hot Tags: Horizontal Lifting ClampHorizontal Plate ClampSteel Plate ClampLifting Plate ClampSteel Plate Clamp for LiftingChina Steel Plate Lifting Clamp SupplierWholesale Horizontal Plate ClampHot Sale Steel Plate ClampPlate Lifting Clamp FactoryHorizontal Plate Lifting Clamp ManufacturerSteel Plate Clamp Factory ChinaChina Exporter Clamp for Steel PlateCheap Price Lifting Clamp for Steel PlateLow Price Horizontal Plate ClampDawson Brands Plate Lifting ClampPlate Lifting Clamp In StockLifting Clamp for Steel Plate Free SampleHorizontal Lifting Clamp OEMBuy Discount Horizontal Plate Lifting ClampCustomized Steel Plate Lifter Clamp

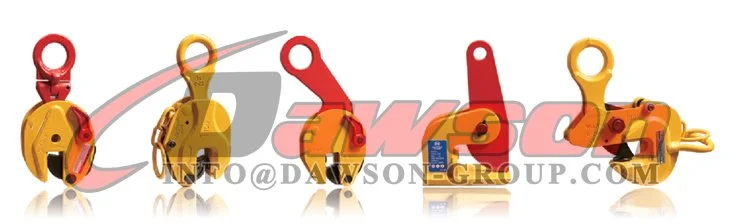

Other Related Products:

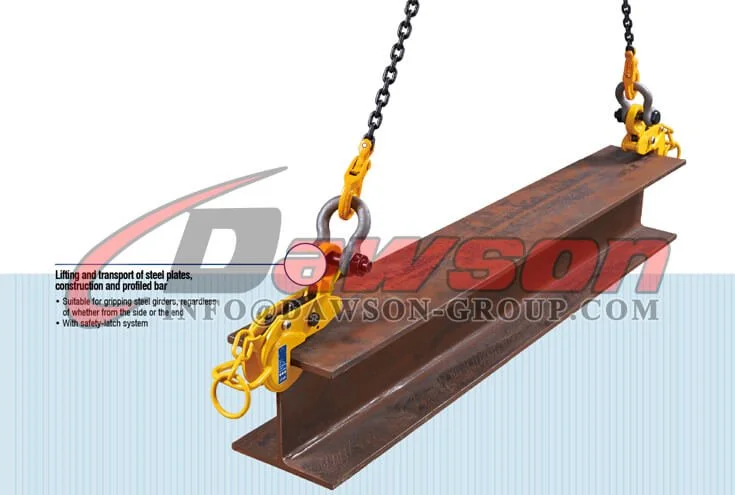

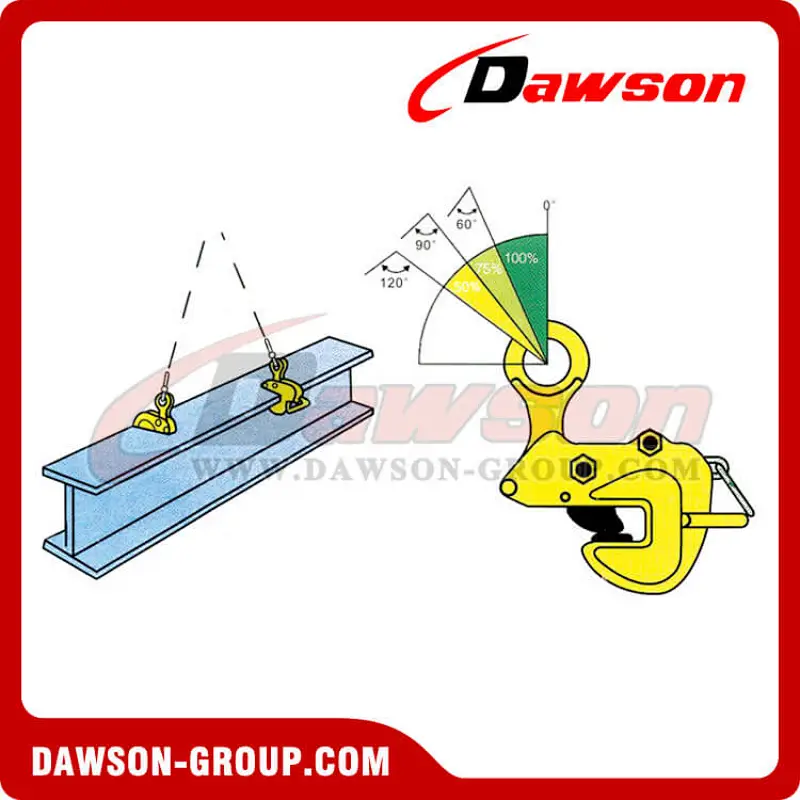

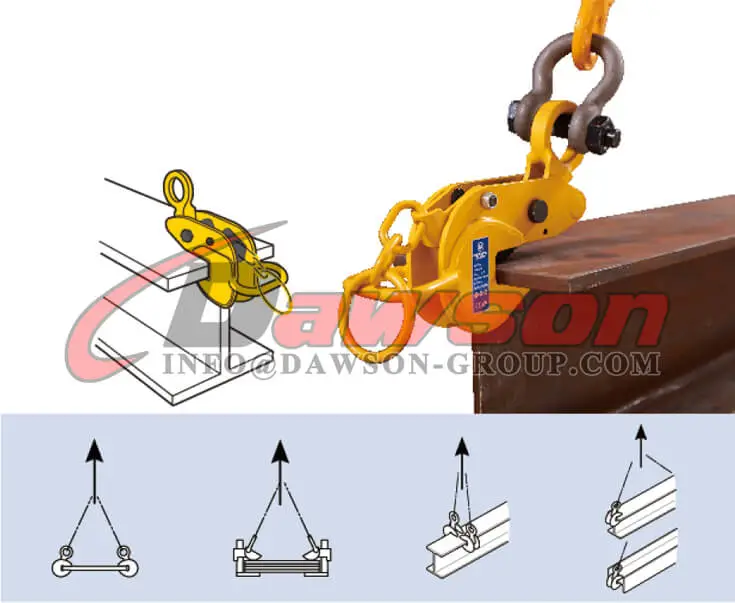

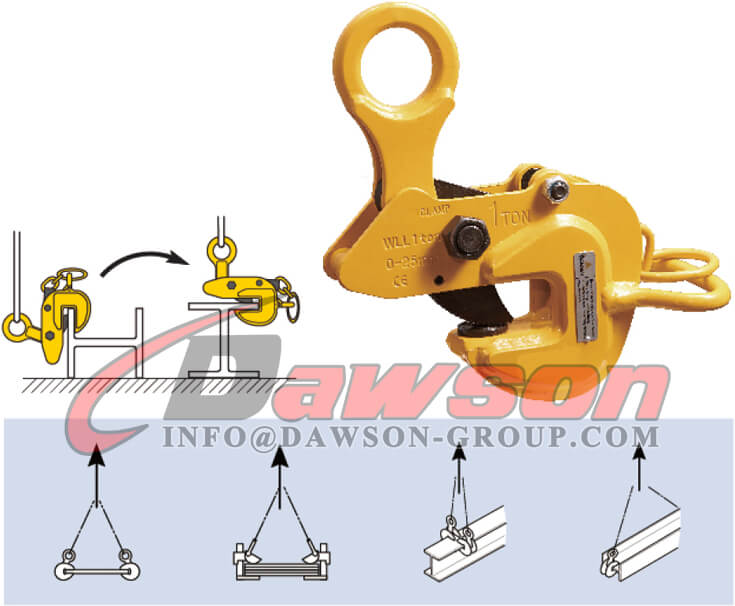

Application of Horizontal Plate Clamp with Lock Device:

Factory & Package Show:
