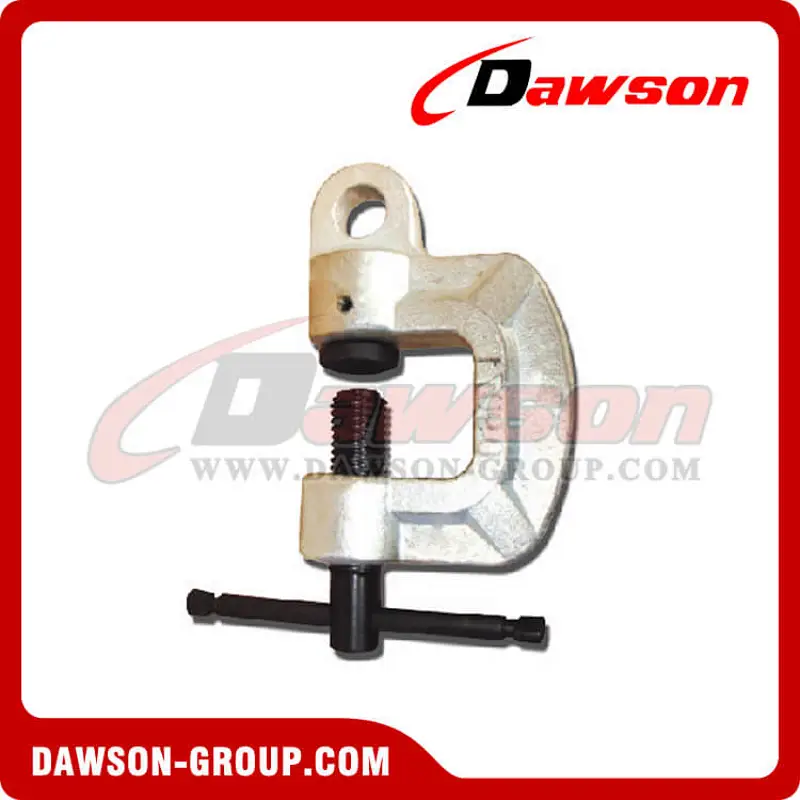

DS-QK·I Type Screw Cam Clamp
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Lightweight, simple and practical
| Item No. | Model | Capacity(t) | Jaw Opening(mm) | Weight(kg) |
| DS-0338 | DS-QK·I-0.5 | 0.5 | 0-25 | 1.7 |
| DS-0339 | DS-QK·I-1 | 1 | 0-40 | 2.4 |
| DS-0340 | DS-QK·I-2 | 2 | 0-40 | 4.3 |

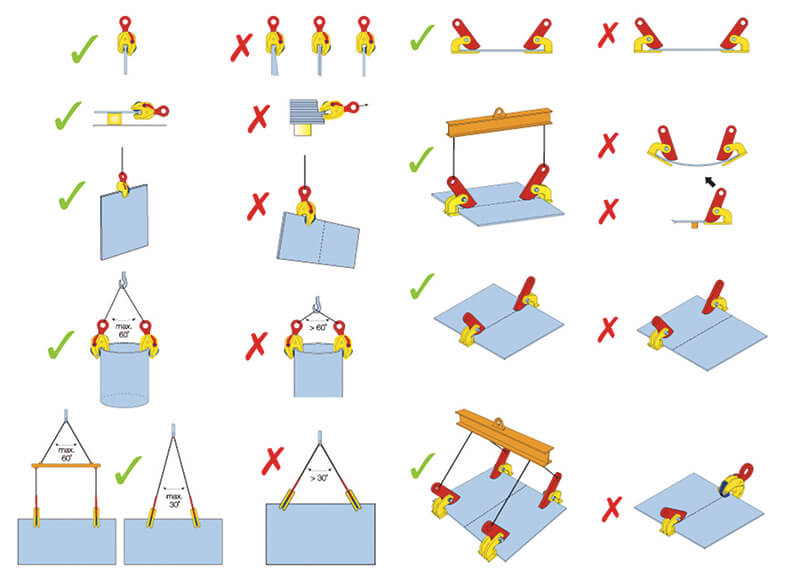

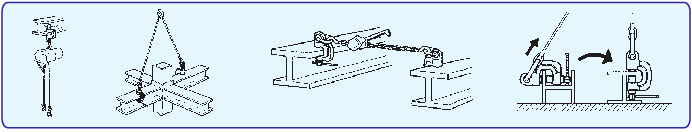

Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

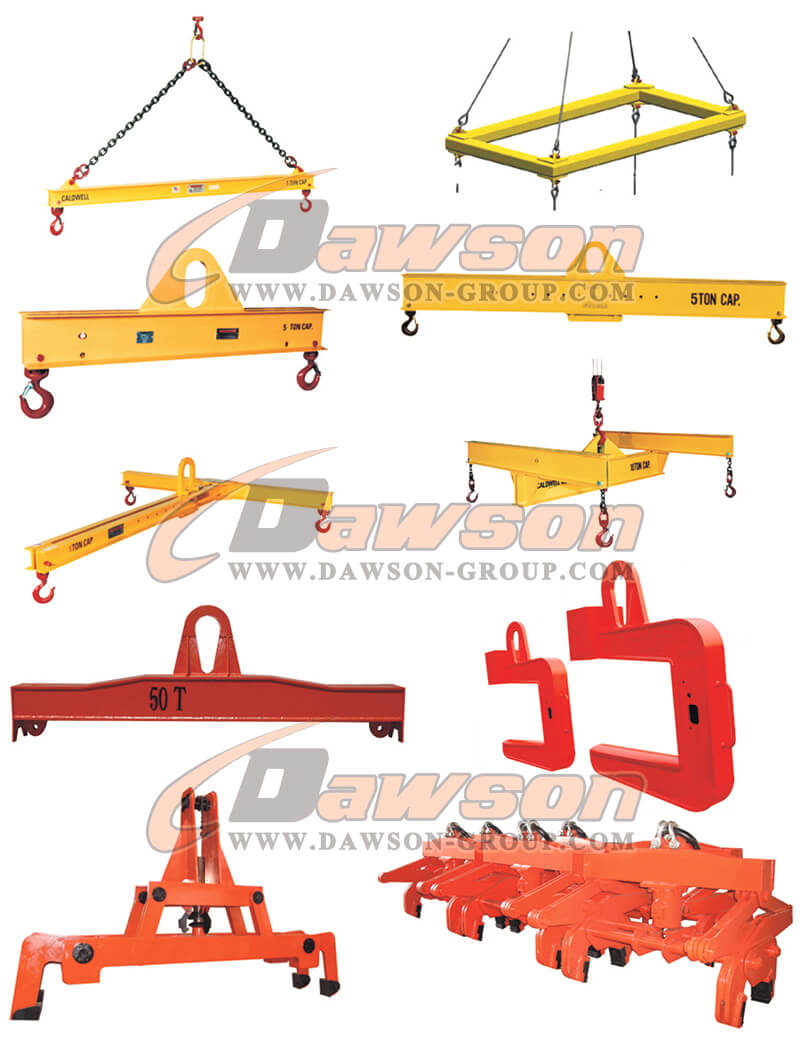

Other Related Products:

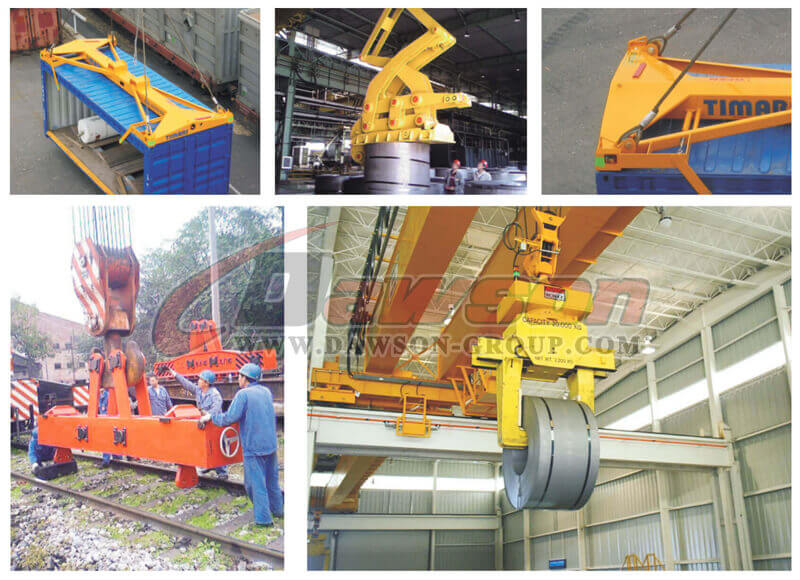

Application of Lifting Clamps
