Pneumatic Glass Vacuum Lifter, Glass Lifter for Glass Factory
Pneumatic Glass Vacuum Lifter, Glass Lifter for Glass Factory

Pneumatic Glass Vacuum Lifter, Glass Lifter for Glass Factory

Model NO.
DS-QFX04-03
Quantity:

Pneumatic Glass Vacuum Lifter, Glass Lifter for Glass Factory
 - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Pneumatic Vacuum lifter is operated by compressed air instead of using electricity. The device is commonly used for glass loading and unloading work in glass deep processing process, such as insulated cutting, grinding, cleaning, tempered, laminated. This device need used together with jib crane beam or gantry crane frame, to safe and reliable, easy and convenient to operate and stable in quality.

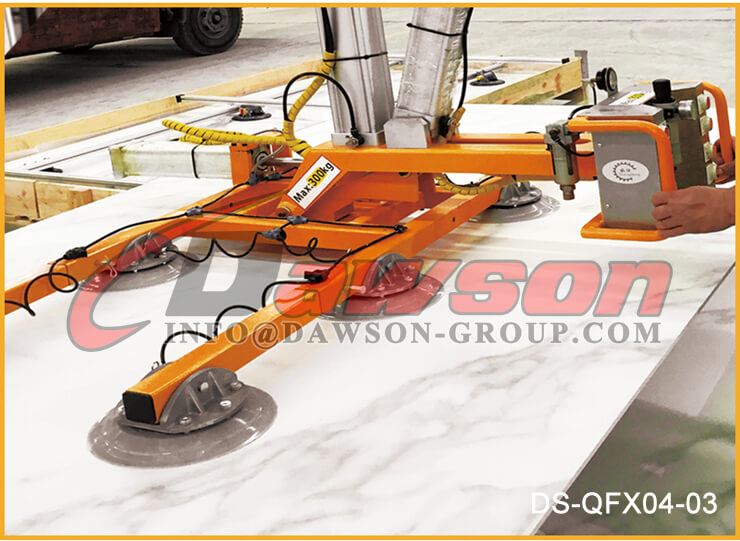

Part No.DS-QFX04-03
Load Capacity300KG
Suction Pad250MM
Suction Qty4 / 8
Rotation TypePneumatic Rotation 90°
Tile TypePneumatic Tilt 90°
Hoist Cylinder120MM*1000MM / 120MM*1200MM / 120MM*1500MM

Dawson not only provides safe and reliable products, but also provides professional services and solutions for the handling of different kind of plate and various shaped plate according to customer needs. Our products have been widely used in glass deep-processing, glass curtain wall installation, handing of ceramic, stone, iron plate and aluminum and other industries.

Applicable Industries:

Building Material Shops, Manufacturing Plant, Retail, Construction works, glass factory.



Hot Tags: pneumatic vacuum lifter, glass vacuum lifter, pneumatic vacuum lifter for glass, pneumatic vacuum glass lifter, vacuum suction glass lifter, vacuum glass loading lifter, pneumatic glass vacuum lifter,  vacuum glass lifter machine, vacuum glass lifter, pneumatic vacuum lifting equipments for glass factory, pneumatic vacuum loading lifter, vacuum lifter for glass loading, vacuum lifter for windows, vacuum lifter for construction works
