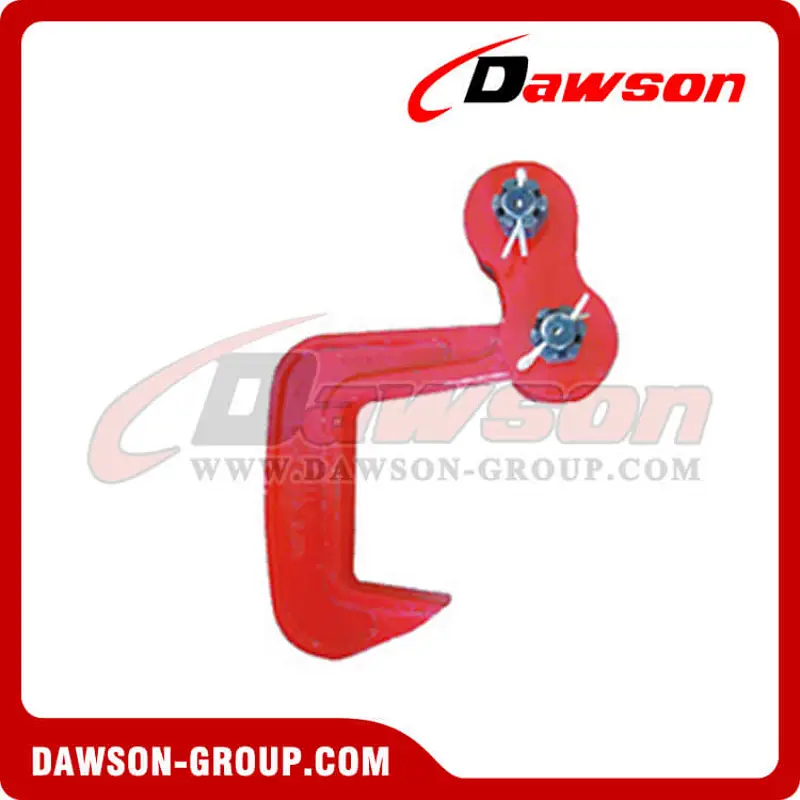

Large Plate Lifting Clamp
Large Plate Lifting Clamp
Large Plate Lifting Clamp
Large Plate Lifting Clamp
Large Plate Lifting Clamp

Large Plate Lifting Clamp

Model NO.
DS-6301
Quantity:

Large Plate Lifting Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

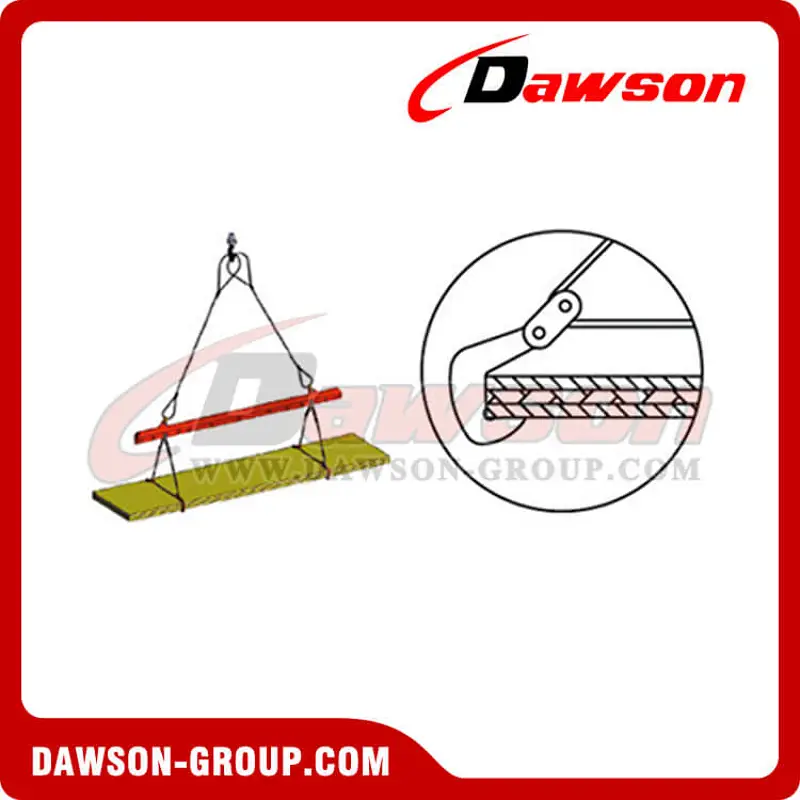

Triangle Lifting Way with Wire Rope and Balance Lifting Beam to Ensure the Close Connection between Large Plate Lifting Clamp and Steel Plate.

Keep Steel Plate Lifting in Horizontal Position and not Tilt.

Safety Factor:3

Item No.SWLThicknessTotal SWLWeight
DS-63013t0-909t8.5
DS-63024t0-13012t11.7
DS-63036t0-18018t16.5
DS-63048t0-24024t19.6

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
