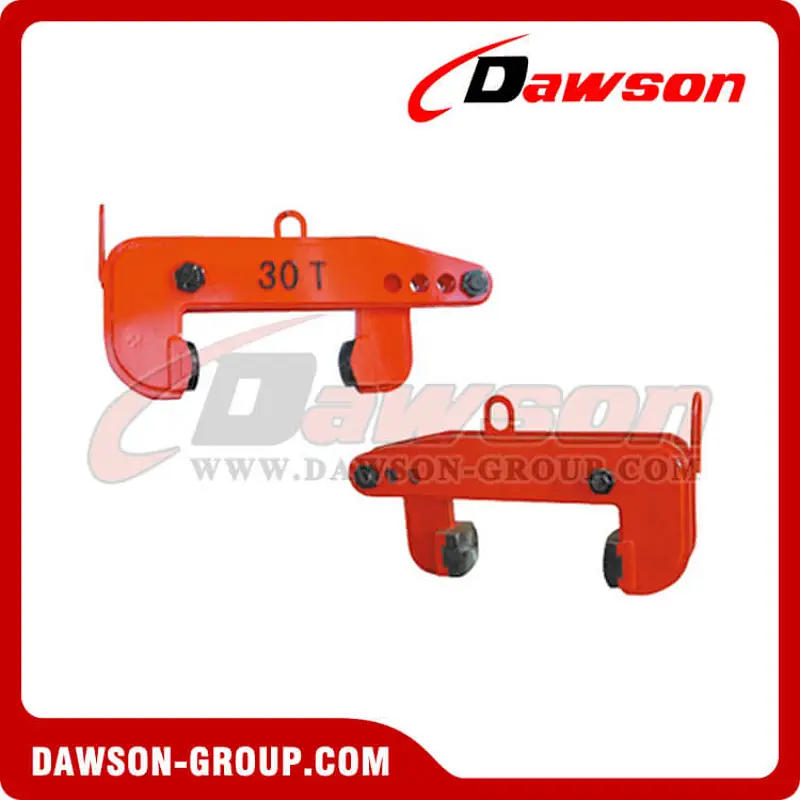

L Type Vertical Coil Clamp
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

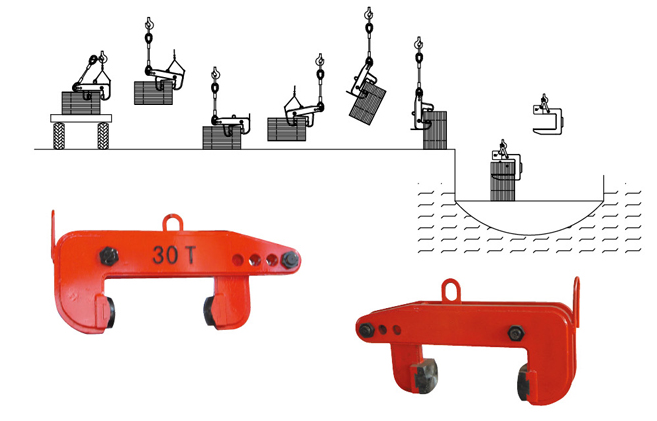

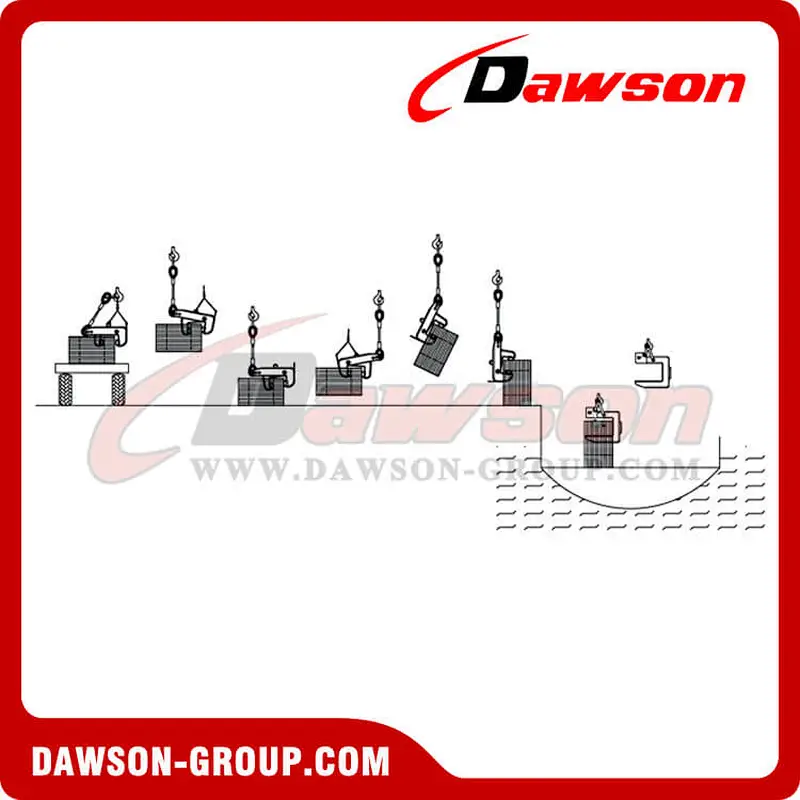

D type: Grab and Lift one side of Vertical Coil by Mechanical Shearing Force Principle. When the Gravity Point changed, Coil Clamp could change from Vertical position to Horizontal position and Coil could be reversed from Horizontal position to Vertical position. Used for 15-40t Vertical Coil.
| Item No | SWL | Coil Outside Diameter | Coil Inside Diameter | Coil Length | Weight | |||
| Min | Max | Min | Max | Min | Max | |||
| DS-6701 | L-10t | 1100 | 1300 | 450 | 600 | 1050 | 1200 | 520 |
| DS-6702 | L-20t | 1350 | 1600 | 500 | 650 | 1250 | 1400 | 630 |
| DS-6703 | L-30t | 1600 | 1850 | 500 | 650 | 1400 | 1600 | 850 |
Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
Other Related Products:

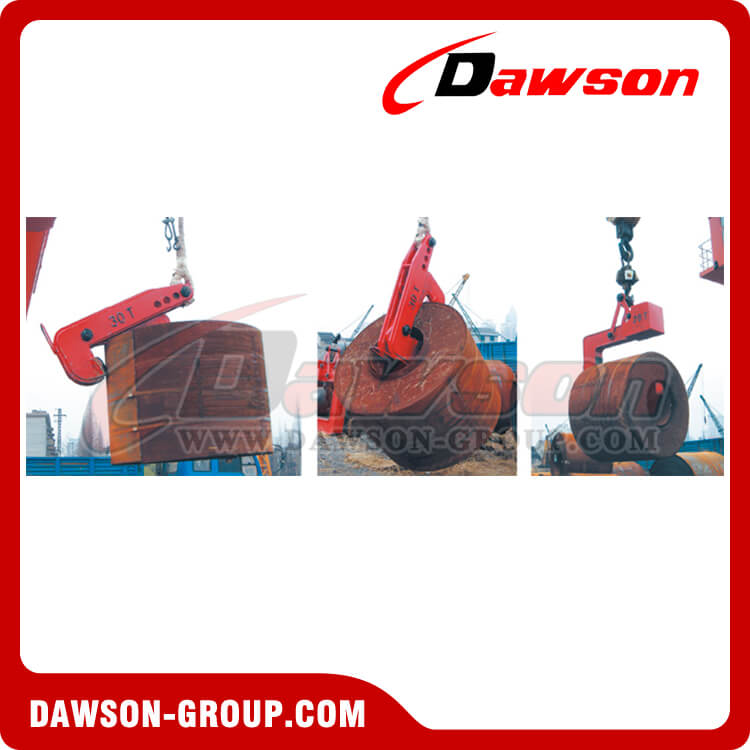

Application of Lifting Clamps:
