Model NO.
DS-6103
Quantity:

Horizontal Lifting Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

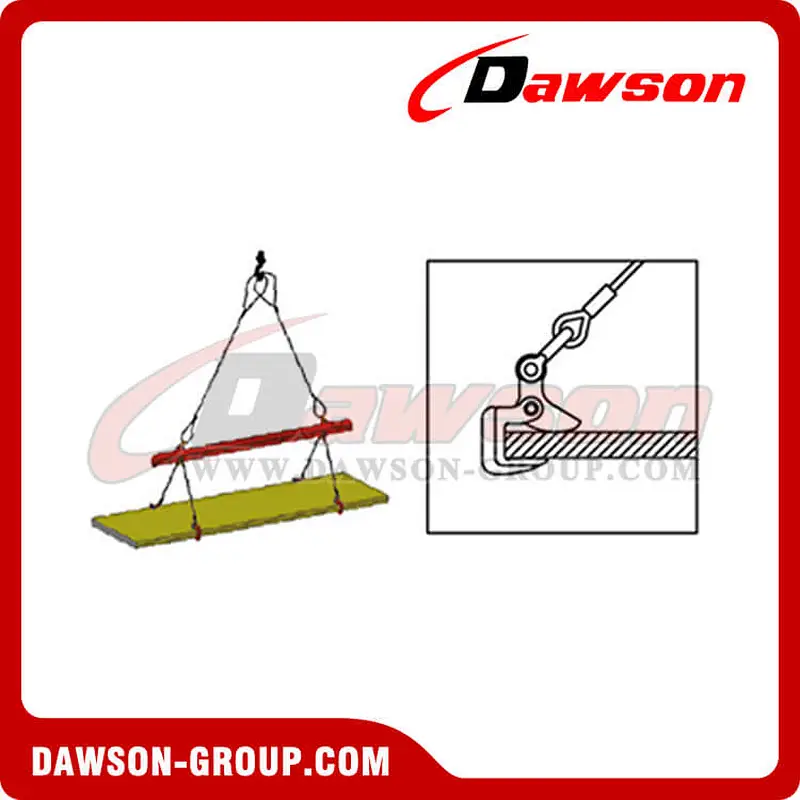

High-Strength, Small Size, Hardened Steel Jaws, Wear and Not Slip for Lifting Plates in horizontal Position, in Pairs with Balance Beam 4 Horizontal Lifting Clamps a group and long plate with 6 Clamps

Safety Factor:4

Item No.SWLThicknessTotal SWLWeight
DS-61035t0-9015t11.8
DS-61046t30-13018t14
DS-61058t40-18024t20.2
DS-610610t40-22030t26.7

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
