Model NO.
DS-66
Quantity:

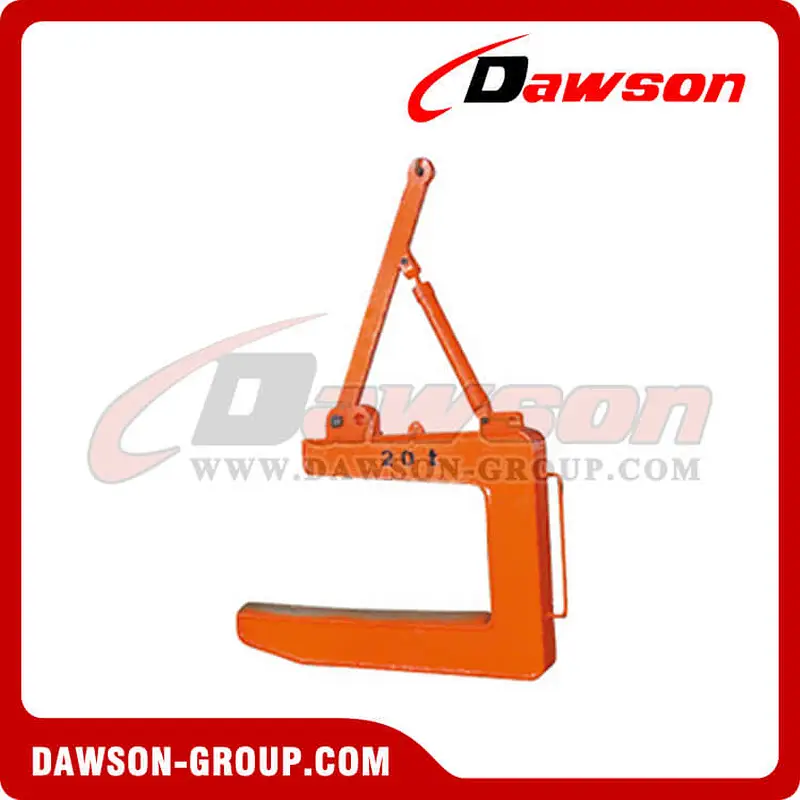

Horizontal Coil Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

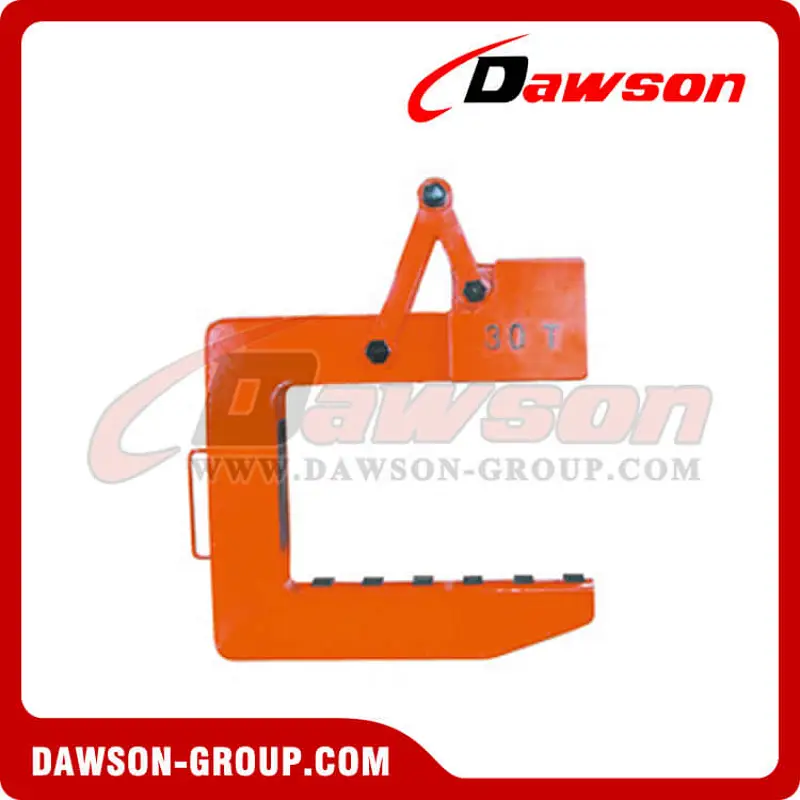

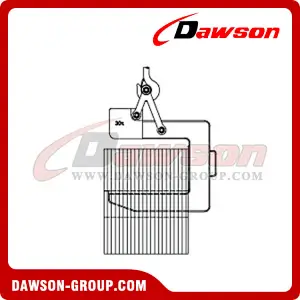

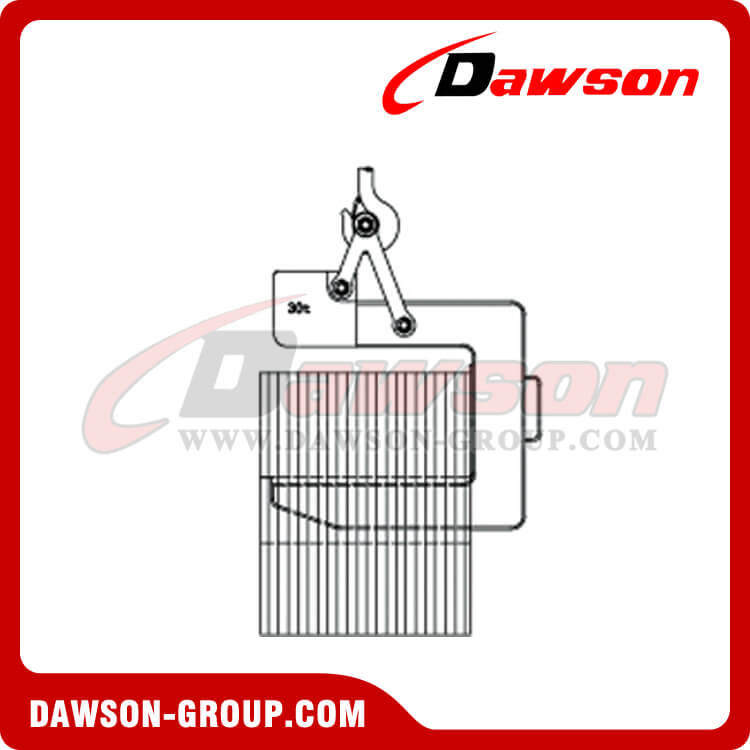

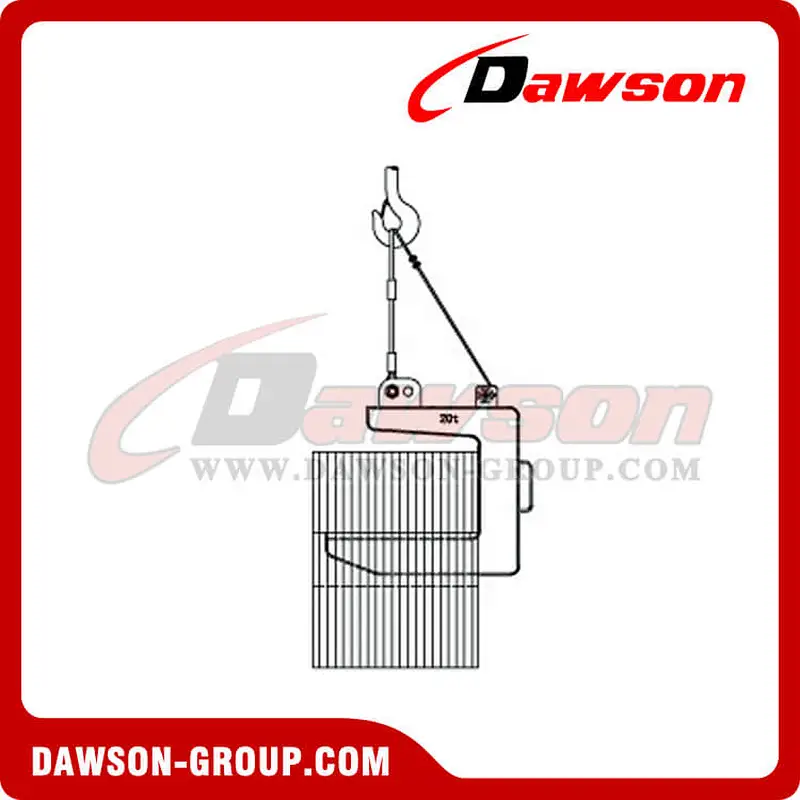

Type A:Weight Type Horizontal Coil Clamp, Ensure Balance of No Load and Overload by Weight Distribution of Clamp itself.

Item No. SWLCoil Outside DiameterCoil Inside DiameterCoil LengthWeight
MinMaxMinMaxMinMax
DS-6601A-5t90011004506008501000850
DS-6602A-10t11001300450600105012001050
DS-6603A-15t12501500450600115013001275
DS-6604A-20t13501600500650125014001450
DS-6605A-25t15001750500650130015001800
DS-6606A-30t16001850500650140016002000

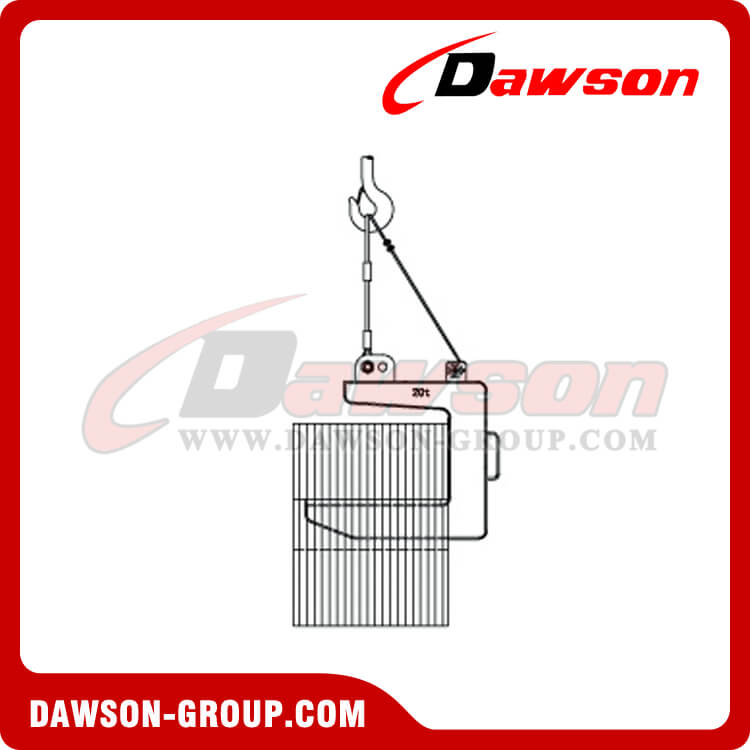

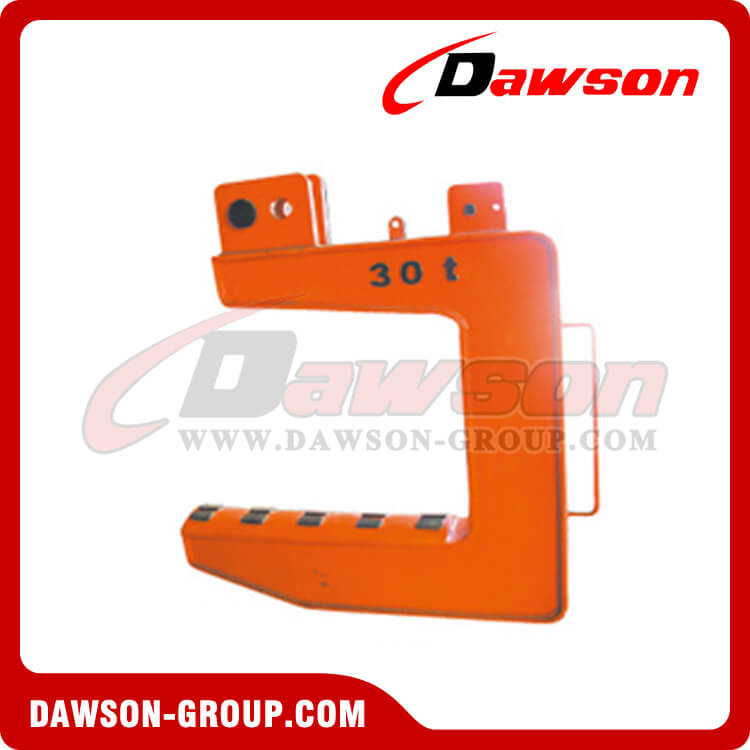

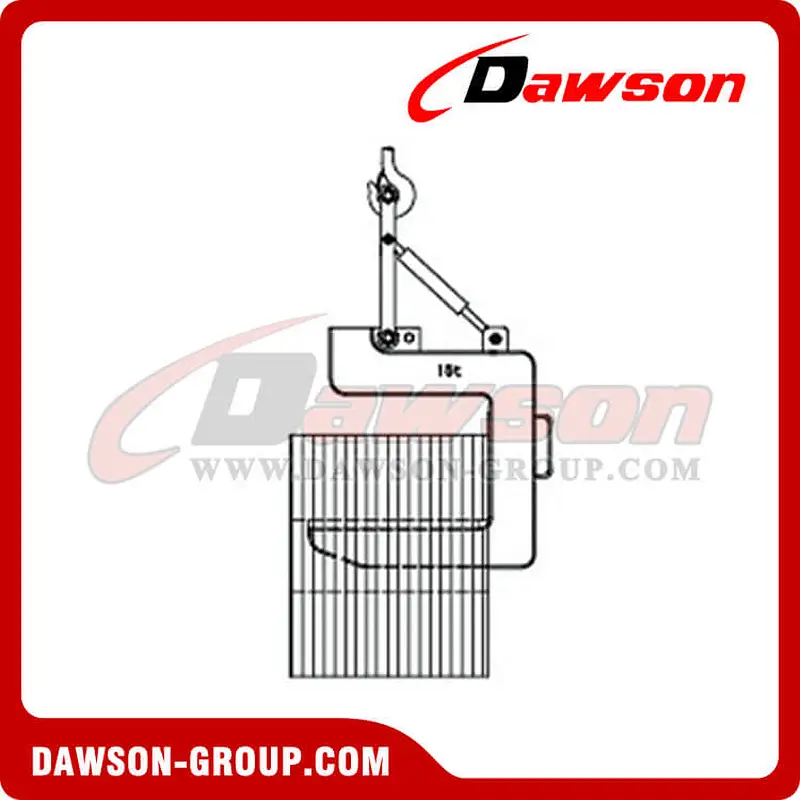

Type c:Balance Outside Type Horizontal Coil Clamp; Ensure Balance of No Load and Overload by Spring Stretch Outside Clamp.


Item No.SWLCoil Outside DiameterCoil Inside DiameterCoil LengthWeight
MinMaxMinMaxMinMax
DS-6641C-15t12501500450600115013001080
DS-6642C-20t13501600500650125014001200
DS-6643C-25t15001750500650130015001350
DS-6644C-30t16001850500650140016001550

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

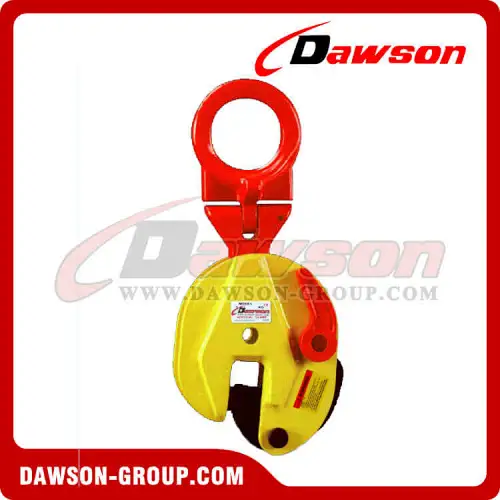

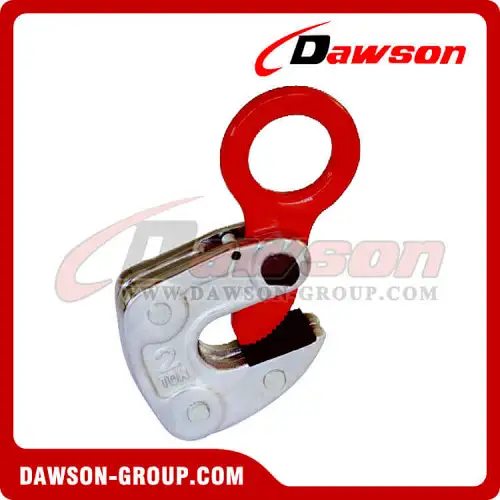

Other Related Products:
