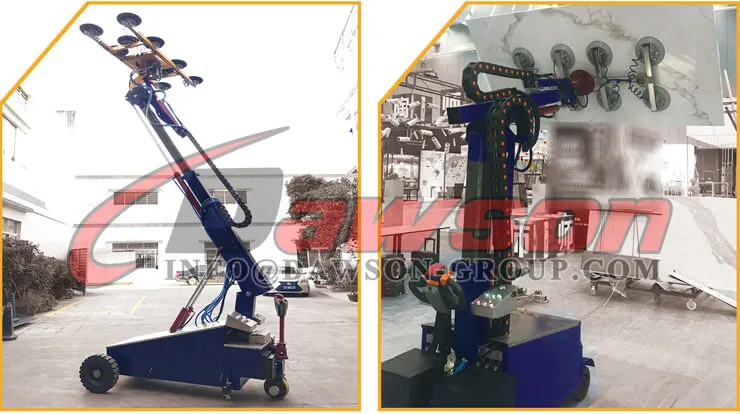

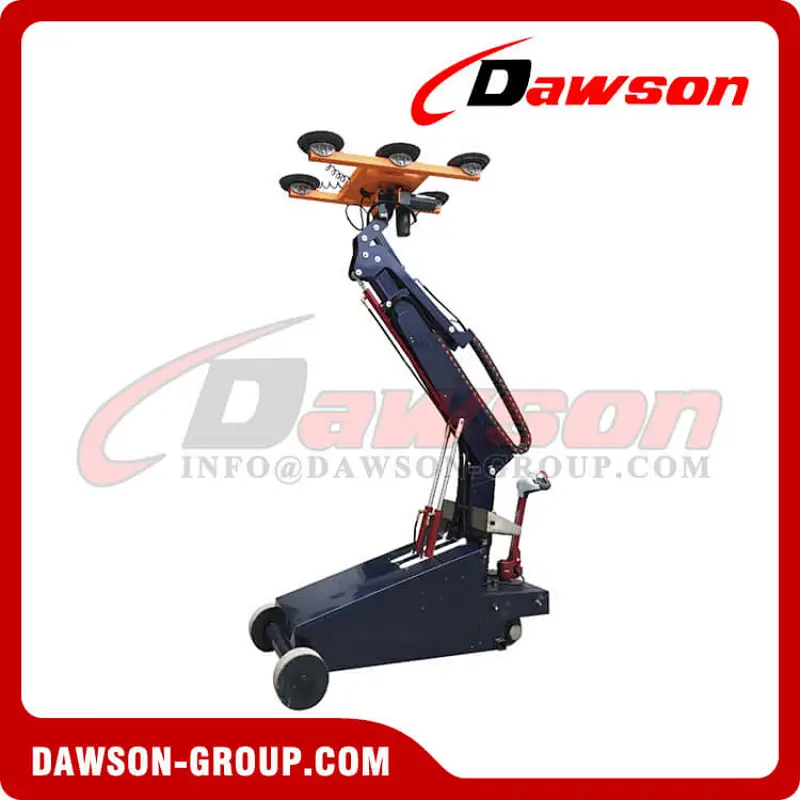

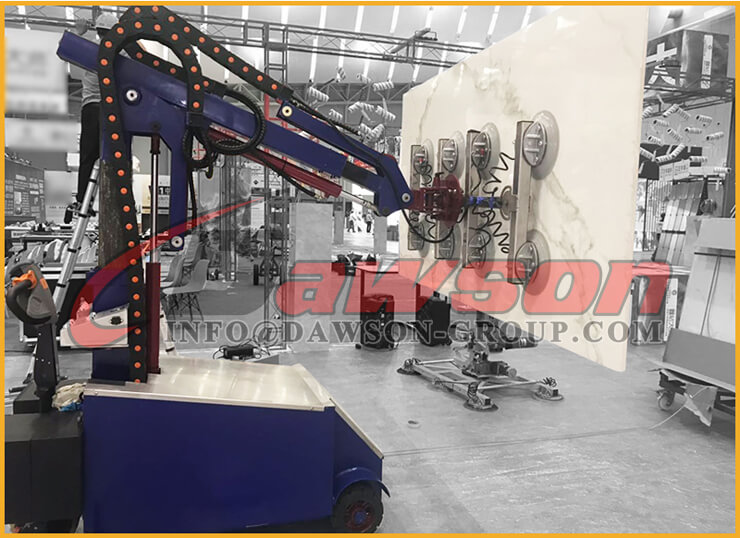

The lifter is designed for electric and hydraulic operation. The entire system consists of electric vacuum gripping device, hydraulic performance devices, electric driving system and safety protection system, to achieve gripping, handling, moving and placing glass to specific location by serial of process setting. The lifter can be assembled to various kinds of models to fit for different size of glass.
Dawson not only provides safe and reliable products, but also provides professional services and solutions for the handling of different kind of plate and various shaped plate according to customer needs. Our products have been widely used in glass deep-processing, glass curtain wall installation, handing of ceramic, stone, iron plate and aluminum and other industries.
| Code | DS-CAR-500 |
| Safe Load Capacity | 500KG |
| Number and size of Pads | 10 pads/ [300mm] diameter |
| Pads Description | Black rubber, abrasion resistant, long-time heat resistant up to 120℃ |
| Product Weight | 1500KG |
| Product Size | 3200MM(L)*1050MM(W)*2100MM(H) |
| Max. Glass Size | 4000MM(L)*2400MM(W)*4-25MM(T) |
| Min. Glass Size | 1200MM(L)*950MM(W)*4-25MM(T) |
| Lifting Material | Glass, marble, plastic borads, metal sheet, coated boards and other plates. |
| Battery Specs. | 200AH*8PCS |
| Working Power | 24V DC |
| Batter Charge | 220V 50/60HZ |
| Noise Level | Less than 80Db |
| Suitable for lifting | Material prooerties: Gastight / non-porousm, smooth surface Example: flat glass, building glass, various kinds of processing glass and special glass. |
| Performance | Electric / Hydraulic tilt 180° upwards and downwards with stopping at any position. Electric motorized rotation 360° with stopping at any position. Electric head slew left & right 90° with stopping at any position. Hydraulic lift up and down up to 4000mm. Hydraulic extend the lifting arm to 1000mm. |
| Safety Protection | Electric motor car, control by steeing wheel Recharge when electricity power less than 30% When vacuum reaches to the specified pressure, vacuum pump automatically stops to achieve energy saving; When cacuum pressure is insufficient, it automatically restarts to achieve vacuum compensation. |
Applicable Industries:
Building Material Shops, Manufacturing Plant, Retail, Construction works, glass factory.
Performance:

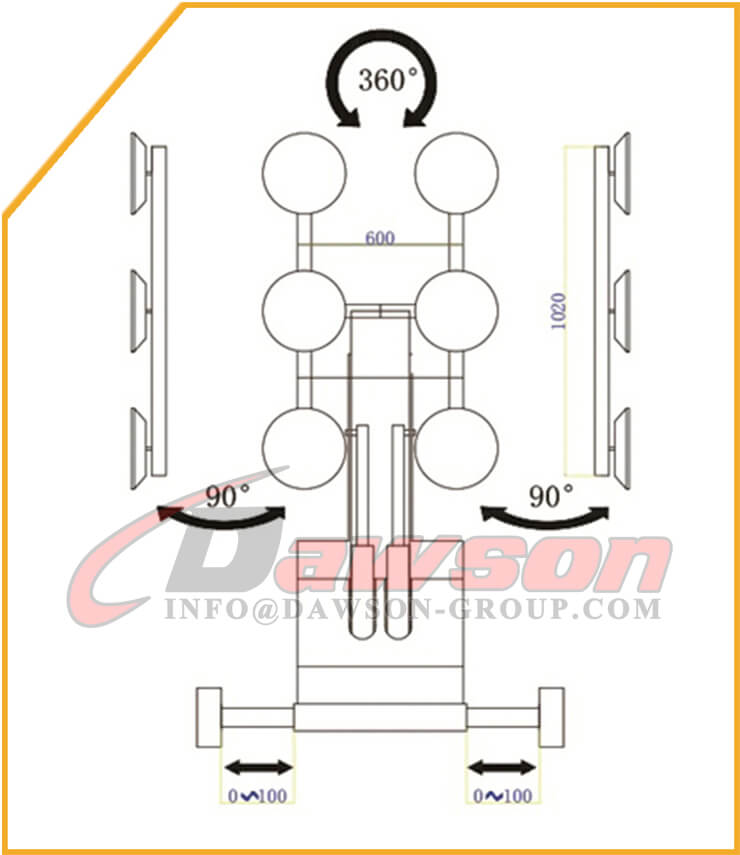

1)Motorized tilt to 90 degrees to the left and right, and 360-degree rotation to stop the range between any angle.

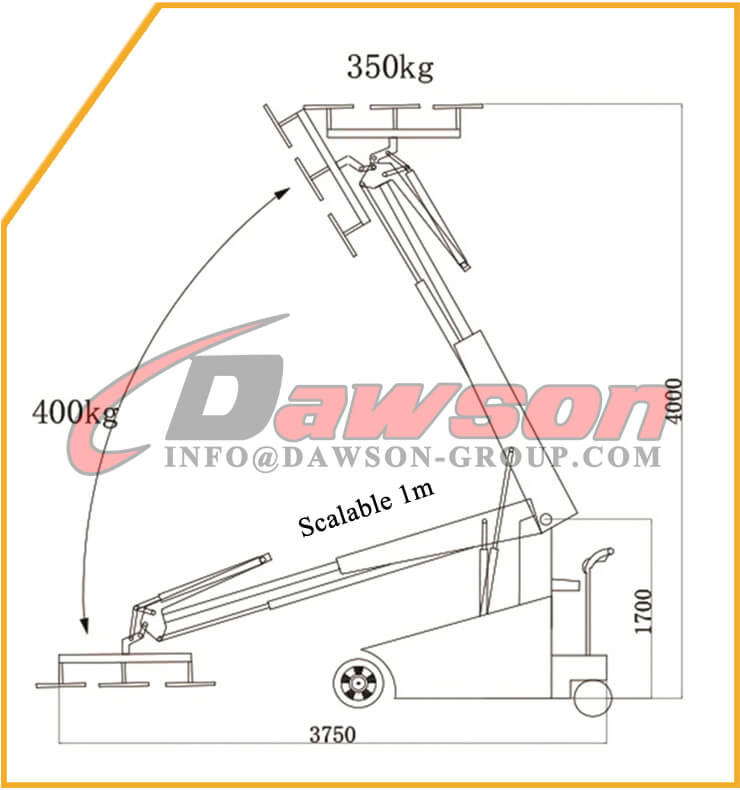

2)Hydraulic lift up and down to 4000mm, hydraulic extend the lifting arm to 1000mm.
Hot Tags:manipulators, glazing robots, electric glazing robots, hydraulic glazing robots, glazing robot manipulator, vacuum lifting equipment, electric
vacuum lifter, glass vacuum lifter, vacuum glass lifte
Application:
