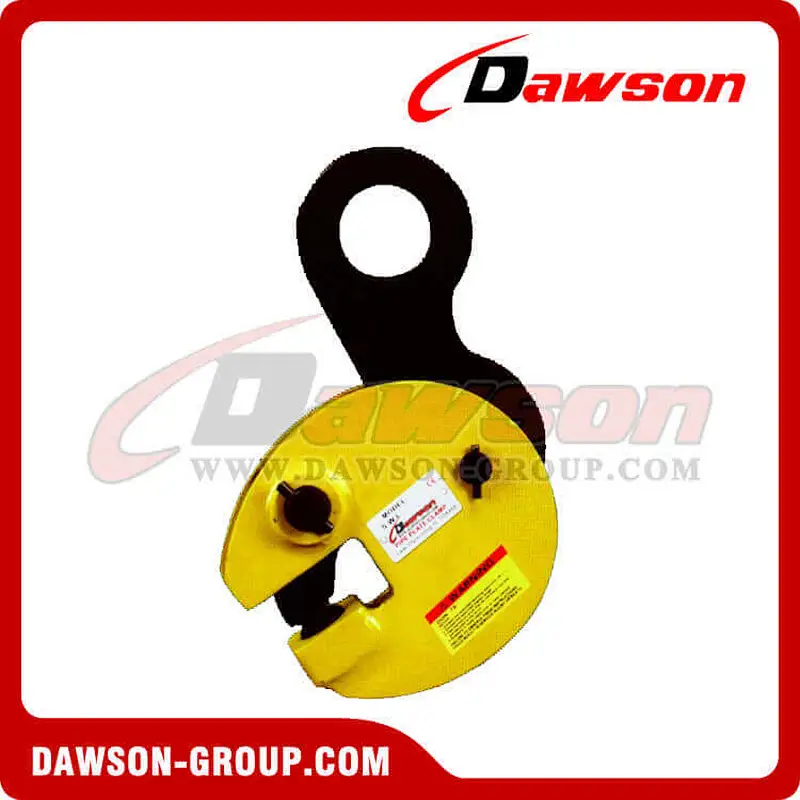

DS-YDG Type Girder Stacking Clamp
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Working load limit(WLL)：1-2T.
Use：
● Clamp for horizontal lifting of steel structures (also can be used for any structured steels).
● Manufactured from high quality carbon steel.
● Avoid snatch or shock loading.
● H-beam lying on their sides can be lifted and handled horizontally.
| Part No. | Model | WLL(tonnes) | Jaw Opening(mm) | Weight(kg) |
| DS-0098 | DS-YDG1 | 1.0 | 0-24 | 7 |
| DS-0099 | DS-YDG2 | 2.0 | 0-30 | 11 |
Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

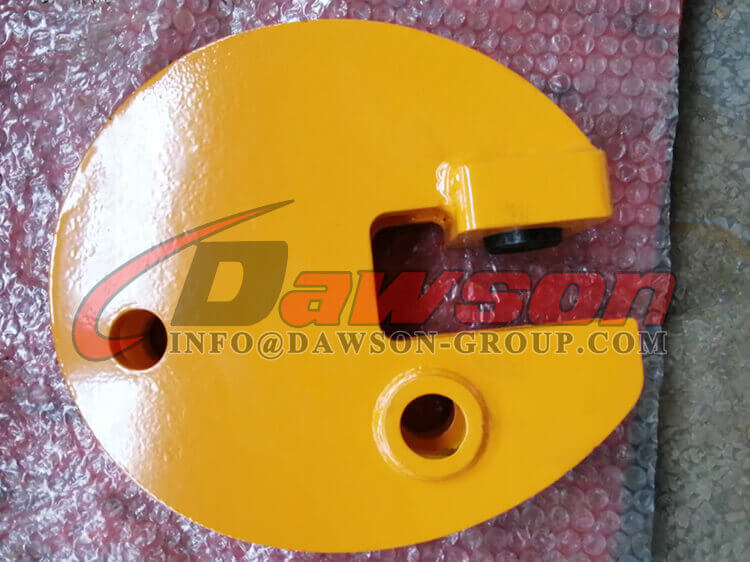

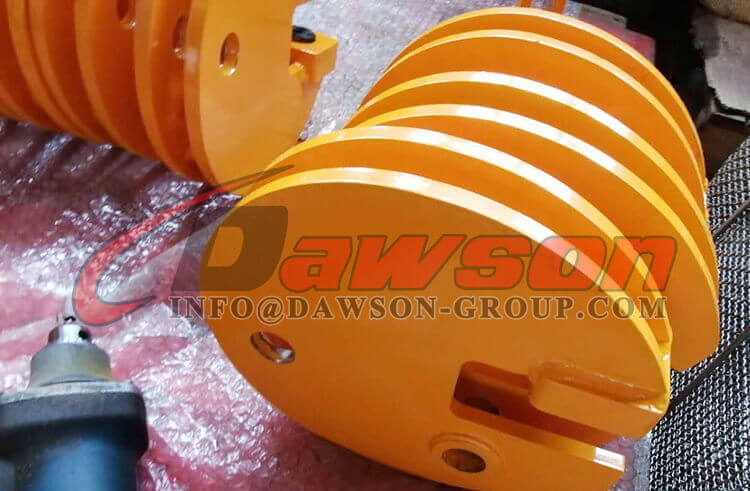

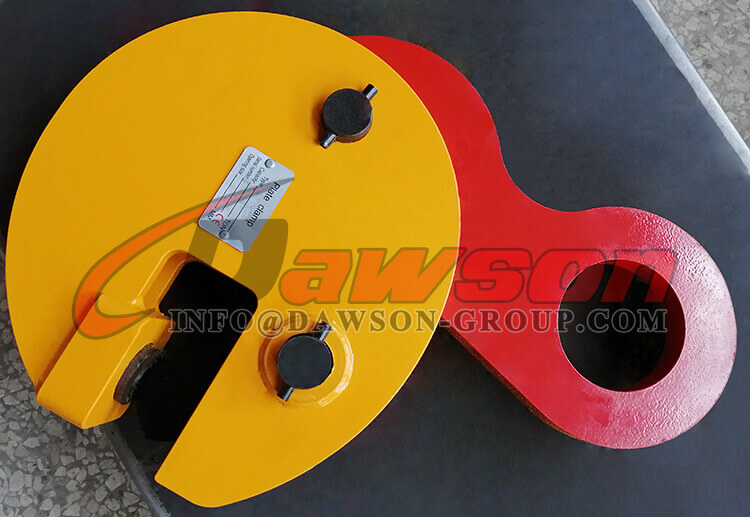

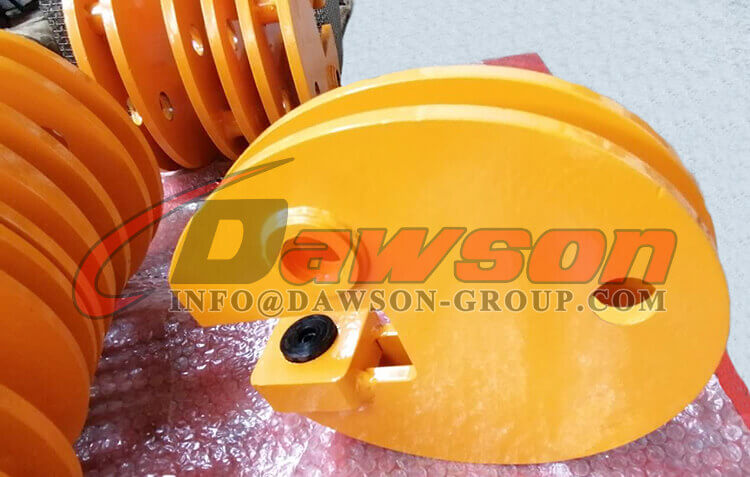

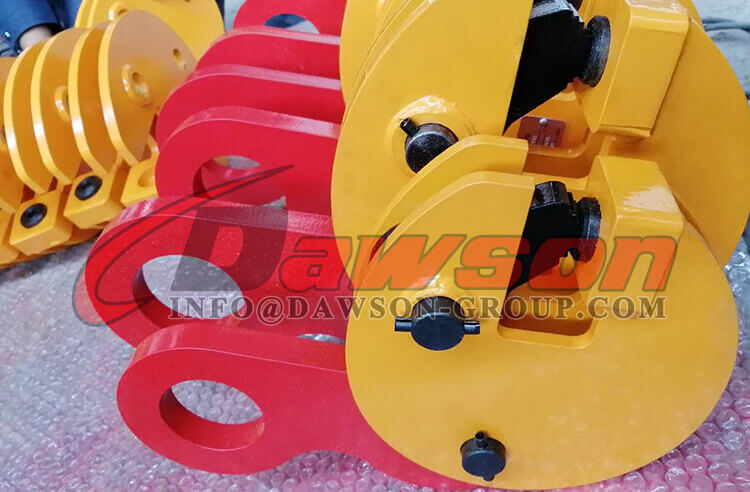

Products Show:
Other Related Products:

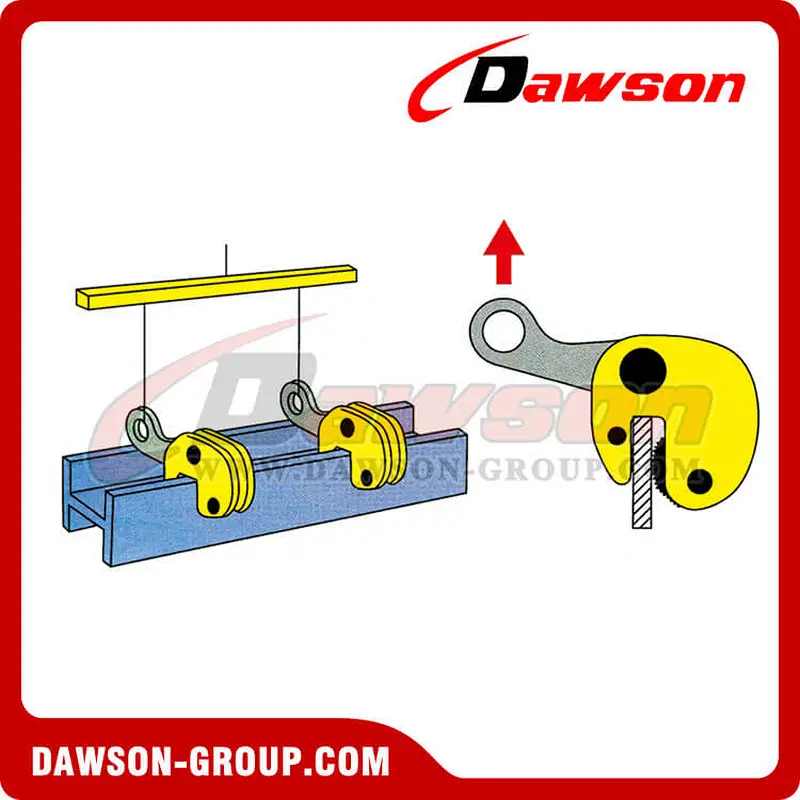

Application of Lifting Clamps:

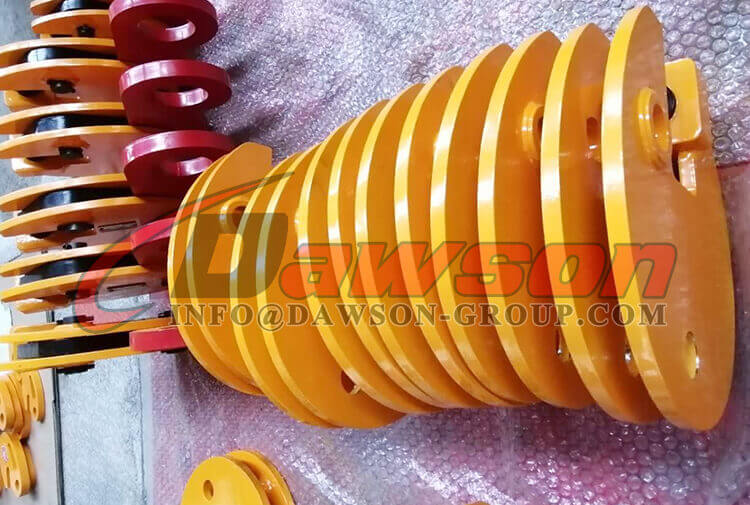

Factory & Package Show:
