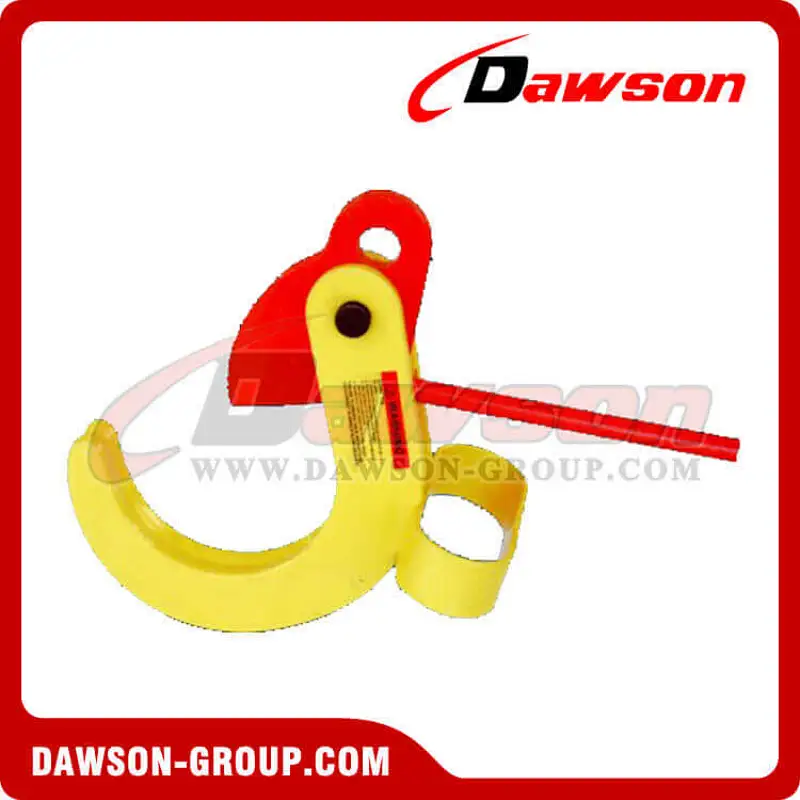

DS-YD Type Round Stock Grabs
DS-YD Type Round Stock Grabs
DS-YD Type Round Stock Grabs
DS-YD Type Round Stock Grabs
DS-YD Type Round Stock Grabs

DS-YD Type Round Stock Grabs

Model NO.
DS-YD
Quantity:

DS-YD Type Round Stock Grabs

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):0.5T.

Use:

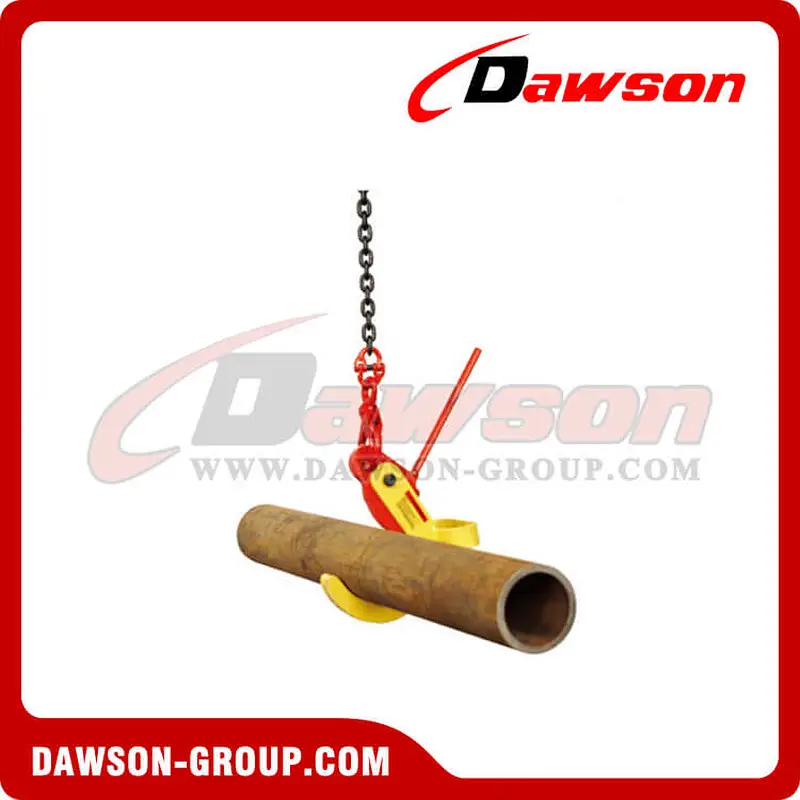

● For horizontal lifting and transporting of steel and concrete pipes.

● They are extremely easy and simple to use and make for safe lifting.

● Available with spring automatic close device.

Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0149DS-YD0.50.5100-1202.5
DS-0150DS-YD11.0140-1807

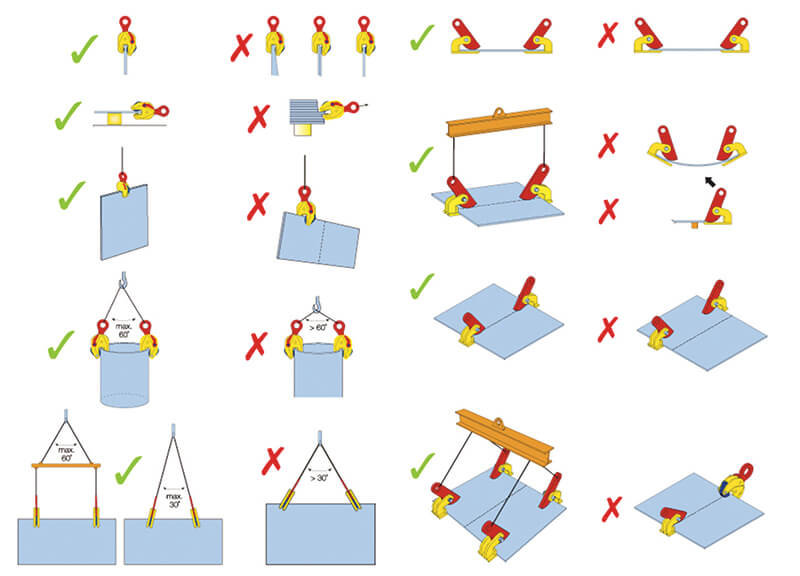

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

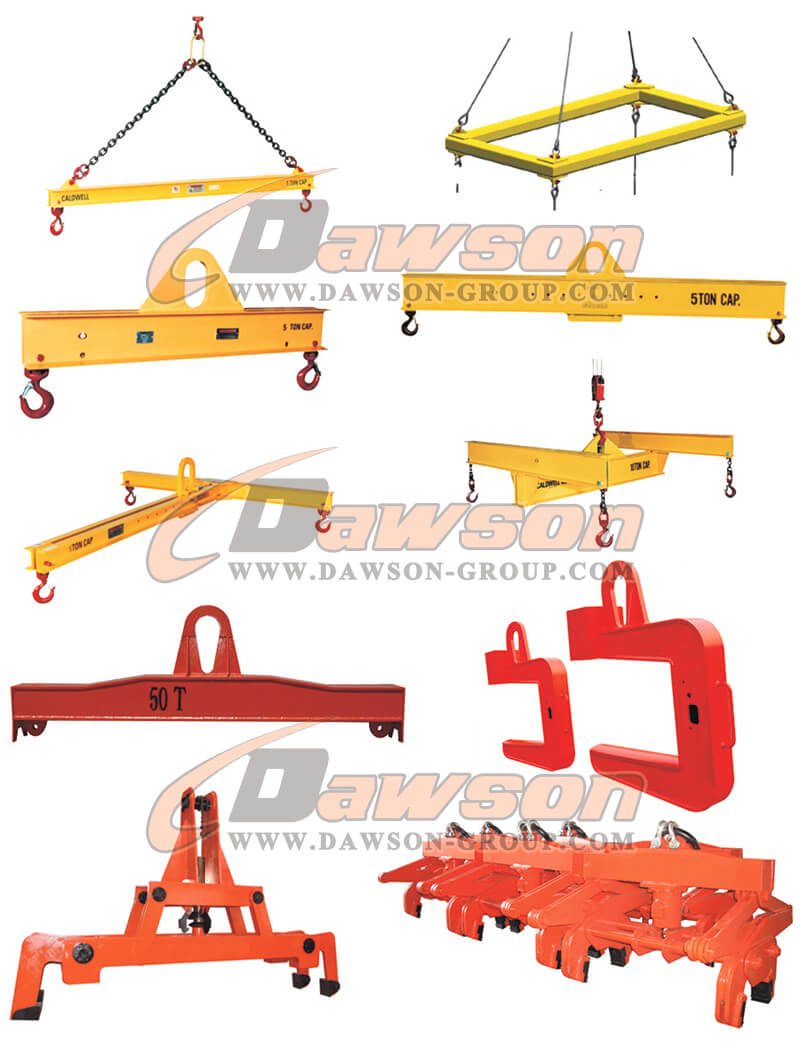

Other Related Products:

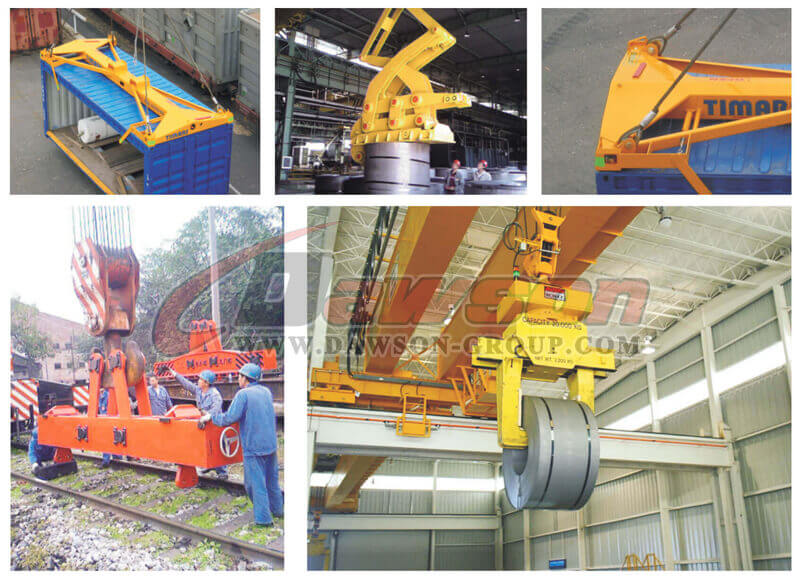

Application of Lifting Clamps:
