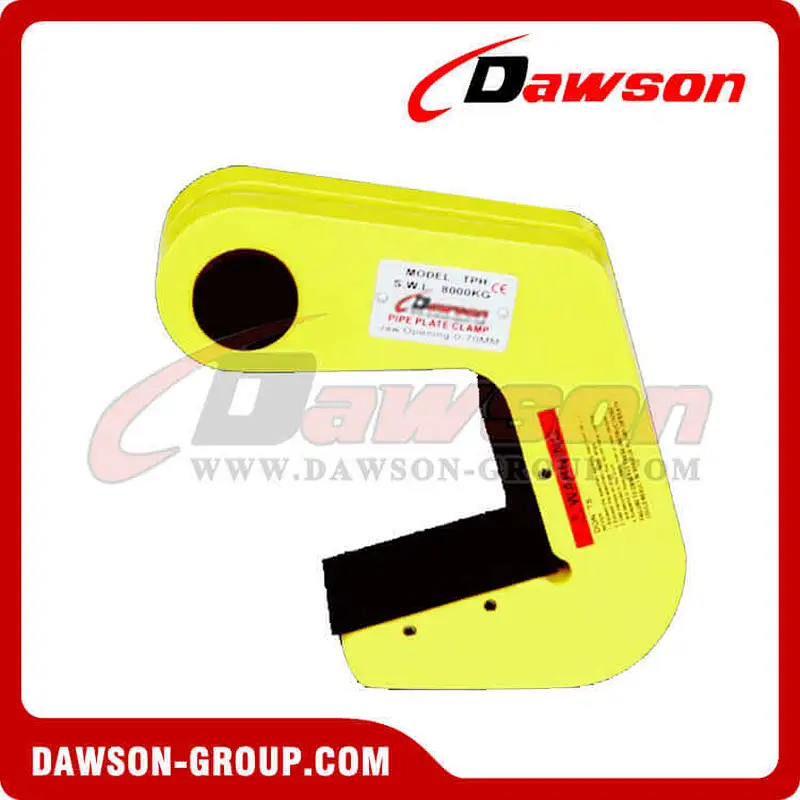

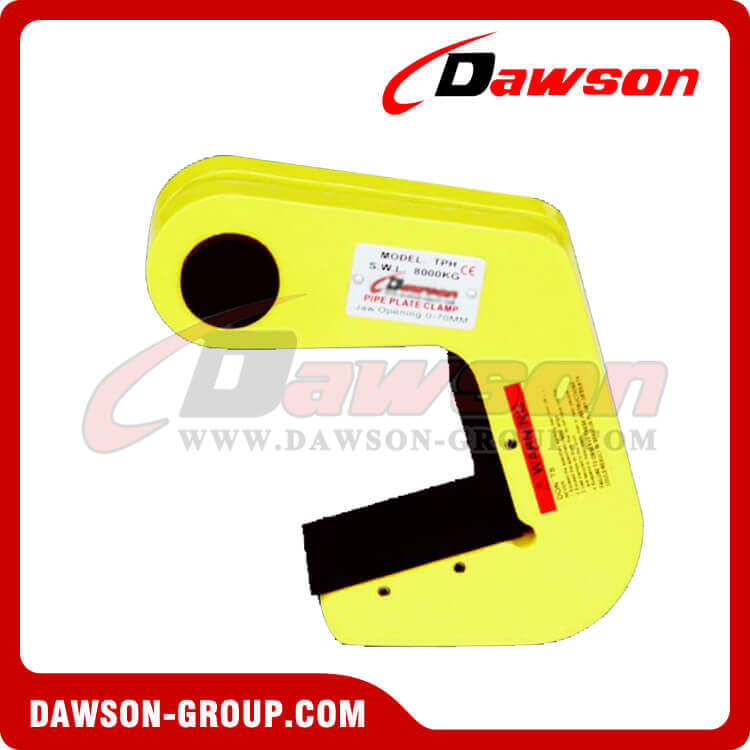

DS-TPH Type Pipe Plate Clamp for Horizontal Lifting and Transporting
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Working load limit(WLL)：1.5-18T.
Use：
● For horizontal lifting and transporting of steel and concrete pipes.
● Compact shapes and relatively low own weight with a high lifting capacity.
● The surface is equipped with “special” plastic.
●The DS-TPH will be delivered per pair.
● Plastic cover is easy to change.
| Part No. | Model | WLL(tonnes) | Jaw Opening(mm) | Weight(kg) |
| DS-0159 | DS-TPH1.5 | 1.5 | 40 | 1.5 |
| DS-0160 | DS-TPH3 | 3.0 | 40 | 2 |
| DS-0161 | DS-TPH4 | 4.0 | 50 | 2.8 |
| DS-0162 | DS-TPH6 | 6.0 | 50 | 3.2 |
| DS-0163 | DS-TPH8 | 8.0 | 70 | 5 |
| DS-0163A | DS-TPH10 | 10.0 | 70 | 9.7 |
| DS-0164 | DS-TPH12 | 12.0 | 70 | 13 |
| DS-0165 | DS-TPH16 | 16.0 | 70 | 15.8 |
| DS-0166 | DS-TPH18 | 18.0 | 70 | 22 |
Welcome to buy the newest and cheap DAWSON pipe plate clamp for horizontal lifting and transporting from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
For further information, please contact us. Email:info@dawson-group.com
Products Show:
Hot Tags: Pipe Clamp, Pipe Plate Clamp, Steel Pipe Clamp, Concrete Pipe Clamp, Pipe Clamp for Lifting, China Steel Pipe Lifting Clamp Supplier, Wholesale Concrete Pipe Clamp, Hot Sale Concrete Pipe Plate Clamp, Pipe Lifting Clamp Factory, Horizontal Lifting Clamp Manufacturer, Pipe Plate Clamp Factory, China Exporter Clamp for Concrete Pipes, Cheap Price Concrete Clamp for Lifting, Low Price Concrete Pipe Clamp, Dawson Brands Concrete Lifting Clamp, Concrete Pipe Plate Clamp In Stock, Lifting Clamp for Concrete Pipes Free Sample, Pipe Lifting Clamp OEM, Buy Discount Concrete Pipe Lifting Clamp, Customized Steel Pipe Lifter Clamp
Other Related Products:

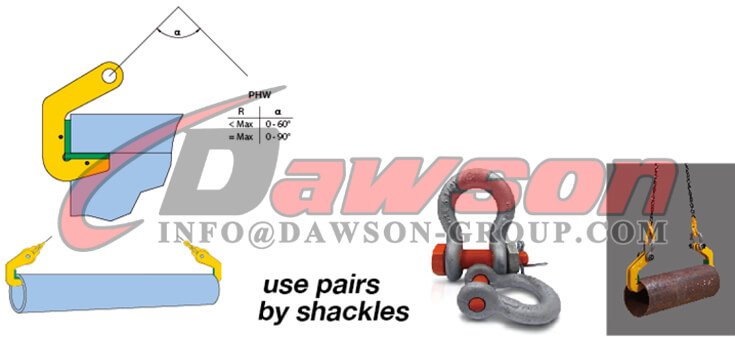

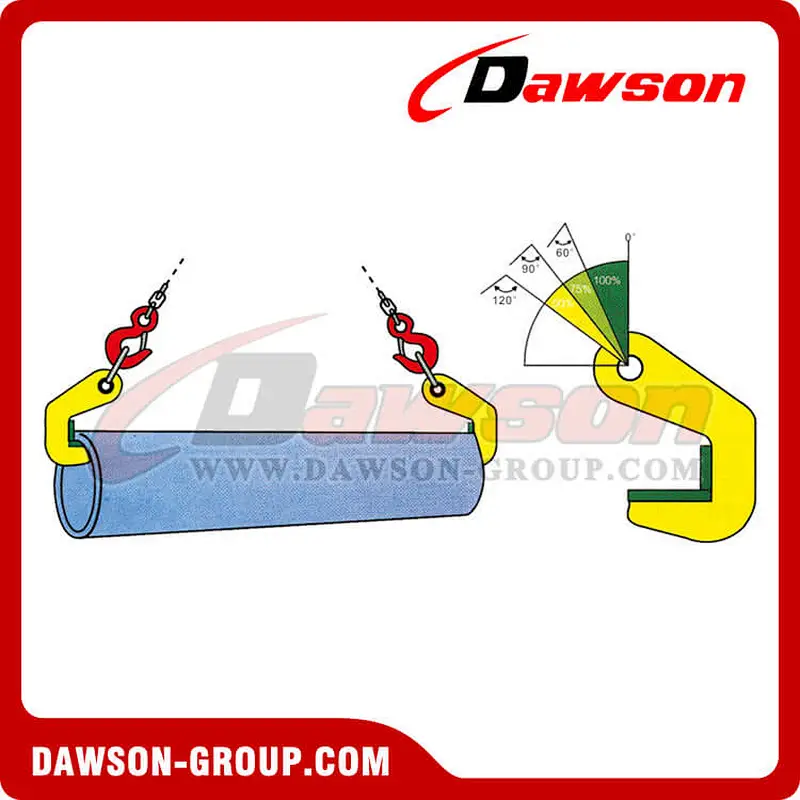

Application of Pipe Plate Lifting Clamps:

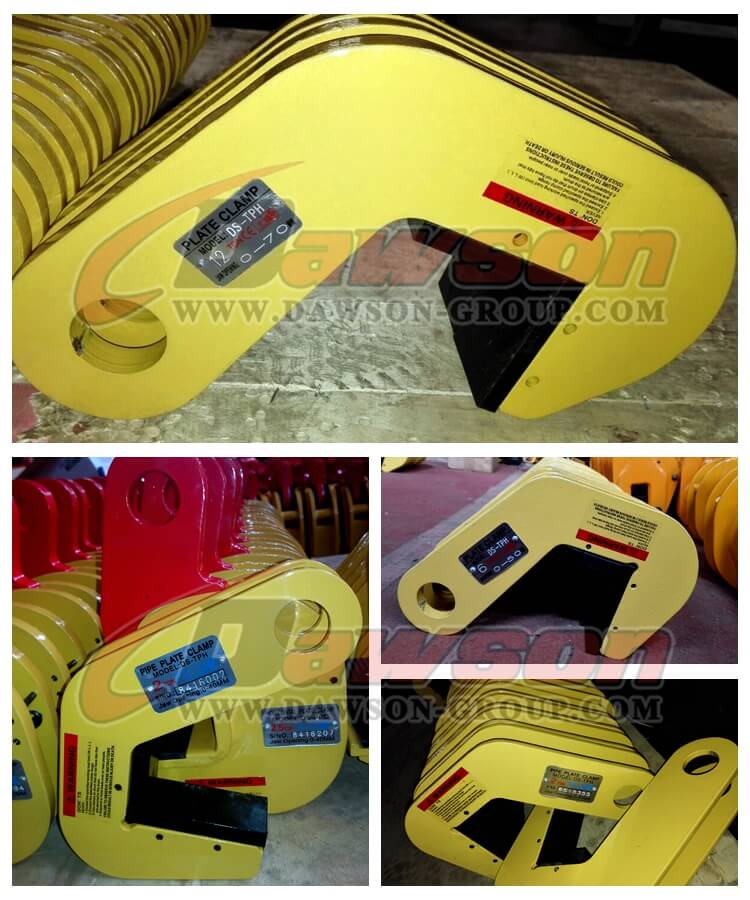

Factory & Package Show:
