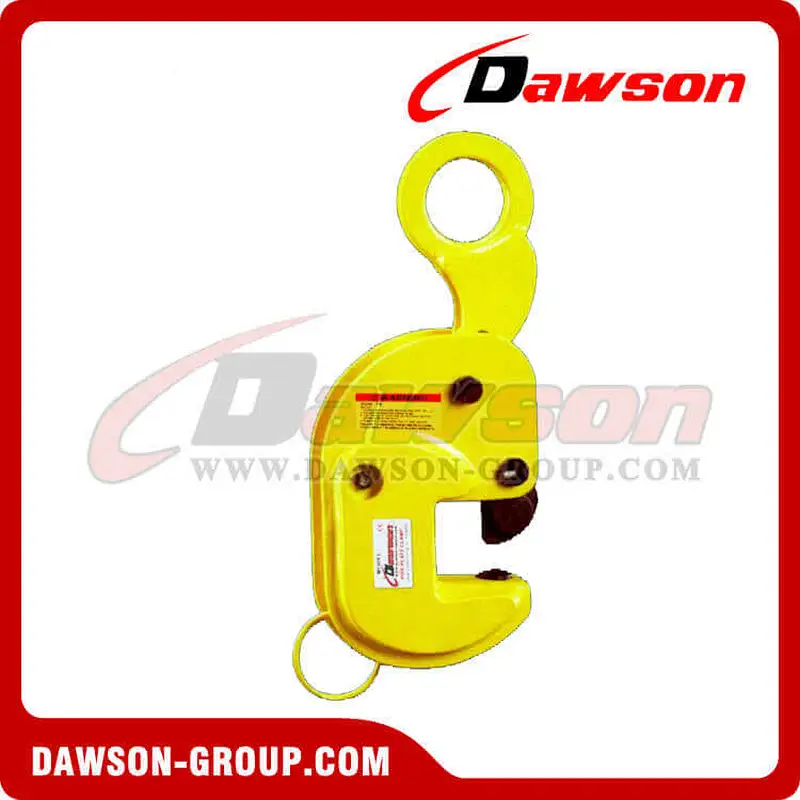

DS-TMG Type Horizontal Clamp with Lock Device
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Working load limit(WLL)：0.8T-1.6T.
Use：
●Suitable for lifting and transport of steel plates 、construction and profiled bar in horizontal position.
● Manufactured from high quality carbon steel.
● Avoid snatch or shock loading.
● The spring-load tightening lock mechanism assures a positive initial clamp force.
● The handle makes it easy and safe to set and detach the clamp onto and from the work piece.
| Part No. | Model | WLL(tonnes) | Jaw Opening(mm) | Weight(kg) |
| DS-0142 | DS-TMG0.8 | 0.8 | 20-53 | 8 |
| DS-0143 | DS-TMG1.6 | 1.6 | 15-45 | 13 |
Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
Other Related Products:

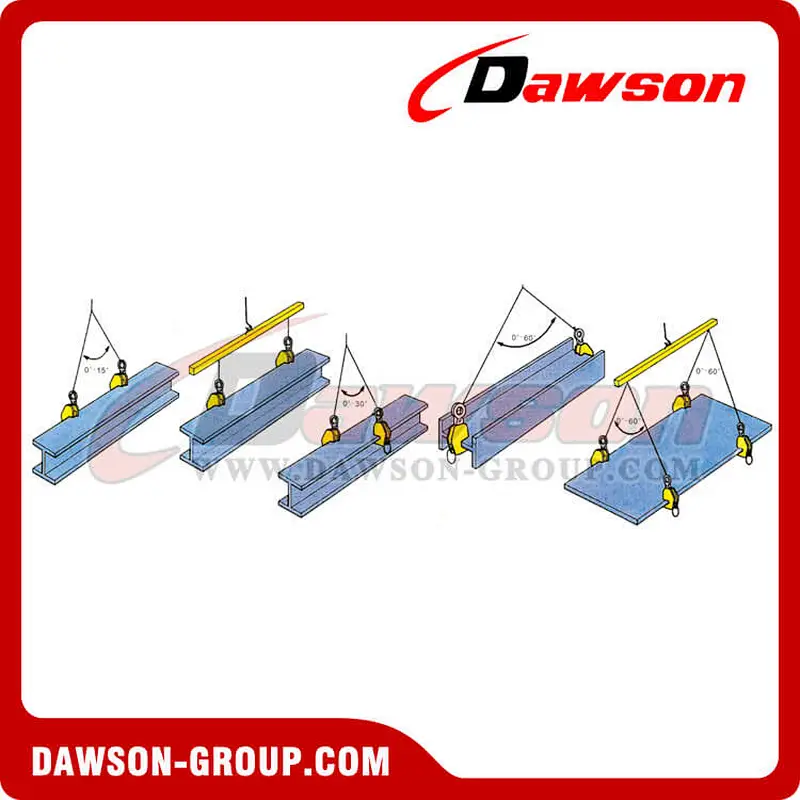

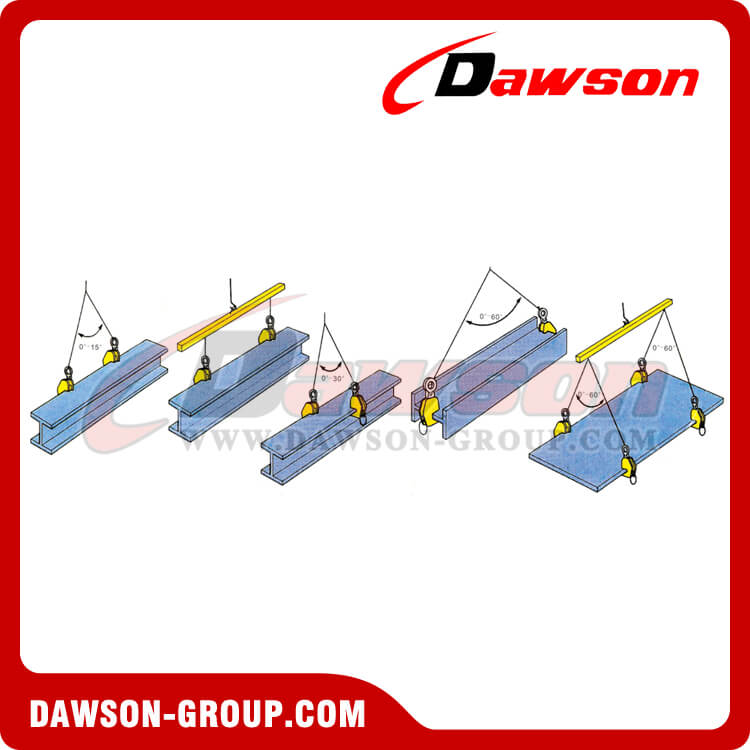

Application of Lifting Clamps:
