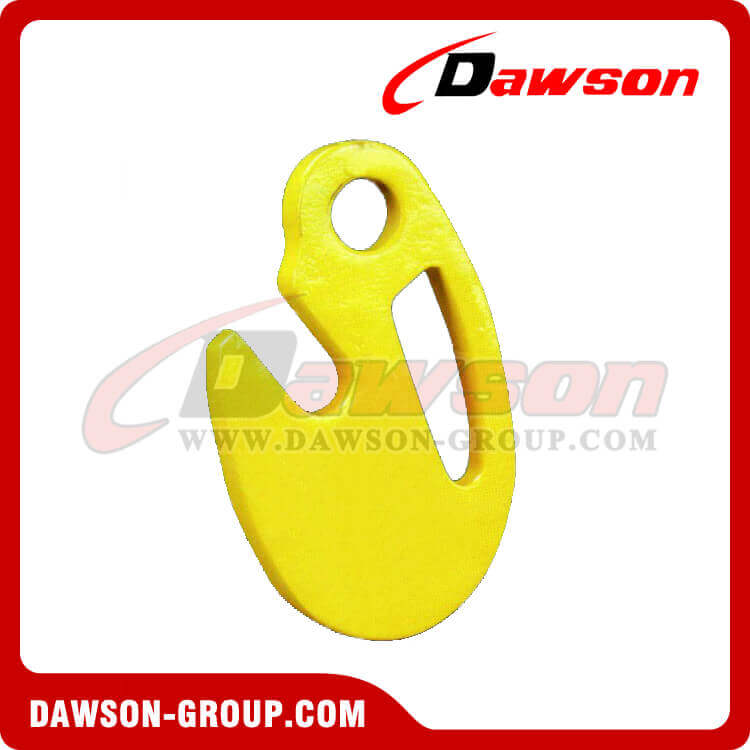

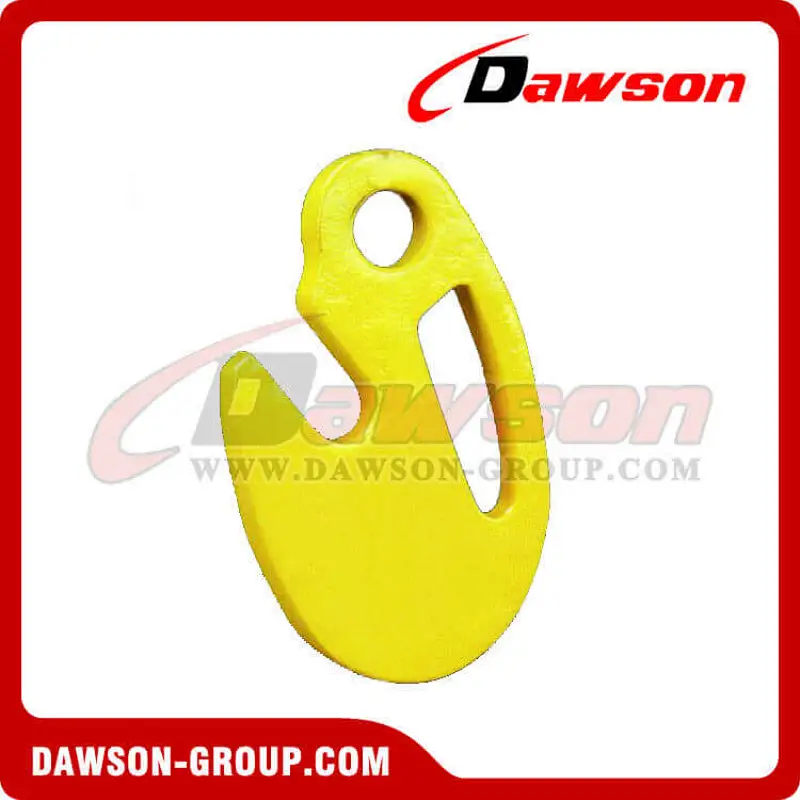

DS-THC Type Pipe Hook
DS-THC Type Pipe Hook
DS-THC Type Pipe Hook
DS-THC Type Pipe Hook
DS-THC Type Pipe Hook

DS-THC Type Pipe Hook

Model NO.
DS-THC
Quantity:

DS-THC Type Pipe Hook

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):0.5-2T.

Use:

● Hook designed for lifting and handing of steel pipes and pipes made from a variety of materials.

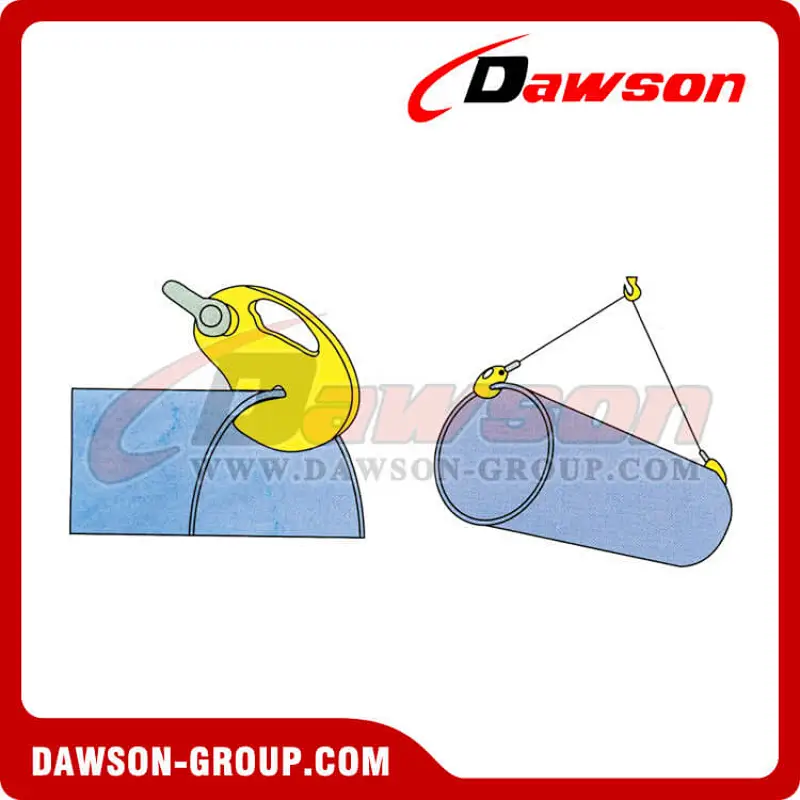

● When mounted onto the pipe. this hook will not fall off when the operator releases his hand from the hook.

● The hooks are made of special steel , which are precisely tempered for extra strength and durability.


Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0156DS-THC0.50.5160.5
DS-0157DS-THC11.0191.0
DS-0158DS-THC22.0242.1

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

Other Related Products:

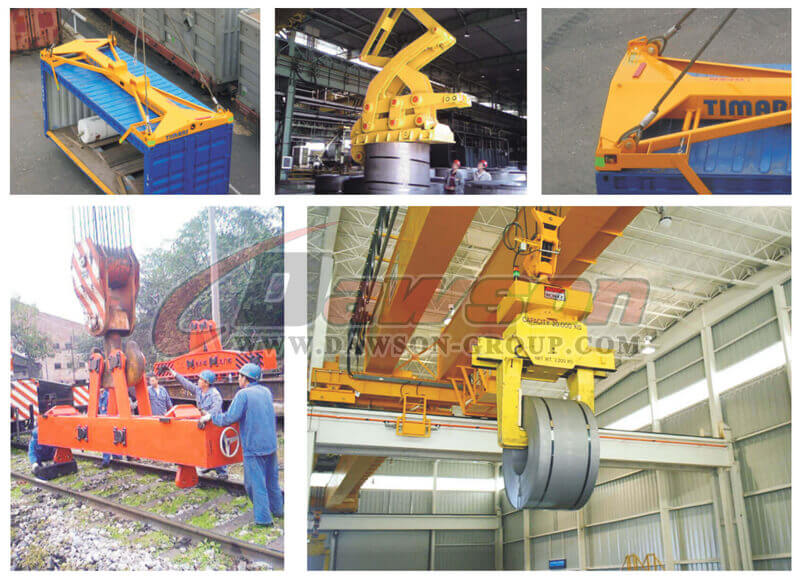

Application of Lifting Clamps:
