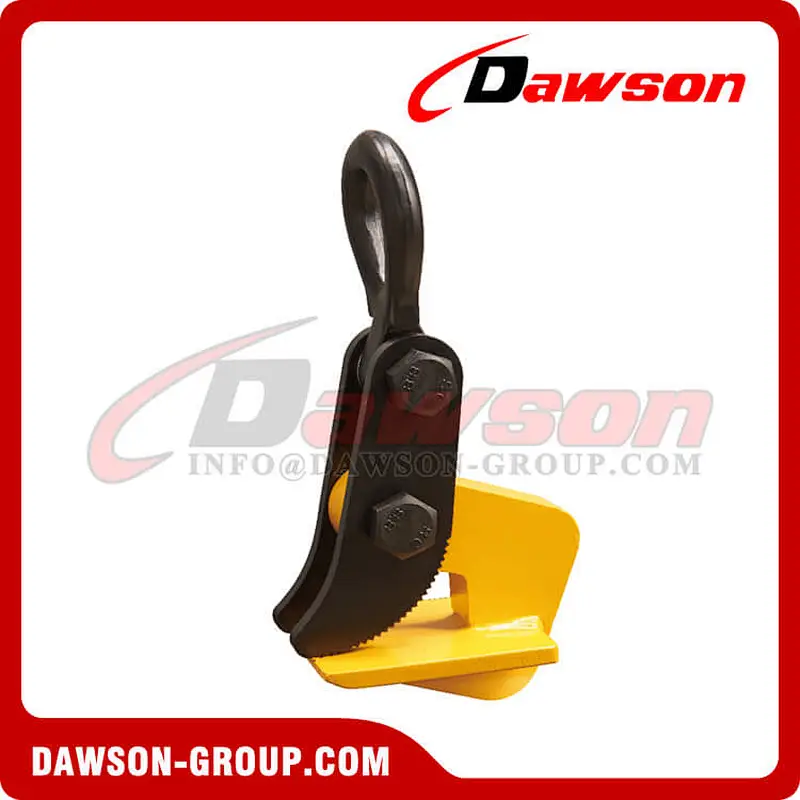

DS-TCH Type Industry Standard Horizontal Plate Lifting Clamp
DS-TCH Type Industry Standard Horizontal Plate Lifting Clamp
DS-TCH Type Industry Standard Horizontal Plate Lifting Clamp
DS-TCH Type Industry Standard Horizontal Plate Lifting Clamp
DS-TCH Type Industry Standard Horizontal Plate Lifting Clamp

DS-TCH Type Industry Standard Horizontal Plate Lifting Clamp

Model NO.
DS-TCH
Quantity:

DS-TCH Type Industry Standard Horizontal Plate Lifting Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Specifications

Especially suited for the transport of single plate with a min. thickness of approx. 5 mm as well as for steel Horizontal lifting clamp DS-TCH for heavy gauge steel plate and bundles.

Especially suited for the transport of single plate with a min. thickness of approx. 5 mm as well as for steel bundles. The design of DS-TCH 1.0 is different from the model illustrated.

Capacity ratings are valid for 2 clamps with a max. top angle of 90° between the chain/rope legs.

Part No.ModelWLL(Tones)Jaw Opening(MM)Net Weight(KG)
DS-0320DS-TCH11 TON0-508
DS-0321DS-TCH22 TON5-3210
DS-0322DS-TCH44 TON5-5017
DS-0323DS-TCH66 TON5-7545.5
DS-0324DS-TCH88 TON0-7551
DS-0325DS-TCH1010 TON5-10094
DS-0326DS-TCH1010 TON50-150109

Welcome to buy the newest and cheap DAWSON industry standard horizontal plate lifting clamp from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

For further information, please contact usEmail:info@dawson-group.com
