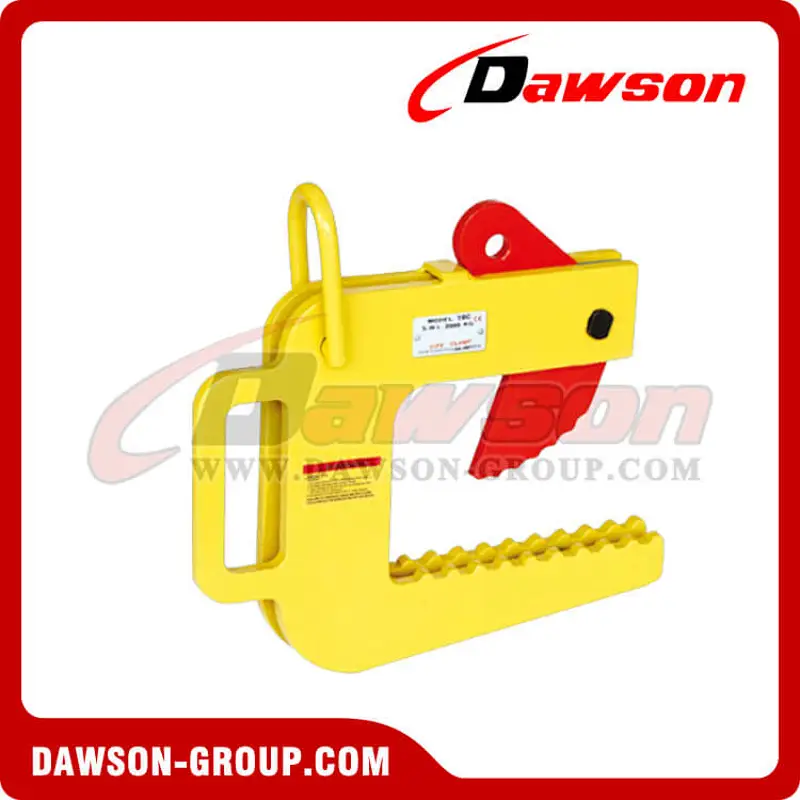

DS-TBC Type Concrete Pipe Clamp for Lifting
DS-TBC Type Concrete Pipe Clamp for Lifting
DS-TBC Type Concrete Pipe Clamp for Lifting
DS-TBC Type Concrete Pipe Clamp for Lifting
DS-TBC Type Concrete Pipe Clamp for Lifting
DS-TBC Type Concrete Pipe Clamp for Lifting
DS-TBC Type Concrete Pipe Clamp for Lifting

DS-TBC Type Concrete Pipe Clamp for Lifting

Model NO.
DS-TBC
Quantity:

DS-TBC Type Concrete Pipe Clamp for LiftingLifting Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

● For vertical lifting and transporting of concrete pipes and wells.

●The DS-TBC clamps must always be used in pairs or per three clamps.

●Higher capacities or other jaw opening upon request.

●The moveable side is fitted with a ”special” high pressure plastic surface.

●Clamps for concrete pipes

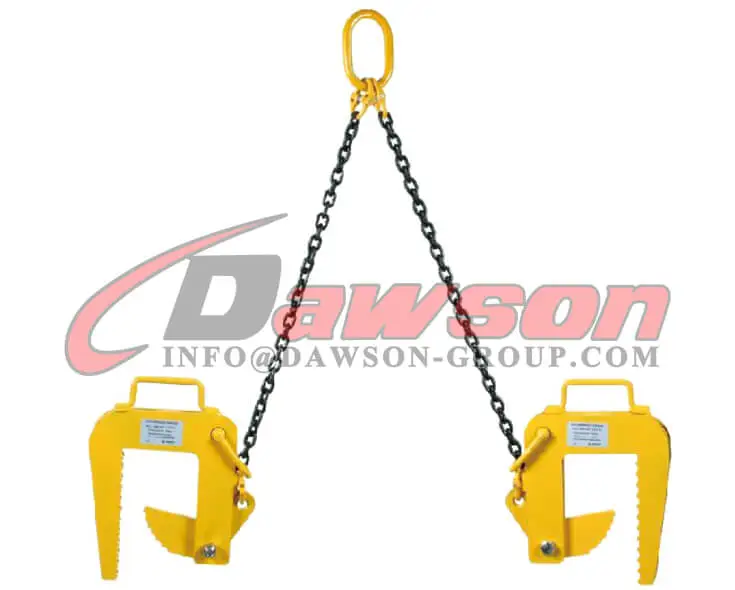

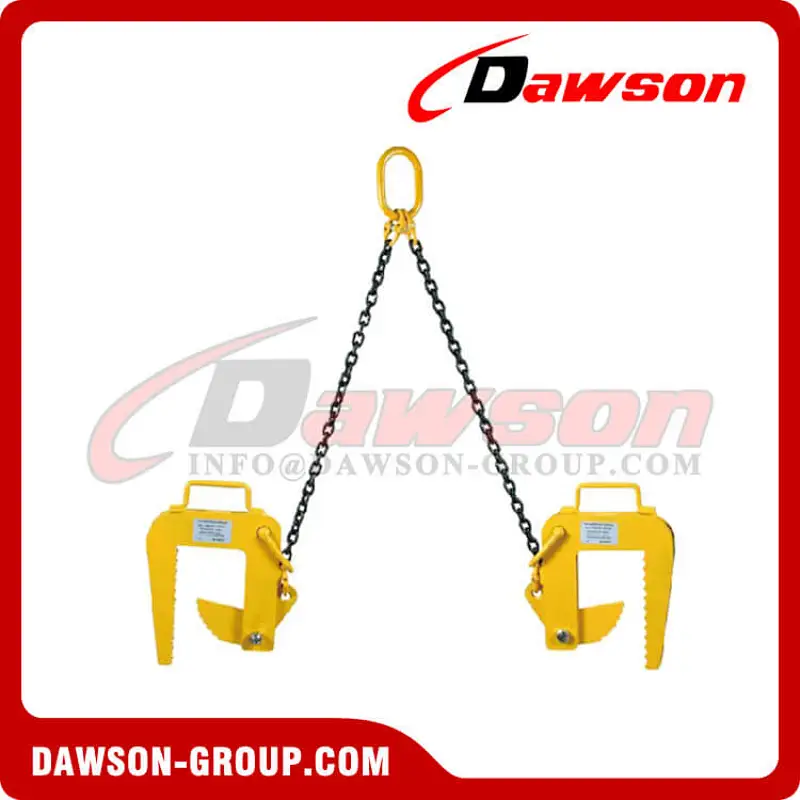

●2-or 3-leg

●Chain leg length 1.5m

●Safety factor 4:1
●Do not lift plates with temperature greater than 100℃

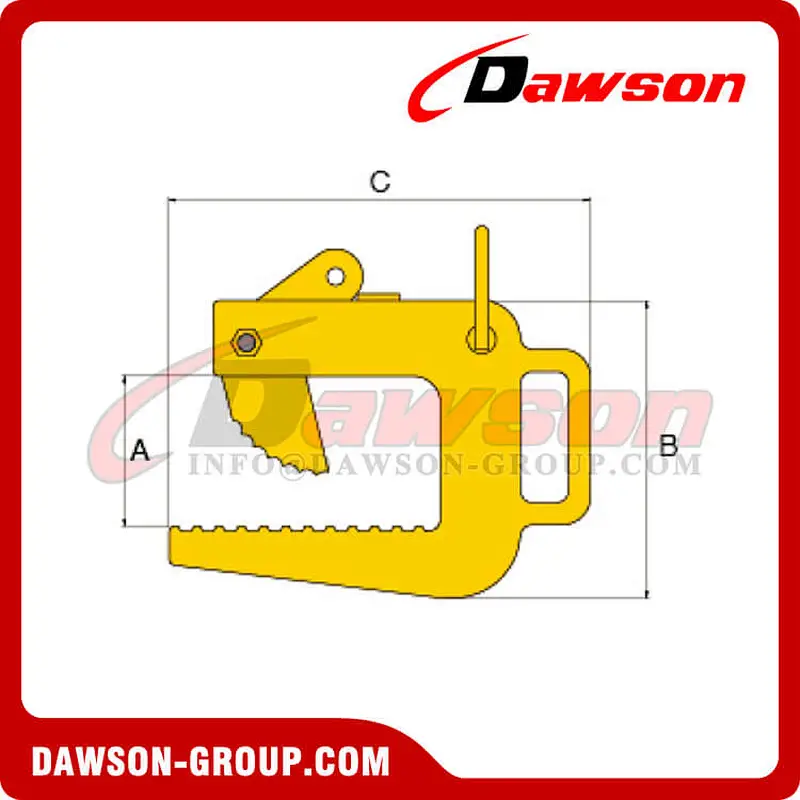

Part No.ModelCapacityJaw Opening(mm)Pressure LineMouth DepthWeight(kg)
DS-0236DS-TBC140-1609020011
DS-0237DS-TBC250-18010020016

Welcome to buy the newest and cheap DAWSON concrete pipe clamp for lifting from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

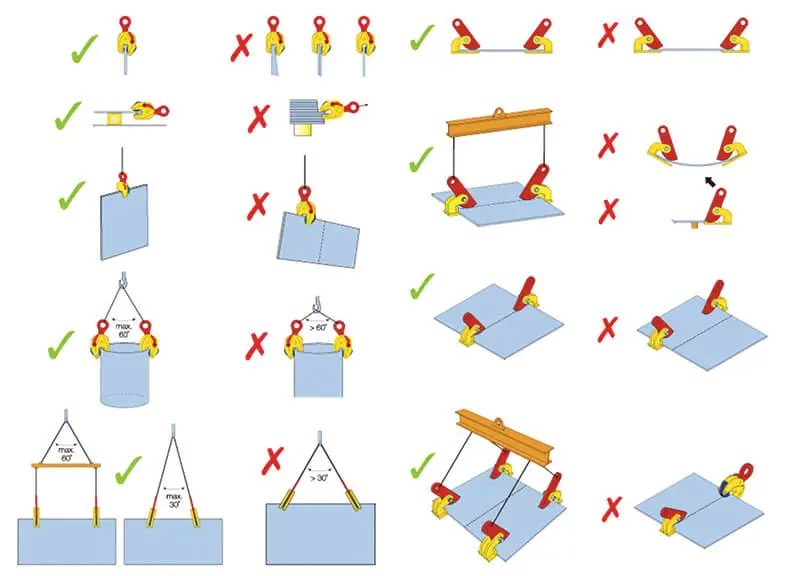

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

For further information, please contact usEmail:info@dawson-group.com

Products Show:

Hot Tags: Pipe Clamp, Steel Pipe ClampConcrete Pipe ClampPipe Clamp for LiftingChina Steel Pipe Lifting CLamp SupplierWholesale Concrete Pipe ClampHot Sale Concrete Pipe ClampPipe Lifting Clamp FactoryHorizontal Lifting Clamp ManufacturerPipe Clamp FactoryChina Exporter Clamp for Concrete PipesCheap Price Concrete Clamp for LiftingLow Price Concrete Pipe ClampDawson Brands Concrete Lifting ClampPipe Clamp In StockLifting Clamp for Concrete Pipes Free SamplePipe Lifting Clamp OEMBuy Discount Concrete Pipe Lifting ClampCustomized Pipe Lifter Clamp

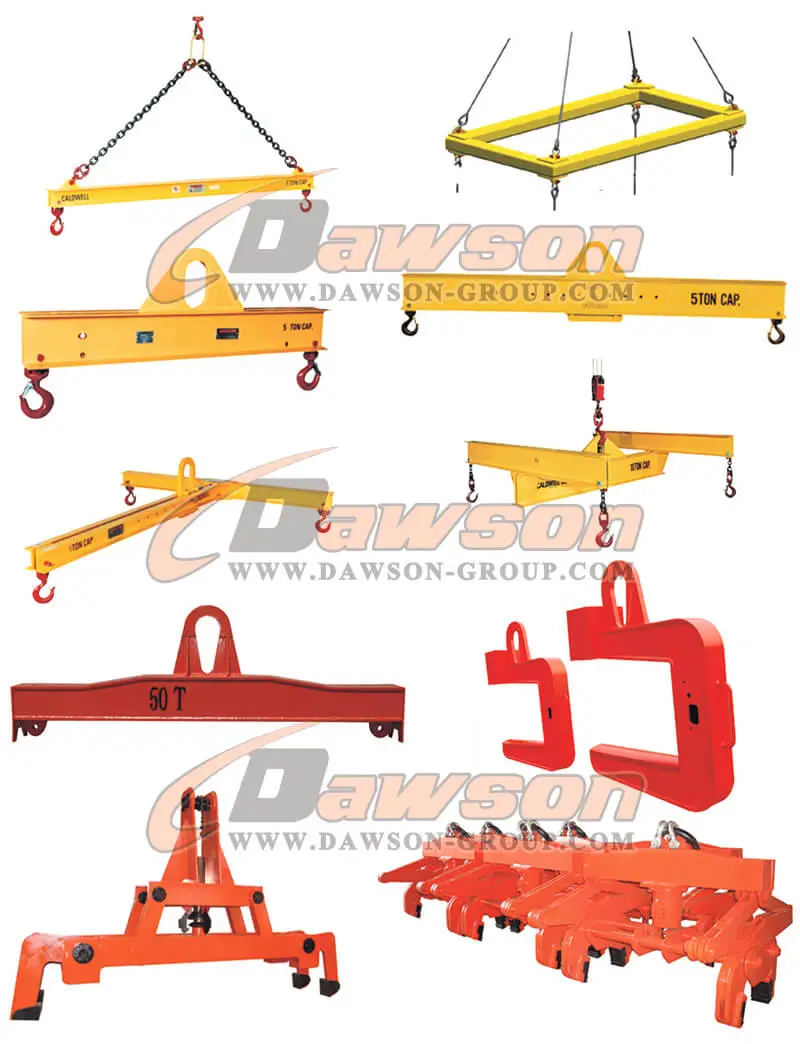

Other Related Products:

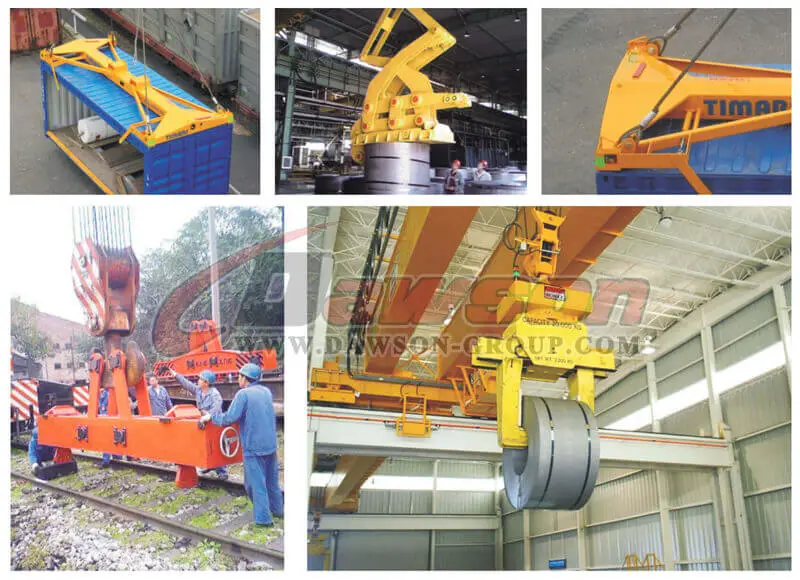

Application of Lifting Clamps:

Factory & Package Show:
