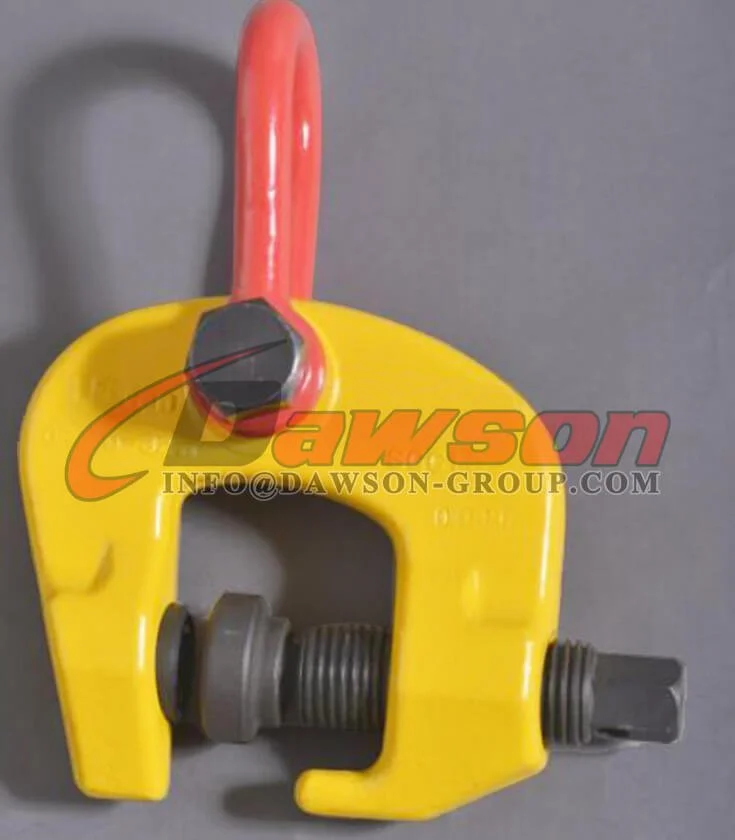

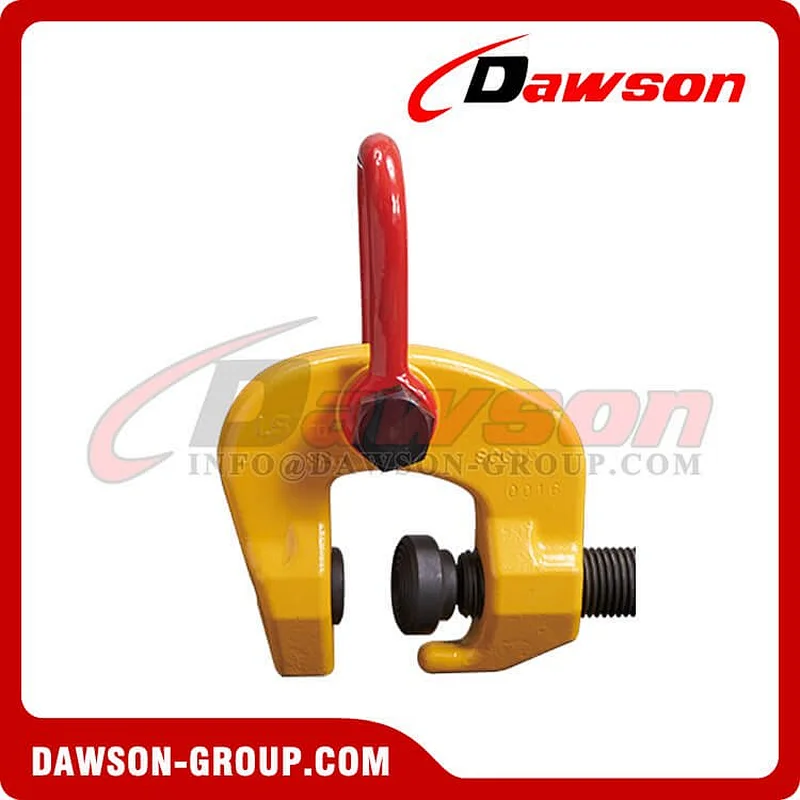

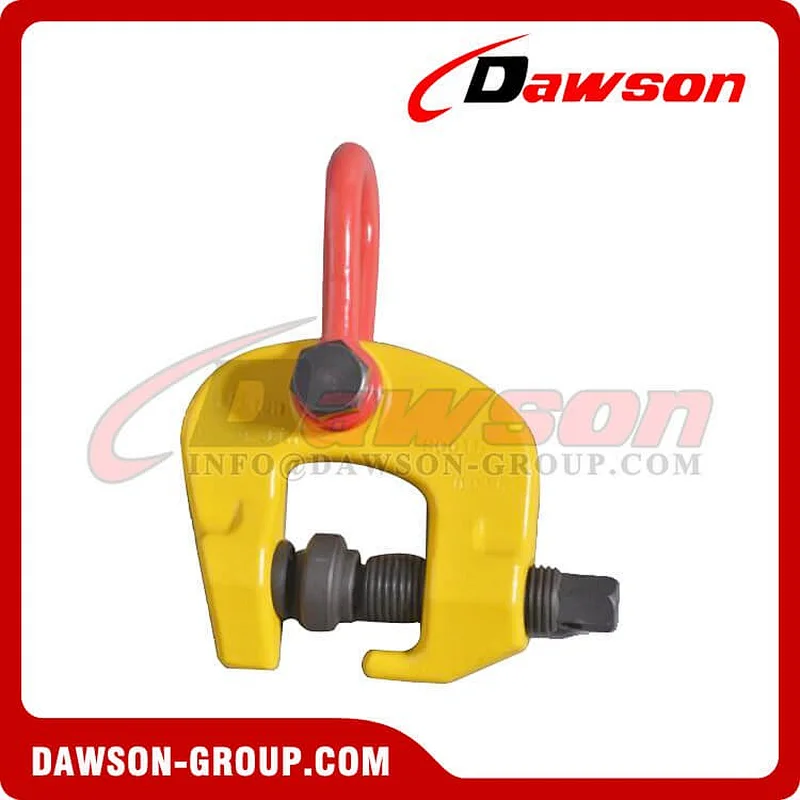

DS-SCC Type Universal Shackle Type Bolt Lifter Screw Cam Lifting Clamp

DS-SCC Type Universal Shackle Type Bolt Lifter Screw Cam Lifting Clamp, Lifting Plate Clamp, Lifting Clamp

 - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

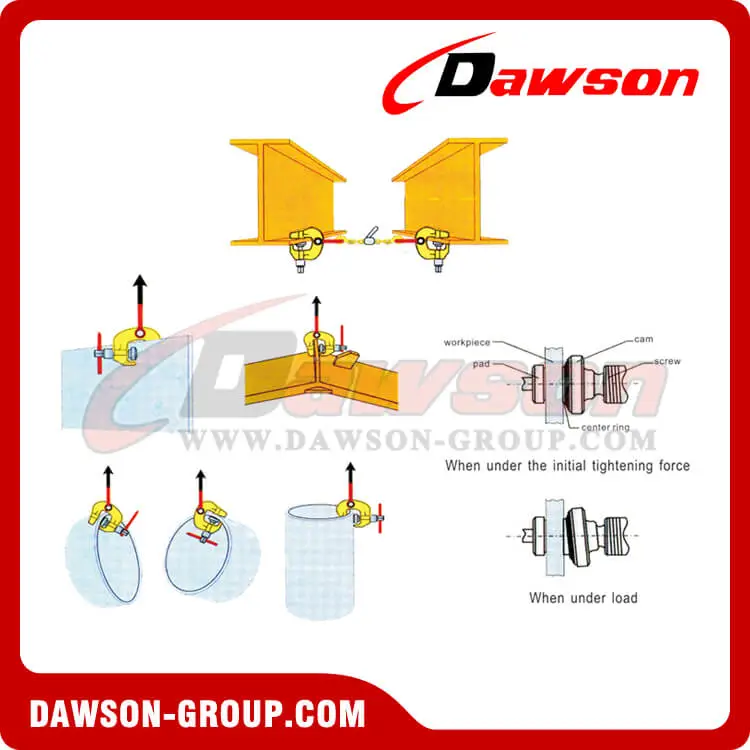

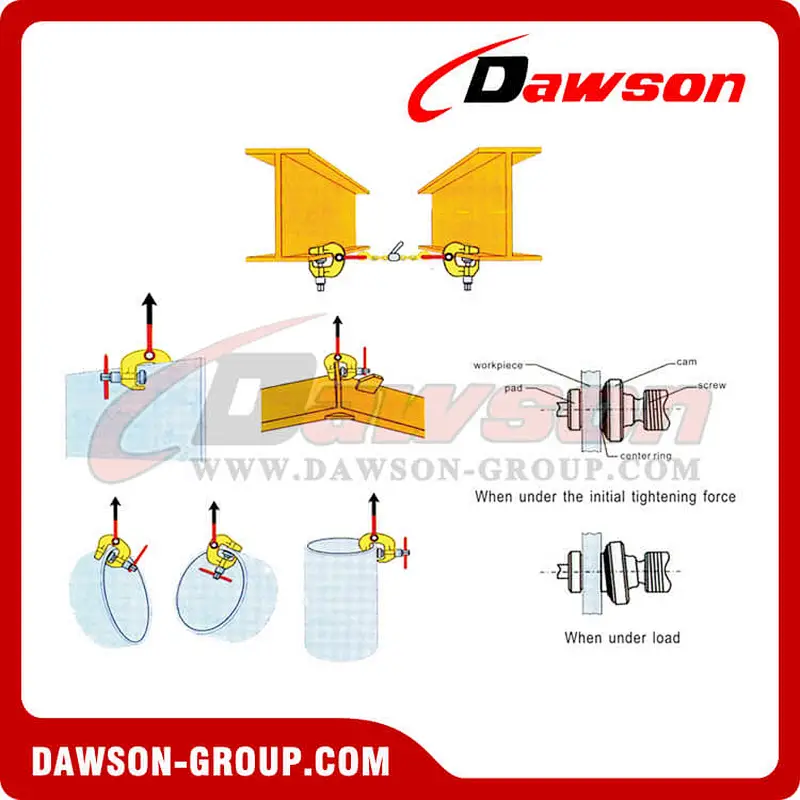

Suitable for lifting of a large variety of different shaped steel. Ranging from steel plates and structures steel to curved and spherical shaped steels.

They are designed to be used in conjunction with ratchet lever hoists to align steel structures of fabrications. They are ideally suited for the construction industry.

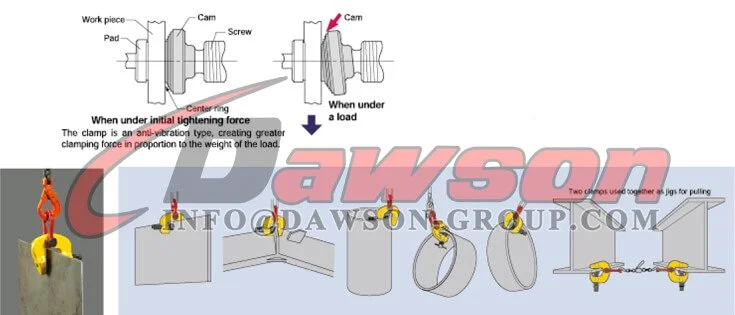

The DS-SCC screw clamp is fitted with a moveable cam on the thread spindle which provides o powerful clamping force on the workplace.

Inspection, care & use:

Do not lift plates with a temperature greater than 100℃

Do not use with stainless steel, lead or copper

Do not over torque the threaded axle. This could cause damage to the pad. For more information, please contact us, Email: info@dawson-group.com

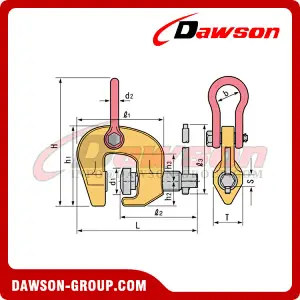

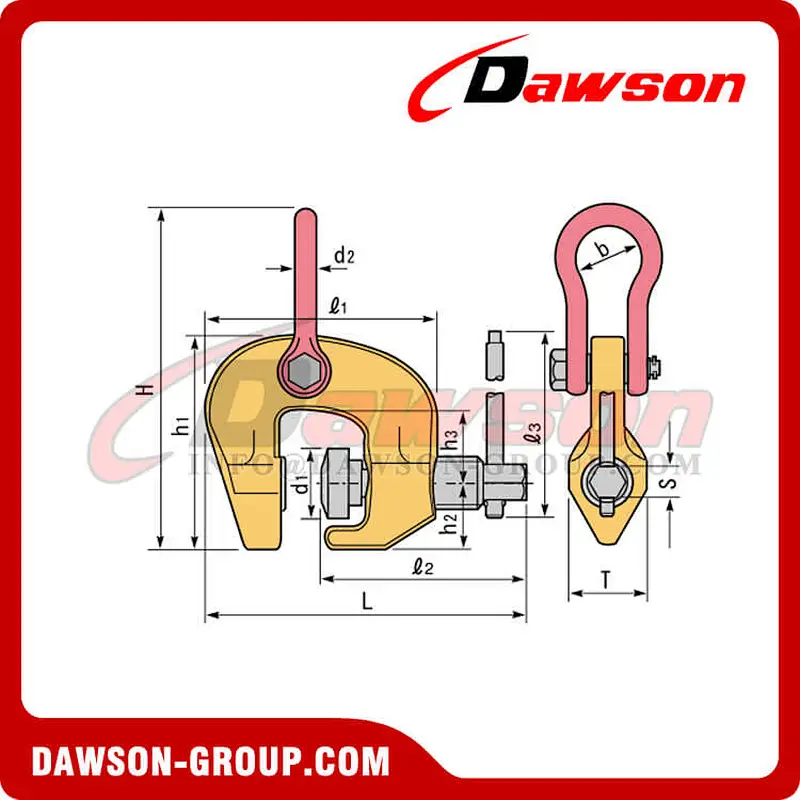

Item No.	L(MM)	1(MM)	2(MM)	3(MM)	H(MM)	h1(MM)	h2(MM)	h3(MM)	d1(MM)	d2(MM)	b(MM)	T(MM)	S(MM)
DS-SCC0.5	156	104	89	60	113	76	16	27	26	10	17	30	14
DS-SCC0.75	167	135	120	200	201	125	38	44	42	12	38	46	21
DS-SCC1W	258	225	155	200	273	190	38	88	42	16	45	46	21
DS-SCC1.5	187	154	135	200	229	143	39	52	42	16	45	46	21
DS-SCC3	224	190	165	250	265	165	45	60	49	19	50	54	21
DS-SCC3W	250	215	165	240	291	191	45	76	49	19	50	54	21
DS-SCC6	291	255	215	250	365	214	54	76	63	31.5	80	69	21

Welcome to buy the newest and competitive price DAWSON DS-SCC Type Universal Shackle Type Bolt Lifter Screw Cam Lifting Clamp from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
