Model NO.
DS-QYG
Quantity:

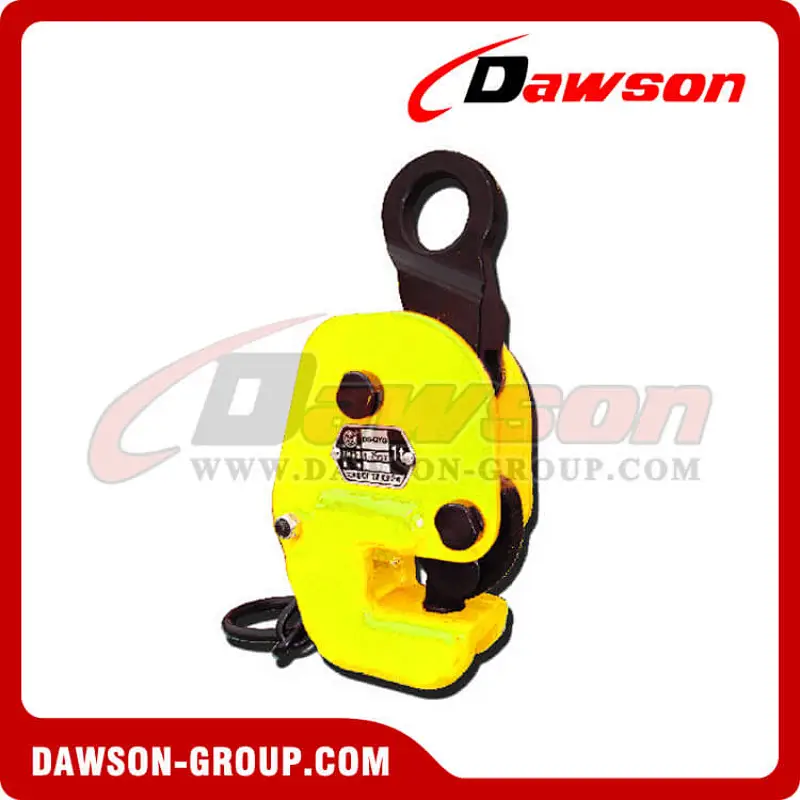

DS-QYG  Type Horizontal Clamp with Lock Device

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

●Suitable for lifting and transport of T 、H and L profiled bar in horizontal position.

●Dedicated to containing the small depth H and T shapes

●With spring preload device, the safety is higher

●Can be moved horizontally or vertically without changing the status of the case

Item No.ModelCapacity(t)Jaw Opening(mm)Weight(kg)
DS-0320DS-QYG-115-255
DS-0321DS-QYG-225-3510.4
DS-0322DS-QYG-335-4013.4
DS-0323DS-QYG-5510-4022

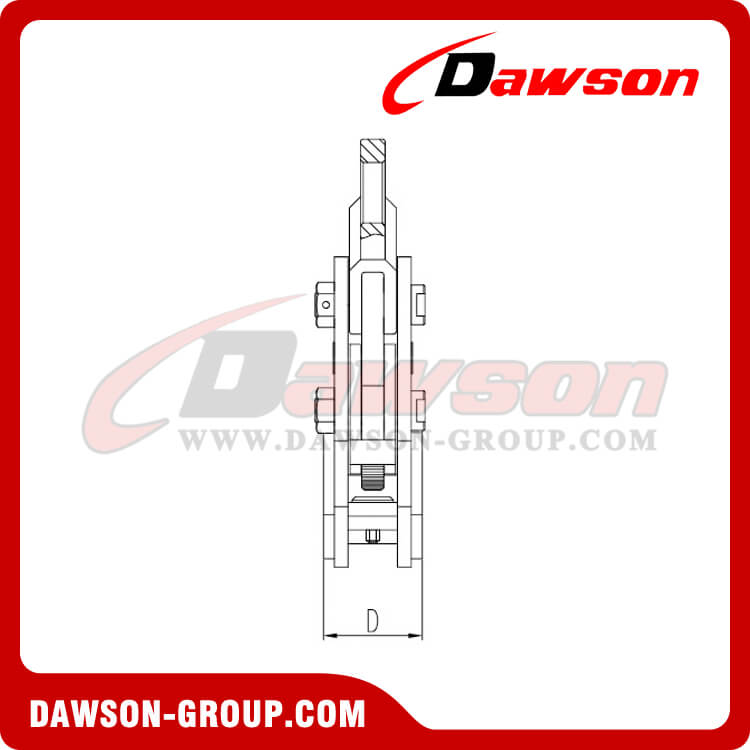

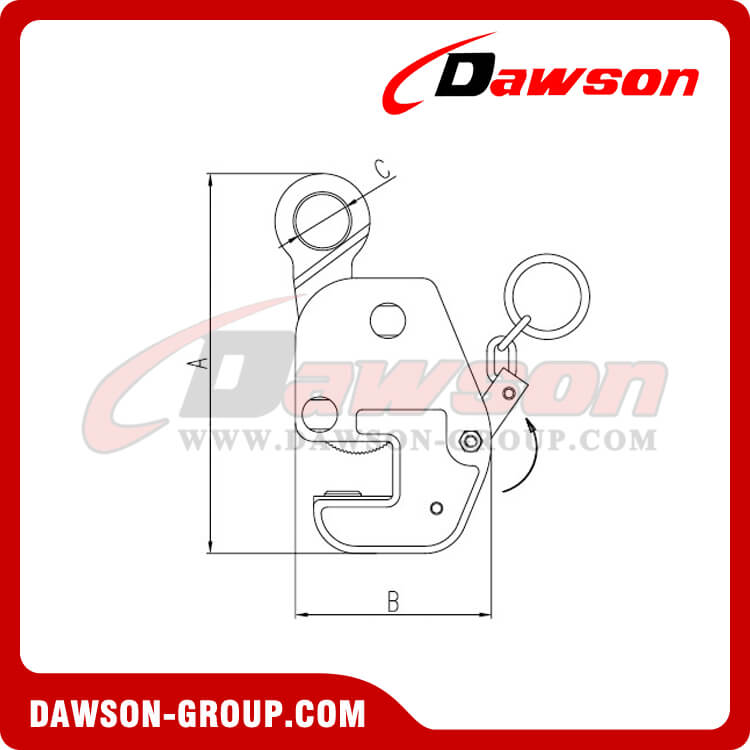

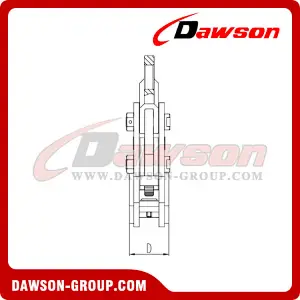

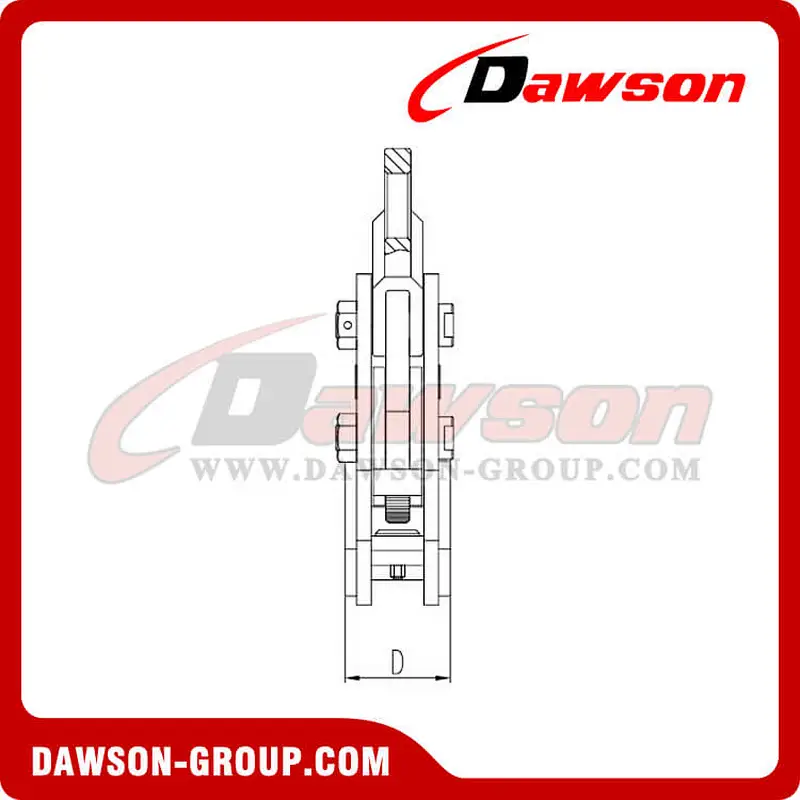

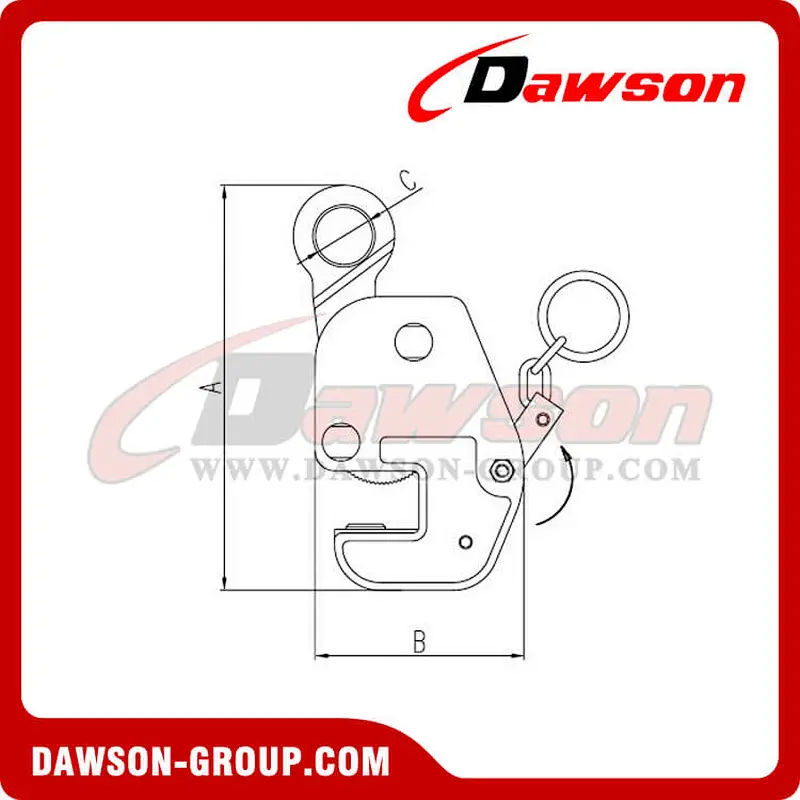

Main Dimension:

ModelA(mm)B(mm)C(mm)D(mm)
DS-QYG-1250132∅3569
DS-QYG-2355160∅4480
DS-QYG-3370197∅5089
DS-QYG-5424213∅50126

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

Other Related Products:

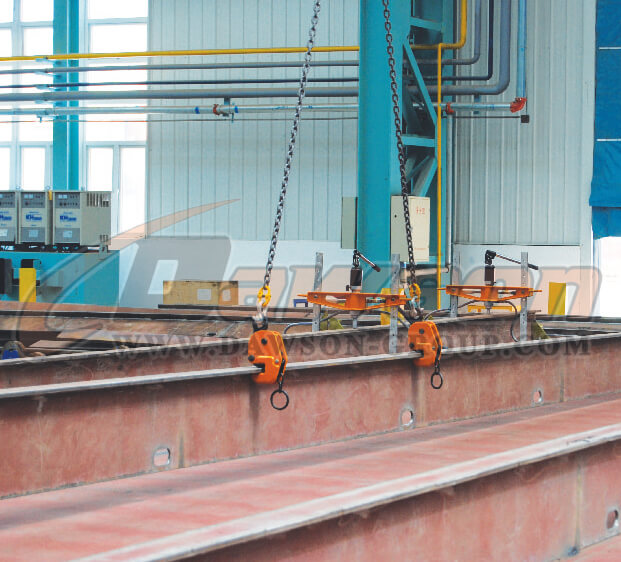

Application of Lifting Clamps:
