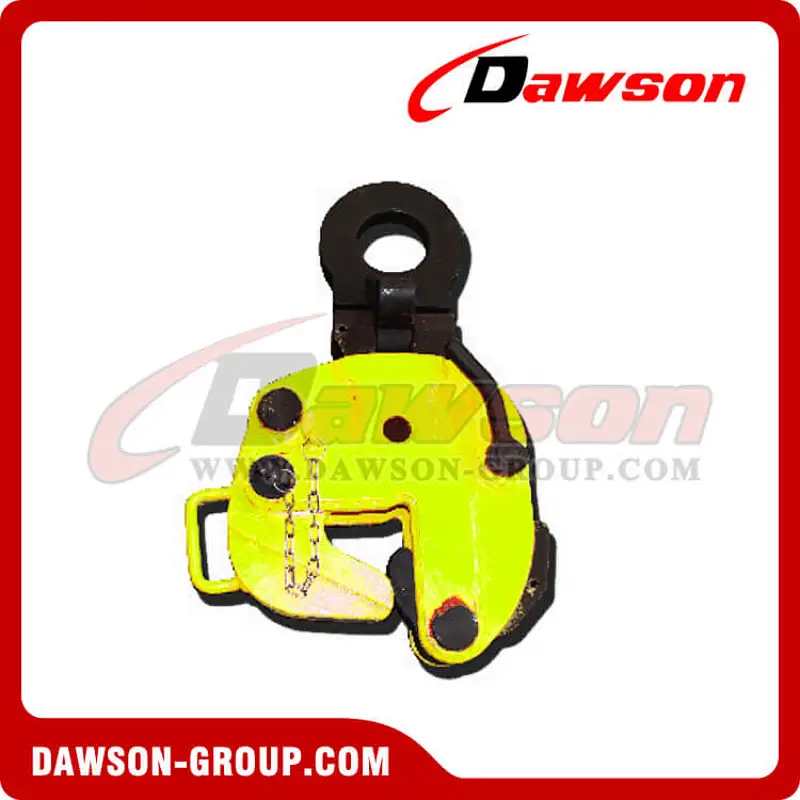

DS-QYB Type Steel Plate Clamp
DS-QYB Type Steel Plate Clamp

DS-QYB Type Steel Plate Clamp

Model NO.
DS-QYB
Quantity:

DS-QYB Type Steel Plate Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Dedicated to lifting the ball flat steel structure

With spring preload device, the safety is higher

Small size, light weight, high efficiency, long life

Item No.ModelCapacity(t)Height of flat-bulb steel bulb
H(mm)
Weight(kg)
DS-0327DS-QYB-220-307
DS-0328DS-QYWB-330-5010
DS-0329DS-QYWB-550-82.528
DS-0330DS-QYWB-770-82.534
DS-0331DS-QYWB-12120-82.565


Main Dimension:

ModelA(mm)B(mm)C(mm)G(mm)T(mm)D(mm)
DS-QYB-2320192∅60744026
DS-QYWB-3516290∅72748062
DS-QYWB-5503356∅751422468
DS-QYWB-7491354∅651452468
DS-QYWB-12604331∅901892571.5

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
