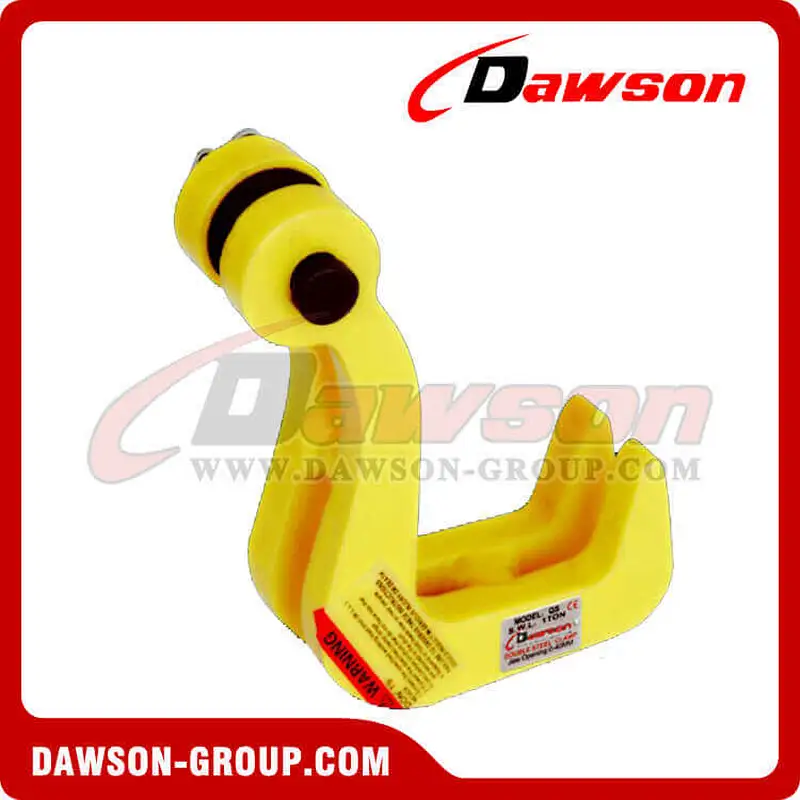

DS-QS Type Double Steel Plate Clamp
DS-QS Type Double Steel Plate Clamp
DS-QS Type Double Steel Plate Clamp
DS-QS Type Double Steel Plate Clamp
DS-QS Type Double Steel Plate Clamp

DS-QS Type Double Steel Plate Clamp

Model NO.
DS-QS
Quantity:

DS-QS Type Double Steel Plate Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):1-7T

Use:

● Clamp for the horizontal lifting of “H”, “I”, “T”, “L” shaped structured steel and plate steel.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading.

● The roller at the head of the hook will not damage the sling rope.

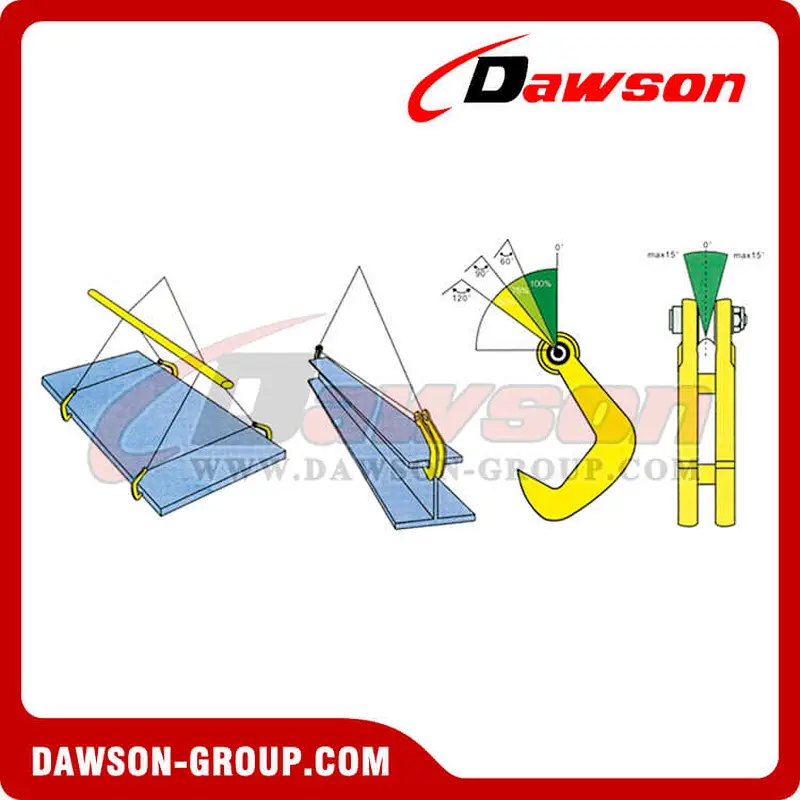

● The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.

● The sharp hook point is effective when inserting into a small clearance.

Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0093DS-QS11.00-402
DS-0094DS-QS22.00-503.5
DS-0095DS-QS3.23.20-606
DS-0096DS-QS55.00-7014.5
DS-0097DS-QS77.00-9022

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

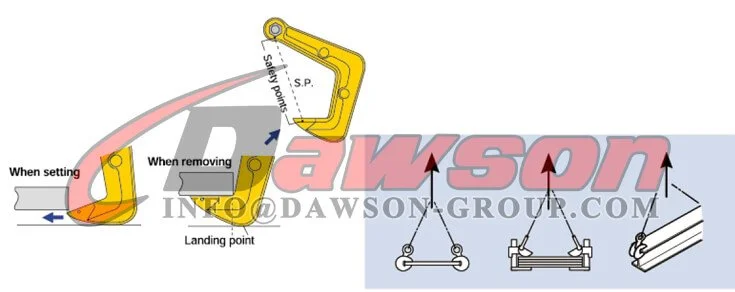

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

Other Related Products:


Application of Lifting Clamps:

Factory & Package Show:
