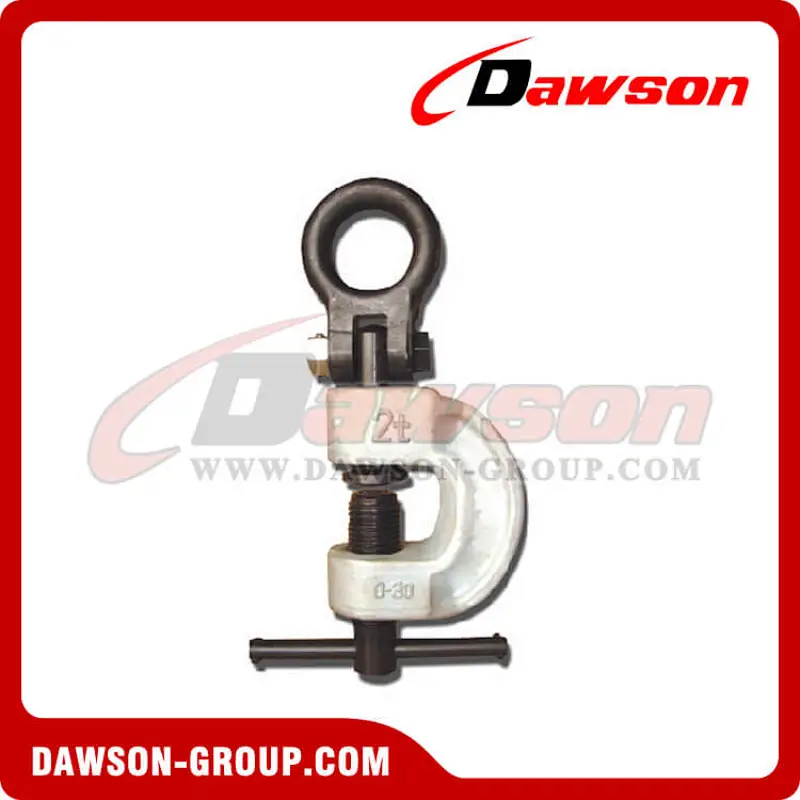

DS-QK Type Screw Cam Clamp
DS-QK Type Screw Cam Clamp

DS-QK Type Screw Cam Clamp

Model NO.
DS-QK
Quantity:

DS-QK Type Screw Cam Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Use:

●Suitable for shipbuilding, boilers, steel and other industries in the scope of welding and steel lifting

●Low carbon alloy steel forging molding, high strength, long life

●Swivel rings adopt universal structure, lifting or dragging in any direction

Item No.ModelCapacity(t)Jaw Opening(mm)Weight(kg)
DS-0336DS-QK-220-3023.5
DS-0337DS-QK-330-5025

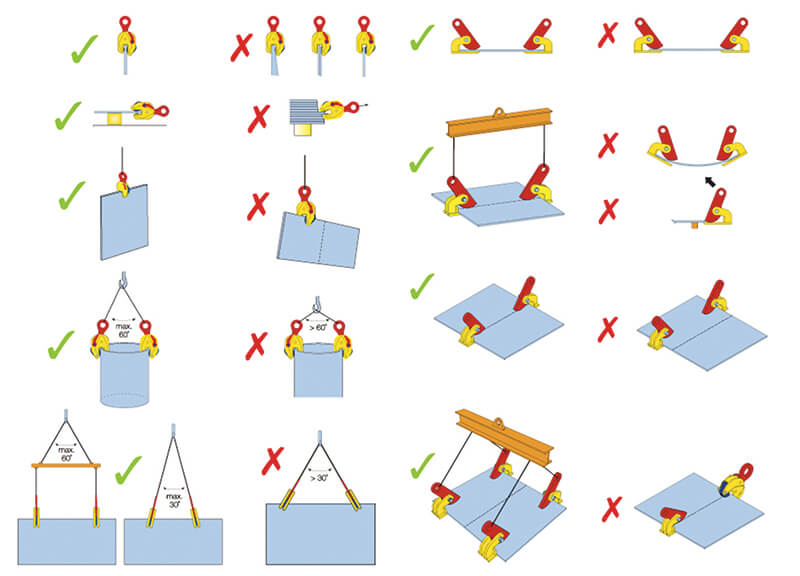

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

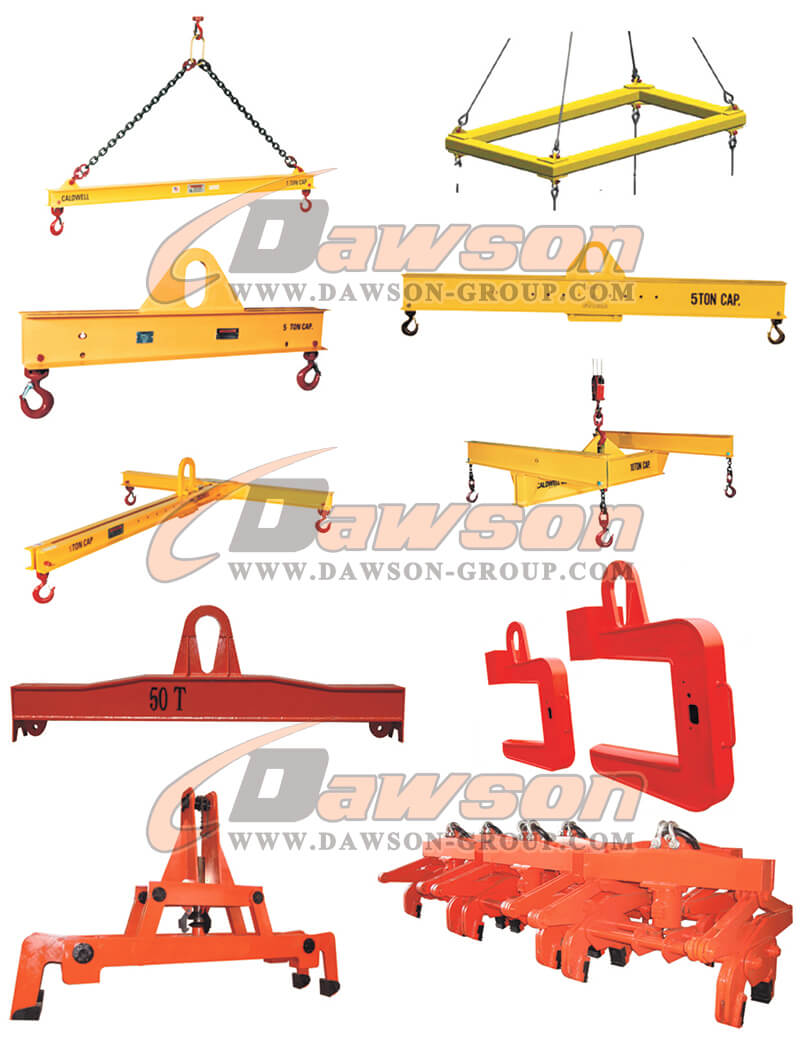

Other Related Products:

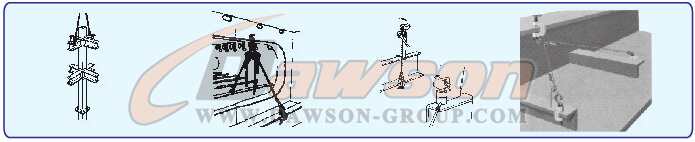

Application of Lifting Clamps:

Factory & Package Show:
