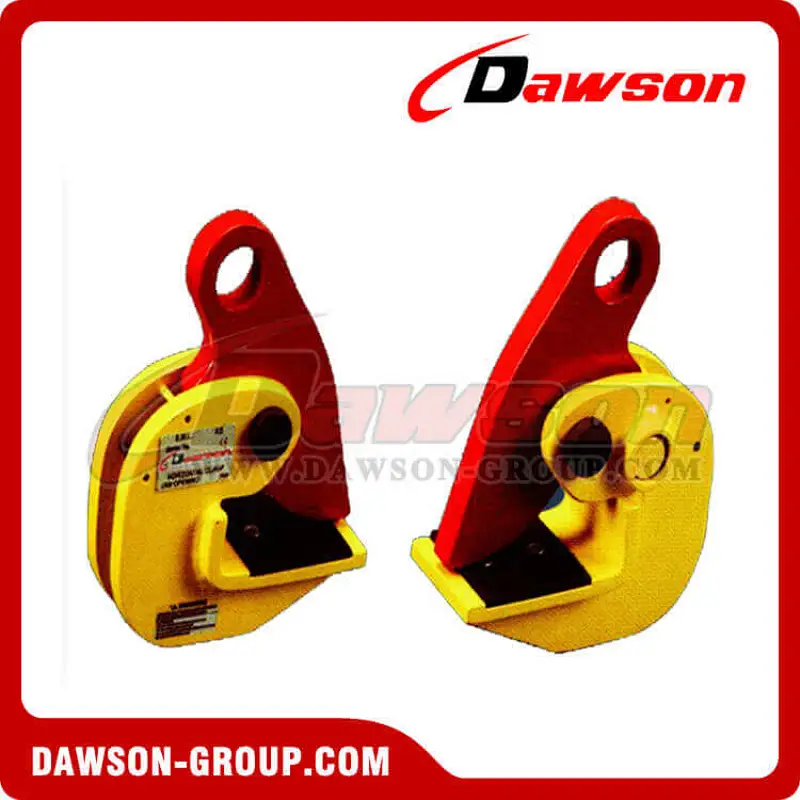

DS-PPD Type Horizontal Plate Clamp
DS-PPD Type Horizontal Plate Clamp
DS-PPD Type Horizontal Plate Clamp
DS-PPD Type Horizontal Plate Clamp
DS-PPD Type Horizontal Plate Clamp

DS-PPD Type Horizontal Plate Clamp

Model NO.
DS-PPD
Quantity:

DS-PPD Type Horizontal Plate Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):0.8-30T.

Use:

● Suitable for lifting and transport of steel plates 、construction and profiled bar in horizontal position.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading.

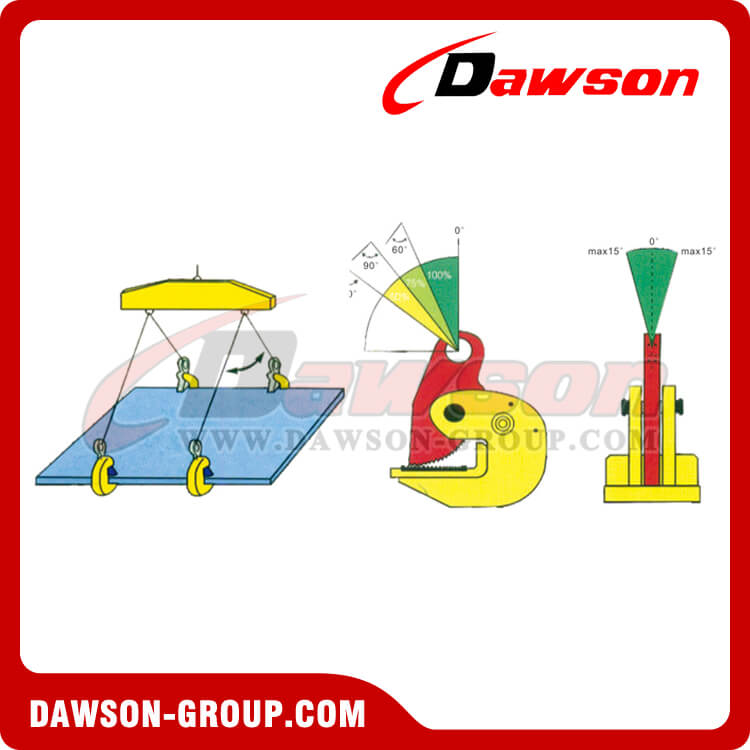

● The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.

● The screw jaw of the body can be changed, also have a safety button.

Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0064DS-PPD0.80.80-252.5
DS-0065DS-PPD11.00-303.5
DS-0066DS-PPD1.61.60-304
DS-0067DS-PPD22.00-405
DS-0068DS-PPD3.23.20-456
DS-0069DS-PPD44.00-506.5
DS-0070DS-PPD55.00-557.5
DS-0071DS-PPD66.00-6510.5
DS-0072DS-PPD66.00-13022
DS-0073DS-PPD88.00-10022
DS-0074DS-PPD1010.00-12533
DS-0075DS-PPD1616.050-15050
DS-0076DS-PPD3030.0100-270108

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

Other Related Products:

Application of Lifting Clamps:

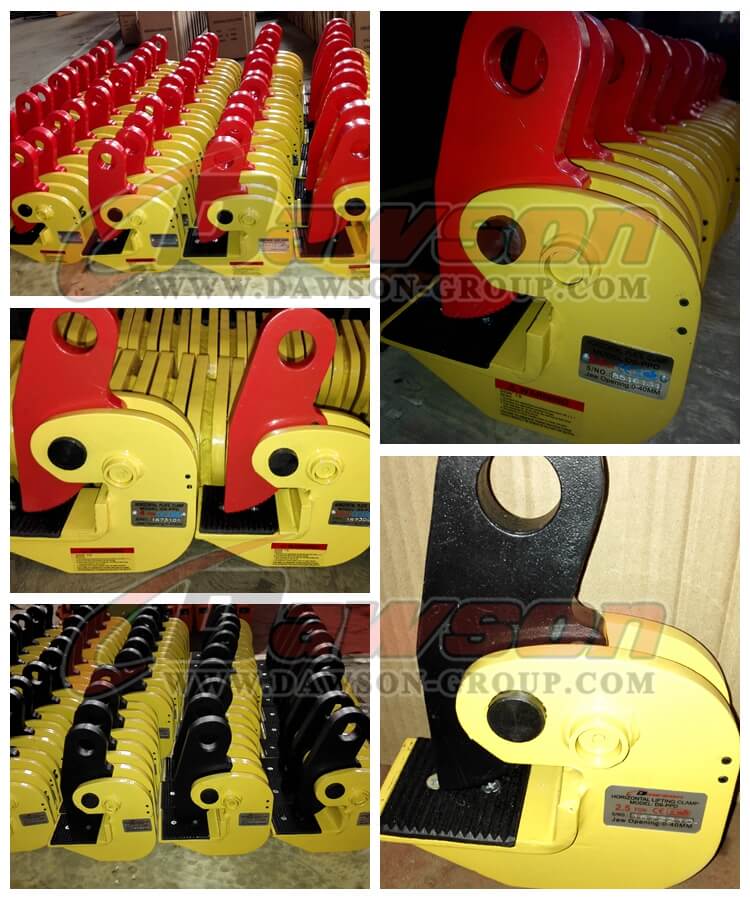

Factory & Package Show:
