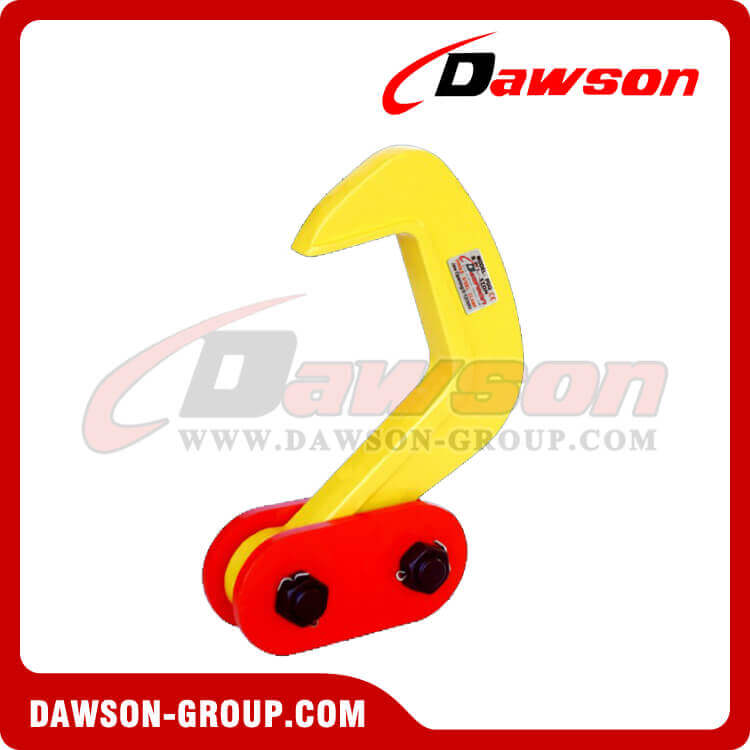

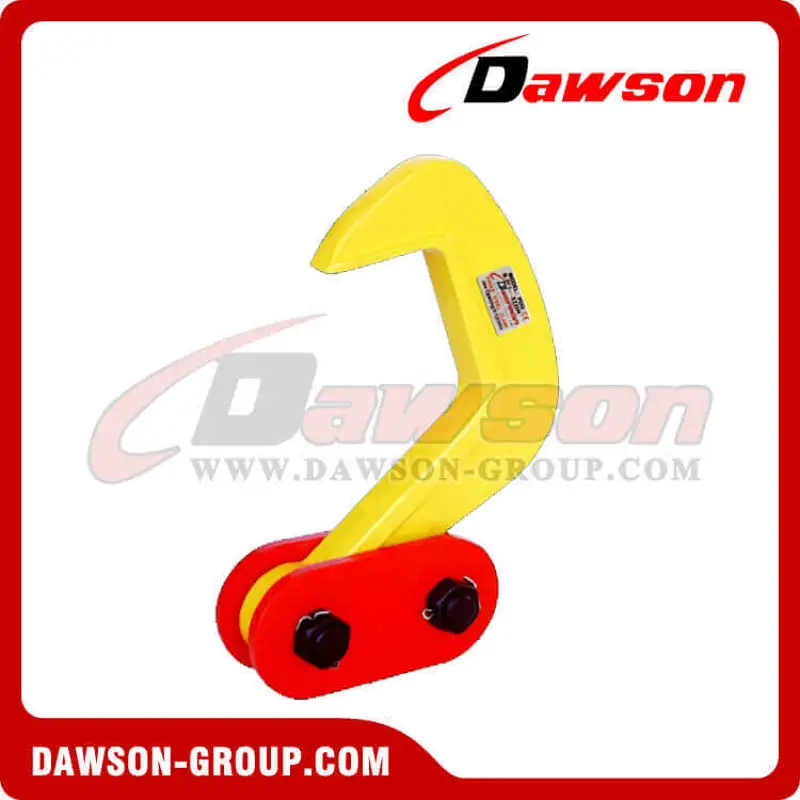

DS-PDQ Type Single Steel Plate Clamp
DS-PDQ Type Single Steel Plate Clamp
DS-PDQ Type Single Steel Plate Clamp
DS-PDQ Type Single Steel Plate Clamp
DS-PDQ Type Single Steel Plate Clamp

DS-PDQ Type Single Steel Plate Clamp

Model NO.
DS-PDQ
Quantity:

DS-PDQ Type Single Steel Plate Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):1-20T.

Use:

● Suitable for lifting and transport single or multi steel plates.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading . Lifting beam must be in use.

● The roller at the head of the hook will not damage the sling rope.

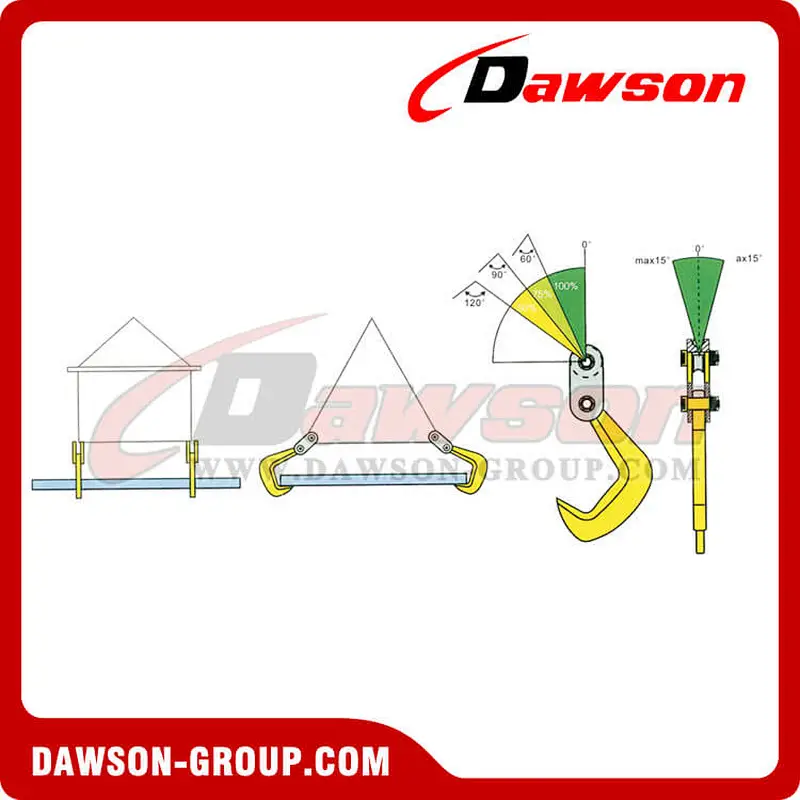

● The working load limit is the maximum load that the clamps are authorized to support when used in pairs with a lift angle of 60°.In lifting operations four clamps must at least always be used.

● Automatic unloading.


Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0077DS-PDQ11.00-503
DS-0078DS-PDQ22.00-605
DS-0079DS-PDQ3.23.20-9012
DS-0080DS-PDQ55.00-12017
DS-0081DS-PDQ88.00-13025
DS-0082DS-PDQ1010.00-15030
DS-0083DS-PDQ1212.00-15032
DS-0084DS-PDQ2020.00-25069

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
