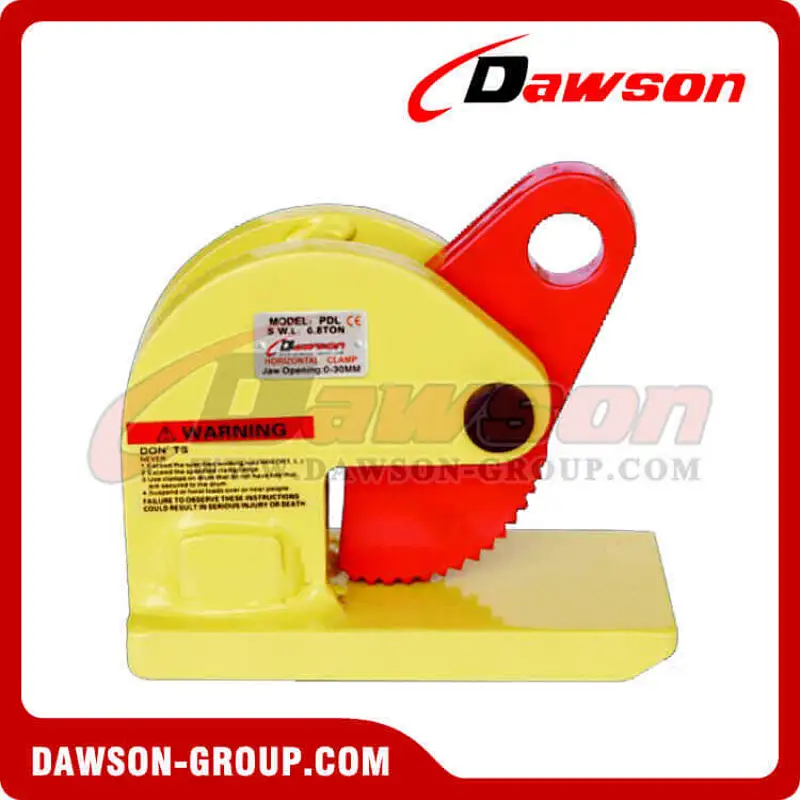

DS-PDL Type Horizontal Plate Clamp
DS-PDL Type Horizontal Plate Clamp
DS-PDL Type Horizontal Plate Clamp
DS-PDL Type Horizontal Plate Clamp
DS-PDL Type Horizontal Plate Clamp

DS-PDL Type Horizontal Plate Clamp

Model NO.
DS-PDL
Quantity:

DS-PDL Type Horizontal Plate Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):0.8-3.2T

Use:

● This acts as an additional safety feature specifically for use with thin sheets which may have a tendency to deflect or sag.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading.

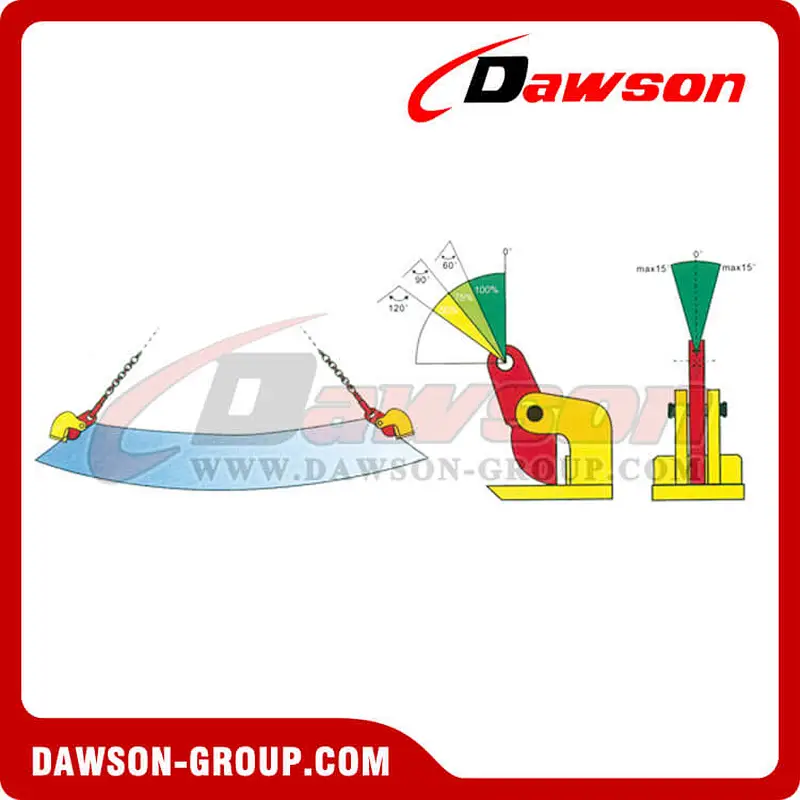

● The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.


Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0090DS-PDL0.80.80-307.5
DS-0091DS-PDL1.61.60-4510
DS-0092DS-PDL3.23.20-4516

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
