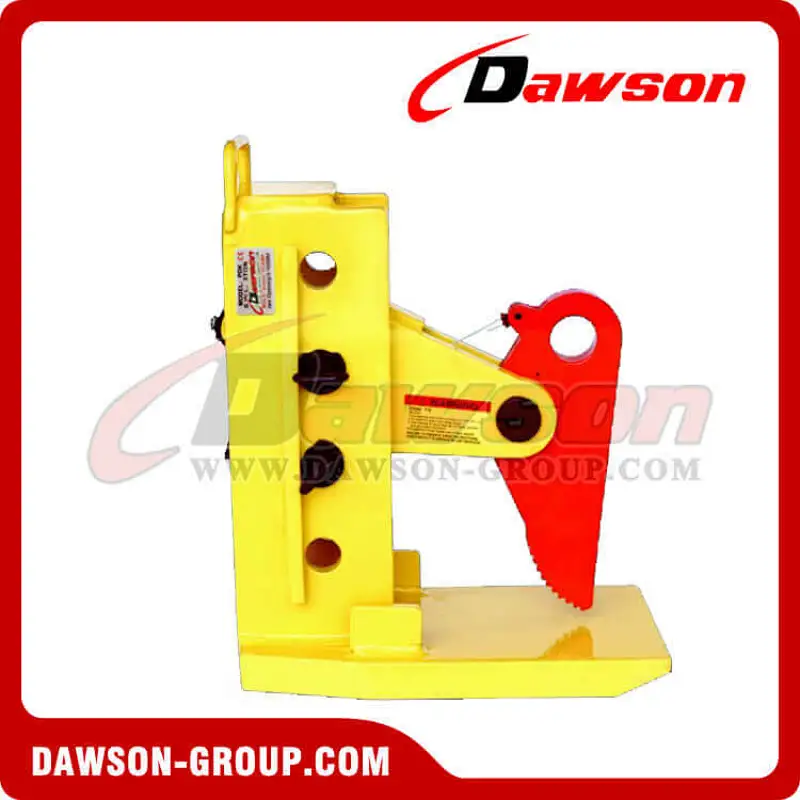

DS-PDK Type Adjustable Horizontal Multi Plate Clamp
DS-PDK Type Adjustable Horizontal Multi Plate Clamp
DS-PDK Type Adjustable Horizontal Multi Plate Clamp
DS-PDK Type Adjustable Horizontal Multi Plate Clamp
DS-PDK Type Adjustable Horizontal Multi Plate Clamp

DS-PDK Type Adjustable Horizontal Multi Plate Clamp

Model NO.
DS-PDK
Quantity:

DS-PDK Type Adjustable Horizontal Multi Plate Clamp

- Dawson Group Ltd. - China Manufacturer,Supplier

Working load limit(WLL):3-15T

Use:

● Suitable for lifting and transport of multi steel plates.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading.

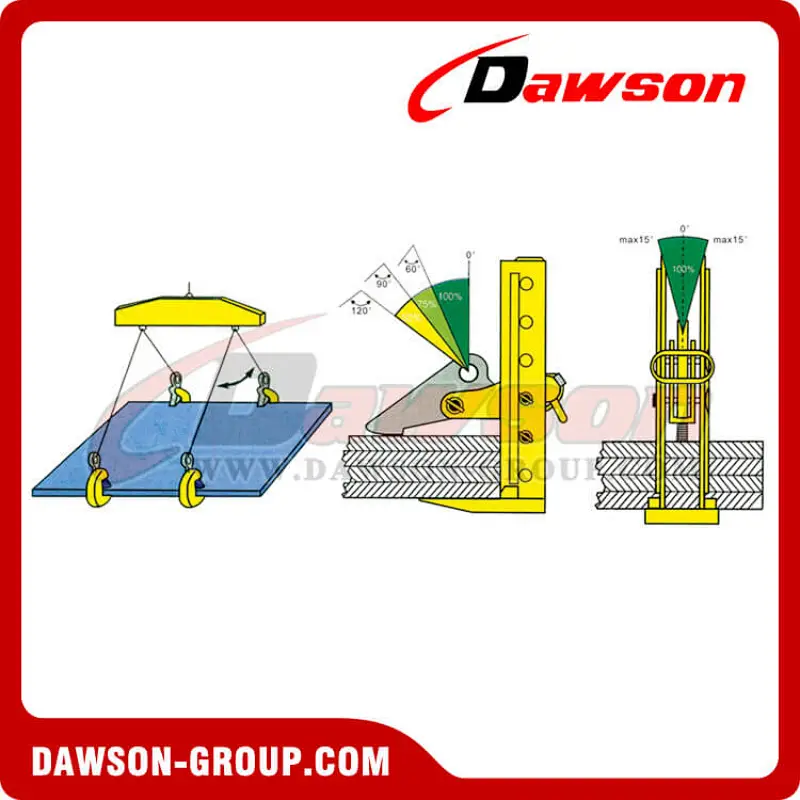

● The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.

● According to the plate can be suspended adjust the thickness of the clamp position of the tongue.

Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0085DS-PDK33.00-18019
DS-0086DS-PDK4.54.50-24026
DS-0087DS-PDK66.00-24040
DS-0088DS-PDK88.00-24051
DS-0089DS-PDK1515.00-240

72

Welcome to buy the newest and cheap DAWSON adjustable horizontal multi plate clamp from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

For further information, please contact usEmail: info@dawson-group.com
