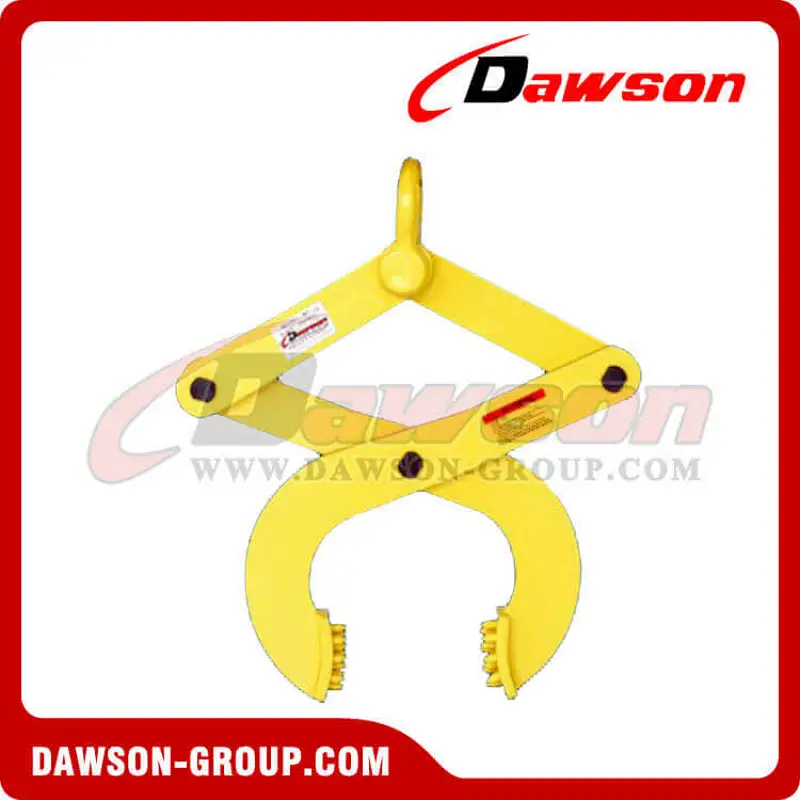

DS-MT Type Pallet Clamp
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Working load limit(WLL)：1-3T.
Use：
● For pulling loaded pallets , heavy crates.
● Be picked up with forklift truck.
● Variable jaw width grabs pallet securely and automatically releases.
● From a mechanics point of view ,these clamps have ideal designs, which are compact , lightweight ,easy to use.
| Part No. | Model | WLL(tonnes) | Jaw Opening(mm) | Weight(kg) |
| DS-0196 | DS-MT1 | 1.0 | 30-100 | 5 |
| DS-0197 | DS-MT1.5 | 1.5 | 30-180 | 8.5 |
| DS-0198 | DS-MT2 | 2.0 | 30-200 | 11 |
| DS-0199 | DS-MT3 | 3.0 | 30-200 | 15 |

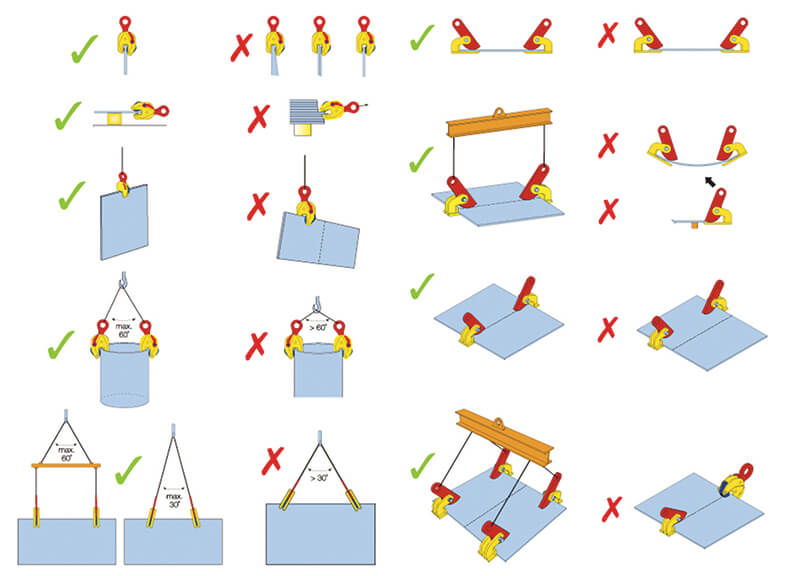

Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

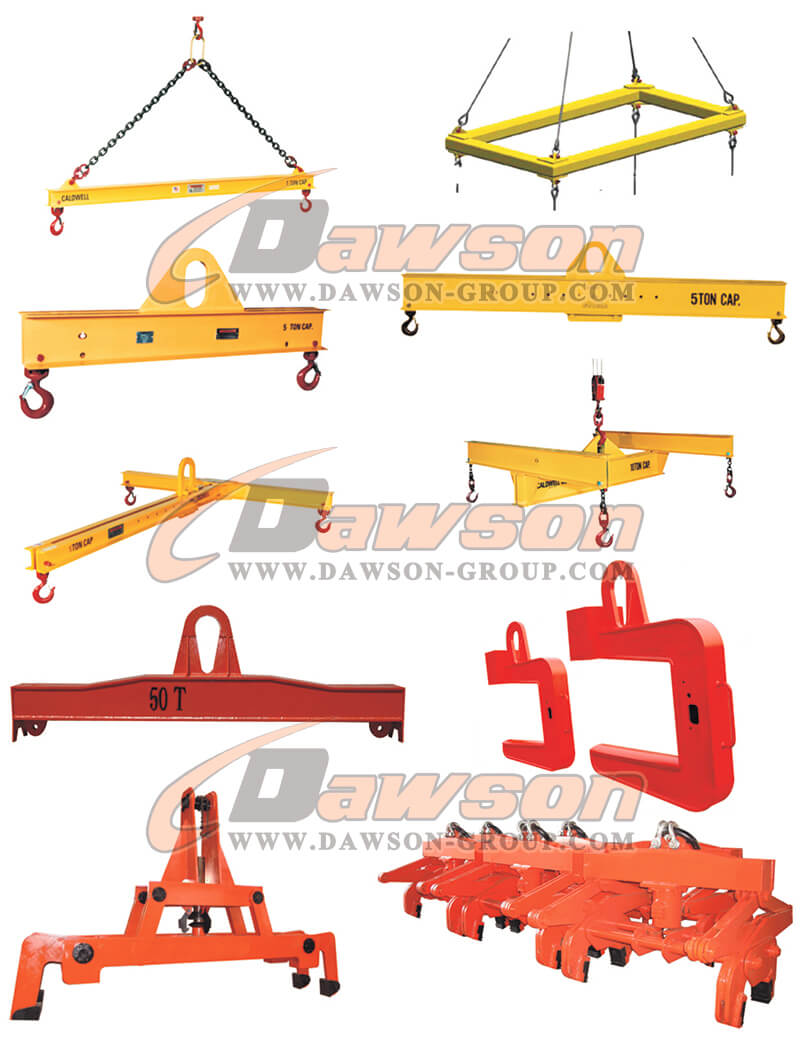

Other Related Products:

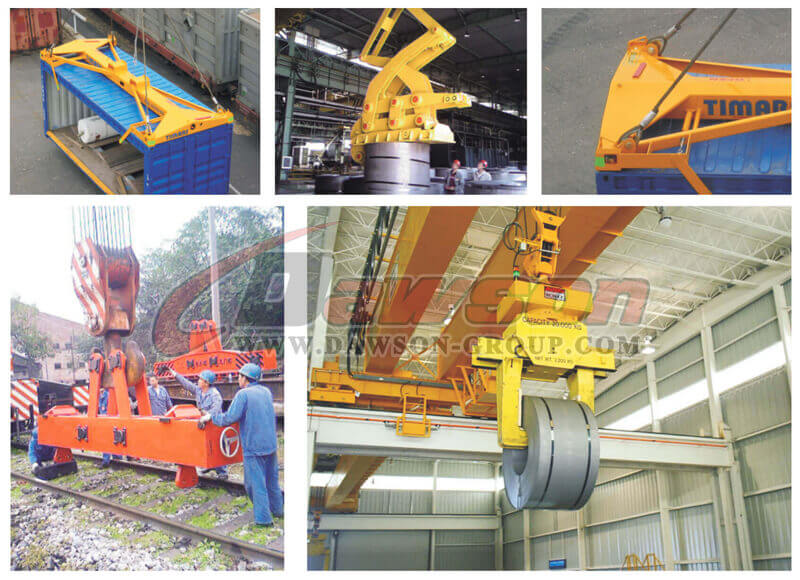

Application of Lifting Clamps:

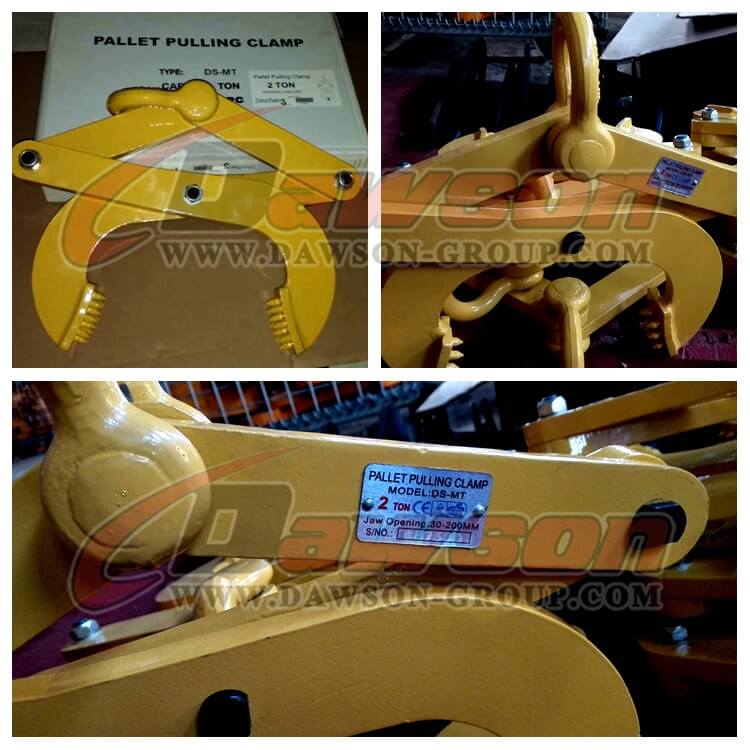

Factory & Package Show:
