Model NO.
DS-LA
Quantity:

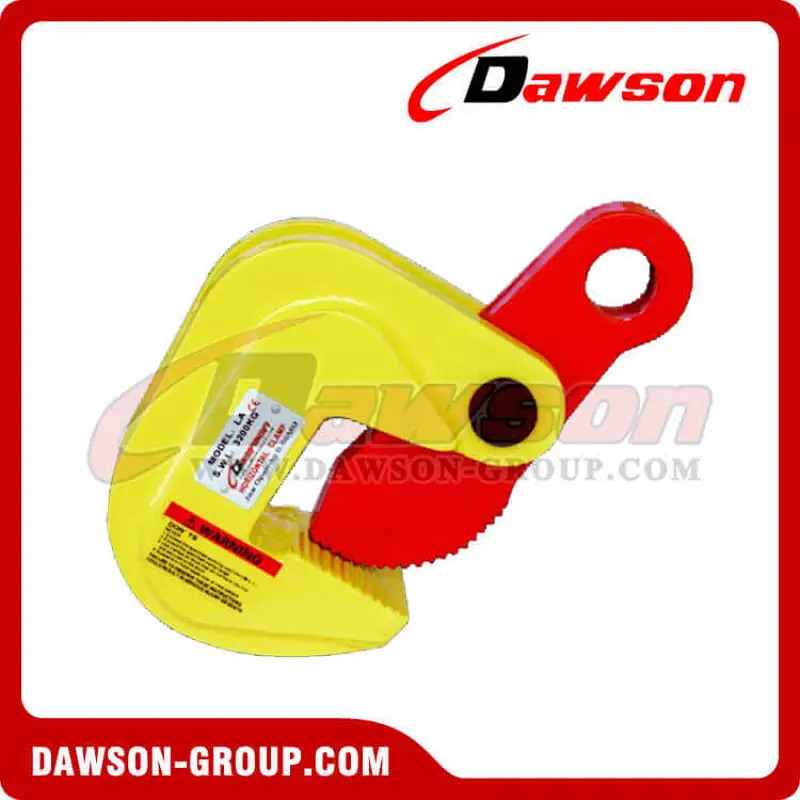

DS-LA Type Horizontal Plate Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):1.0-10T

Use:

● Suitable for lifting and transport of steel plates 、construction and profiled bar in horizontal position.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading.

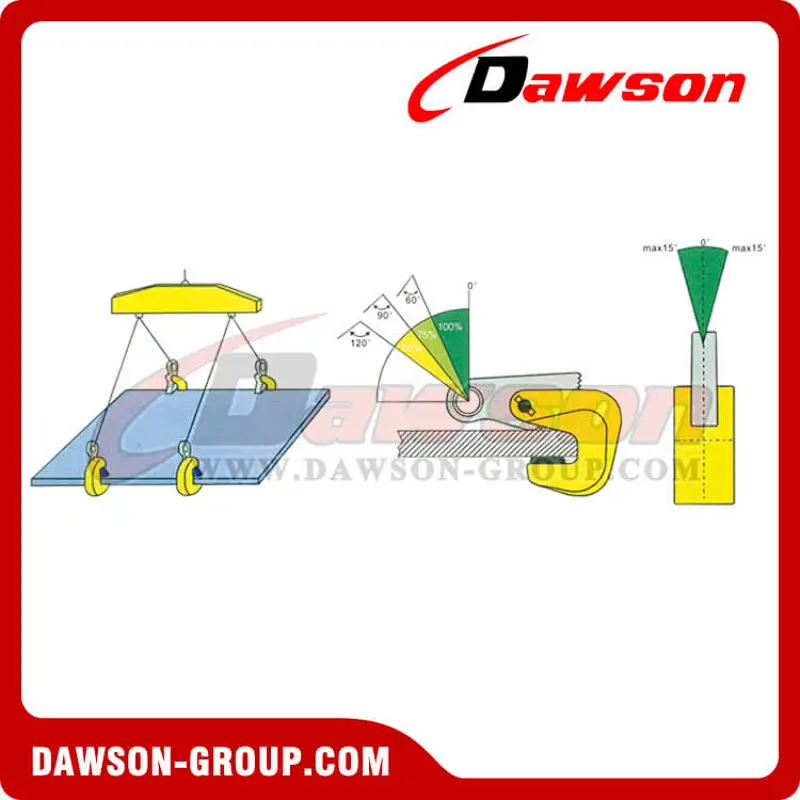

● The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.

Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0045DS-LA11.00-304
DS-0046DS-LA22.00-505.5
DS-0047DS-LA3.23.20-608
DS-0048DS-LA55.010-8011.5
DS-0049DS-LA66.010-10014.5
DS-0050DS-LA1010.020-12030

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

Other Related Products:


Application of Lifting Clamps:

Factory & Package Show:
