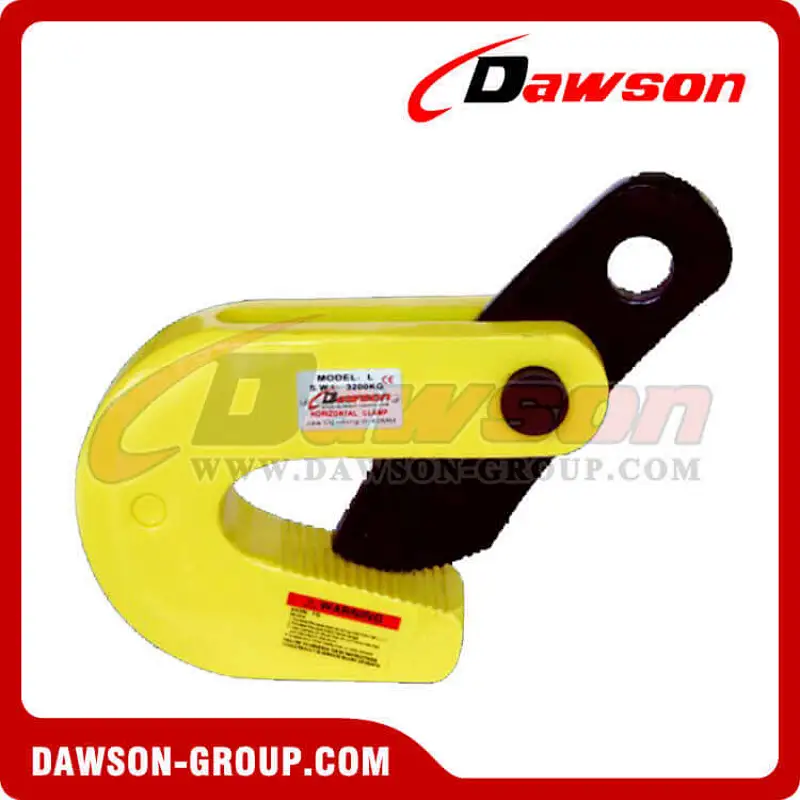

DS-L Type Horizontal Plate Clamp
DS-L Type Horizontal Plate Clamp
DS-L Type Horizontal Plate Clamp
DS-L Type Horizontal Plate Clamp
DS-L Type Horizontal Plate Clamp

DS-L Type Horizontal Plate Clamp

Model NO.
DS-L
Quantity:

DS-L Type Horizontal Plate Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):0.8-10T

Use:

● Suitable for lifting and transport of steel plates 、construction and profiled bar in horizontal position.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading.

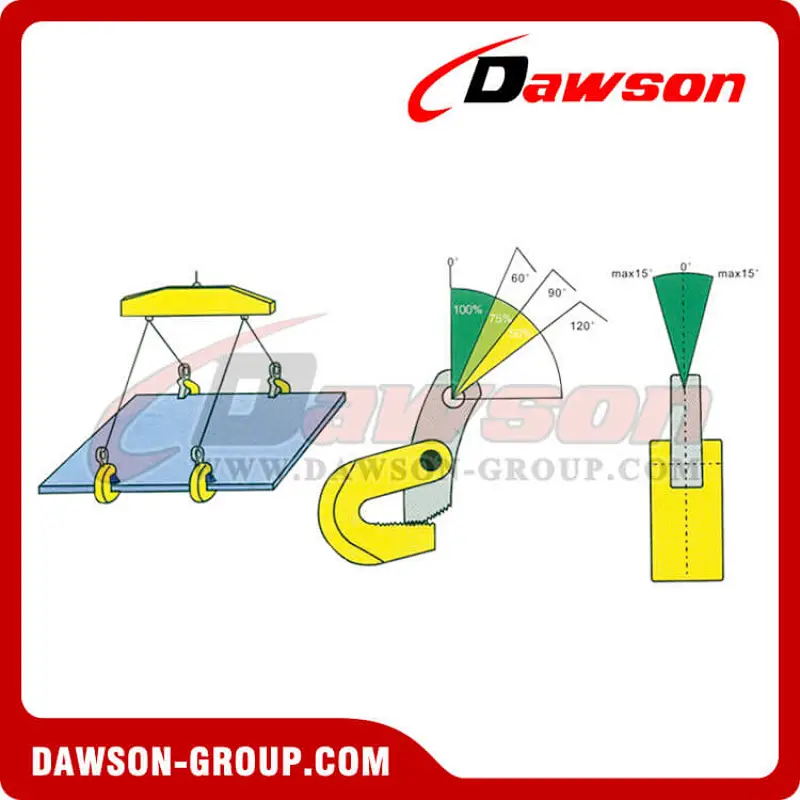

● The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.

● The main body and parts are made from die-forge special alloy steels, which are optimally tempered for maximum strength and durability.

Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0035DS-L0.80.80-152
DS-0036DS-L11.00-204
DS-0037DS-L1.61.60-256.5
DS-0038DS-L2.52.50-3011
DS-0039DS-L2.5(B)2.525-5011
DS-0040DS-L3.23.20-4012.5
DS-0041DS-L3.2(B)3.230-6012.5
DS-0042DS-L55.00-5019
DS-0043DS-L5(B)5.050-8020
DS-0044DS-L1010.020-10043

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

Other Related Products:

Application of Lifting Clamps:

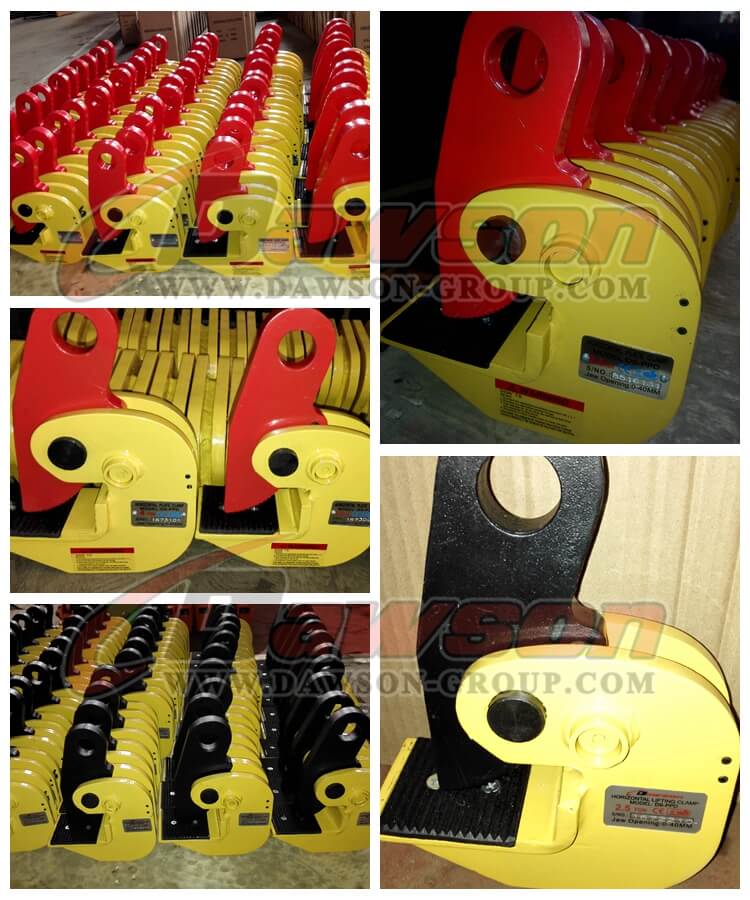

Factory & Package Show:
