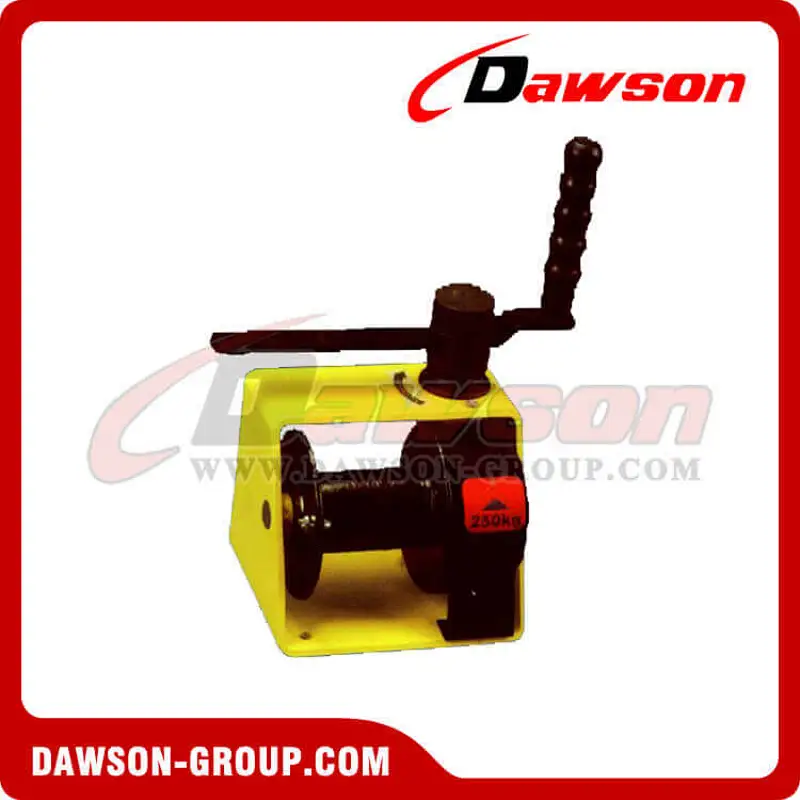

DS-HWG Type Manual Winch
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):250kg-500kg.
● Robust-easy to use design
● Free spooling release catch
● Smooth operation
● Automatic brake
● Rapid winding facility
● Adjustable crank length for maximum mechanical advantage
● High quality gears and breaking mechanisms
Part No. | Model | WLL (tonnes) | For Wire Rope (mm) | Length (m) | Number Of Layers | N.W (kg) |
DS-0194 | DS-HWG250 | 250 | 5 | 20 | 4 | 10 |
DS-0195 | DS-HWG500 | 500 | 6.8 | 25 | 4 | 16 |
Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
