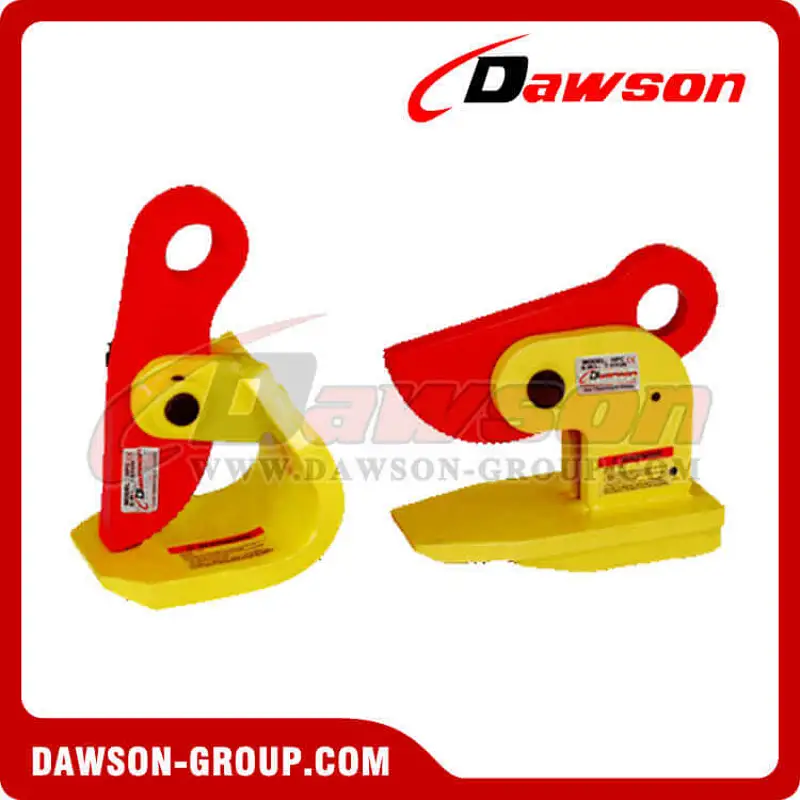

DS-HPC Type Horizontal Plate Clamp for Steel Plate
DS-HPC Type Horizontal Plate Clamp for Steel Plate
DS-HPC Type Horizontal Plate Clamp for Steel Plate
DS-HPC Type Horizontal Plate Clamp for Steel Plate
DS-HPC Type Horizontal Plate Clamp for Steel Plate

DS-HPC Type Horizontal Plate Clamp for Steel Plate

Model NO.
DS-HPC
Quantity:

DS-HPC Type Horizontal Plate Clamp for Steel Plate

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):1.5-9T.

Use:

● Suitable for lifting and transport of multi steel plates、construction and profiled bar in horizontal position.

● Manufactured from high quality carbon steel.

● Avoid snatch or shock loading.

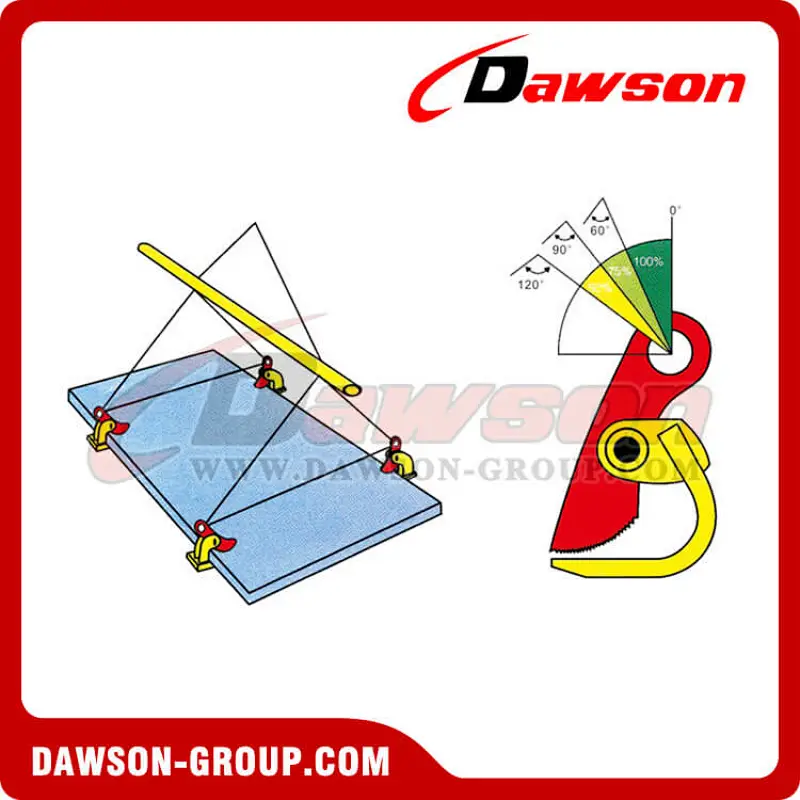

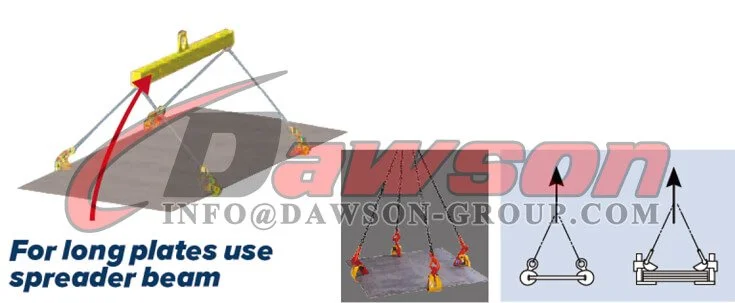

● Must be used in pairs for horizontal lifting.

● DS-HPC 1.5 has spring close , DS-HPC-3 and DS-HPC-5 has spring open. .Conforms to AS4991-2004.

Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0124DS-HPC1.51.50-504.3
DS-0125DS-HPC33.00-506
DS-0126DS-HPC55.00-6012
DS-0126ADS-HPC99.00-10028.4

Welcome to buy the newest and cheap DAWSON Horizontal Plate Clamp for Steel Plate from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

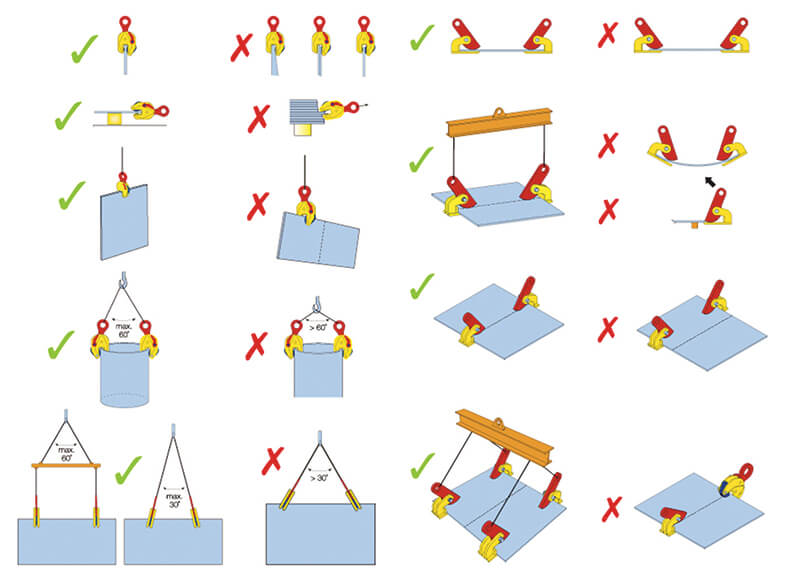

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

For further information, please contact usEmail:info@dawson-group.com
