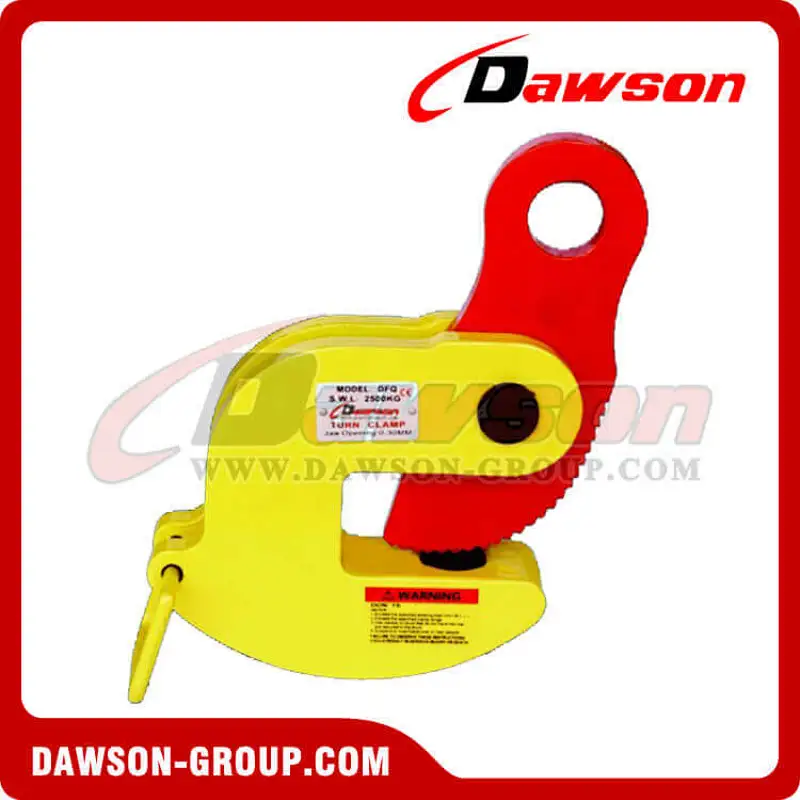

DS-DFQ Type Turn Clamp
DS-DFQ Type Turn Clamp
DS-DFQ Type Turn Clamp
DS-DFQ Type Turn Clamp
DS-DFQ Type Turn Clamp

DS-DFQ Type Turn Clamp

Model NO.
DS-DFQ
Quantity:

DS-DFQ Type Turn Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):1.5-20T

Use:

● For lifting and turn steel plate

● From a mechanics point of view ,these clamps have ideal designs, which are compact , lightweight ,easy to use .

● The working load limited is applied in one piece , during lifting single could be in use for horizontal lifting and transport.


Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0100DS-DFQ1.51.50-205
DS-0101DS-DFQ2.52.50-309
DS-0102DS-DFQ55.00-4020
DS-0103DS-DFQ88.00-5026
DS-0104DS-DFQ1010.00-6031
DS-0105DS-DFQ1616.020-12060
DS-0106DS-DFQ2020.060-16080

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.

Other Related Products:

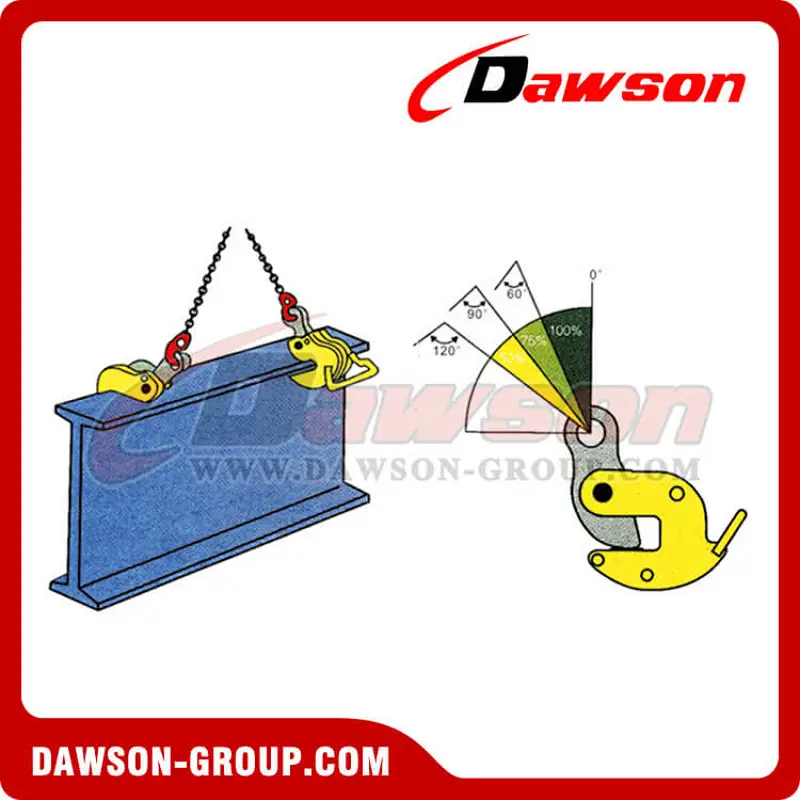

Application of Lifting Clamps:
