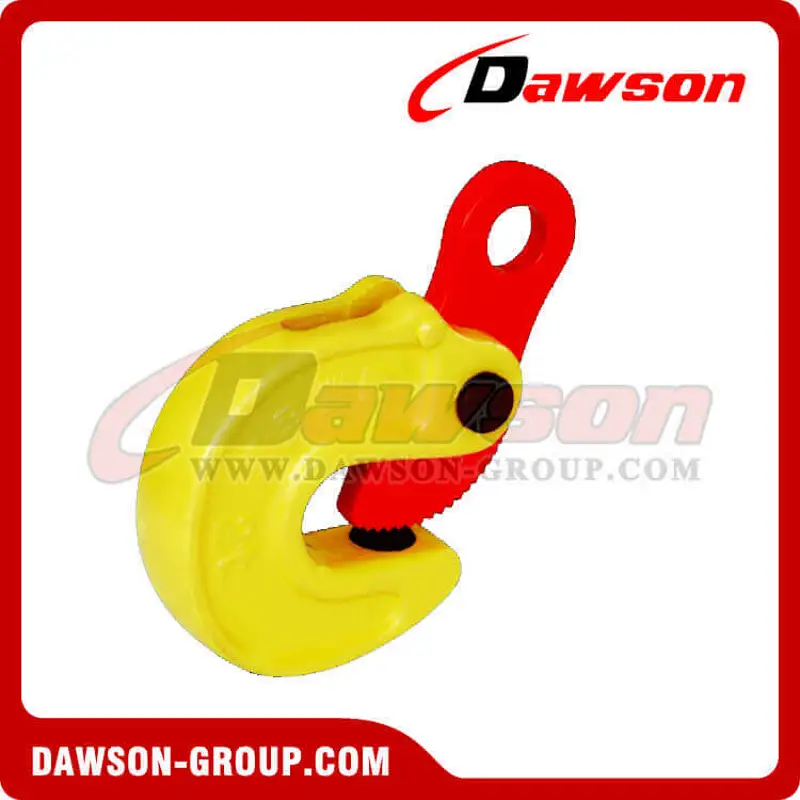

DS-DFM Type Turn Clamp
DS-DFM Type Turn Clamp
DS-DFM Type Turn Clamp
DS-DFM Type Turn Clamp
DS-DFM Type Turn Clamp

DS-DFM Type Turn Clamp

Model NO.
DS-DFM
Quantity:

DS-DFM Type Turn Clamp

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Working load limit(WLL):1-10T

Use:

● For lifting and turn steel plate.

● From a mechanics point of view ,these clamps have ideal designs, which are compact , lightweight ,easy to use.

● The main body and parts are made from die-forge special alloy steels, which are optimally tempered for maximum strength and durability.

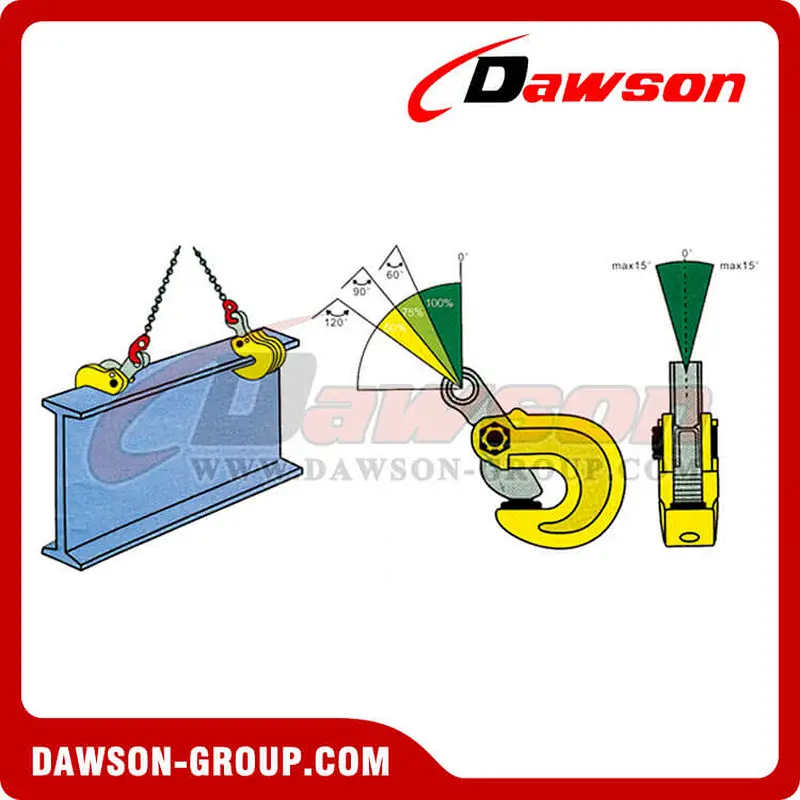

● The working load limited is applied in one piece , during lifting single could be in use for horizontal lifting and transport.

Part No.ModelWLL(tonnes)Jaw Opening(mm)Weight(kg)
DS-0107DS-DFM11.00-152.7
DS-0108DS-DFM22.00-205.6
DS-0109DS-DFM33.00-308
DS-0110DS-DFM55.00-6013.4
DS-0111DS-DFM1010.00-8026

Safety lifting

● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm²).

● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃

● Never overload a clamp and prevent the jerking of loads.

● When loading always use the whole jaw depth.

● Never lift more than one plate at the same time.

● Always keep your distance during lifting and descending of a load.

● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
