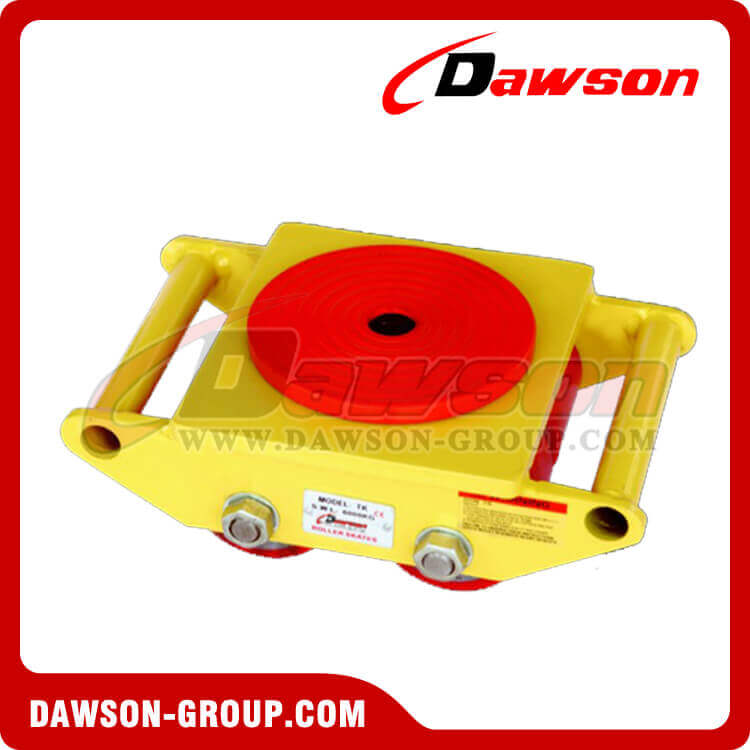

DS-TK Roller Skates
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Working load limit(WLL)：1.5-3T.
Use：
● Suitable for moving and transport heavy objects, machines and equipments.
● Manufactured from high quality carbon steel
● Duration oiled metal wheels with polyurethane cover
● Avoid snatch or shock loading
● Must be used in pairs for moving
● The load can be lifted using either the roller crowbar or a jack ,allowing the skates to be easily positioned.
● The skates are maintenances free and fitted with handless for ease of carrying and positioning
| Part No. | Model | WLL (tonnes)per pair | Numeber Of Wheels (Pcs) | Weight (kg) | Package size (mm) |
| DS-0207 | DS-TK4 | 6 | 4 | 15 | 320*210*110 |
| DS-0208 | DS-TK6 | 8 | 6 | 22 | 400*210*110 |
| DS-0209 | DS-TK8 | 12 | 8 | 29 | 500*210*113 |
| DS-0210 | DS-TK12 | 18 | 12 | 43 | 500*300*115 |

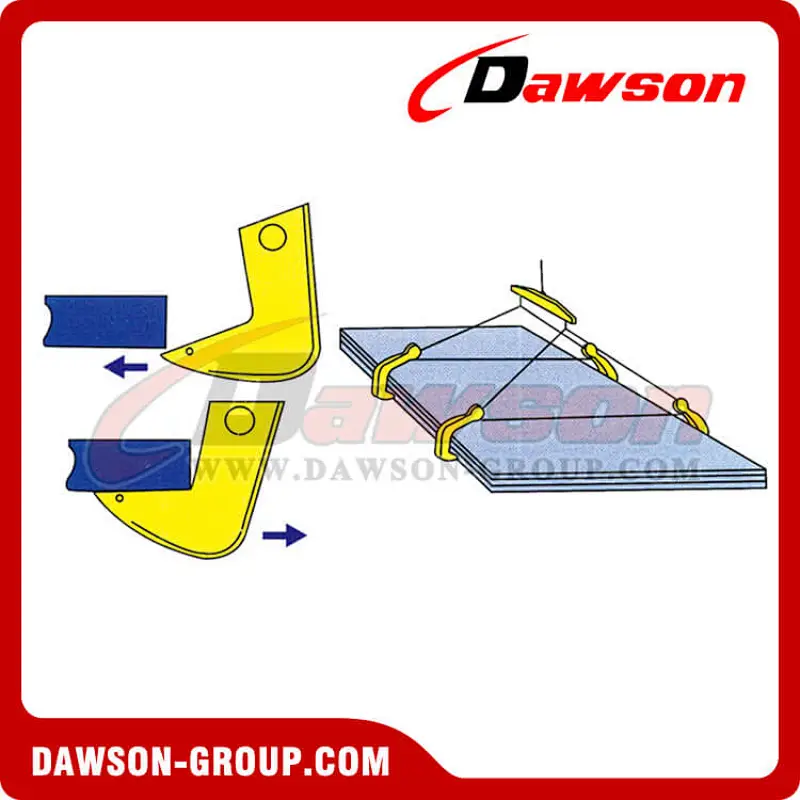

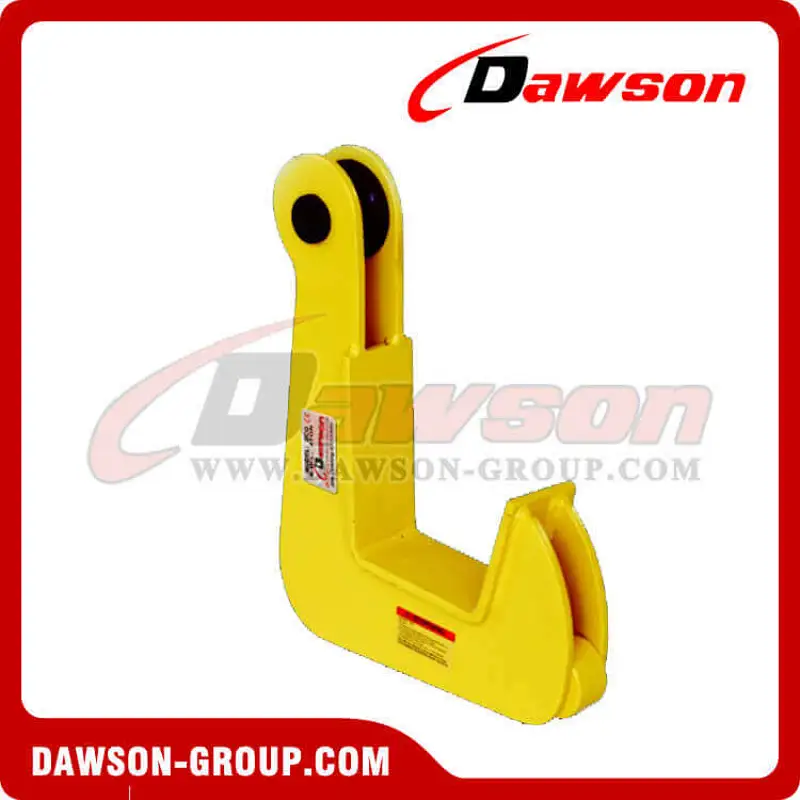

Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HrC (345HB,1166 N/mm²).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
Other Related Products:

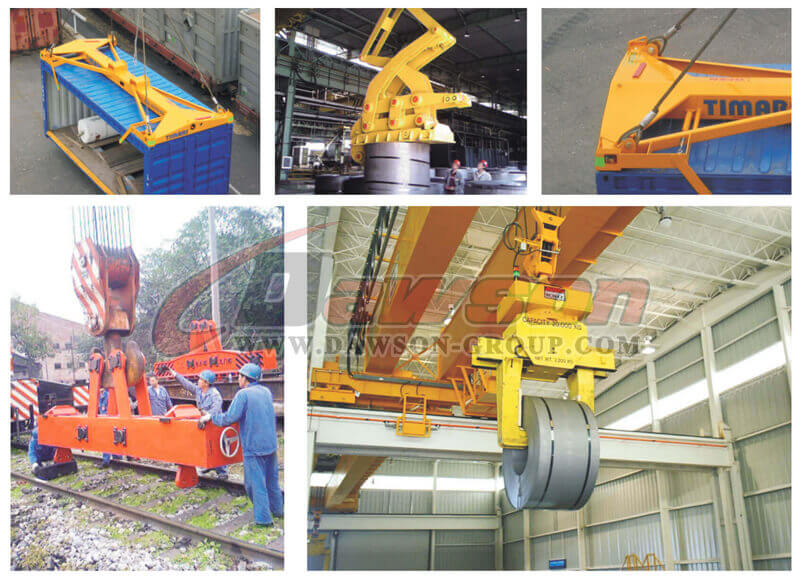

Application of Lifting Clamps:
