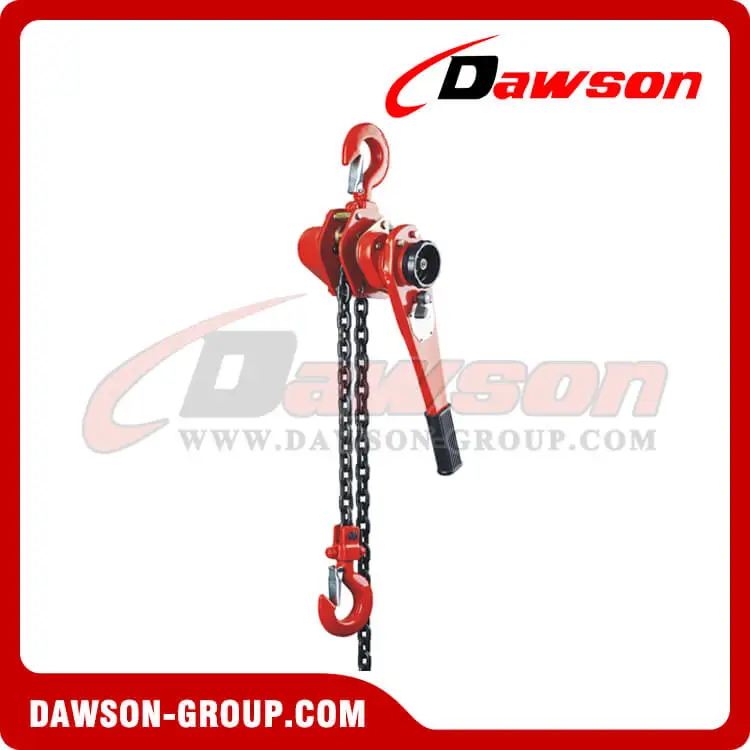

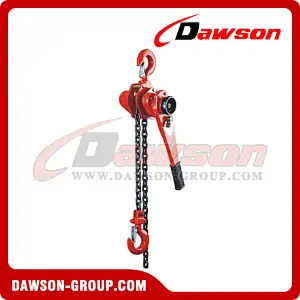

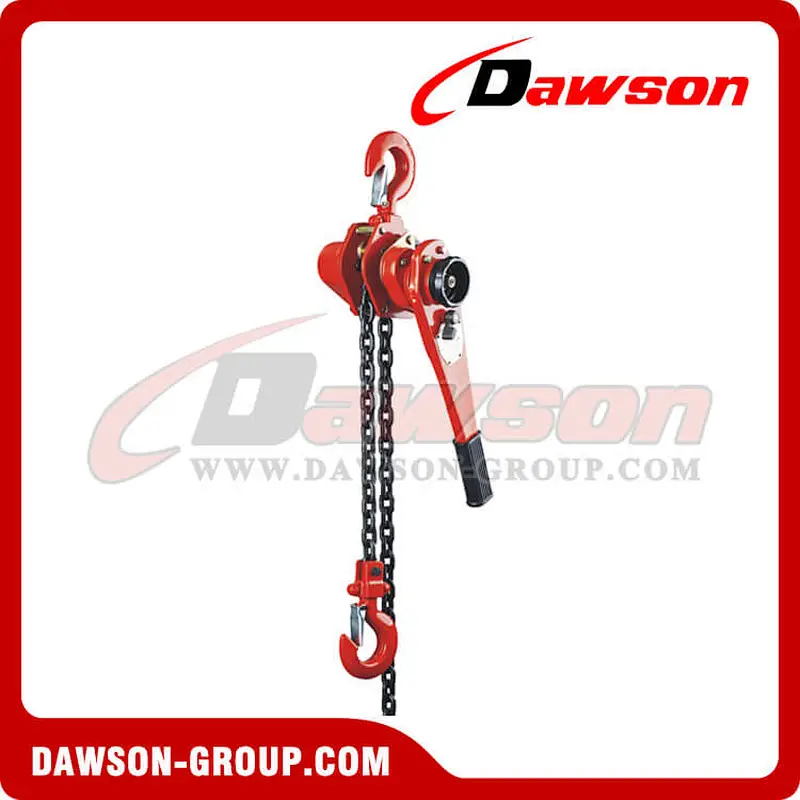

Heavy Duty Japan Technology 0.75T 1.5T 3T 6T 9T Vital Type Lever Block for Lifting Goods
750kg 1500kg 3000kg 6000kg 9000kg Ratchet Lever Hoist, Manual Lever Block
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Model | DS-HSH-0.75A | DS-HSH-1.5A | DS-HSH-3A | DS-HSH-6A | DS-HSH-9A | ||
| Capacity | tons | 0.75 | 1.5 | 3 | 6 | 9 | |
| Standard lift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running test load | Kn | 11.0 | 22.0 | 37.5 | 75.0 | 112.5 | |
| Effort required to lift rated load | N | 140 | 240 | 320 | 340 | 360 | |
| Strands of load chain | 1 | 1 | 1 | 2 | 3 | ||
| Load chain diameter | mm | 6 | 8 | 10 | 10 | 10 | |

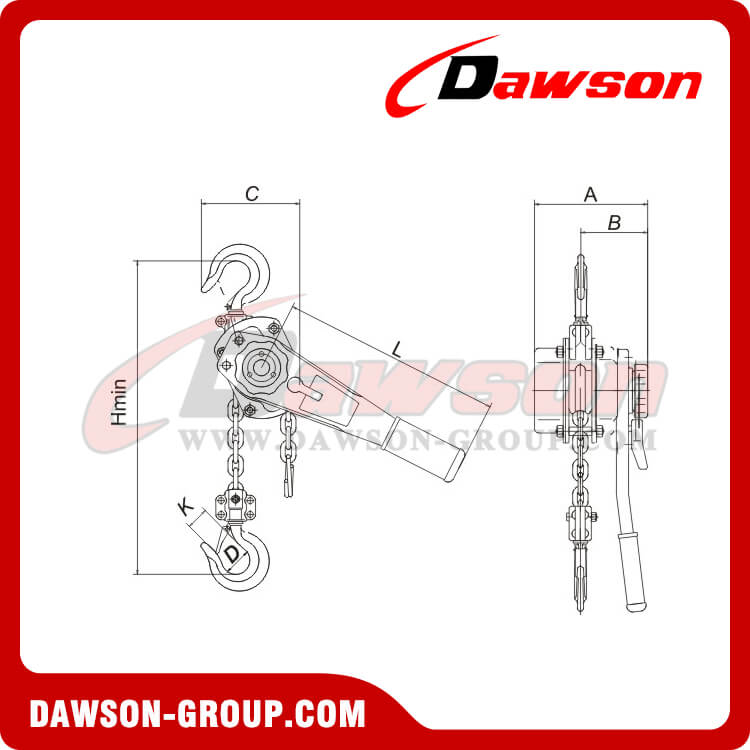

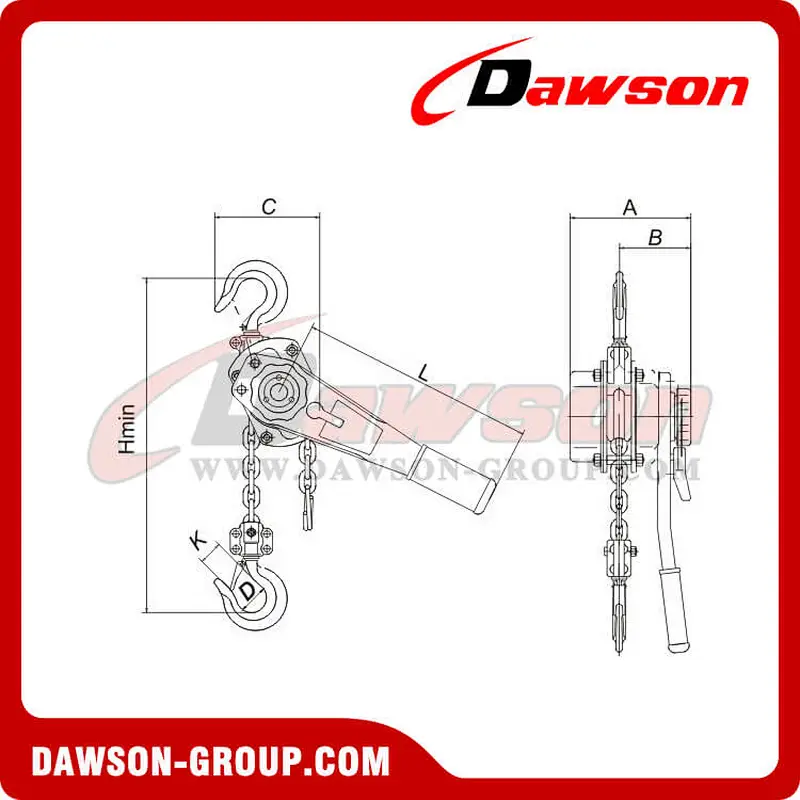

| Dimensions | A | mm | 155 | 180 | 215 | 215 | 215 |
| B | mm | 95 | 105 | 130 | 130 | 130 | |
| C | mm | 135 | 155 | 200 | 200 | 330 | |
| D | mm | 37 | 45 | 50 | 64 | 85 | |
| L | mm | 320 | 380 | 480 | 600 | 700 | |
| K | mm | 30 | 36 | 40 | 50 | 58 | |
| Net weight | kg | 7.7 | 11.8 | 21 | 32 | 47 | |
| Packing measurement | cm | 35.5x14x16.5 | 46.5x15.5x19 | 51x19x21.5 | 53x22x21.5 | 82x32x21.5 | |
| Extra weight per meter of extra lift | kg | 0.8 | 1.4 | 2.2 | 4.4 | 6.6 | |
Lever hoist, Rachet lever block, Crane hoist
Japan tech
Low weight, small mounting sizes and small lever force at rated load
Premium grade alloy load chain
Drop-forged and expertly heat treated hooks for great strength and long wearing.
Detail：

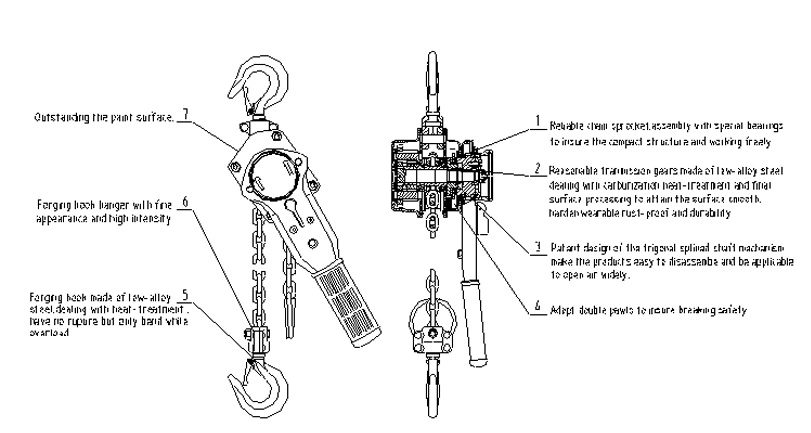

The Dawson lever hoist is a universal, manual hoist for lifting, tensioning, lashing ,electricity, mines, ship-buildings, construction sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc. The ratchet lever hoist features compact design and robust, deep drawn, stamped steel construction. High quality materials ensure light weight without infringing reliability.
1.Low own weight, small mounting sizes and small lever force at full load.
2.Asbestos free brake, holding load at any desired height.
3.Top & bottom hooks are fitted with safety latches as standard.
4.The load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain. For safety reason free chains can not be done when the hoist is under load.
5.Short hand lever with rubber grip.
6.Hand lever operates with little effort due to optimal gear ratio.
7.Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
8.The hoist is fitted with high grade alloy load chain.
9.Grade 80 Zinc Plated FEC CHAIN from Japan & RUD CHAIN from Germany are available upon request.
10.Inspection of lever hoist & manuals.
Other related products:
Welcome to buy the newest and competitive price DAWSON Heavy Duty Japan Technology Vital Type Lever Block from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot tags: Lever Hoist , Lever Block , Japan Technology Lever Block , Vital Type Lever Block , Heavy Duty Lever Block , Vital Type Lever Block Made in China , Cheap Vital Type Lever Block , Discount Vital Type Lever Block , Low Price Vital Type Lever Block , Buy Discount Vital Type Lever Block , Vital Type Lever Block Price , Vital Type Lever Block Price List , 9T Heavy Duty Lever Hoist, 9000kg Lever block, 6000kg Lifting Hoist, 6Ton Lever Hoist for lifting, 3000kg Lifting Hoist, 3Ton Lever Block, 1.5Ton Lever hoist for construction site, 1500kg Lever block for dock, 750kg lever block for mines, 0.75Ton lifting tools

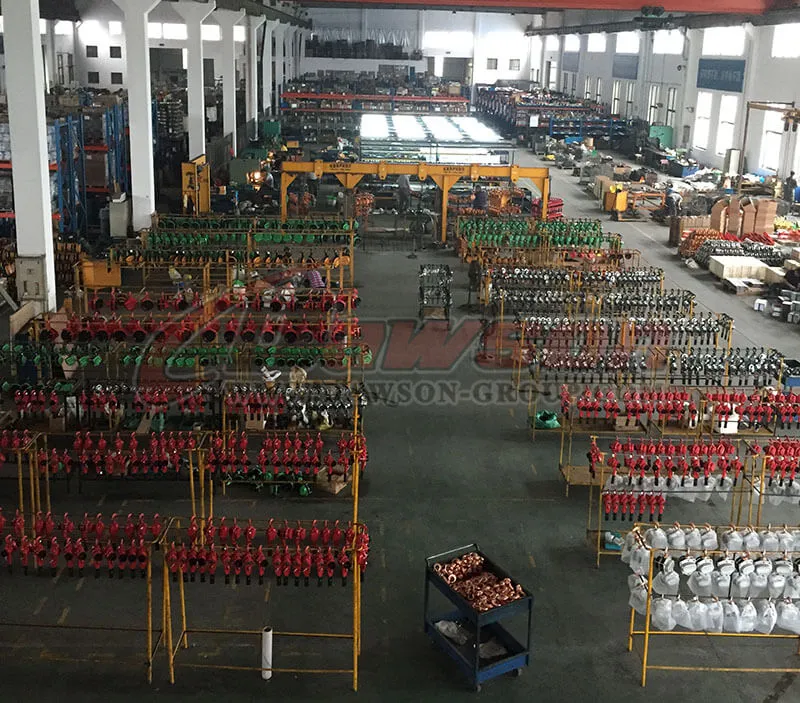

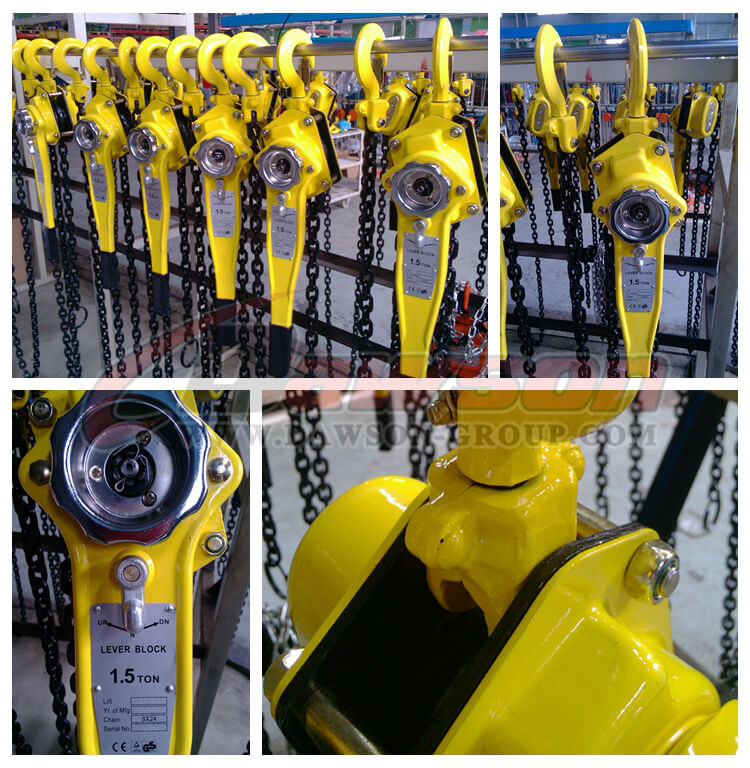

Factory & Package Show:
