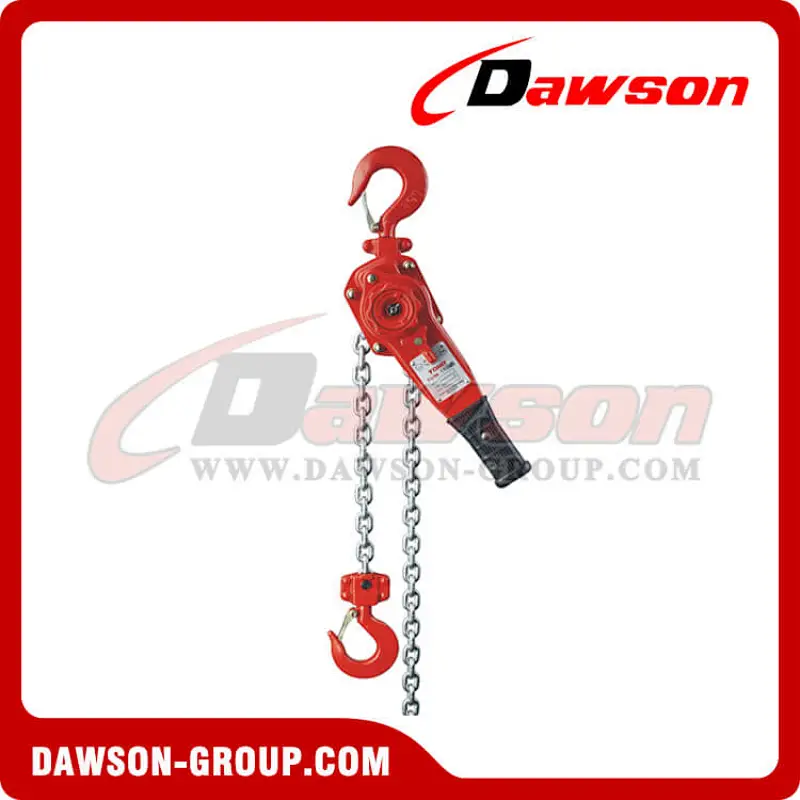

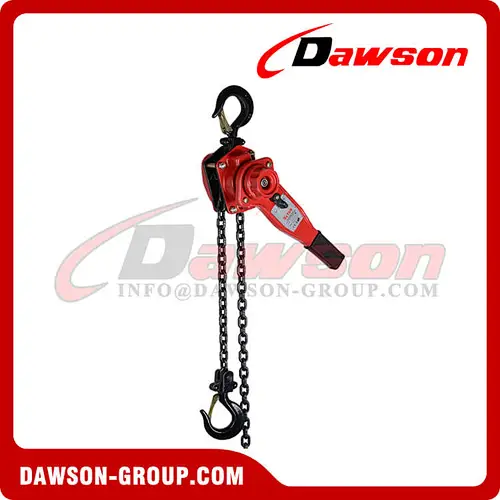

DSVG 0.8T - 9T Lever Block, Manual Lever Hoist for Lifting Goods
DSVG 0.8T - 9T Lever Block, Manual Lever Hoist for Lifting Goods
DSVG 0.8T - 9T Lever Block, Manual Lever Hoist for Lifting Goods
DSVG 0.8T - 9T Lever Block, Manual Lever Hoist for Lifting Goods
DSVG 0.8T - 9T Lever Block, Manual Lever Hoist for Lifting Goods
DSVG 0.8T - 9T Lever Block, Manual Lever Hoist for Lifting Goods
DSVG 0.8T - 9T Lever Block, Manual Lever Hoist for Lifting Goods

DSVG 0.8T - 9T Lever Block, Manual Lever Hoist for Lifting Goods

Model NO.
DSVG
Quantity:

DSVG 0.8T 1T 1.6T 2.5T 3.2T 6.3T 9T Lever Block,

800kg 1000kg 1600kg 2500kg 3200kg 6000kg 9000kg Manual Lever Hoist for Lifting Goods

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Introduction

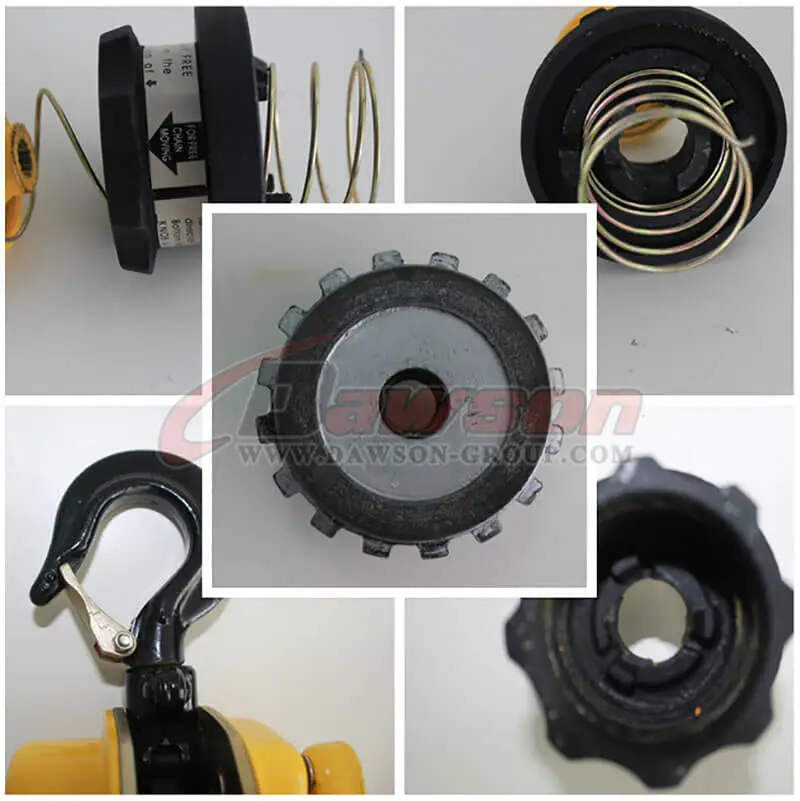

Patented Fused Brake Design-Proven durability that increases safety .

Weston Style Dual Pawl Brake system-Double pawl design increases safety.

Unique hand wheel & knob design-No preload required.

Corrosive resistant zinc plated grade 100 load chain.

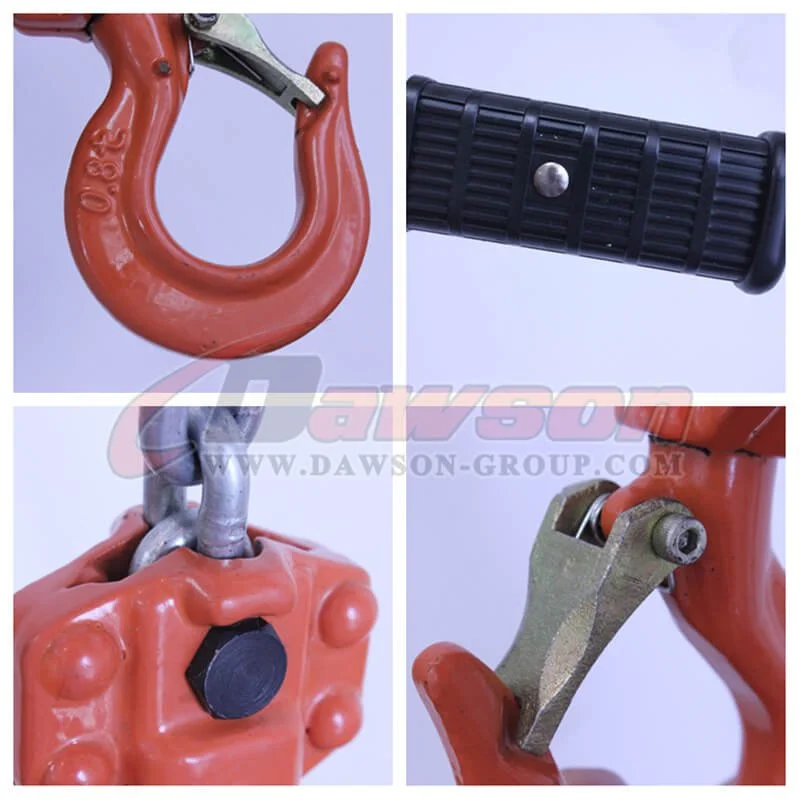

Alloy steel Hook-Industrial rated hooks rotate 360 degrees for easy rigging.

Cast Steel Safety Latches-Increased durability with heavy duty safety latches secured with Allen screws and locknuts.

Caged Needle Bearing Deign-Increases efficiency and promotes smooth operation extending the work life of the hoist.

Compact Design-Smaller body and light weight design for low headroom applications and use in confined areas .

Optional Features

Caged roller bearings on load sprocket

Zinc plated load chain

Cast latches

Shipyard hook 1.6t& 3.2t

Specifications

ModelCapacity
(T)
Standard lift
(m)
Running test
(T)
No. of falls of load chainLoad chain
Diameter(mm)

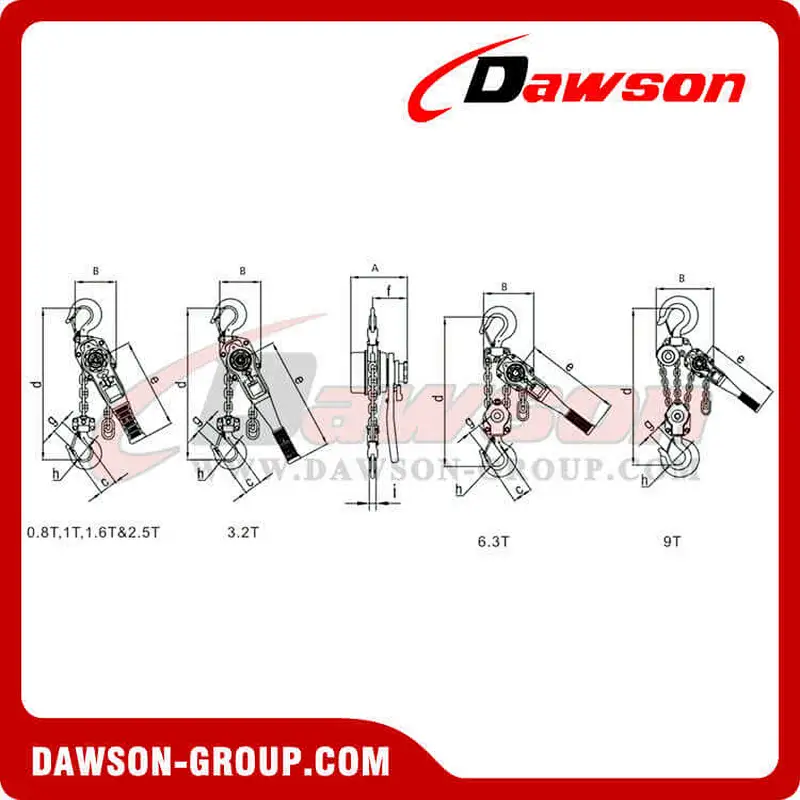

Dimension(mm)Net weight
(kg)
ABCDEFGHI
DSVG0.8T0.81.51.215.614611941.52802459626.535.5145.7
DSVG1.0T11.51.515.614611949.43002459631.542.5155.9
DSVG1.6T1.61.52.417.11641265233526510035.542.5198
DSVG2.5T2.51.53.7518.817915058.637526510341472111.2
DSVG3.2T3.21.54.811019615961.9395415114435024.513.6
DSVG6.3T6.31.59.4521019621884.354041511453603426
DSVG9.0T91.513.5310196298-68041511464854040


product details:

A lever hoist is a manual device used to lift, lower, or pull a load and to apply or release tension. It utilizes a ratchet and pawl mechanical configuration to incrementally raise or lower a load or to apply or release tension.

Lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance, which is capable of being applied in electricity, mines, ship-buildings, construction sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc. It has exceptional advantages particularly for pulling in every limited narrow places in the upper air high above the ground and at any angles.

1.Low own weight, small mounting sizes and small lever force at full load.

2.Asbestos free brake, holding load at any desired height.

3.Top & bottom hooks are fitted with safety latches as standard.

4.For DSLH-A/AII/D/E/G type, the load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain. For safety reason free chains can not be done when the hoist is under load.

5.Short hand lever with rubber grip.

6.Hand lever operates with little effort due to optimal gear ratio.

7.Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.

8.The hoist is fitted with high grade alloy load chain.

9.Grade 80 Zinc Plated FEC CHAIN from Japan & RUD CHAIN from Germany are available upon request.

10.Inspection of lever hoist & manuals.

INSPECTION BEFORE USE

Ensure that the lever hoist name plate is clearly visible and that the WLL is legible.

The pre-use inspection of a lever hoist should include the following:

Load chain

1.Inspect chain for wear, gouges, nicks, arc burns, twisted and bent links and corrosion.

2.Inspect for correct reeving on 6 tonne units.

Lift wheels & Sheave Wheels

1.Inspect lift wheel for foreign material, wear and corrosion.

2.Inspect sheaves for wear, freedom of movement and corrosion.

3.Inspect dead end pins for wear, tightness and corrosion.


Hooks

1.Inspect hooks for signs of opening, cracking, bending, arc burns, welds and corrosion.

2.Hooks should swivel freely.


Miscellaneous

1.Inspect the frame and covers for deformation, warping, severe denting and other damage.

2.Inspect safety catches for condition and operation.

3.Measure hook throats for allowable service openings. Inspect hangers (6 tonne hoist) for cracks, gouges, corrosion and other damage.

4.Inspect lever handle for overloading or any signs of distortion.

5.Check for freewheeling function.

6.Ensure raise and lower selections operate correctly.

7.Check there is an end stop fitted to the chain.


CARE IN USE

1.All persons involved in the operation of a lever hoist must read the manufacturers handbook and be completely familiar with all operating and maintenance procedures.

2.When operating a lever hoist, always maintain a firm footing and when necessary be secured. Operate the lever hoist from a location that will be clear of the load at all times. People must stay clear of the suspended load. Never use the lever hoist to lift, support or transport people and never lift loads over or near people.

3.Before lifting a load, confirm that the lever hoist is in good condition and functioning properly.

4.Always keep the load chain well lubricated and protect it from weld spatter and other damaging contaminants.

5.Never allow the load chain or hooks to be used as a ground for welding and never touch them with live welding electrodes.

6.Never use the lever hoist with twisted, kinked, damaged or worn load chains and never attempt to lengthen the load chain.

7.Always use proper slings and attachments in the correct manner and confirm that they are seated properly in the hooks. Also confirm that the safety catch assembly has closed completely and is not supporting any part of the load.

8.Never lift more than the rated WLL.

9.Slack load chain must be taken up carefully. While checking the balance of the load, lift and lower the load about 100mm to test the brake system before lifting further.

10.Never run the load chain out beyond the range of lift.

11.Never allow your attention to be diverted when operating the lever hoist and never leave a suspended load unattended.

12.Inspect the lever hoist regularly. Never use a lever hoist when malfunctioning or when unusual performance or damage is evident.

13.Never adjust or repair a lever hoist unless you are competent in performing hoist maintenance.

14.Never modify the lever hoist.

15.Never remove or obscure the nameplate on the lever hoist.

16.Examine the load chain to ensure that there is no twist. Lever hoists can lift on 2 falls of load chain; twists can arise from the bottom hook being accidentally turned over through the load chains.

17.Confirm that the supporting structure is strong enough to support the intended load.

18.The changeover lever must be set to the"UP"position when the lever hoist is under a load during hoisting or pulling operations. In some cases with light loads (less than 2% of the WLL) if the changeover lever or hub is set to the neutral position, the free-wheeling system will function, and the lever hoist will not be able to support the load.

19.Lifting a load with two lever hoists is not recommended. If the job is unavoidable, keep the load well within the total rated capacity of the two lever hoists and lift with exceptional care while maintaining proper balance, angle and lifting speed.


Welcome to buy the newest and competitive price DAWSON DSVG Lever Block our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


For further information, please contact us. Email:info@dawson-group.com


Hot Tags: bulk lever blocklow price lever hoisthigh quality ratchet lever hoistwholesale lifting gearbuy discount lifting equipmenthot sale hoist toolcheap price customized crane machinerylever chain hoist China supplierpulley block China manufacturermini lever hoist China factorymini lever block China exporterlever block in stocklever block free samplelever block dawson brandslever block OEM

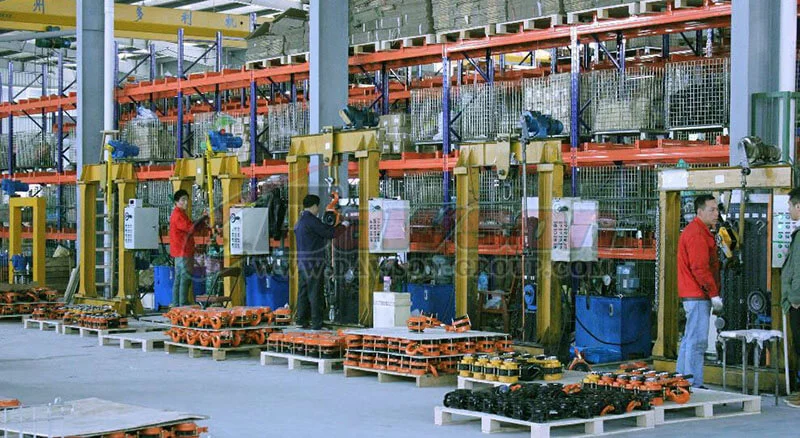

Factory & Package Show:
