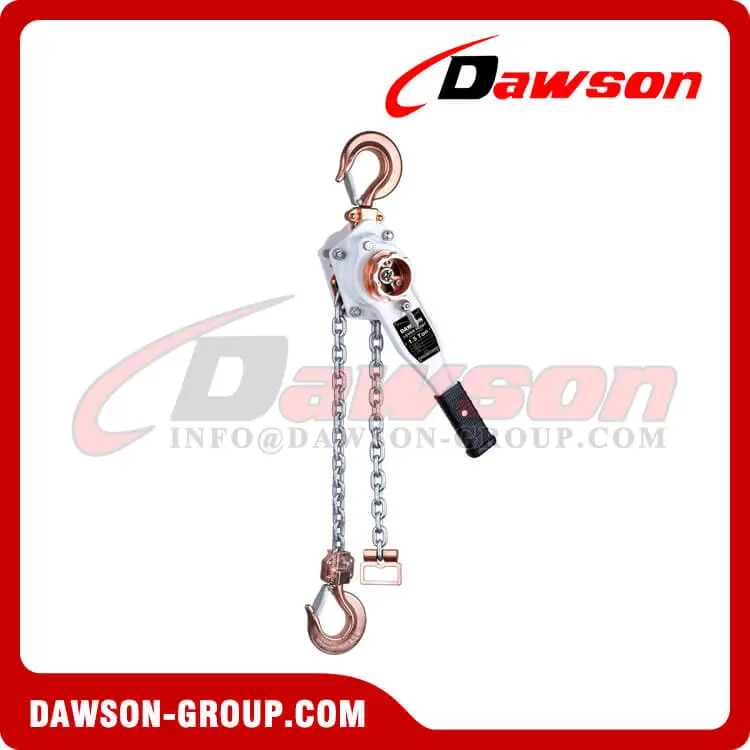

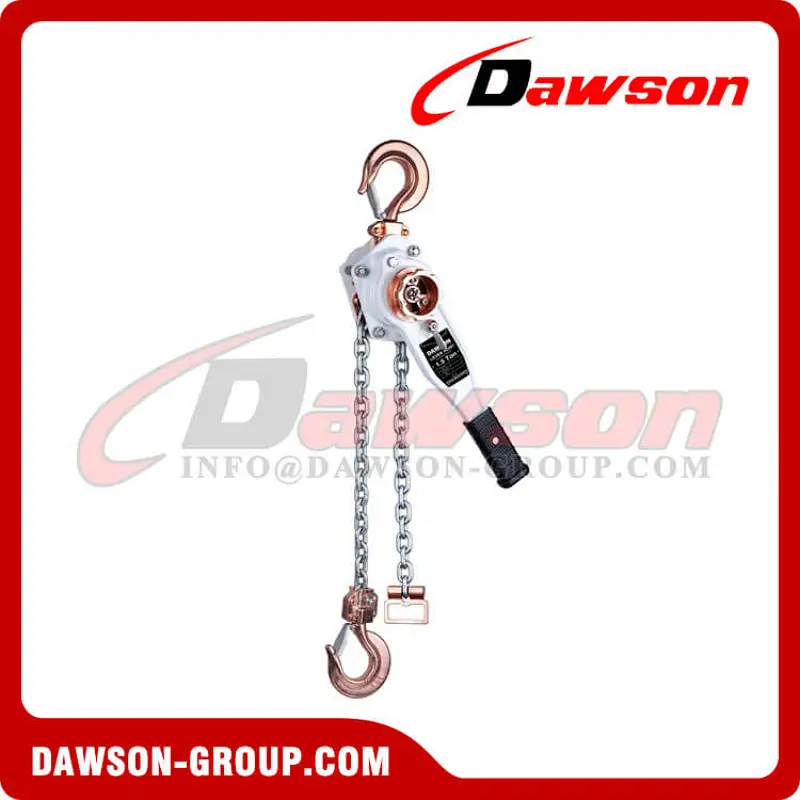

DS-EX-L Spark Proof Lever Hoist / EX-proof Lever Block for Lifting
500kg 1000kg 1500kg 3000kg 6000kg 9000kg Spark resistant lever block, non-spark lever hoist, explosion-proof lever block - Dawson China
1.The product complies with the EU'S explosion-proof standard ATEX2014/34/EU and the Machinery Directive 2006/42/EC.
2.The company has passed ISO9001,CE/GS,ATEX,CCS and other related certifications.
3.The product explosion-proof level can reach: Ex II 2GD c IIC T4 IIIC T135°C.
Suitable for: potential explosive atmospheres or dusty environments.
Area: Zone 1&2(gas), Zone 21&22(dust)
5.The whole product is equipped with anti-spark coating, and the brake device is completely protected to prevent foreign matter from entering.
4.Stainless steel lifting chain, overload limiter are I optional.
Note: It is the responsibility of the user to determine the type of explosion protection area.
Specifications
| Model | DS-EX050-L | DS-EX100-L | DS-EX150-L | DS-EX300-L | DS-EX600-L | DS-EX900-L | |
| Capacity | t | 0.5 | 1 | 1.5 | 3 | 6 | 9 |
| Lifting height | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Test load | kN | 6.3 | 12.5 | 18.8 | 37.5 | 75 | 112.5 |
| Pull on lever to lift full load | N | 256 | 300 | 373 | 395 | 398 | 400 |
| No.of load chain falls | 1 | 1 | 1 | 1 | 2 | 3 | |
| Diameter of load chain | mm | 5X15 | 6x18 | 7X21 | 10X30 | 10X30 | 10X30 |
| Min.distance between hooks | mm | 330 | 365 | 400 | 520 | 595 | 800 |
| Length of lever handle | mm | 245 | 245 | 325 | 405 | 405 | 405 |
| Net weight | kg | 5.5 | 7.9 | 10.9 | 20.2 | 35 | 50 |
| Extra wt. per m | kg | 0.55 | 0.8 | 1.1 | 2.15 | 4.3 | 6.45 |

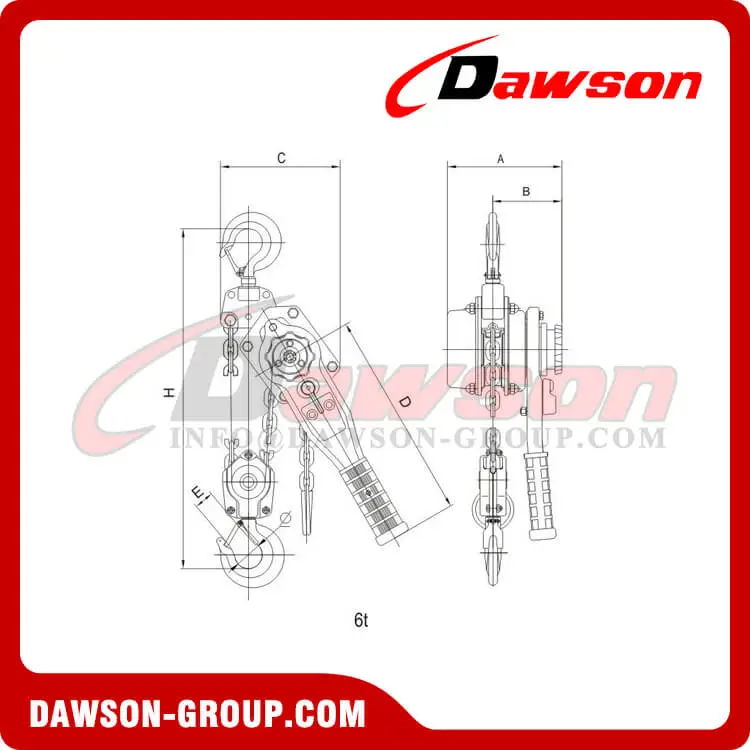

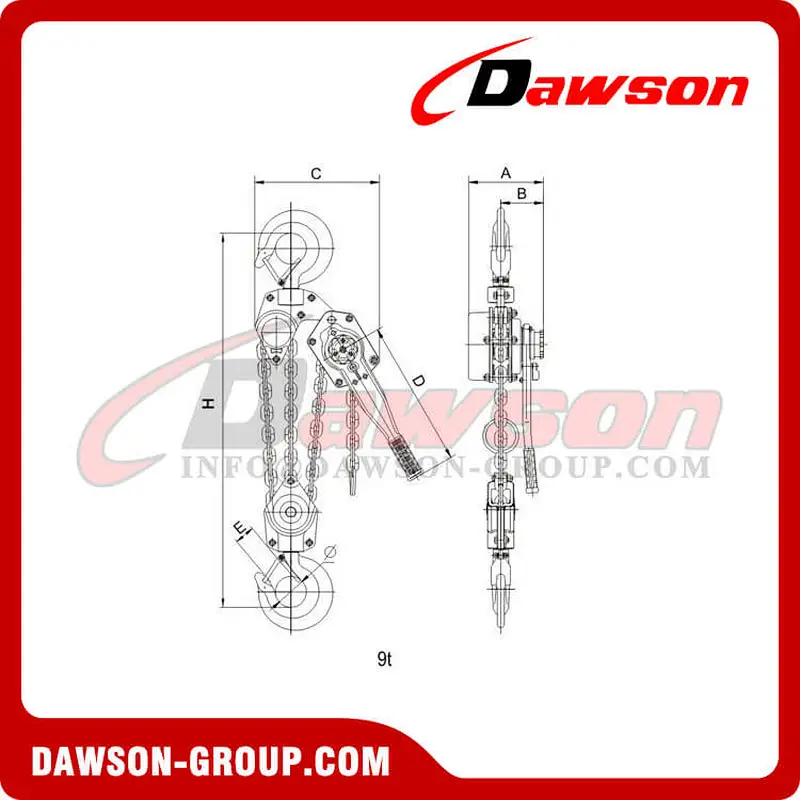

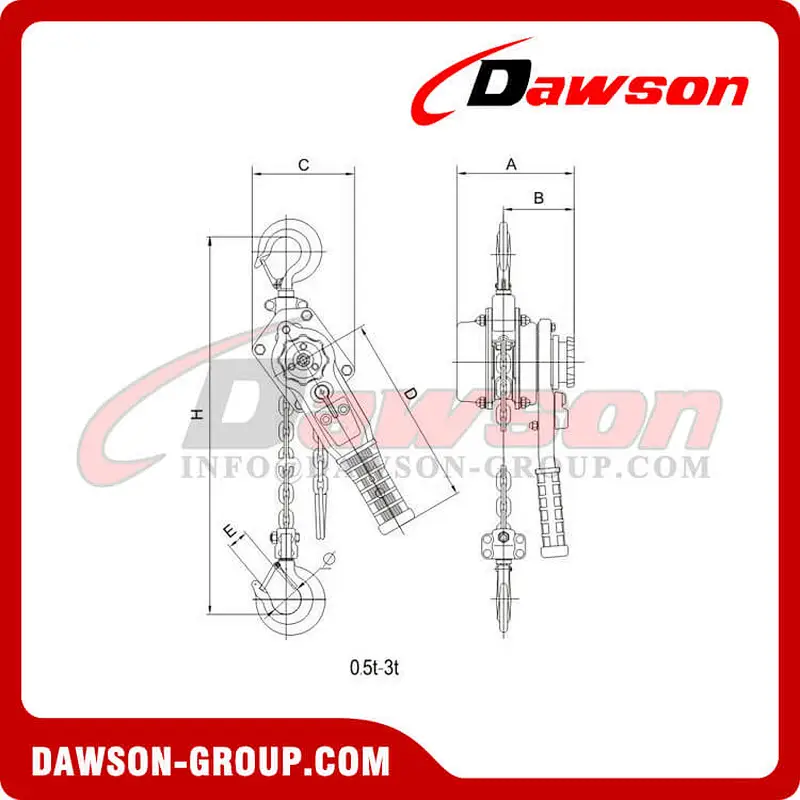

| Dimensions(mm) | A | 143 | 157 | 178 | 206 | 206 | 206 |
| B | 90.5 | 94 | 104 | 118 | 118 | 118 | |
| C | 118 | 140 | 145 | 199 | 230 | 342 | |
| Ø | 31.5 | 37.5 | 42.5 | 50 | 65 | 85 | |
| E | 23.5 | 26 | 31 | 37 | 46 | 55 | |
Welcome to buy the newest and competitive price DAWSON DS-EX-L Spark Proof Lever Hoist / EX-proof Lever Block for Lifting from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk 500kg explosion-proof lever hoist, low price 0.5t non-sparking lever hoist, high quality 1T lifting lever hoist, wholesale 3000kg lifting gear, buy discount lifting equipment, hot sale lifting tool, cheap price customized crane machinery, lever hoist for lifting China supplier, non-spark lever block China manufacturer, lever hoist 9ton China factory, ex-proof lever block in stock, spark proof lever block free sample, lever block 6000kg dawson brands, non-sparking lever block OEM

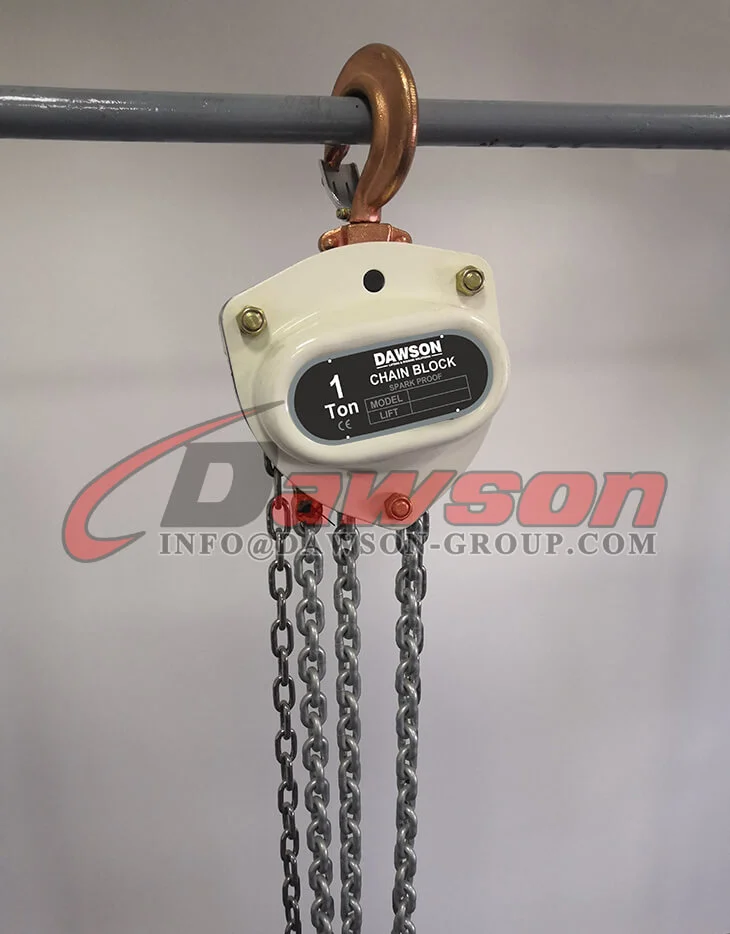

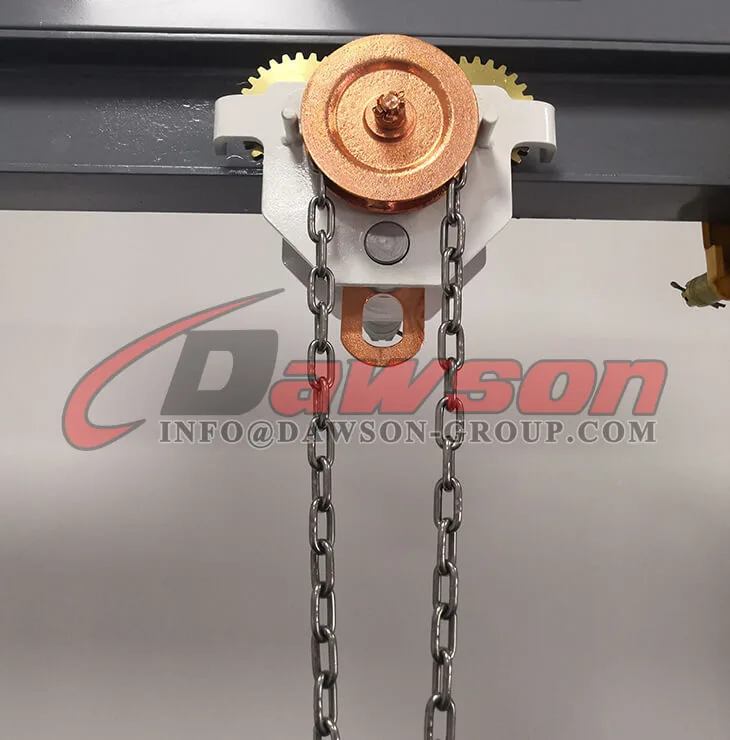

Other Related Products:

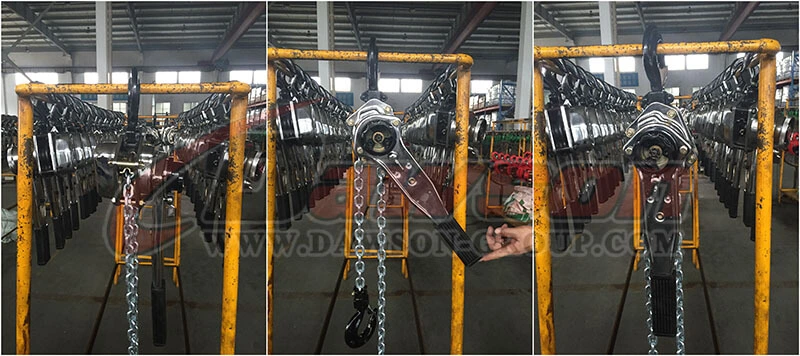

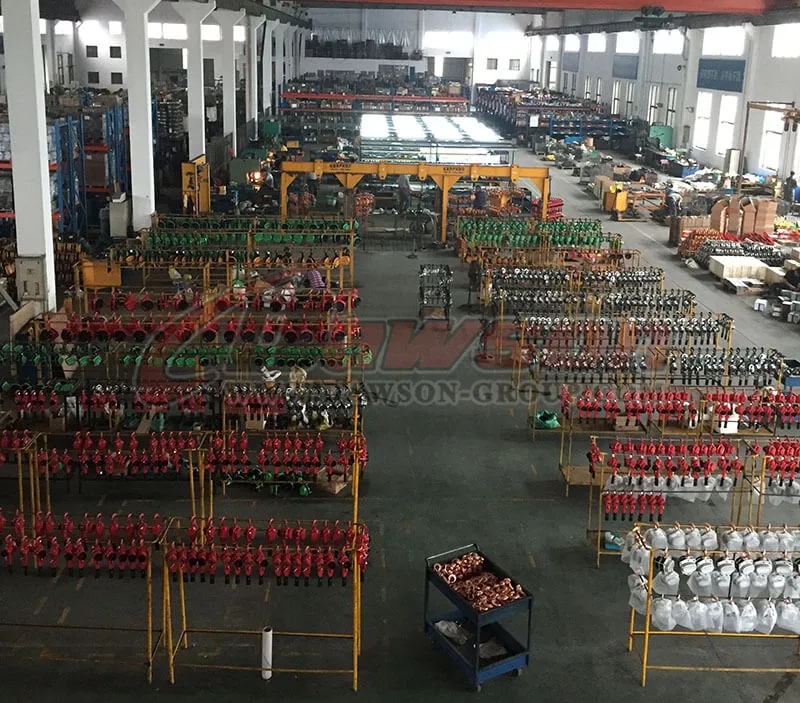

Package and Factory Show:
