Rated capacity           ton12
Standard Lifting height     m33
Running test load          Kn1530
Effort required to lift max.load  N140240
No. of colums of load chain11
Load chain dia.            mm68


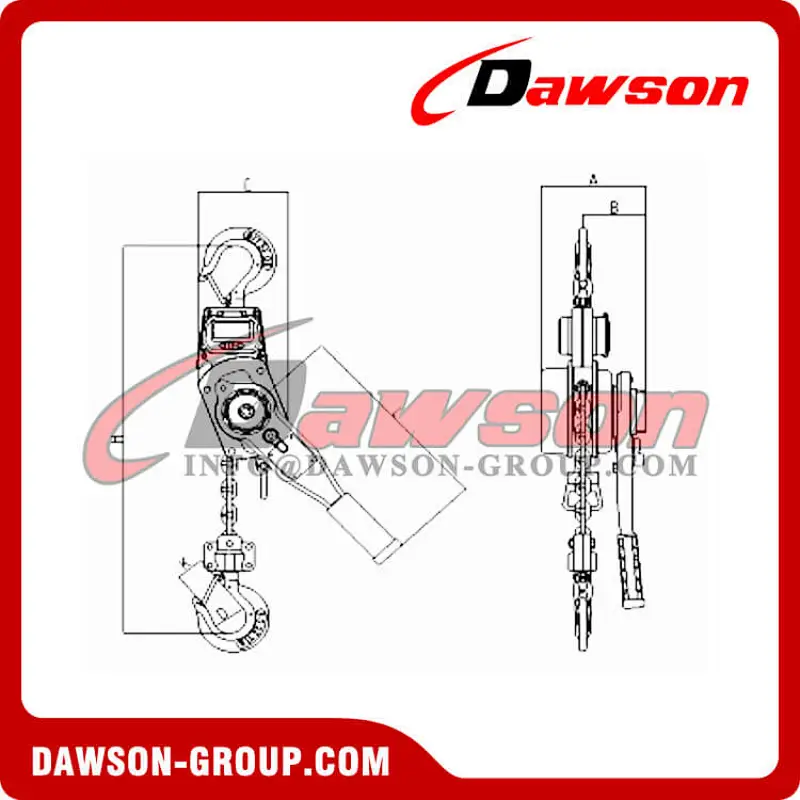

Main Size
(mm)
A148172
B9098
C136160
D4052
H410480
L240320
K3543
Net Weight         kg1018
Extra weight 1m lifting height more   kg0.81.4

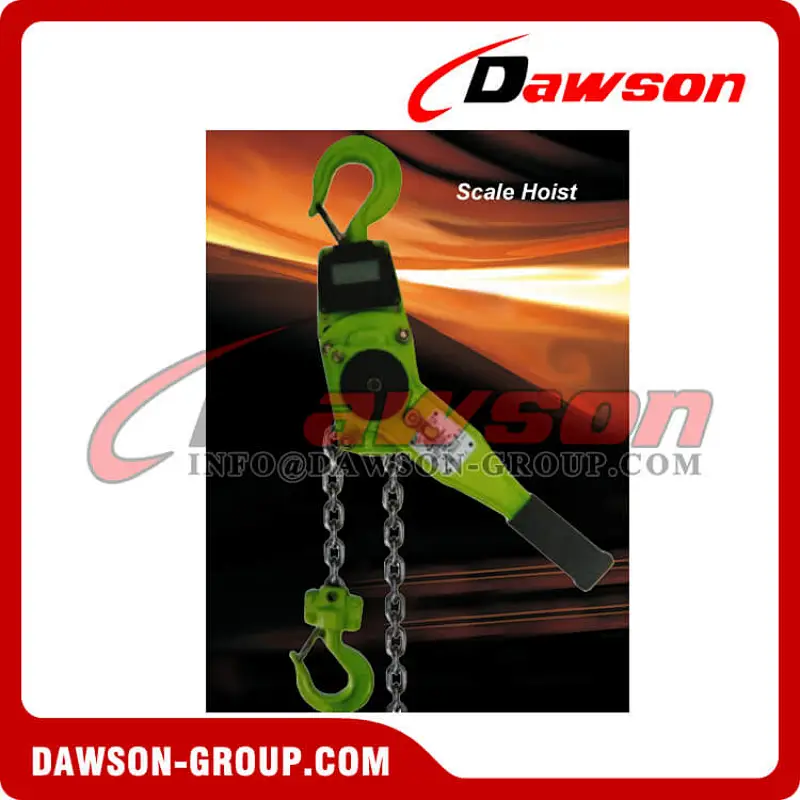

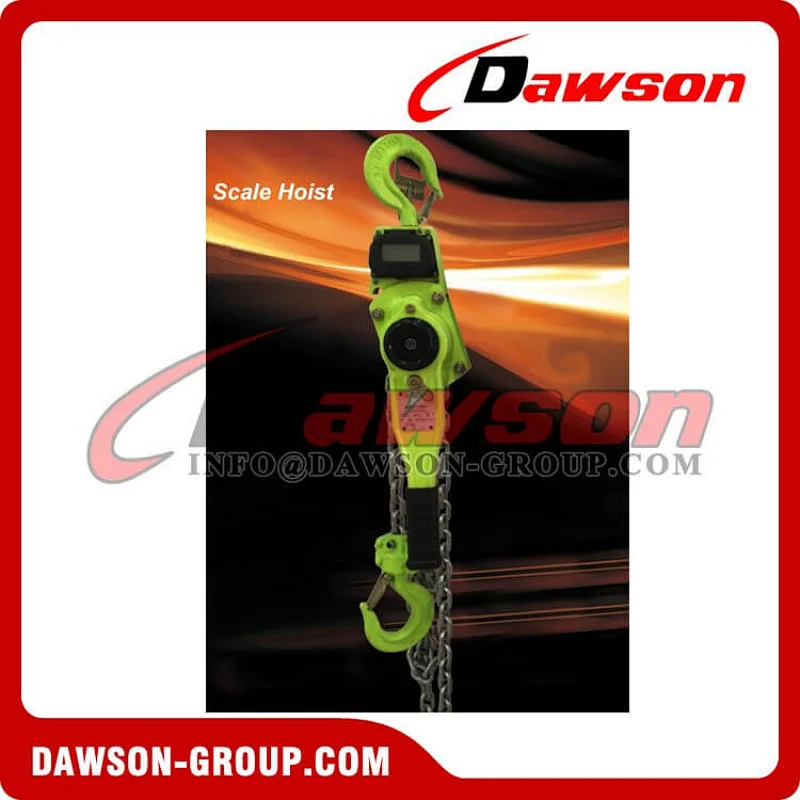

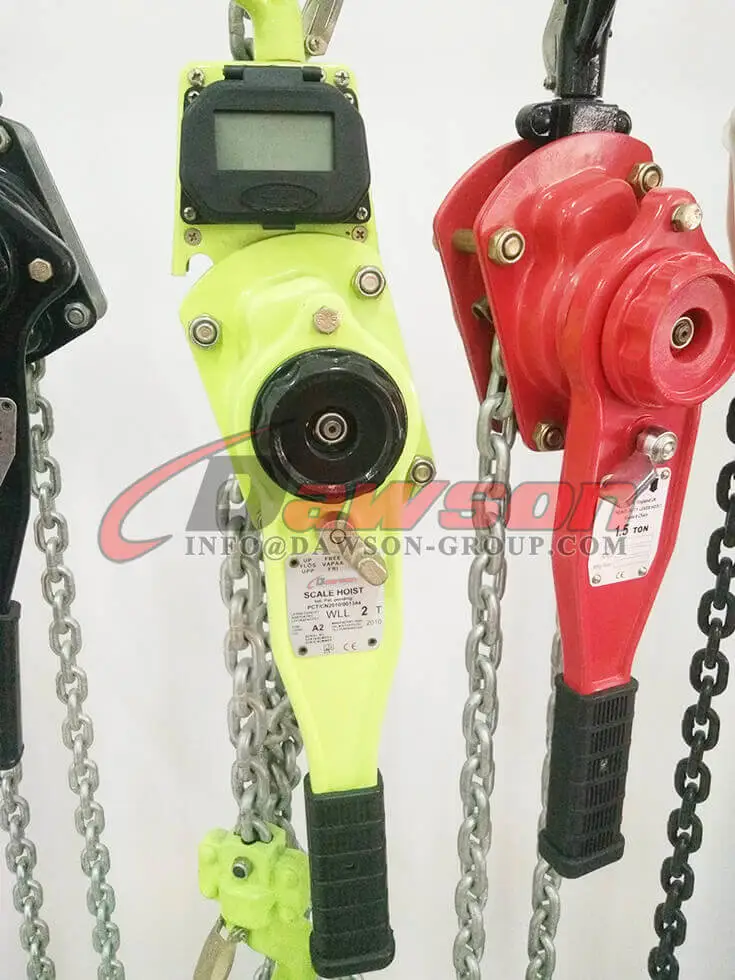

SCALE LEVER HOIST 1 T AND 2 T

INSTRUCTION MANAUL

CONTENTS

1. Regulations of safe usage

2. Installation of battery box

3. Technical specification

4. Keystroke function

5. Screen display

6. Warning function

Stable display

Low-voltage display

Overload warning

7. Keystroke operation

Power On

Power Off

Reset

Weight lock

Weight unlock

Unit switch

8. Keystroke function on setting basis

9. Screen display on setting basis

10. Parameter setting

Power off time

Backlight time

Display refresh rate

11. Calibration

Maximum range

Division value

Zero testing

Weight calibration

12. Hoist Operation

UP-Moving

DOWN-Moving

Top hook hanging way

13. Maintenance

14. Main Parameter of Hoist

 Please read this manual carefully, and keeping it for checking anytime.


1. Regulations of safe usage

 1.Operation and maintenance for this hoist should be handled by the specialized workers.

 2.Overload the lever hoist is forbidden.

 3.Do not lift or pull goods binded by the load chain.

 4.Lengthen the handle of this hoist for operation is forbidden.

 5.Do not lift or pull the goods on the tip of hook.

 6.Lifting the person is forbidden.

 7.Make sure the hanging or fixed place of the hoist is appropriate for lifting or pulling.

 8.Do not stand under the load.

 9.Do not press the screen forcibly, or it would be damaged.

 10.Take away the battery if the hoist is out of service for long time.

 11.Keep the hoist in the dry place.



2. Installation of battery box

Install the battery box as per the sketch: release the screw to move the cover, put the battery with correct direction, cover it again and tighten the screw.

Installation of battery box


3. Technical Specification

Battery specification1.5V AA  3PCS
Operation temperature-10℃~+40℃
Operation humidity≤90% at 20℃
Screen dispalyLED display with backlight, character height: 20MM


4. Keystroke function on normal basis

KeystrokeShort pressLong press
ON/OFF KeyNOPower ON/OFF
Lock keyWeight lock/unlockUnit switch
Reset keyReset for ZeroPassword mode

5. Screen display on normal basis

CharacterMeaningCharacterMeaning
OverloadOverloadBattery power percentageBattery power percentage
(eg. 90%)
Power offPower offLow battery powerLow battery power

6. Warning fuction

Stable display

When the load of hoist is stable, the backlight of screen will flicker for three times, then the user can read the weight.

Low-voltage display

When the hoist battery is low-voltage, the screen will flicker “BAT” continuously. Please replace the battery in time.

Overload warning

When the hoist is overload, the screen will flicker “OVER” continuously to warn the load has overload the capacity of hoist.

7. Keystroke Operation

Power On

Long press ”ON/OFF” key, start up the digital screen, the screen will show the rated loading capacity, remaining power percentage for battery. Then the screen display 9999~0000 self checking. Finally test and reset.

Power Off

Long press ”ON/OFF” key, close the digital screen.

The screen will show the remaining power percentage for battery and power off.

Reset

Short press ”RESET” key, zero clearing the weight.

After clearing, the weight will become zero.

Weight Lock

Short press ”LOCK” key, lock the weight data. After locking, the weight data will flicker continuously.

Weight Unlock

Short press ”LOCK” key, unlock the weight data. After unlocking, the weight datda will stop flickering. The screen will return back to normal display.

Unit Switch

Long press ”LOCK” key to switch between “kg” and “lb”.

The small triangle  Unit Switch on the top screen will point to the current unit.

Keystroke Operation


8. Keystroke function on the setting basis

KeystrokeShort pressLong press
On/Off keyConfirmedNo
Lock keyChange digit or optionsNo
Reset keyRight shift the flicker bitNo


9. Screen display on setting basis

CharacterMeaningCharacterMeaning
 Parameter settingParameter setting CalibrationCalibration
Power off timePower off time Maximum rangeMaximum range
Blacklight timeBlacklight time Division valueDivision value
Show refresh rateShow refresh rate Zero weightZero weight
End and save dataEnd and save data Calibration weightCalibration weight
 Weight on checkingWeight on checking

10. Parameter Setting

Long press “RESET” key to enter the password mode.

Press “LOCK” key to change the digit under password mode, press”RESET” key to right shift the flicker digit , then press”ON/OFF” key to set the password.

Press “LOCK” key and “RESET”key to input the password”1000” under password mode, press “ON/OFF” key to confirm the password then enter the parameter setting menu. The screen will show “SET” words when the parameter setting menu entered.

Press “ON/OFF” key to enter the power off time option.

Power off time

The screen will power off automaticly to extend the life of the battery when the loading is stable and no operation on the key for a certain time.

Press “LOCK” key to chage the power off time. Options: 0 (never power off), 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes.

Press “ON/OFF ” key to enter to the backlight option

Backligt time

The screen will off the backlight automaticly to reduce power consumption when loading is stable after a certain time.

Press “LOCK” key to change the backlight time. Options: 0 (never power off), 5 seconds, 10 seconds, 15 seconds, 30 seconds, 60 seconds.

Press “ON/OFF” key quit the Parameter setting meanu. Screen show “End”

Display refresh rate

The higher of the Display refresh rate, the quicker of the data changing. the response is more sensitive . The lower of the Display refresh rate, the slower of the data changing, the reading is more stable.

Press “LOCK” key to change the display refresh rate. Options: 1. fastest 2. faster 3.medium 4. slower.

Press “ON/OFF” key to quit the Parameter setting menu. Screen show “End”.

11. Calibration

Long press “RESET” key to enter the password mode.

Press “LOCK” key to change the digit under password mode, press”RESET” key to right shift the flicker digit, then press”ON/OFF” key to set the password.

Press “LOCK” key and “RESET” key to input the password”2000” under password mode, press “ON/OFF” key to confirm the password then enter into the calibration process. The screen will show  “CAL”when the calibration process entered.

Press “ON/OFF” enter into the maxmium range option.

Maxmium range

Maxmium range means the maximum loading capacity of the hoist.

Press “LOCK” key to chage the Maximum range, unit is t,  Options: 0.5t,1t,1.5t,2t,3t,5t。

Press “ON/OFF” key enter into the Division value option.

Division value

Division means the minimum weight interval change each time.

Press “LOCK” key to change the Division. Division value availability is decided by the Maximum range. For example, when maximum range is 2t, the options for division value: 10, 20, 50.

ZERO Testing

Screen display “ZERO”.

Keep the hoist empty loading, press “ON/OFF” key to confirm, system will enter the calibration weight testing automatically after zero testing successful.

Weight Calibration

Screen display “0000”

Loading goods or weight, keeping hoist stable, press “LOCK” and “RESET” key to input the weight value of the goods. Press “”ON/OFF” key to confirm. System will quit the calibration weight testing process automatically after calibration weight testing successful .

Screen display “End”


12. Hoist Operation

UP-Moving

Switch to “UP”, pull the handle to lift.

DOWN-Moving

Switch to “DN”, pull the handle to descend.

Top hook hanging way

Correct Hanging way:

Scale Lever Hoist Operation - Dawson Gorup Ltd. - China Factory

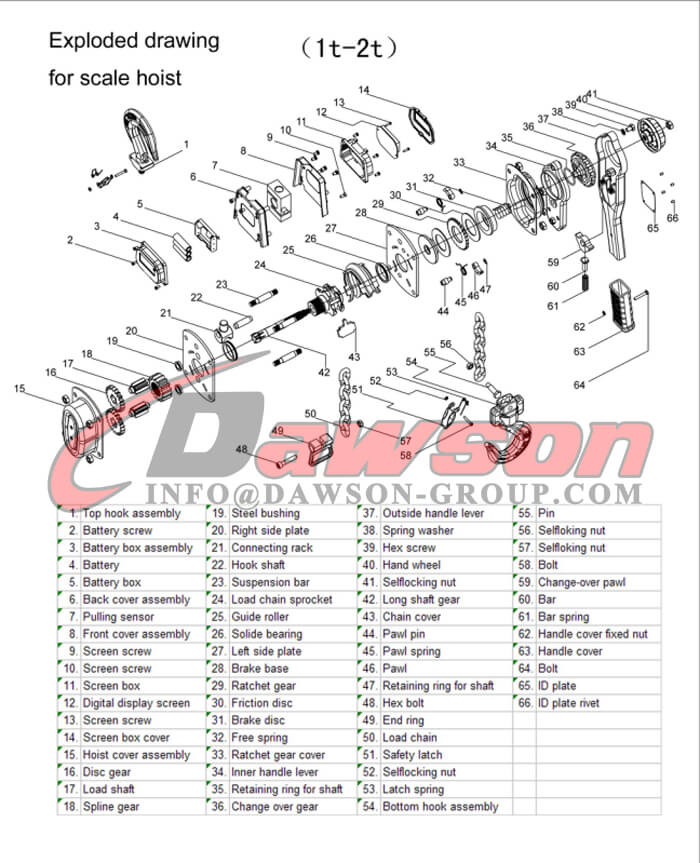

13. Maintenance

1. Cleaning lever hoist after using, smear anti-rust oil and stock in a dry place.

2. Maintenance and examine should be done by specialized worker who are well konwn of this hoist, anyone who are not familiar with this hoist are forbidden to assemble or dismantle the hoist.

3. Gear setting should refer to Pic 2,  the “0” should be fixed on the same line of these two gear assemblies (2). For 1T, “0” should face to OUT/OUT or IN/IN,; For 2T, gear assembly “0” should face to IN/OUT.

4. The friction surface for brake, friction disc and brake dish should always keep cleaning. Oil is strictly prevented to avoid brake failure.

5. The welding point of load chain should be set on the outside of chain wheel to ensure safe running.

6. Lever hoist should be empty loading and on loading testing after cleaning, and newly calibrated before loading. The hoist can be use after ensuring reliable working and brake.

7. The lever hoists should be kept in dry places to avoid humidity of circuit board when it is not used.

Maintenance for Scale Lever Hoist - Dawson Group LTd. - China Supplier


14. Main Parameter of Scale Hoist

Rated capacity           ton12
Standard Lifting height     m33
Running test load          Kn1530
Effort required to lift max.load  N140240
No. of colums of load chain11
Load chain dia.            mm68


Main Size
(mm)
A148172
B9098
C136160
D4052
H410480
L240320
K3543
Net Weight         kg1018
Extra weight 1m lifting height more   kg0.81.4
