DS-HSH-DC 650 Series Lever Block for Mines
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

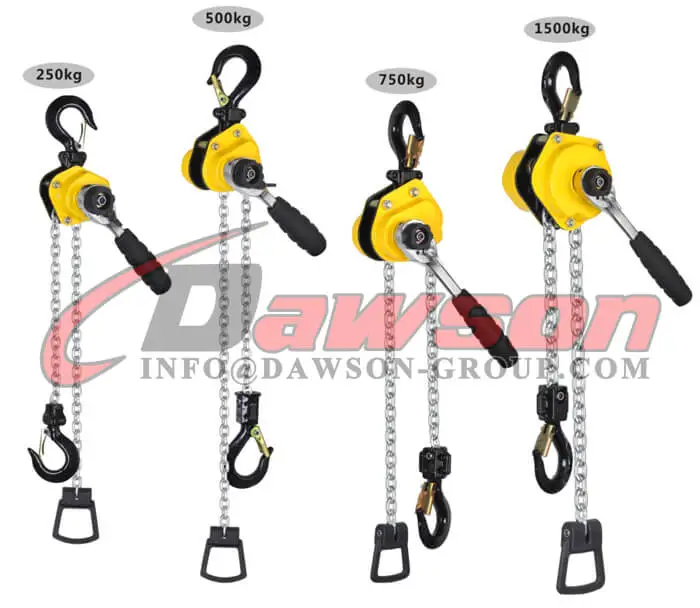

Rated weight of 250-500kg
The gourd is DAWSON brand in the smallest and lightest lever hoist.
This series of new lever hoist as an essential tool in the industrial business and service widely used.
The gourd is very light weight, the design is very compact, even in the limited wordking environment can also be easily used.
Product Features:
1.Hanging devices and load hooks made of anti-aging, high-strength alloy steel, when in case of overload the case will first be deformed without sudden breakage.

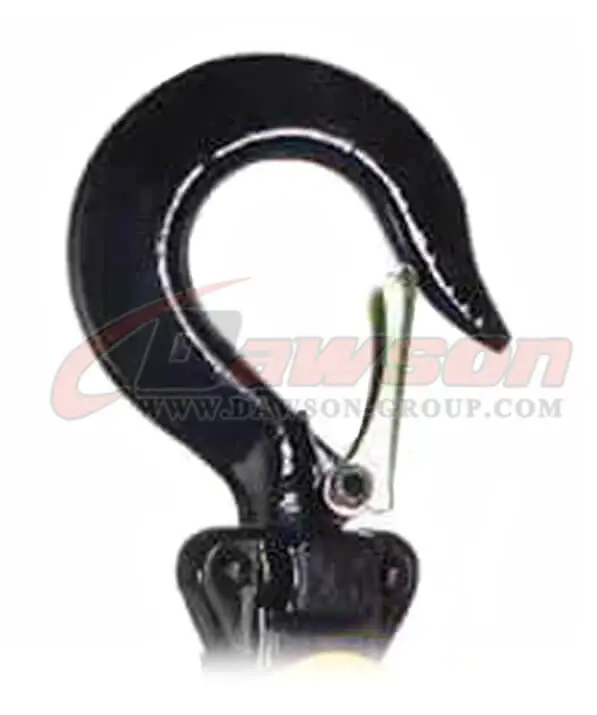

2.Hook with a solid safety lock, free rotation 360°.
3.In line with the design of the human body design of the handle so that the gourd easy to operate.

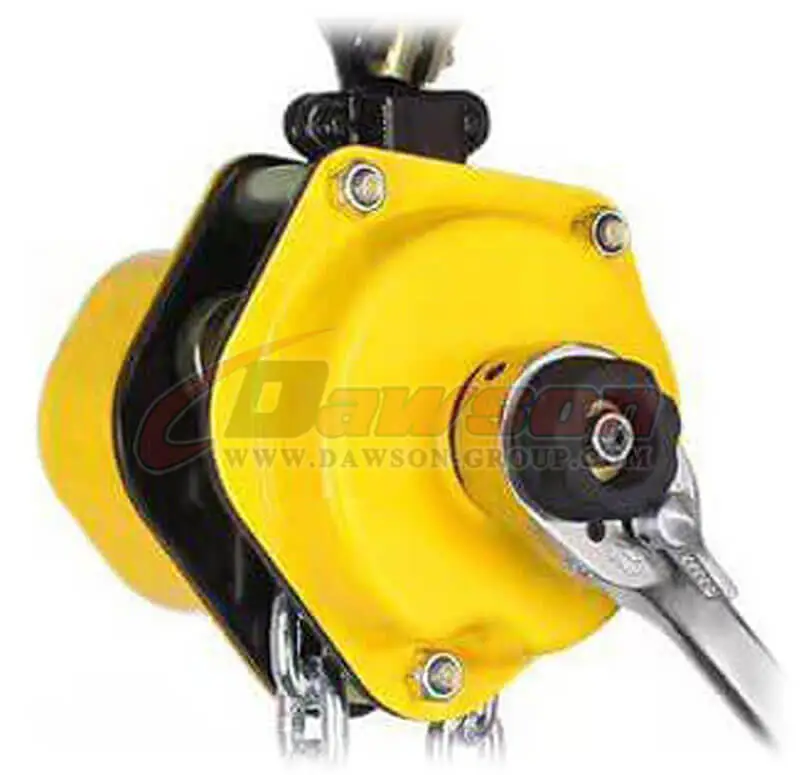

4.Closed design can protect the internal parts from pollution.
5.All components of the disc-type load brakes are made of high-quality materials, and anti-corrosion.
Use of environmental conditions:
Opetating temperature range:-40℃ to +60℃
Use of the environment: Please use below 100% RH, can not be used in water
Use of materials: no use of anti-spark material or asbestos and other special materials
Do not overload use

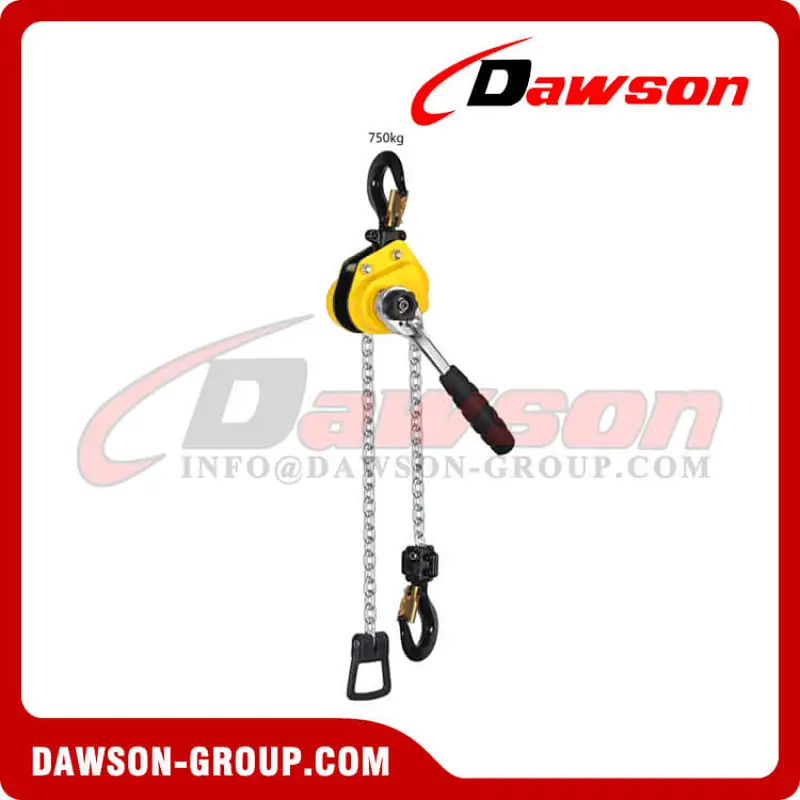

Rated weight of 750-5000kg
The gourd is DAWSON brand unique lever hoist.
This series of new lever hoist as an essential tool in the industrial business and service widely used.
The gourd because of its unique design than the traditional gourd light 30%, so by the power workers of the green
It is easy to use even in a limited working environment.
Product Features:

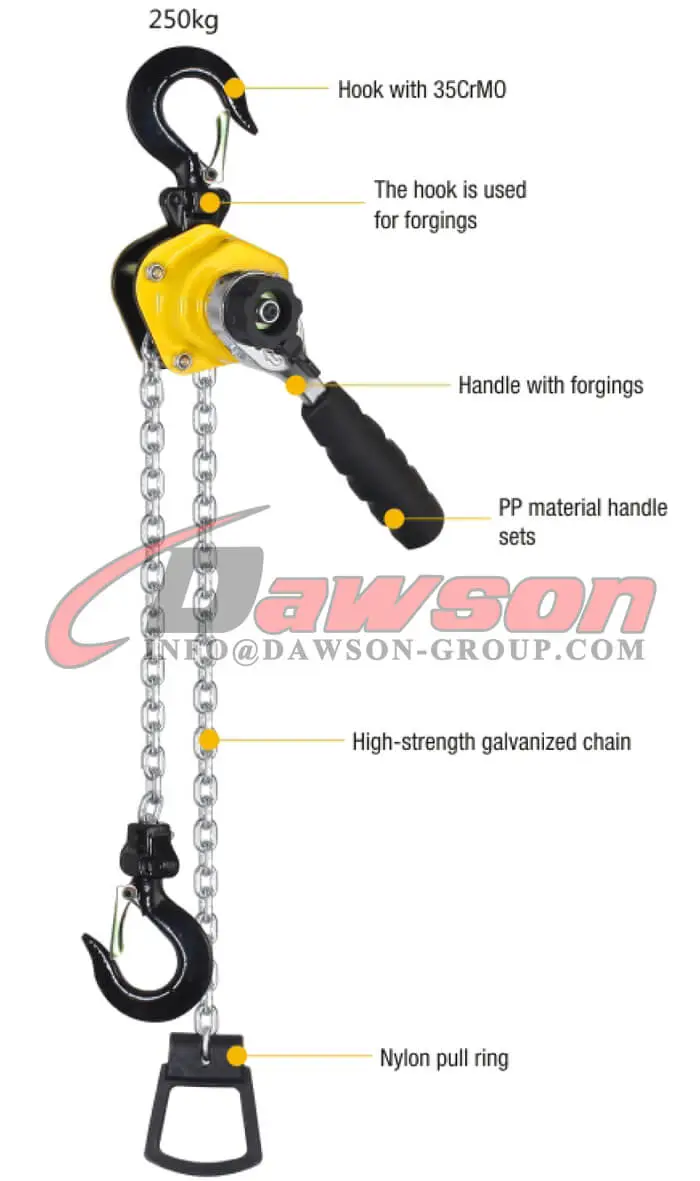

1.Hanging devices and load hooks made of anti-aging, high-strength alloy steel, when in case of super contained in the case of the first deformation will occur without sudden breakage.
2.Hook with a solid safety lock, free rotation 360°, hook with 35CrMO material, so that the hook stronger, better toughness.
3.In line with the design of the human body design of the handle so that the gourd easy to operate.
4.Closed design can protect the internal parts from pollution.
Use of environmental conditions:
Opetating temperature range:-40℃ to +60℃
Use of the environment: Please use below 100% RH, can not be used in water
Use of materials: no use of anti-spark material or asbestos and other special materials
Do not overload use
| Model | L650-0.25A | L650-0.5A | L650-0.75A | L650-1.5A | L650-2.5A | L650-2.5A | L650-5A | L650-5A | |
| Capacity | tons | 0.25 | 0.5 | 0.75 | 1.5 | 2.5 | 3 | 5 | 6 |
| Satandard lift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test load | kg | 375 | 750 | 1125 | 2250 | 3750 | 4500 | 7500 | 9000 |
| Effort required to lift rated load | N | 260 | 260 | 220 | 240 | 330 | 350 | 350 | 380 |
| Lifting Chain Specifications | mm | 4*12 | 4*12 | 5*15 | 7*21 | 9*27 | 9*27 | 9*27 | 9*27 |
| Net Weight | kg | 2.2 | 3.2 | 4.7 | 7.6 | 14 | 14 | 22 | 22 |
| Pack Weight | kg | 2.4 | 3.4 | 5 | 8 | 14.5 | 14.5 | 22.5 | 22.5 |
| Pack Size | cm | 21*12.5*11.5 | 23.5*13.5*12 | 30*14*14 | 33*18*15.7 | 44*20*19 | 44*20*19 | 49*23.5*21.5 | 49.5*23.5*21.5 |
| Weight for Each Additional 1M | Kg/m | 0.346 | 0.346 | 0.541 | 1.1 | 1.8 | 1.8 | 1.8 | 1.8 |

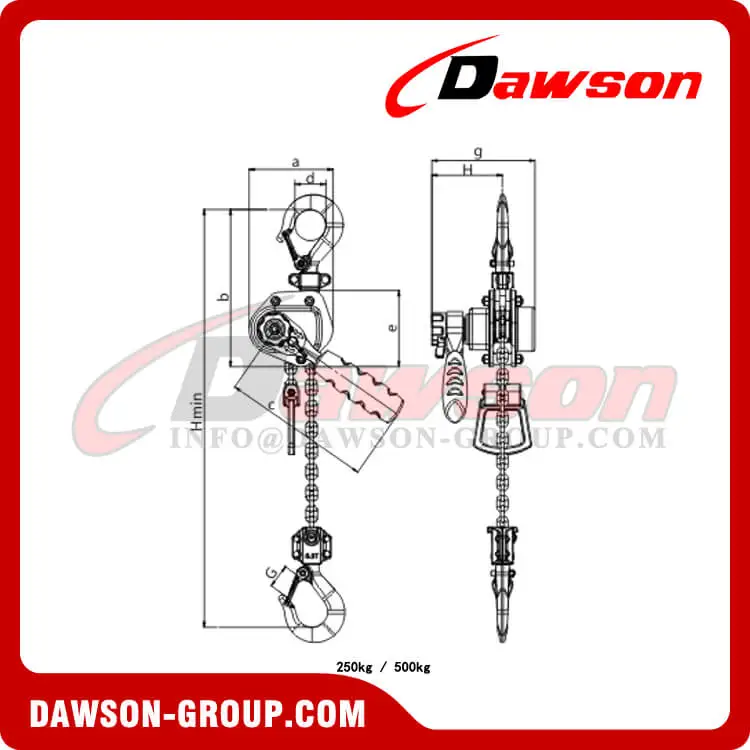

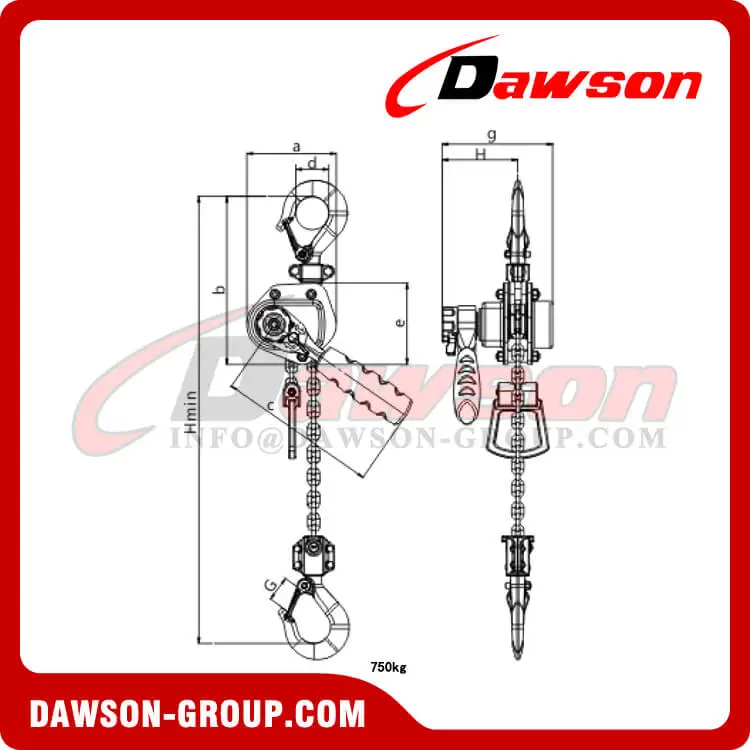

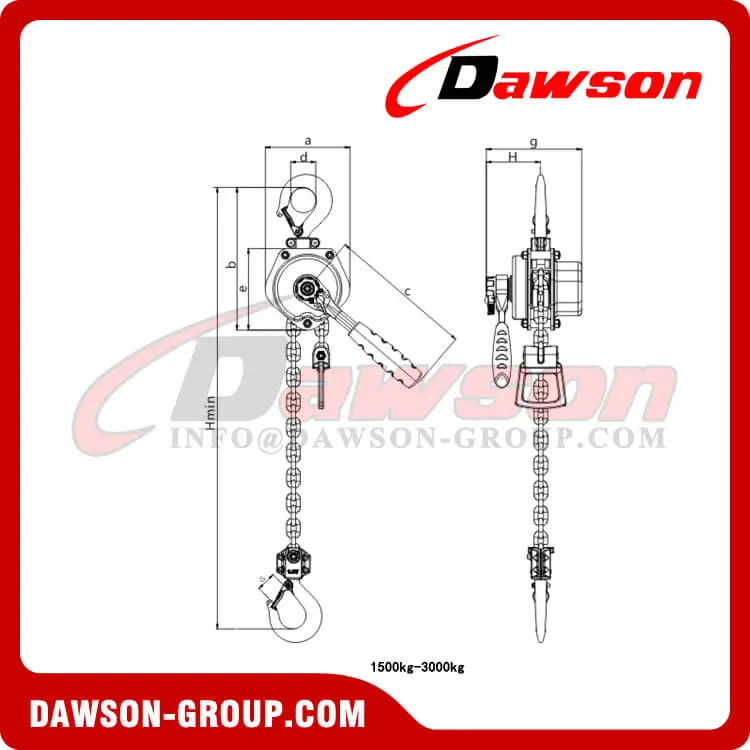

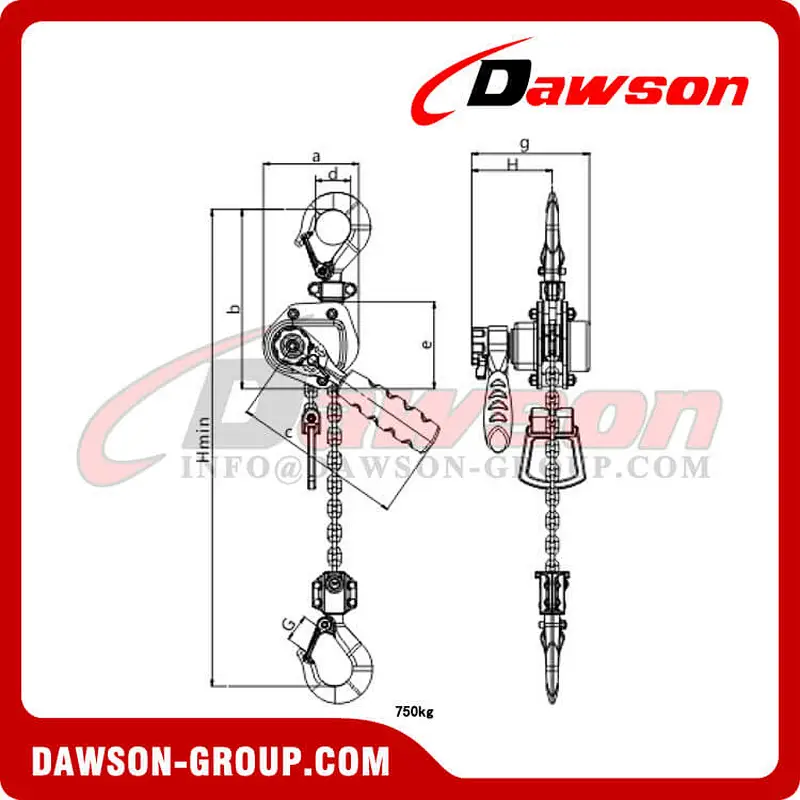

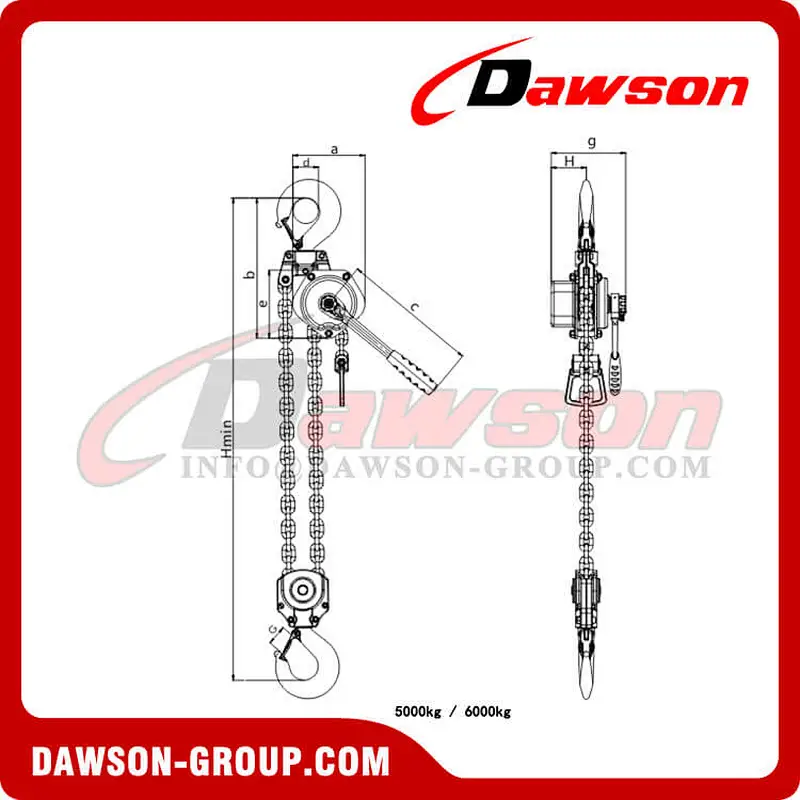

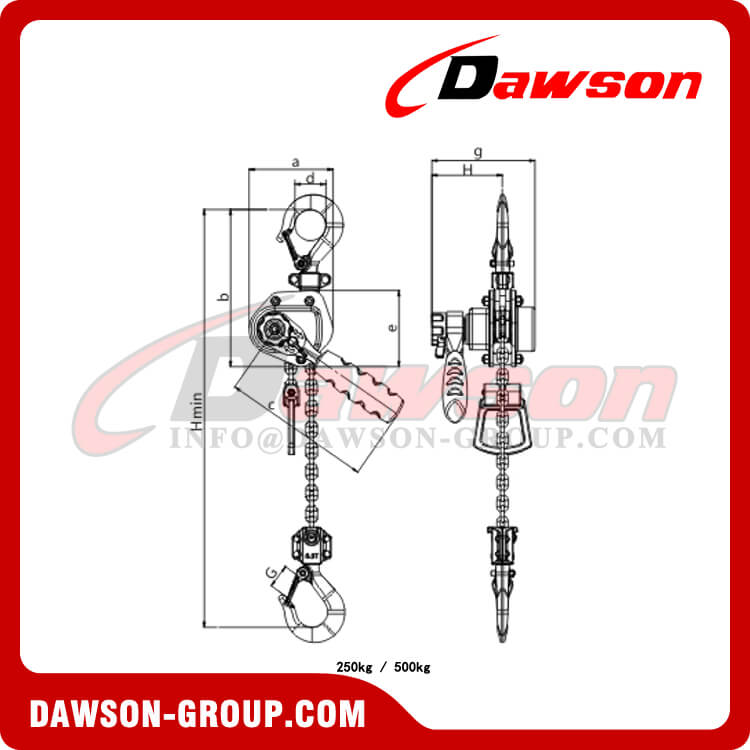

| Dimension (mm) | a | 86 | 95 | 121 | 139 | 173 | 173 | 173 | 173 |
| b | 155 | 178 | 204 | 235 | 286 | 286 | 340 | 340 | |
| c | 170 | 170 | 240 | 240 | 335 | 385 | 335 | 385 | |
| d | 30 | 35 | 39 | 44 | 60 | 60 | 68 | 68 | |
| e | 79 | 87 | 112 | 133 | 162 | 162 | 162 | 162 | |
| Hmin | 245 | 285 | 335 | 365 | 448 | 448 | 600 | 600 | |
| f | 97 | 117 | 124 | 159 | 178 | 178 | 178 | 178 | |
| G | 22 | 22 | 28 | 30 | 41 | 41 | 47 | 47 | |
| H | 77 | 80 | 84 | 90 | 97 | 97 | 97 | 97 |
Welcome to buy the newest and competitive price DAWSON DS-HSH-DC 650 series lever block from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk lever block, low price lever hoist, high quality ratchet lever hoist, wholesale lifting gear, buy discount lifting equipment, hot sale lifting tools, cheap price customized crane machinery, lever hoist for lashing China supplier, lever block for lifting goods China manufacturer, mini lever hoist for mines China factory, mini lever block for bulk strapping China exporter, lever block for transport in stock, lever block for welding free sample, lever block for construction sites dawson brands, lever block OEM
Application:
Lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance, which is capable of being applied in electricity, mines, ship-buildings, construction sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc. It has exceptional advantages particularly for pulling in every limited narrow places in the upper air high above the ground and at any angles.
Product details:
Related products:
Other Related Products:

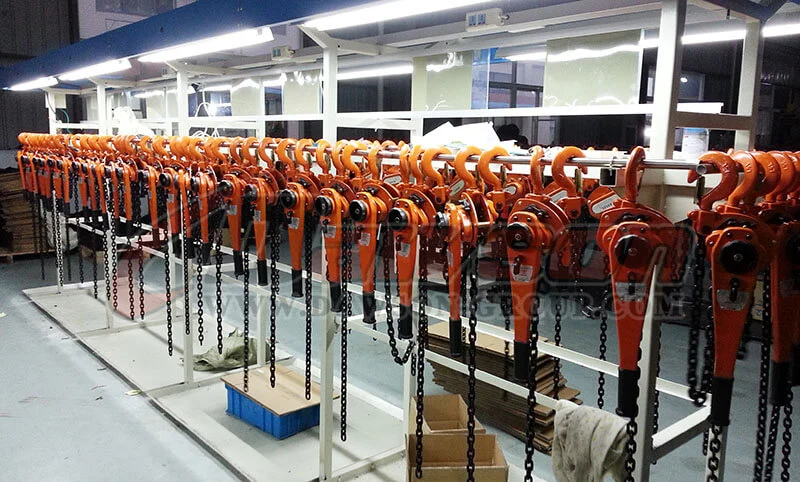

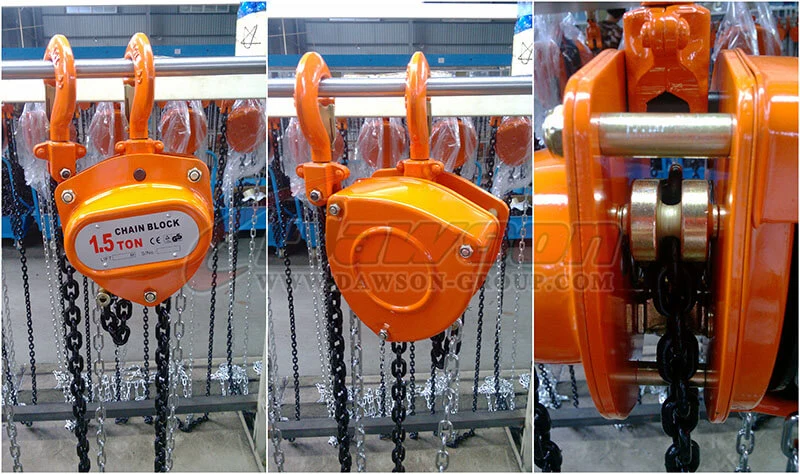

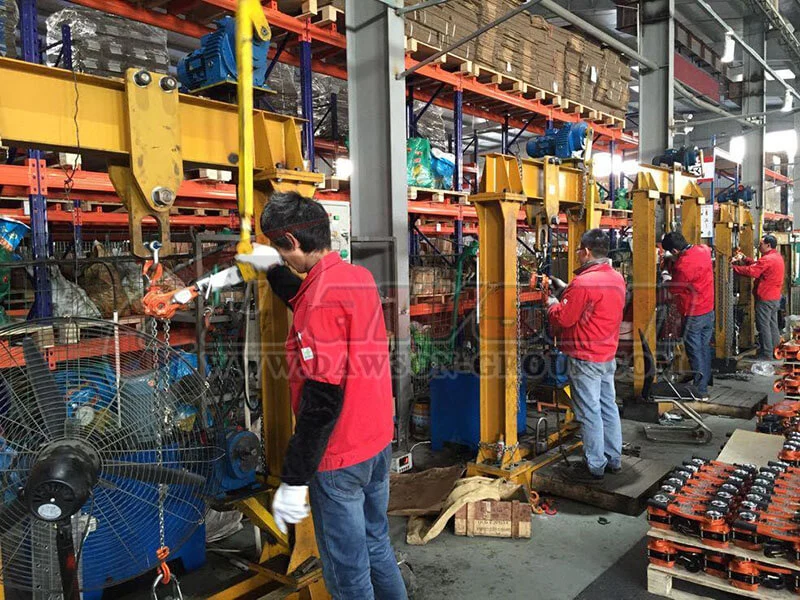

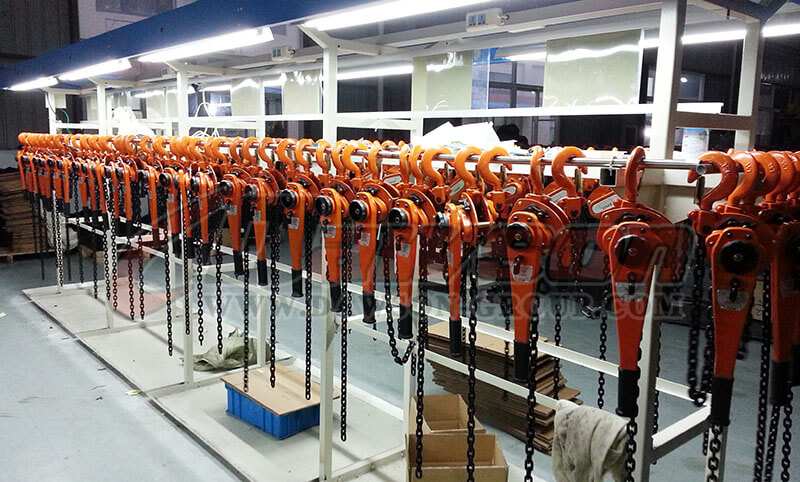

Factory show:
