DS-HSH-A 623 Series Lever Block for Bulk Strapping
Lever Hoist for Pulling Mechanical Parts, Manual Lever Hoist for Lashing
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Model | HSH-0.75A | HSH-1.5A | HSH-3A | HSH-6A | HSH-9A | ||
| Capacity | tons | 0.75 | 1.5 | 3 | 6 | 9 | |
| Standard lift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running test load | Kn | 11.0 | 22.0 | 37.5 | 75.0 | 112.5 | |
| Effort required to lift rated load | N | 140 | 220 | 320 | 340 | 360 | |
| Strands of load chain | 1 | 1 | 1 | 2 | 3 | ||
| Load chain diameter | mm | 6 | 8 | 10 | 10 | 10 | |

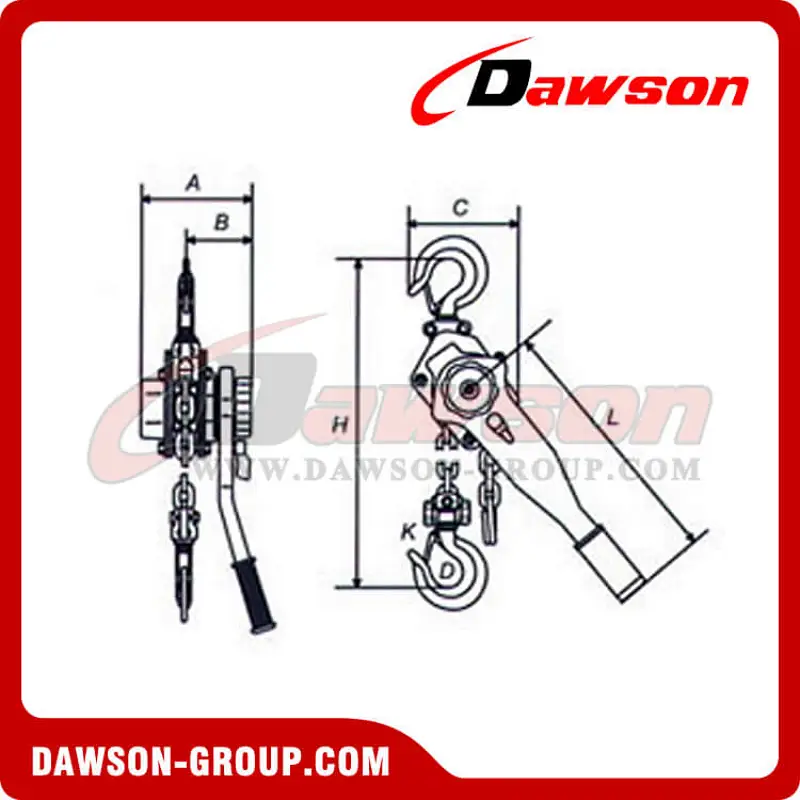

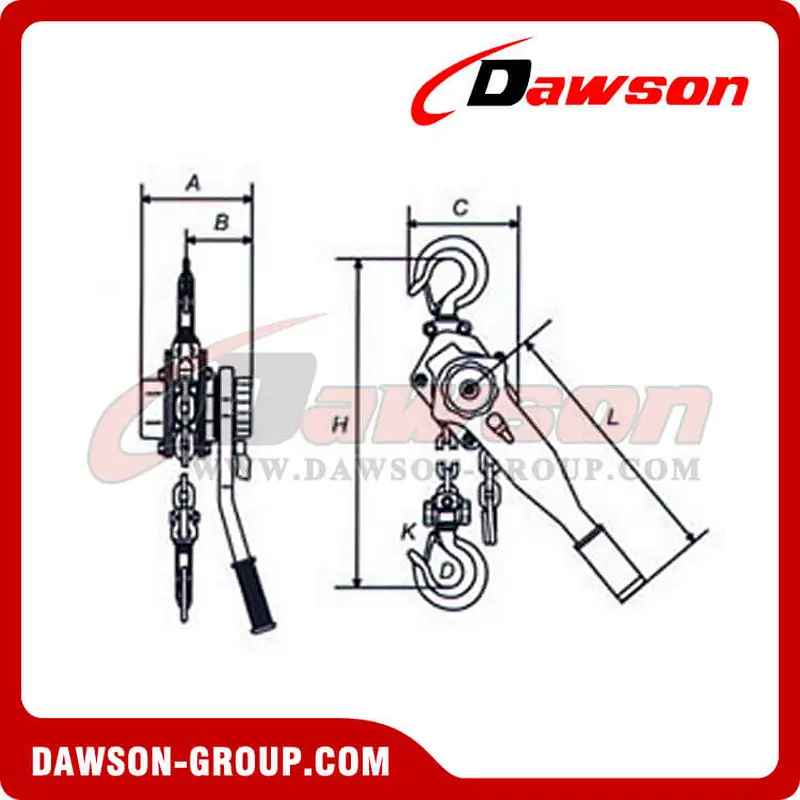

| Dimensions(mm) | A | 148 | 172 | 200 | 200 | 200 | |
| B | 90 | 98 | 115 | 115 | 115 | ||
| C | 136 | 160 | 180 | 235 | 320 | ||
| D | 40 | 45 | 58 | 64 | 85 | ||
| H | 325 | 380 | 480 | 620 | 700 | ||
| L | 280 | 410 | 410 | 410 | 410 | ||
| K | 34 | 38 | 48 | 52 | 58 | ||
| Net weight | kg | 7 | 11 | 21 | 31 | 46 | |
| Packing measurement | cm | 36x12.5x16 | 50x13.5x19 | 54x17x21.5 | 54x18x21.5 | 82x32x21.5 | |
| Extra weight per metre of extra lift | kg | 0.8 | 1.4 | 2.2 | 4.4 | 6.6 | |

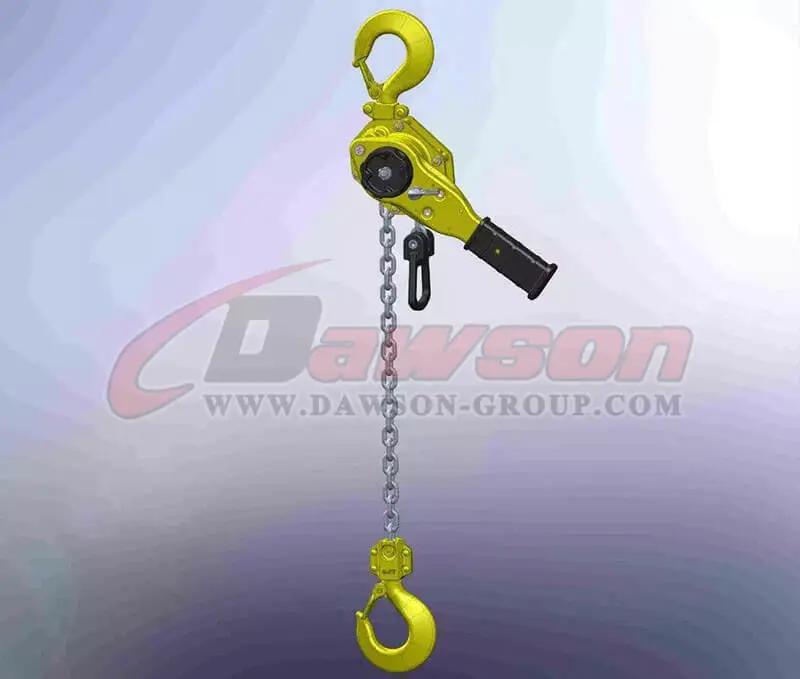

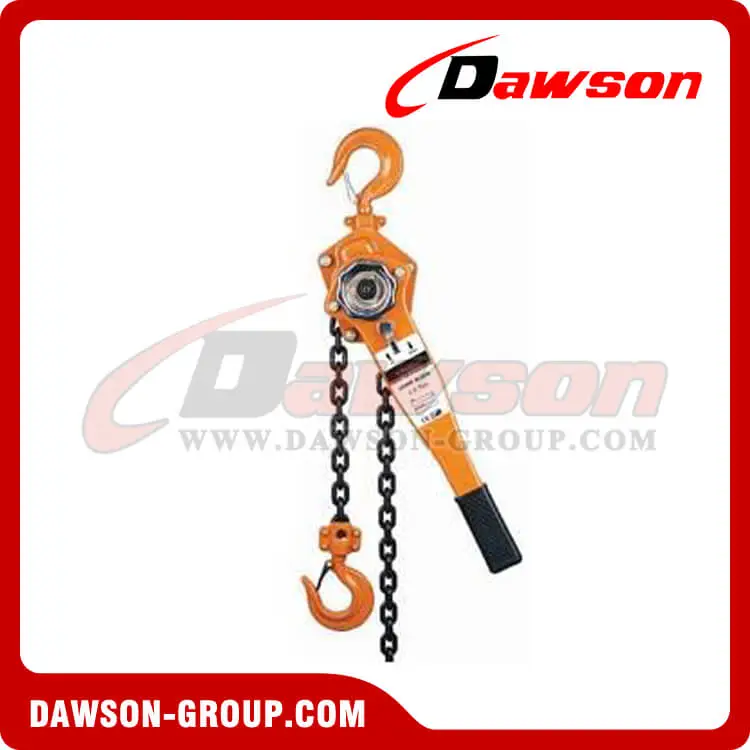

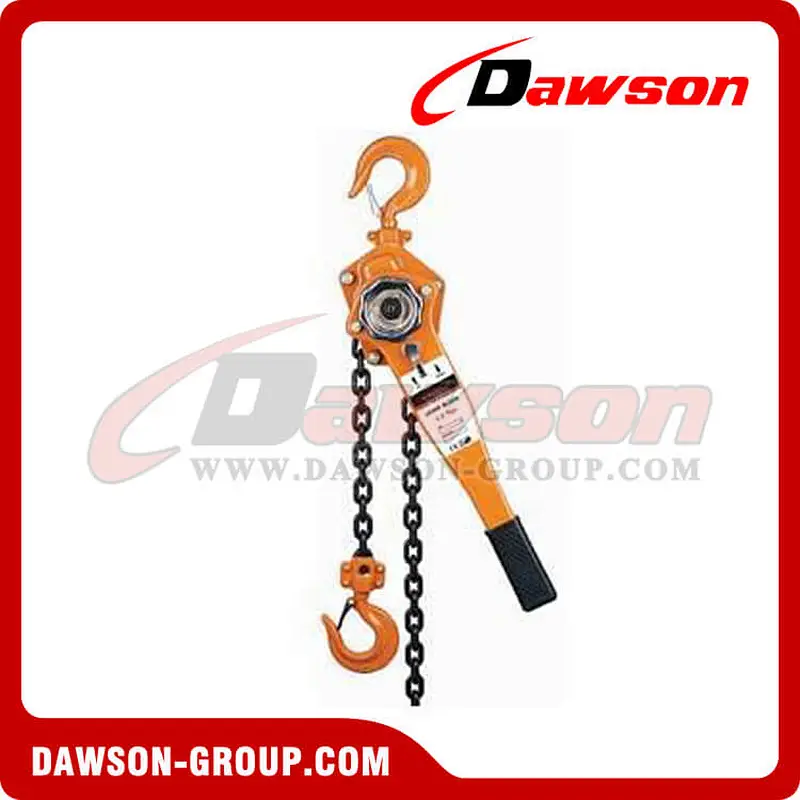

The Dawson lever hoist is a universal, manual hoist for lifting, tensioning and lashing in any direction. The ratchet lever hoist features compact design and robust, deep drawn, stamped steel construction. High quality materials ensure light weight without infringing reliability.
1.Low own weight, small mounting sizes and small lever force at full load.
2.Asbestos free brake, holding load at any desired height.
3.Top & bottom hooks are fitted with safety latches as standard.
4.The load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain. For safety reason free chains can not be done when the hoist is under load.
5.Short hand lever with rubber grip.
6.Hand lever operates with little effort due to optimal gear ratio.
7.Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
8.The hoist is fitted with high grade alloy load chain.
9.Grade 80 Zinc Plated FEC CHAIN from Japan & RUD CHAIN from Germany are available upon request.
10.Inspection of lever hoist & manuals
Application:
Lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance, which is capable of being applied in electricity, mines, ship-buildings, construction sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc. It has exceptional advantages particularly for pulling in every limited narrow places in the upper air high above the ground and at any angles.
Welcome to buy the newest and competitive price DAWSON DS-HSH-A 623 Series Lever Block from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk lever block, low price lever hoist, high quality ratchet lever hoist, wholesale lifting gear, buy discount lifting equipment, hot sale hoist tool, cheap price customized crane machinery, lever chain hoist China supplier, pulley block China manufacturer, mini lever hoist China factory, mini lever block China exporter, lever block in stock, lever block free sample, lever block dawson brands, lever block OEM
Other related products:

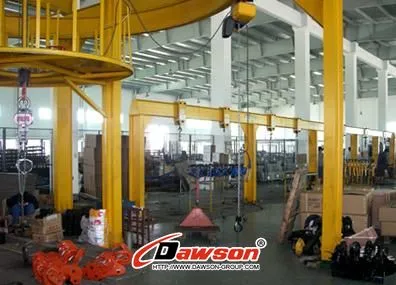

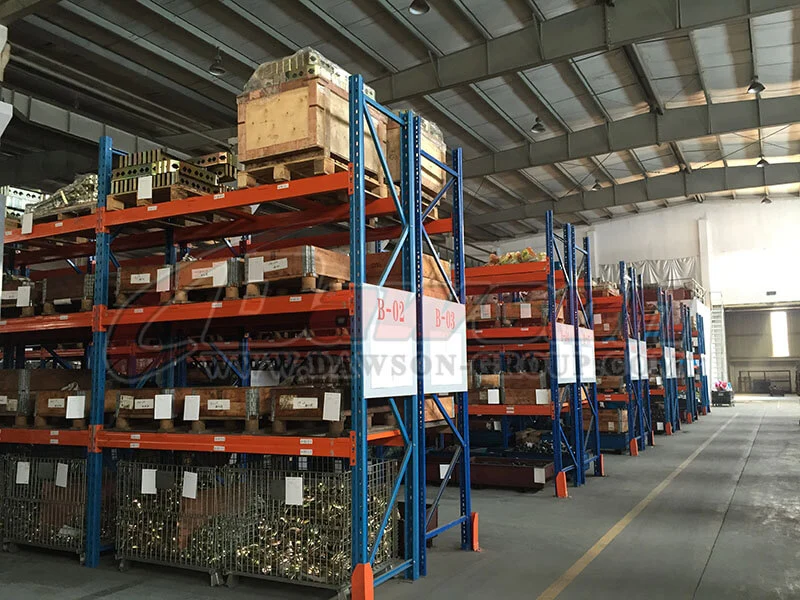

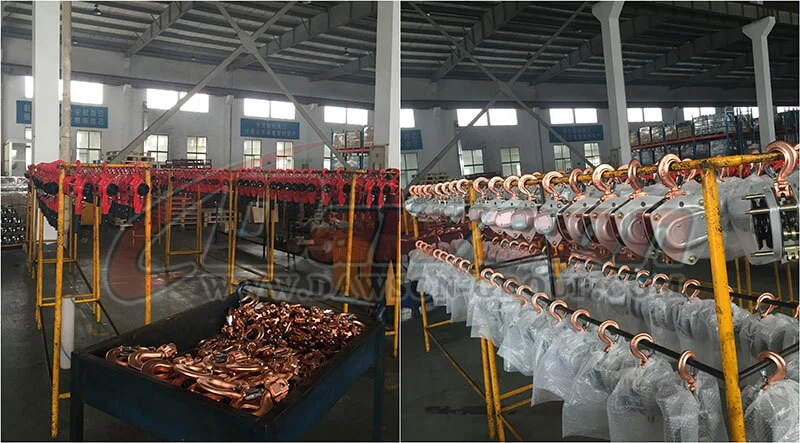

Factory and Package:
